Description

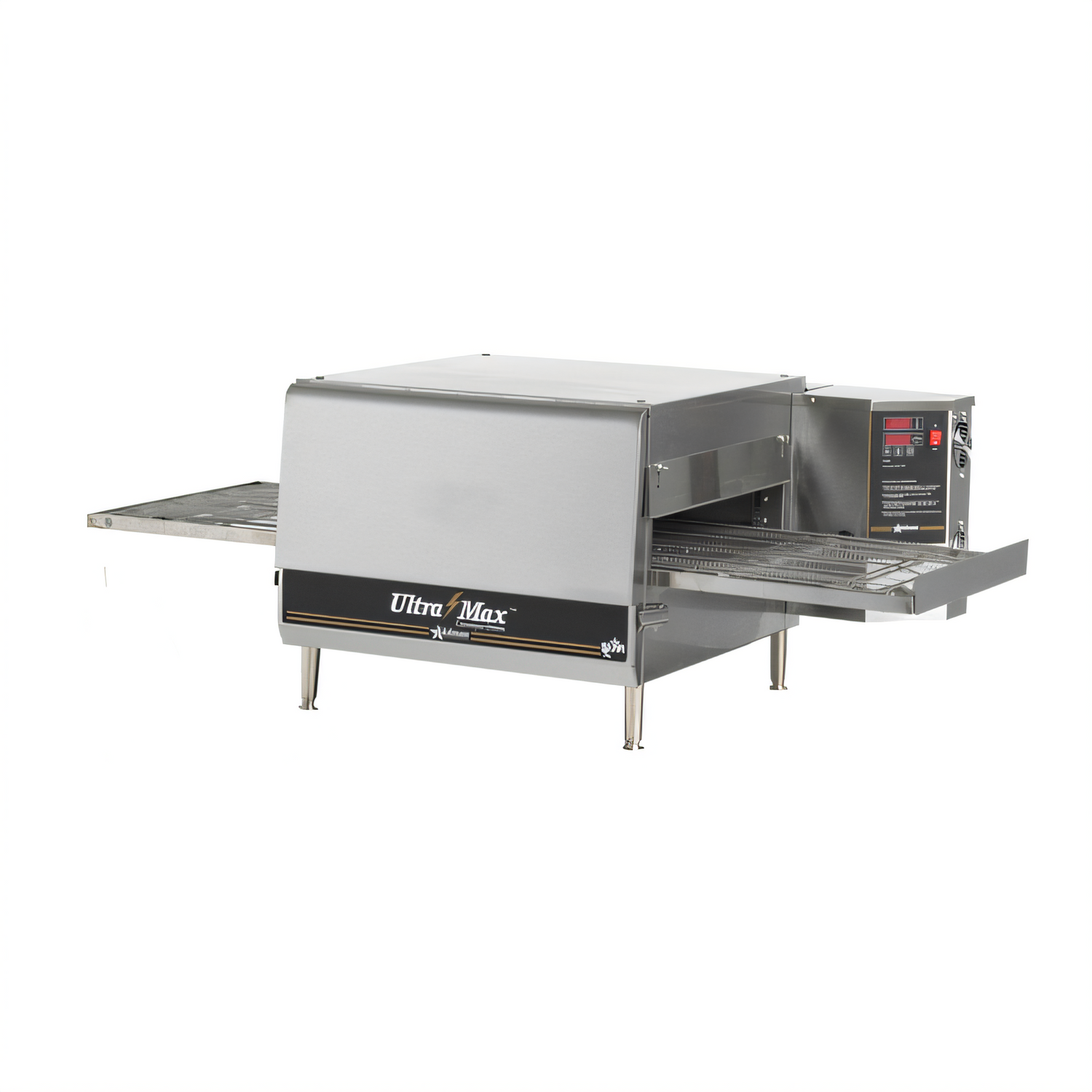

Star Ultra-Max® Electric Impingement Conveyor Oven – 50" Belt

Model UM1850A | Factory-Paid Start-Up Included

Bring high-speed, stone-oven quality to any countertop with the Star Ultra-Max® UM1850A. Its 50-inch PTFE-coated belt, 24-inch bake chamber and 6,000 W of impinged hot air slash cook times on pizza, snacks, desserts and more—perfect for QSRs, c-stores, hotel kitchens and ghost-kitchen operations.

Key Features & Benefits

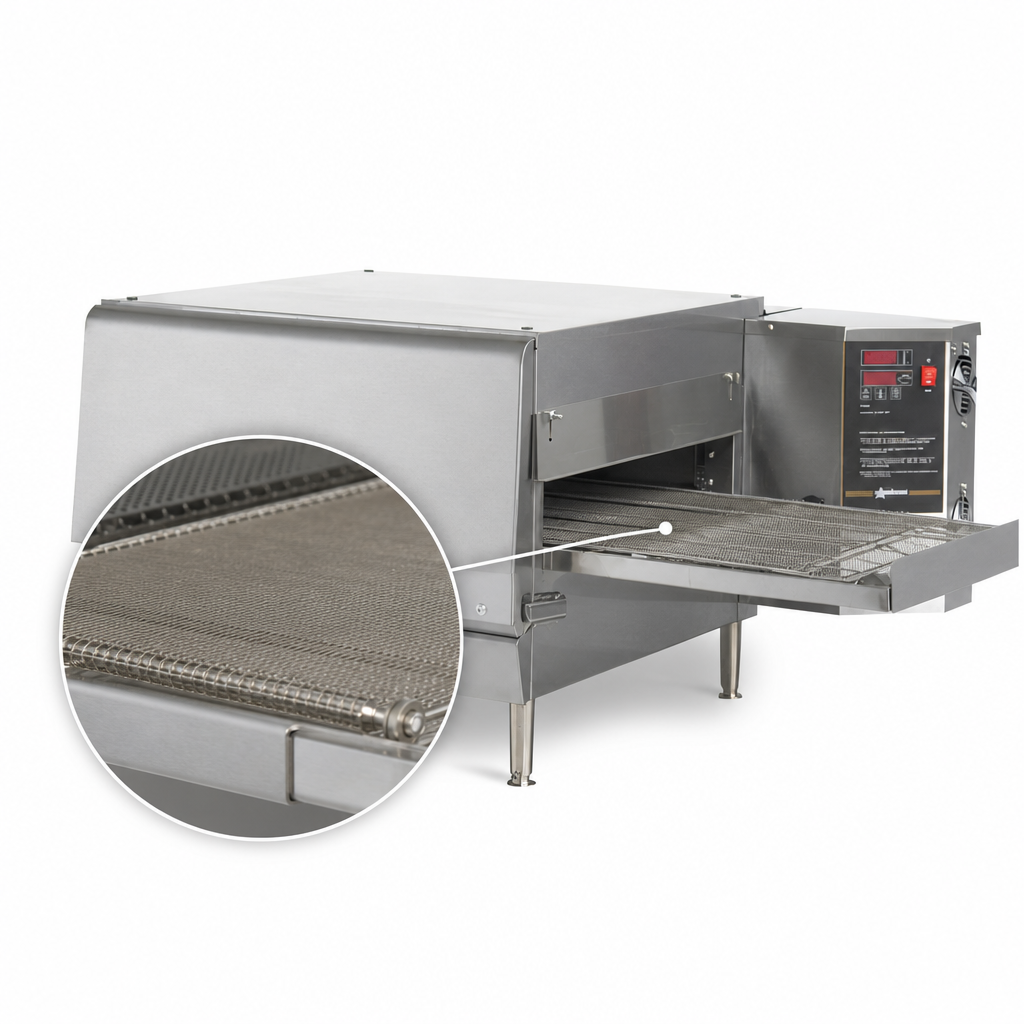

  • 18" wide non-marking PTFE conveyor with 50" bake length handles full-size pizzas and trays.
  • 24" stainless bake chamber with tool-free, removable impingement fingers for daily cleaning.

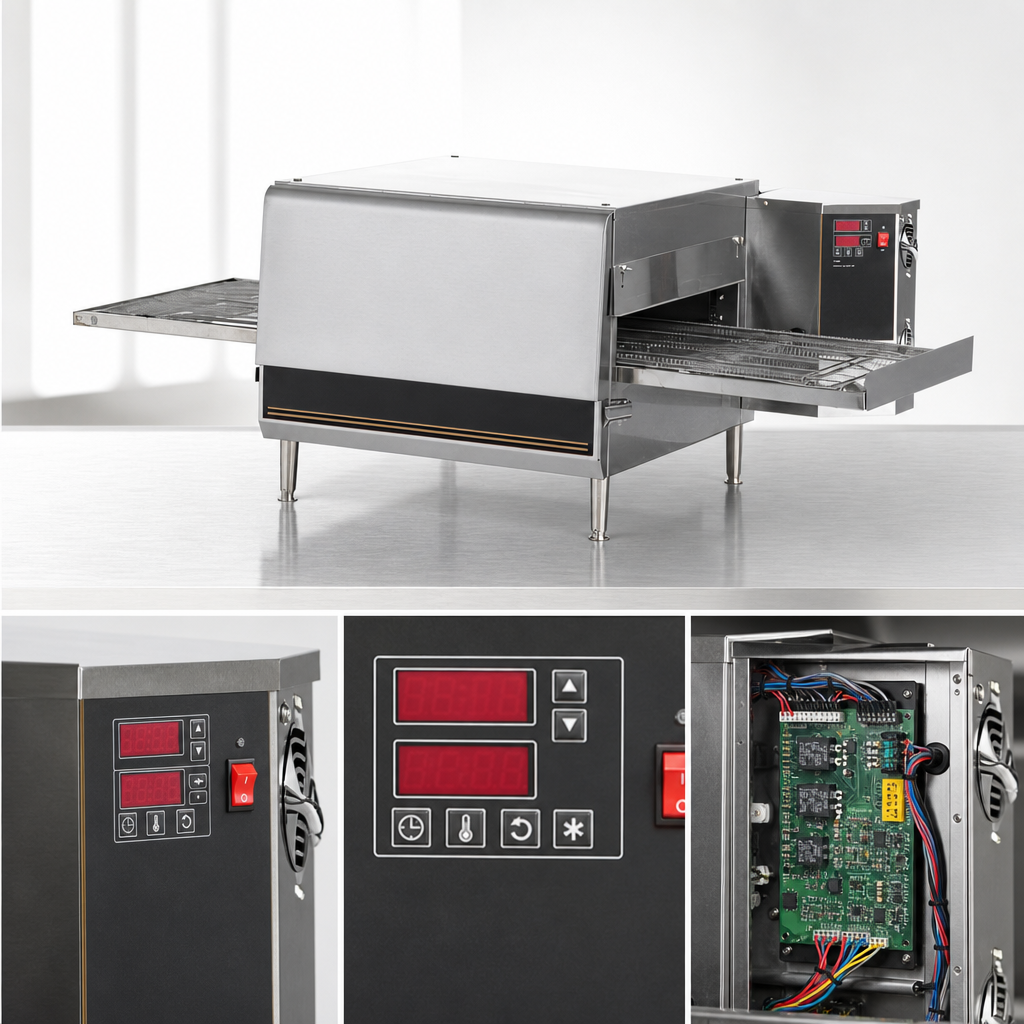

  • Digital controls with large LED read-out, independent time & temperature and six programmable menu presets.
  • Left-to-right belt flow standard; field convertible to right-to-left to fit any line layout.
  • Powerful 6,000 W metal-sheath elements & centrifugal fan deliver even, high-velocity airflow.
  • Integrated cooling fan keeps electronics safe—longer component life, fewer service calls.
  • Removable front panel grants instant access to the bake chamber and nozzle plates.
  • Stackable two-high; many installs require no additional hood (verify local code).
  • All-stainless exterior & bake chamber, cULus & UL EPH listed, Made in the USA.
  • 1-year parts & labor warranty plus factory-paid start-up by an authorized agent.

Menu Ideas

  • Thin-crust, pan or par-baked pizza up to 18"
  • Breadsticks, pretzels & flatbreads
  • Breakfast sandwiches & tacos
  • Frozen snacks & appetizers
  • Cookies, brownies & dessert bars

Specifications

Conveyor / Belt 18" W × 50" L, PTFE coated, non-marking
Cook Chamber 18" W × 24" L; adjustable 1.5"–4" product opening
Overall Dimensions 20" H × 50" W × 30.4" D
Heating Elements 6,000 W metal-sheath
Electrical 208 V / 31 A or 240 V / 27 A, 1-phase, NEMA 6-50P, 6' cord
Controls Digital time & temperature, °F/°C toggle, belt direction, 6 menu presets, manager lock-out
Certifications cULus, UL EPH
Weight 225 lb shipping / 195 lb installed
Clearance 6" from ends to combustible materials

Need more throughput? Add a second oven and stack two-high with the factory stacking kit (sold separately).

Electrical Requirement: Unit must be connected to a dedicated 50 A circuit. Installation must comply with local, state and national codes.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH

Height

20.0in

Width

50.0in

Depth

30.4in

Shipping Weight

290.0lbs

Deck Qty

single deck

Type

countertop

Oven Width

49" - 56"

Specifications

Ultra-Max® Impingement Conveyor Oven, electric, countertop, single deck, 50" conveyor length with non-marking PTFE Coated Belt, 18" wide x 24" length cook chamber, programmable controls for (6) menu presets, conveyor left-to-right standard, field convertible for right-to left, stainless steel bake chamber with easy-to-clean impingement fingers, stainless steel construction, cULus, UL EPH (Includes factory paid start-up, contact factory for details)
