Pizza Group  |  SKU: D24G - RL

Pizza Group D24G - RL Conveyor Ovens

$37,244.90
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

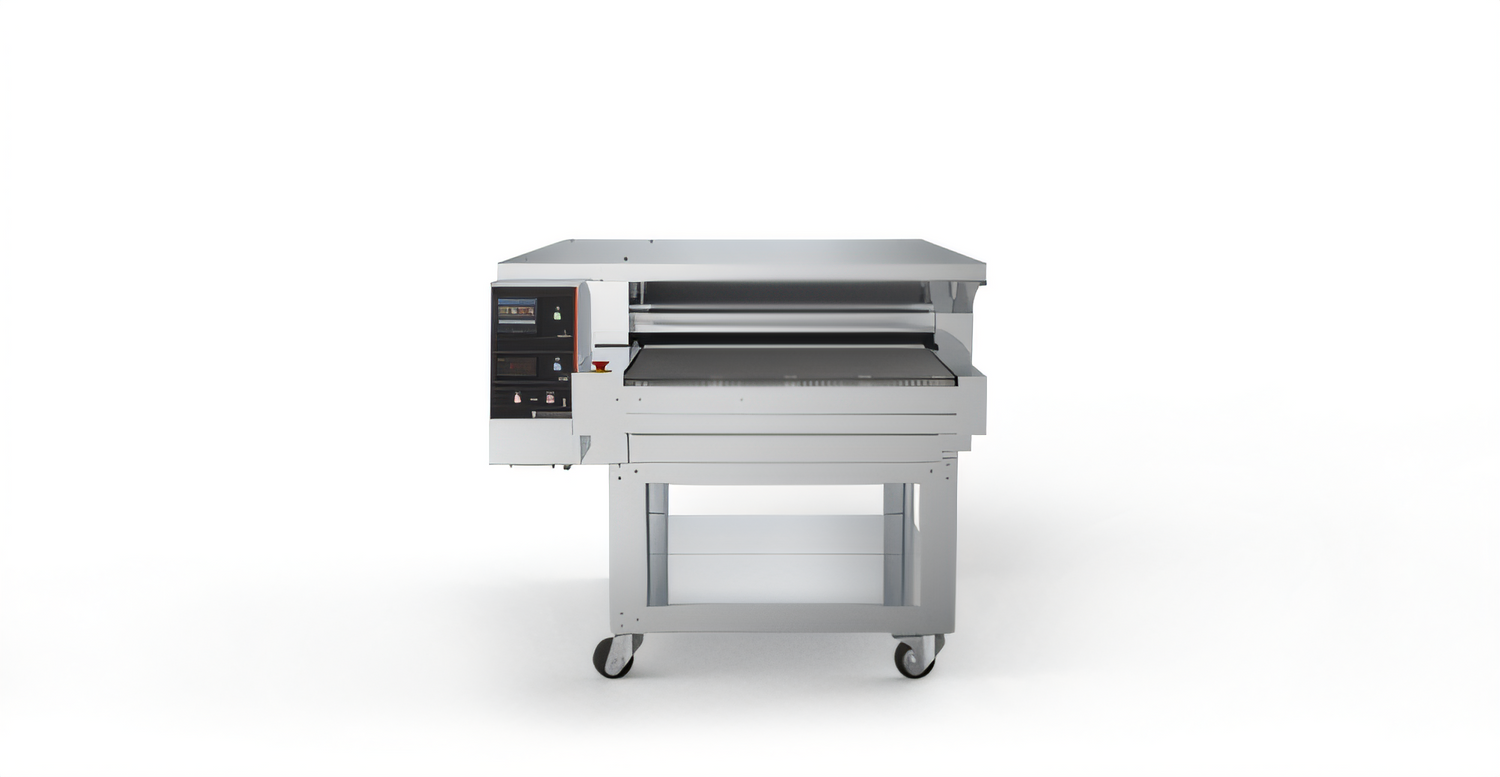

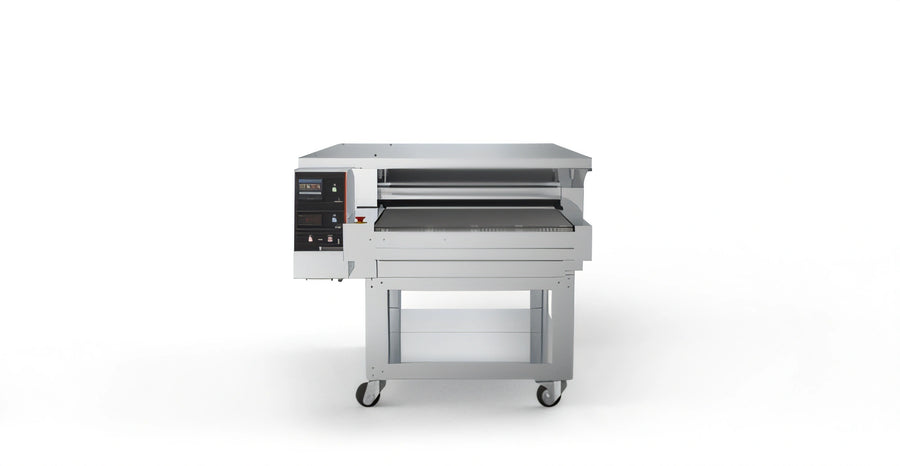

Dragon 24" Gas / Electric Refractory Stone Conveyor Oven

Left-to-Right feed • 24" (61 cm) belt • Model D24 G/E

Designed for operators who refuse to compromise on taste or throughput, the Pizza Group Dragon combines the blistering heat of a traditional hearth with the efficiency of a modern conveyor. Bake authentic, crispy-bottom pizzas at up to 840 °F (450 °C) while the Dragon’s smart ADPV System automatically tunes power to match demand—saving energy during slow periods, unleashing full power when the rush hits.

Key Advantages

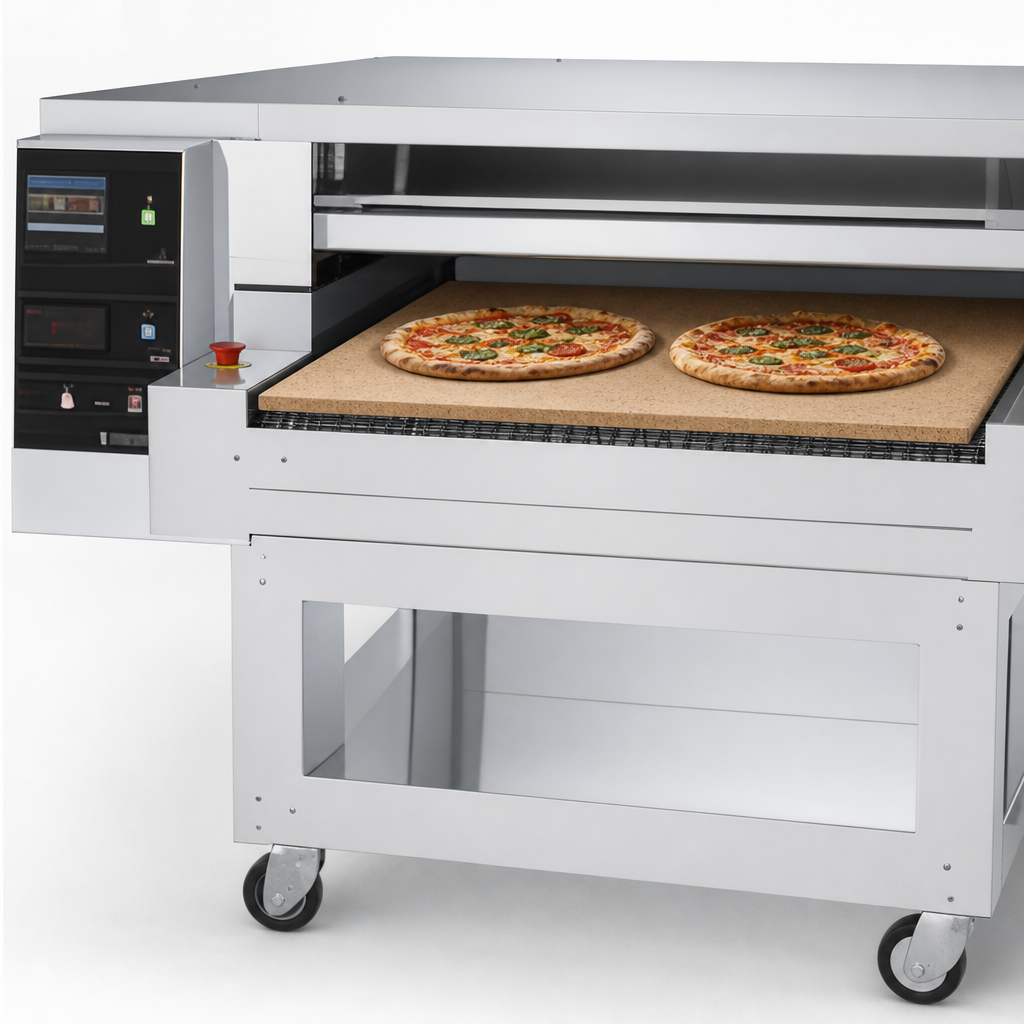

  • Refractory stone conveyor deck delivers true hearth-baked flavor—no pans or screens required.
  • Hybrid gas + electric power (80,000 BTU/h burner, 208 V / 60 Hz / 3-ph heaters) provides rapid recovery with precise zone control.

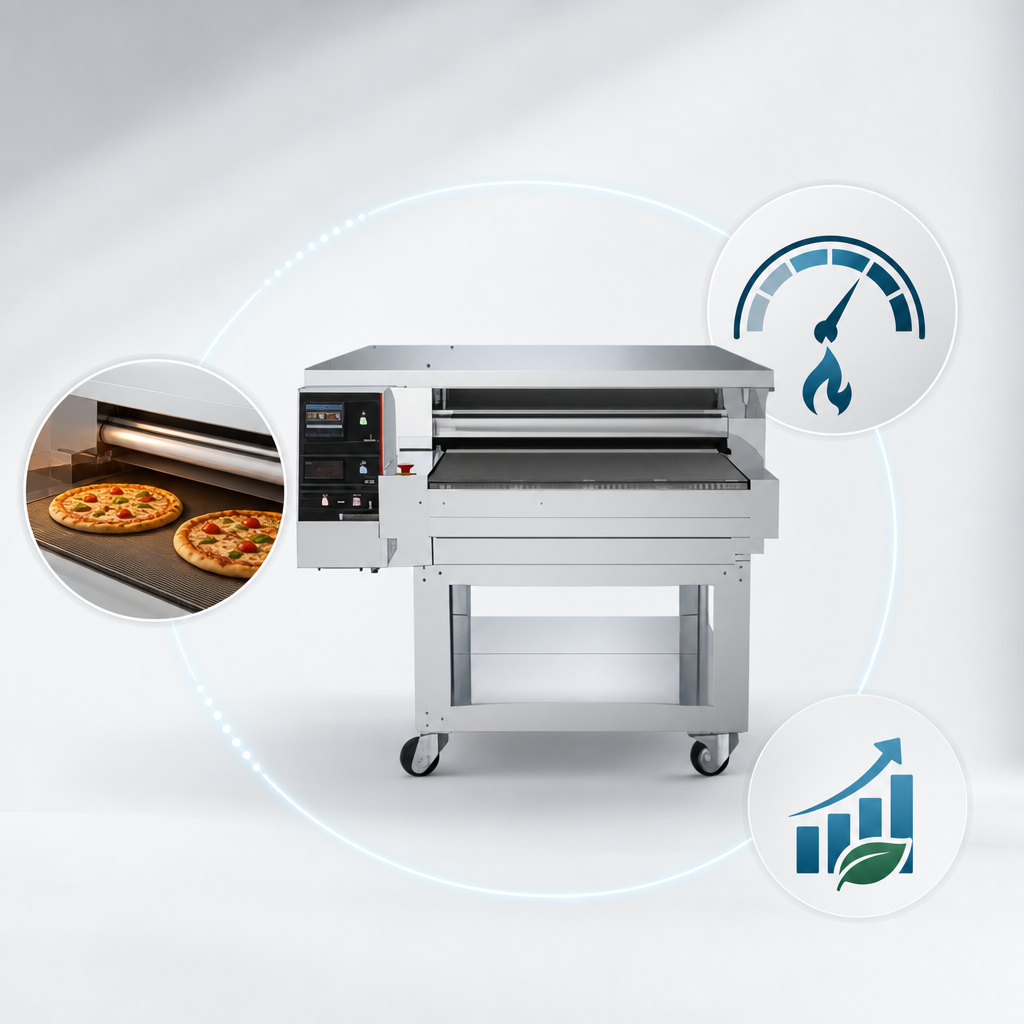

  • ADPV System senses production levels and adjusts output automatically to cut energy costs.
  • 3-zone top heat lets you program different entry & exit temperatures for perfect browning on every recipe.
  • Dual-rotation belt can run left-to-right or right-to-left—ideal when kitchen layouts change.
  • Detachable control panel mounts on the left, right, top or wall for ergonomic access.
  • Insulated center double-glass door makes it easy to insert slices, sandwiches or inspect product mid-bake.

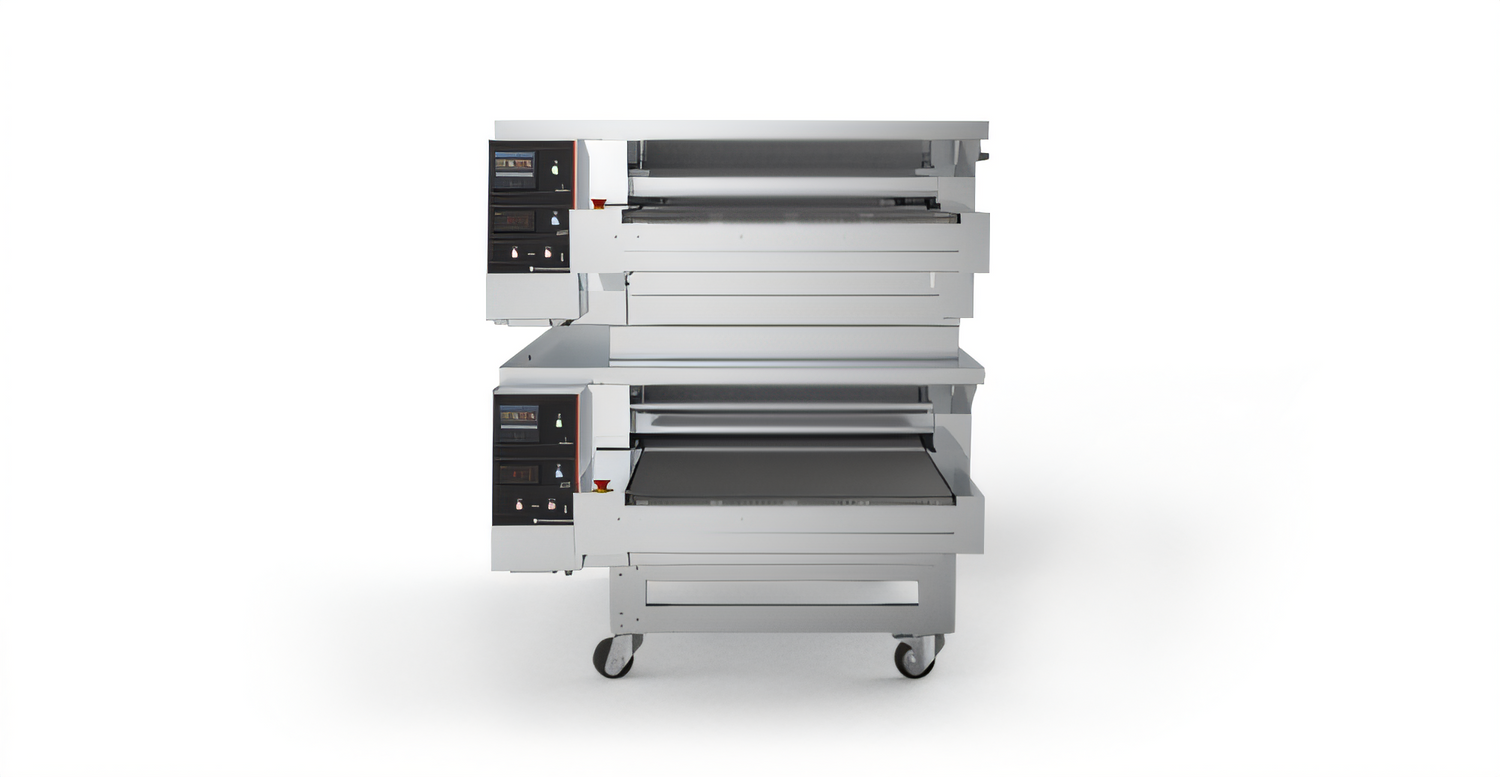

  • Stackable design—add a second or third deck (gas) to triple production without widening your footprint.
  • Industry 4.0 ready for remote monitoring, recipe storage and production analytics.
  • UL-ETL certified all-stainless construction with American-made electronics, motors and components.

Approximate Hourly Output*

Pizza Diameter Pizzas / Hour
10" / 25 cm Up to 485
12" / 30 cm Up to 291
14" / 35 cm Up to 208
16" / 40 cm Up to 202

*Productivity based on factory test data at typical bake times; results may vary with recipe and settings.

Technical Specifications

External Dimensions (W × D × H) 104.7" × 47.2" × 51.1" (266 × 120 × 130 cm)
Belt Width / Direction 24" (61 cm) • Left-to-Right (reversible)
Internal Baking Chamber 53.9" L × 24" W × 2.3" H (137 × 61 × 6 cm)
Maximum Temperature 840 °F / 450 °C
Heat Source Natural or Propane Gas burner + Electric top elements
Gas Consumption 80,000 BTU/h • 3/4" NPT inlet • 20 mbar Nat / 30 mbar LPG
Electrical 208 V / 60 Hz / 3-ph • 36 A (gas version controls & motors)
Weight (oven only) Approx. 1,411 lb (640 kg)
Certifications UL-ETL, CE
Warranty 5-year parts & labor (see warranty terms)

Installation & Utilities

  • Ships fully crated; all sections fit through a standard 36" × 80" doorway.
  • Typical set-up time: 3 – 5 hours with a certified electrician and gas technician present.
  • Requires exhaust hood & make-up air per local code.
Stand not included. Mobile or fixed stands, additional decks and remote‐monitoring kits are sold separately.

Features & Specs

Manufacturer

Pizza Group

Height

23.6in

Width

104.7in

Depth

47.2in

Shipping Weight

1763.7lbs

Oven Width

31" - 48"

Conveyor Qty (per deck)

1

Deck Qty

single deck

Type

floor model

Specifications

Gas and Electric Stone Conveyor Oven, left-to-right, 104.7"W x 47.2"D x 51.1"H, 24" wide belt, without stand, refractory stone static conveyor, ADPV system, 840 F (450 C) max temperature, 80,000 BTU/h, detachable control panel, insulated center double glass door, dual rotation belt, stackable, 4.0 ready, complete stainless steel structure 208V/60Hz/3-ph, UL- ETL
