Pizza Group D32G - RL Conveyor Ovens
Pizza Group D32G - RL Conveyor Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Pizza Group D32G - RL Conveyor Ovens
Description
Pizza Group Dragon 32 Stone Conveyor Oven — Gas & Electric, Right-to-Left 32" Belt
124.4" W × 55.1" D × 51.1" H | Model D32 E/G | Deck-only (no stand)Designed for kitchens that refuse to compromise on speed or authenticity, the Dragon 32 combines a 100,000 BTU/h gas burner with powerful 208 V three-phase electric elements and Pizza Group’s intelligent ADPV power-saving system. The result is blistering 840 °F (450 °C) stone-deck performance with conveyor convenience, 24/7 reliability and energy efficiency that pays for itself.
Why you’ll love it

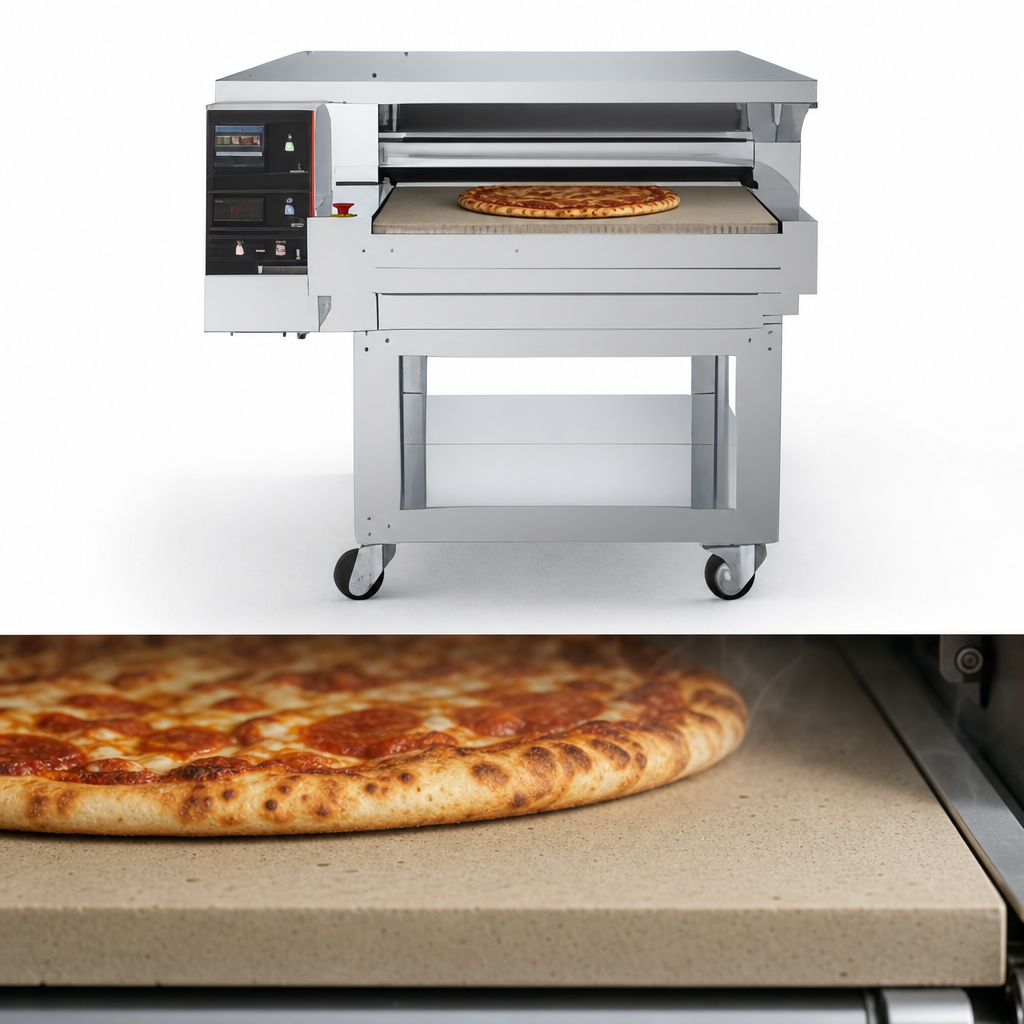

- 32" (81 cm) refractory stone conveyor — bake directly on the hearth for unbeatable crispness.
- Factory-set right-to-left flow; dual-rotation drive lets you switch direction in minutes.

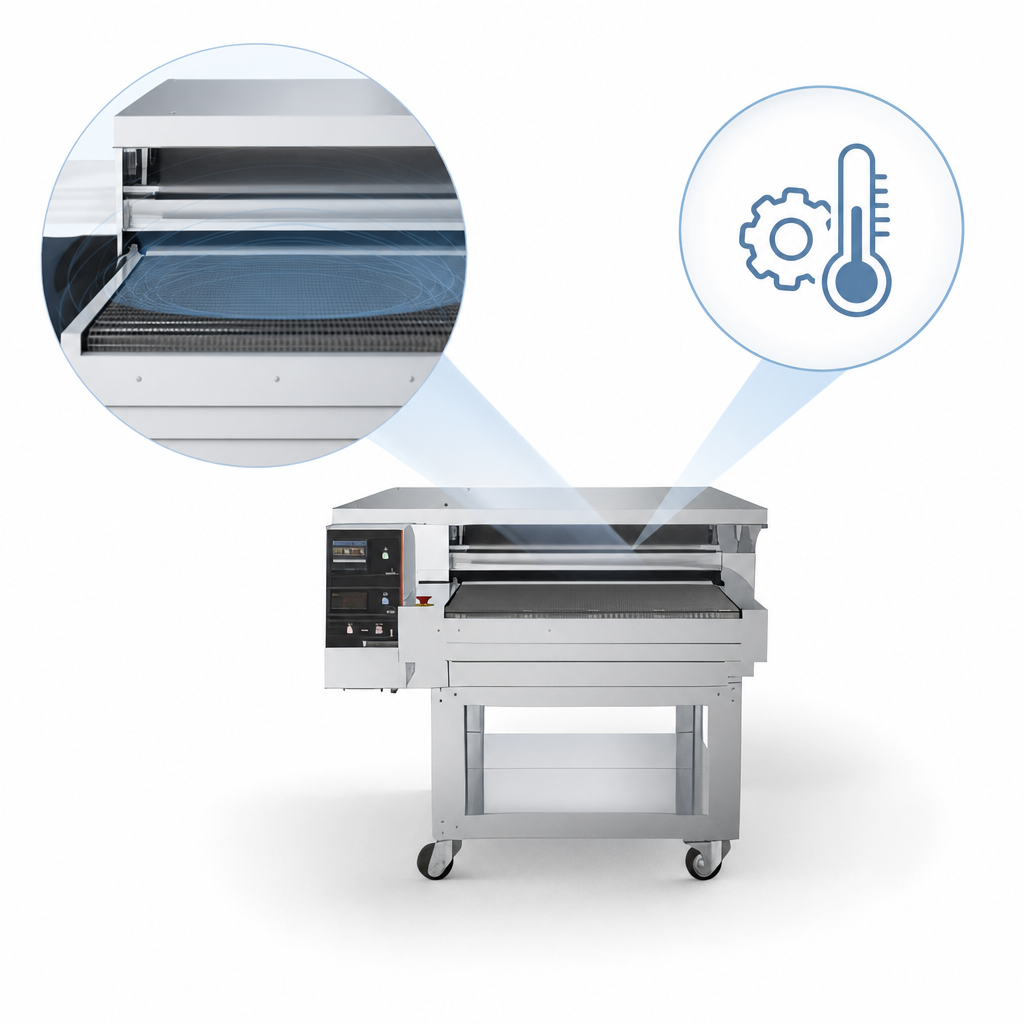

- ADPV System senses production demand and automatically balances gas & electric power, slashing idle costs.
- 3-zone top heat control for products that need different temperatures at entry and exit.
- Detachable control panel mounts on the left, right, top or even a nearby wall for ultimate flexibility.
- Insulated center double-glass door for at-a-glance monitoring and mid-belt loading of slices or sandwiches.

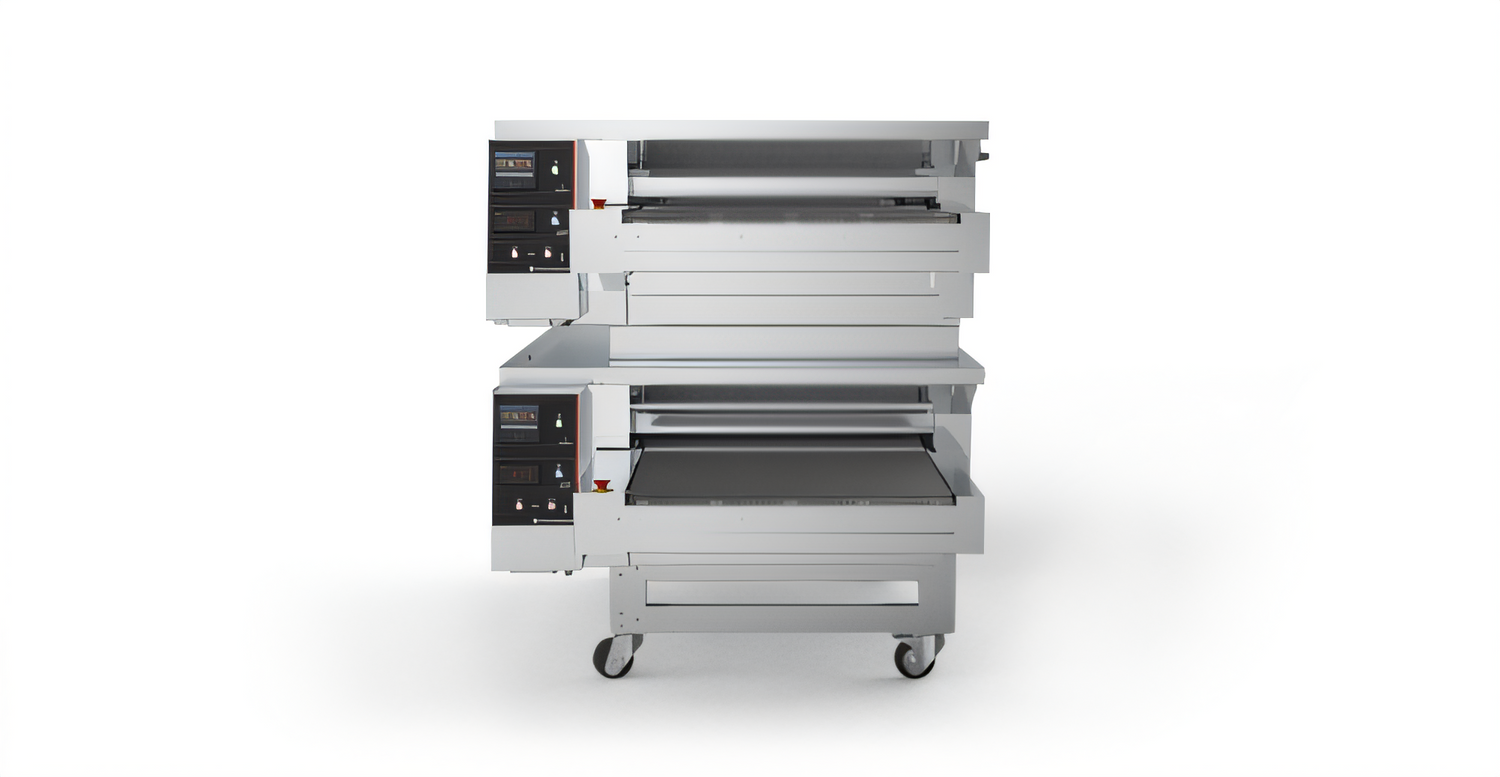

- Stackable architecture — double or triple capacity in the same footprint (stand & kits sold separately).
- 4.0 Ready: Ethernet/USB port for remote monitoring, data logging and service diagnostics.
- All-stainless-steel construction with American-made motors & electronics, UL-ETL listed.
Performance at a glance
| Maximum chamber temperature | 840 °F / 450 °C |
|---|---|
| Typical bake time range | 1.5 – 7 min |
| Hourly output (12" pizza) | ≈ 468 pizzas (single deck) |
| Belt direction | Right-to-left (field reversible) |
Technical specifications
| External dimensions (W × D × H) | 124.4" × 55.1" × 51.1" (316 × 140 × 130 cm) |
|---|---|
| Cooking chamber length | 65.7" / 167 cm |
| Belt width | 32" / 81 cm |
| Electrical requirements | 208 V, 60 Hz, 3-phase, 105 A breaker |
| Gas input | Natural or Propane, 100,000 BTU/h, 3/4" NPT, 20 mbar (NG) / 30 mbar (LPG) |
| Shipping weight (crated) | ≈ 2,292 lb / 1,040 kg |
| Certification | UL-ETL listed |
Perfect for
- Neapolitan-style pizzas that demand sub-2-minute bakes at 800 °F+
- High-hydration doughs, flatbreads, focaccia & calzones
- High-volume QSRs, ghost kitchens, stadium concessions & commissaries
Stand, stacking kits and exhaust hood sold separately.
