Pizza Group D32G - LR Conveyor Ovens
Description

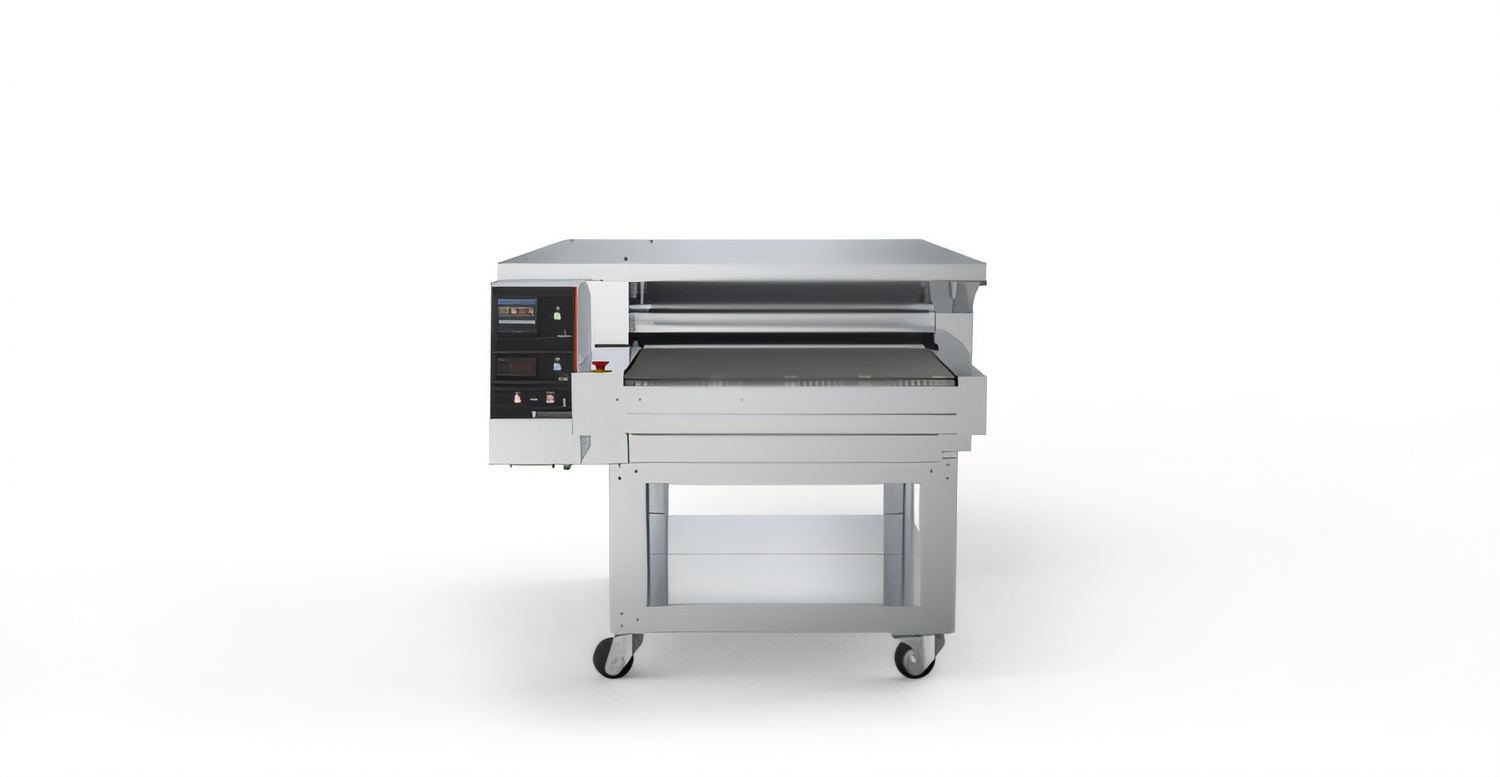

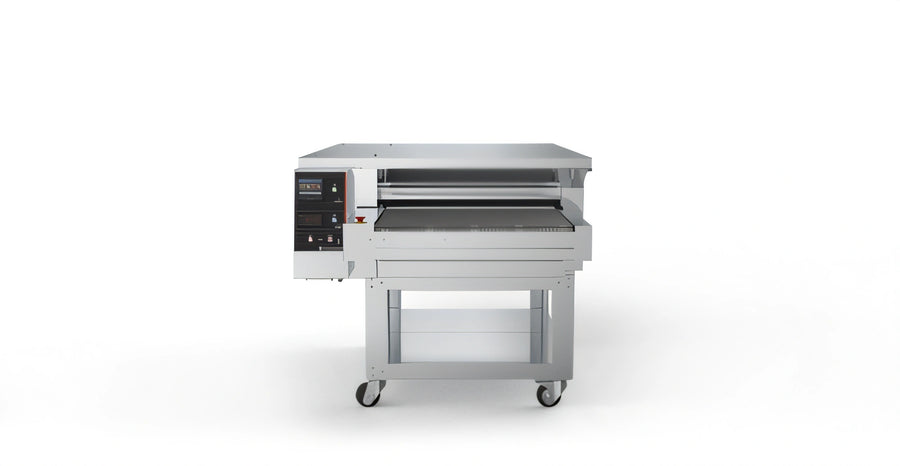

Dragon 32" Refractory Stone Conveyor Oven
Hybrid Gas & Electric • Left-to-Right Feed • 100,000 BTU/h • UL-ETLBuilt in Italy by Pizza Group, the Dragon 32 combines lightning-fast throughput with hearth-baked authenticity. A 32-inch stone conveyor, hybrid gas + electric power and the intelligent ADPV energy-management system let you push out hundreds of perfectly crisp pizzas every hour while keeping utility costs under control.
Top reasons operators choose Dragon
- Hybrid power: natural/propane gas burner plus 208 V 3-ph electric elements for maximum heat recovery and efficiency.

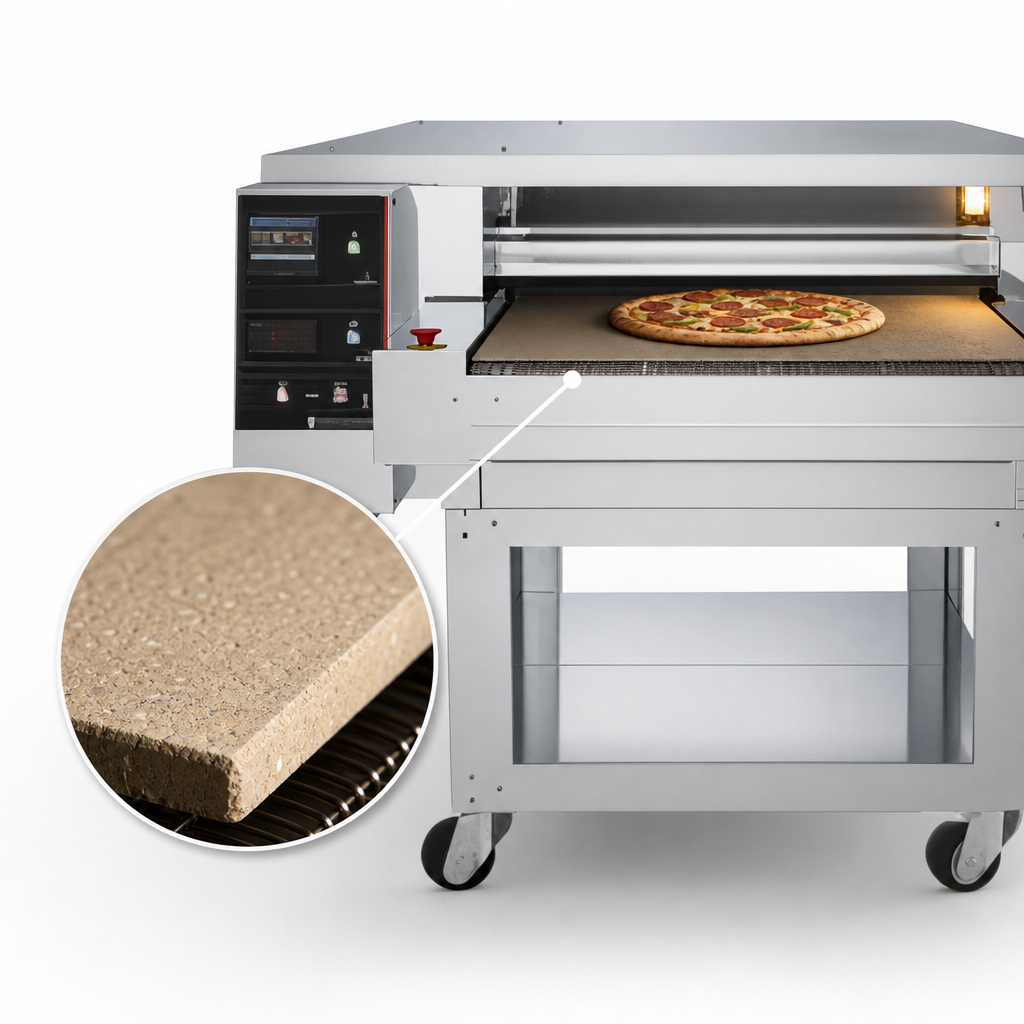

- Refractory stone deck: bake directly on the belt for that signature leopard-spotted crust—no screens or pans required.

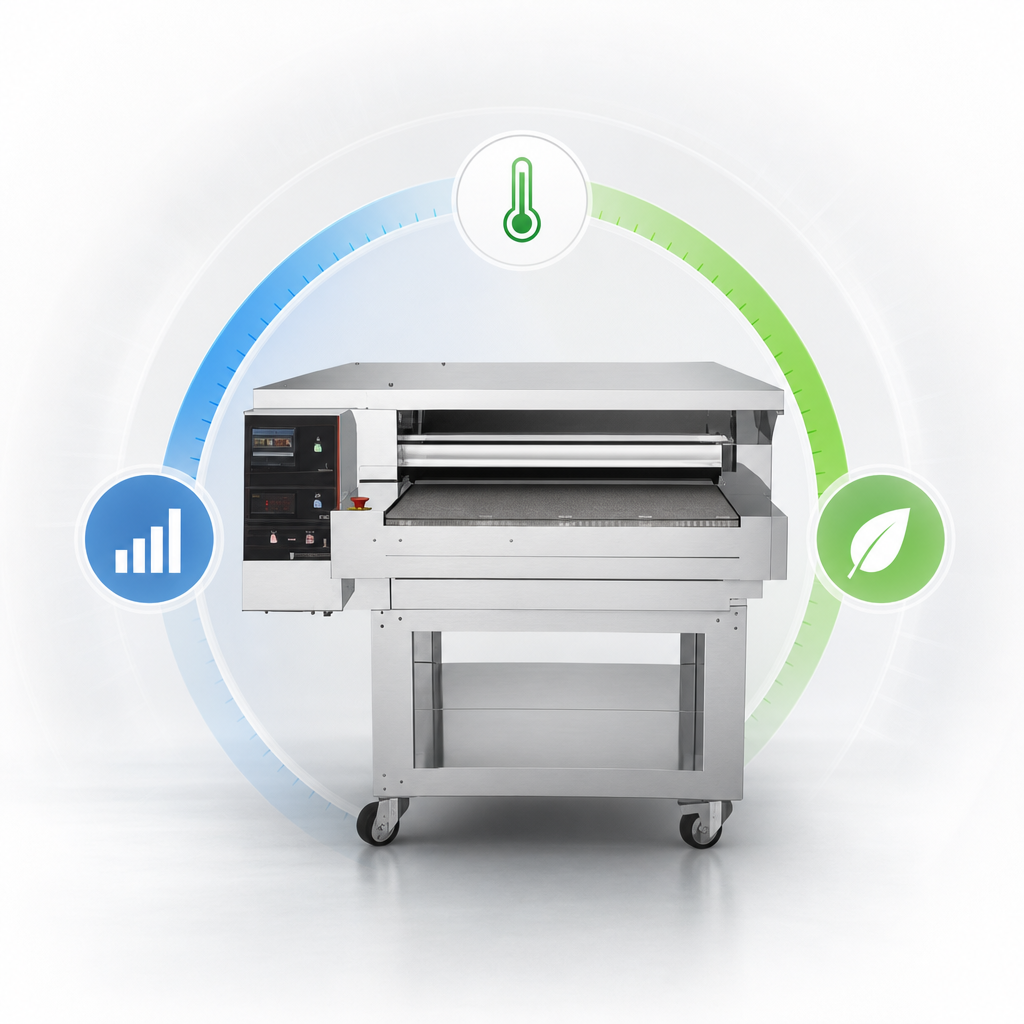

- ADPV System: oven senses production demand and automatically adjusts power, then slips into idle mode during slow periods.
- Dual-direction belt: change the flow from left-to-right or right-to-left in seconds to match any kitchen layout.
- 840 °F (450 °C) top temperature: dial in ultra-short Neapolitan style bakes or lower temps for Detroit, Sicilian & flatbreads.
- 3 independent top zones: set different entrance and exit temperatures for perfect finish on any product.
- Detachable control panel: mount on the left, right, top or a nearby wall for the ultimate ergonomic set-up.

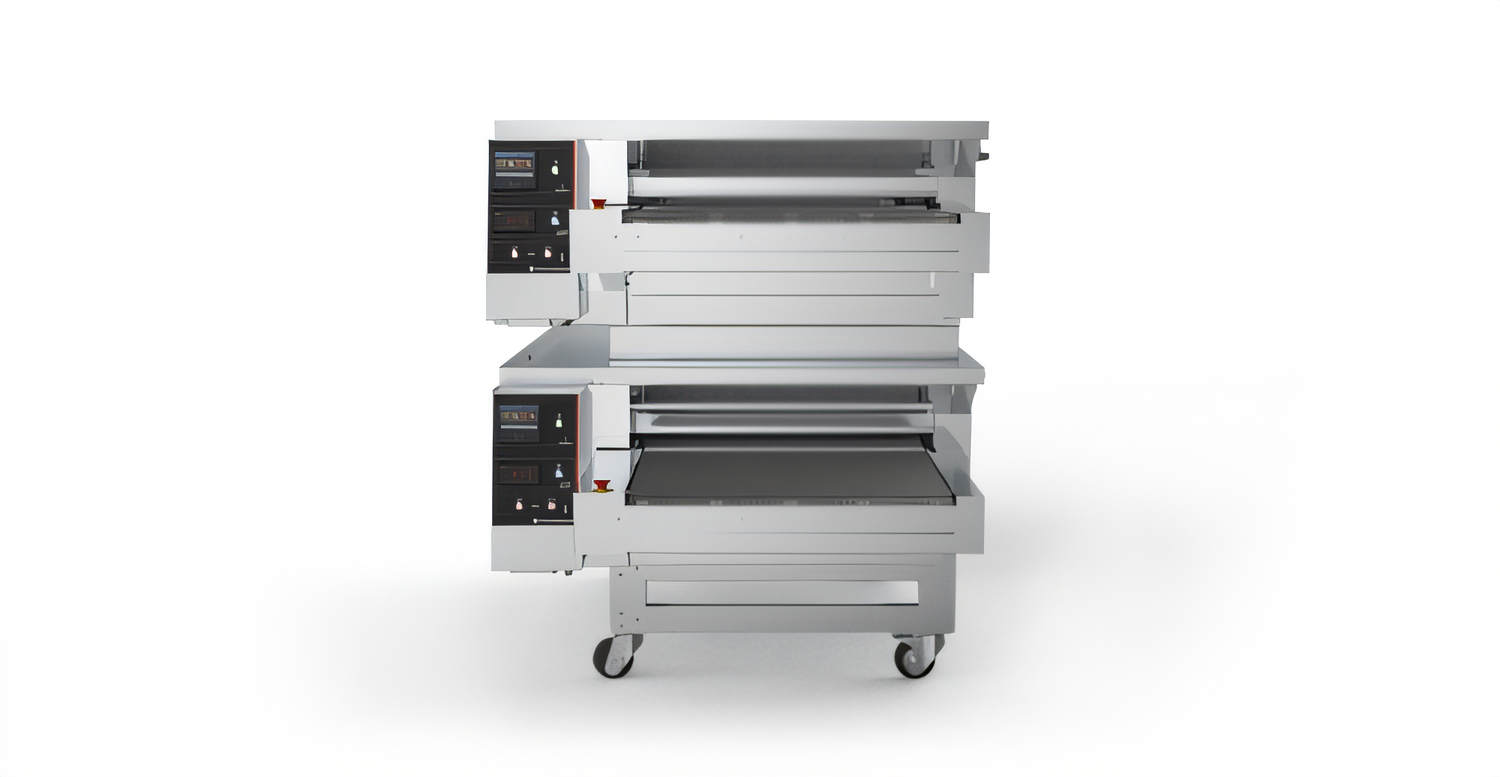

- Stackable design: double or triple decks without expanding your footprint as your business grows.
- 4.0 Ready: optional remote monitoring lets you track productivity and service data from anywhere.
- All-stainless construction: inside and out for 24/7 durability and quick wipe-down cleaning.
Serious hourly output
Actual production varies with recipe and bake time. Figures below are factory tests at a 2:30 min bake:
- 10" pizzas – up to 780 /hr
- 12" pizzas – up to 468 /hr
- 16" pizzas – up to 182 /hr
Technical specifications
| Model | Dragon 32 E/G (no stand) |
|---|---|
| Belt width | 32 in (81 cm) stainless mesh, stone-lined |
| Direction | Left-to-Right (reversible) |
| External dimensions | 124.4 W × 55.1 D × 51.1 H in (316 × 140 × 130 cm) |
| Chamber height | 2.3 in (6 cm) |
| Maximum temperature | 840 °F (450 °C) |
| Gas input | 100,000 BTU/h – natural or propane |
| Electric requirements | 208 V / 60 Hz / 3-ph • 105 A breaker |
| Certifications | UL-ETL Sanitation & Safety |
| Net weight | 1,741 lb (790 kg) electric • 1,829 lb (830 kg) gas |
Need a matching stand, extra deck or remote connectivity package? Contact our sales team and we’ll configure the perfect Dragon for your workflow.
