Pizza Group D32E - RL Conveyor Ovens
Description

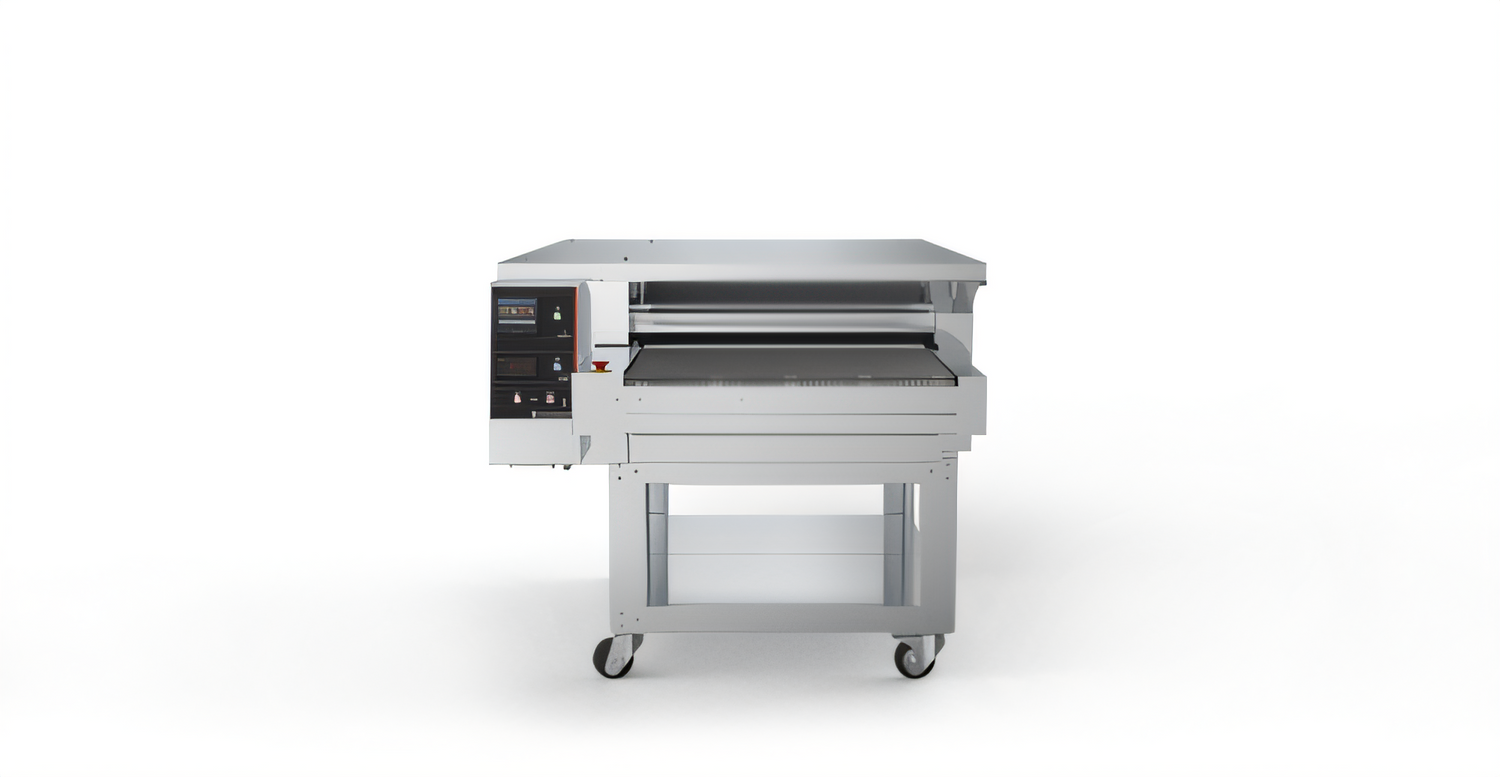

Dragon 32 Electric Stone Conveyor Oven – 32 “ Belt
High-productivity refractory stone conveyor oven with ADPV Smart Power | 208 V / 60 Hz / 3-PhCrafted in Italy by Pizza Group, the Dragon 32E delivers hearth-baked quality at industrial speed. A genuine refractory stone deck, 840 °F ceiling temperature and automatic power modulation combine to push out blistered, airy crusts non-stop while keeping energy costs in check.
Key advantages
- 32 " (81 cm) dual-rotation belt – bake right-to-left or left-to-right at the touch of a button.

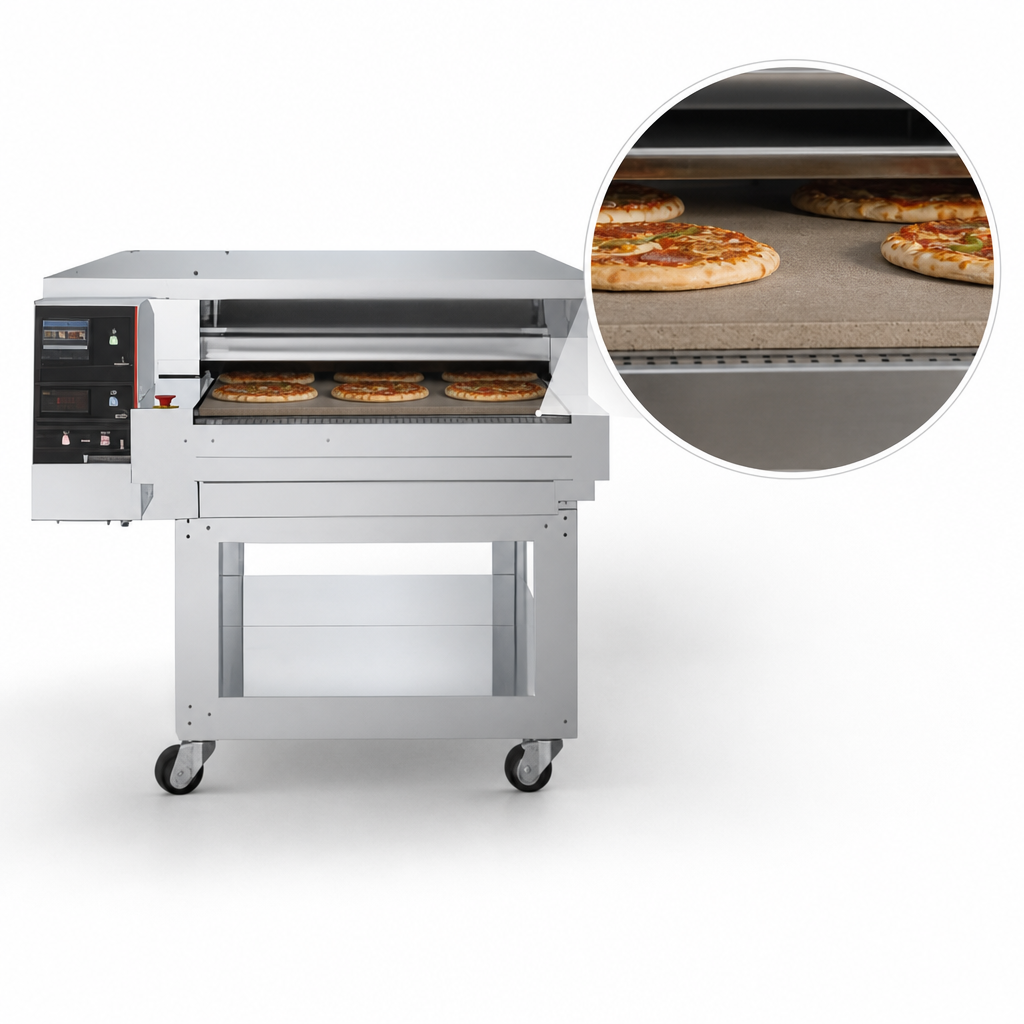

- Static refractory stone surface for authentic, pan-free results and superior heat retention.

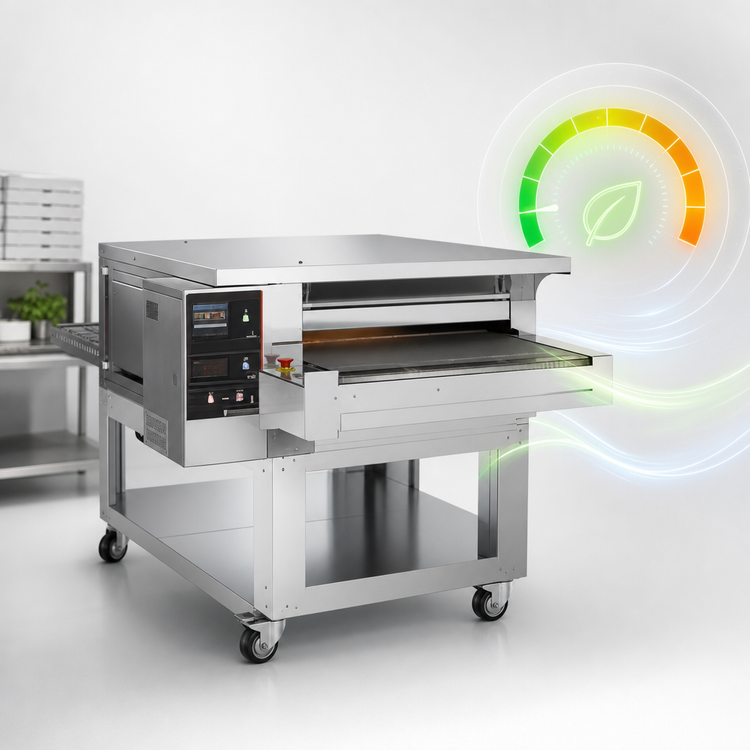

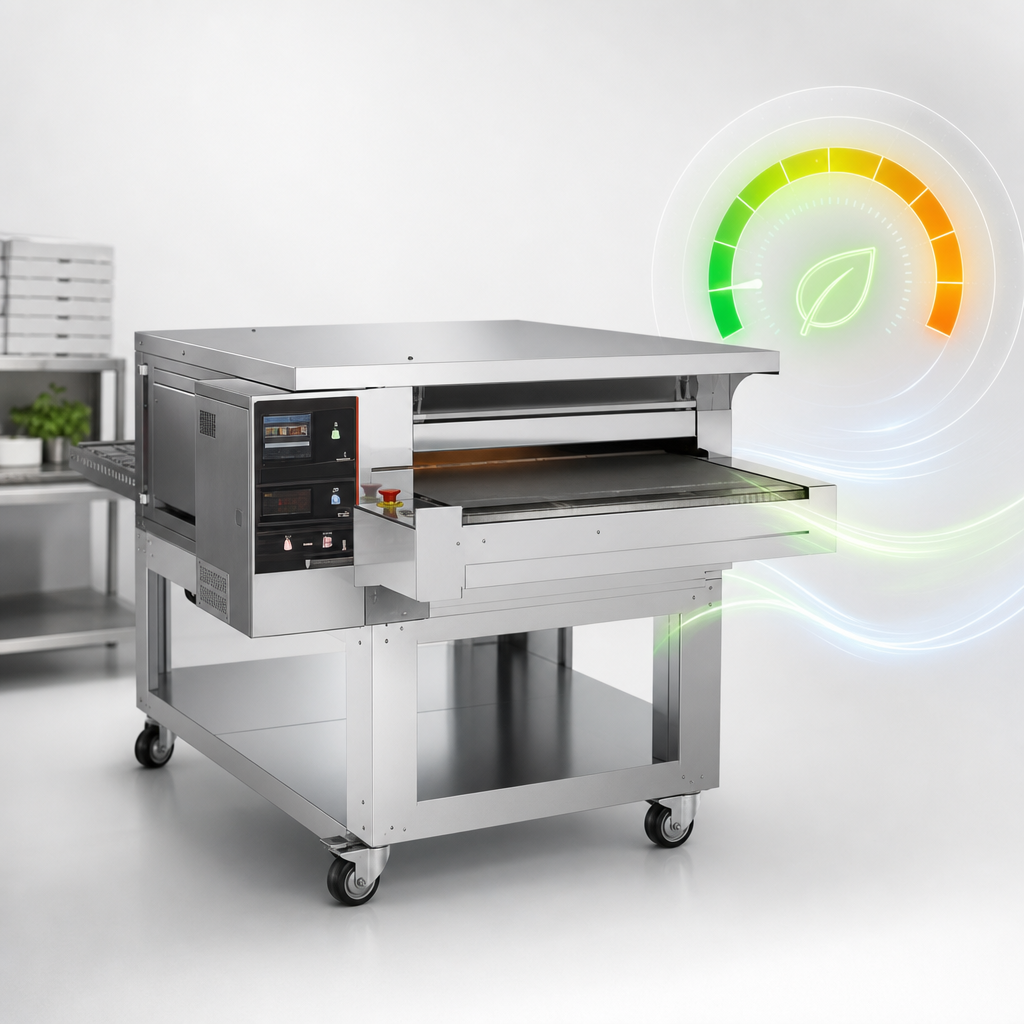

- ADPV System senses production load and adjusts power on the fly to slash idle consumption.
- 3-zone top heat control to perfect color and finish across the entire bake cycle.
- Detachable touch-screen control panel mounts on any side, on top or even on a nearby wall.
- Insulated center double-glass door for live viewing and mid-bake loading of slices or sandwiches.

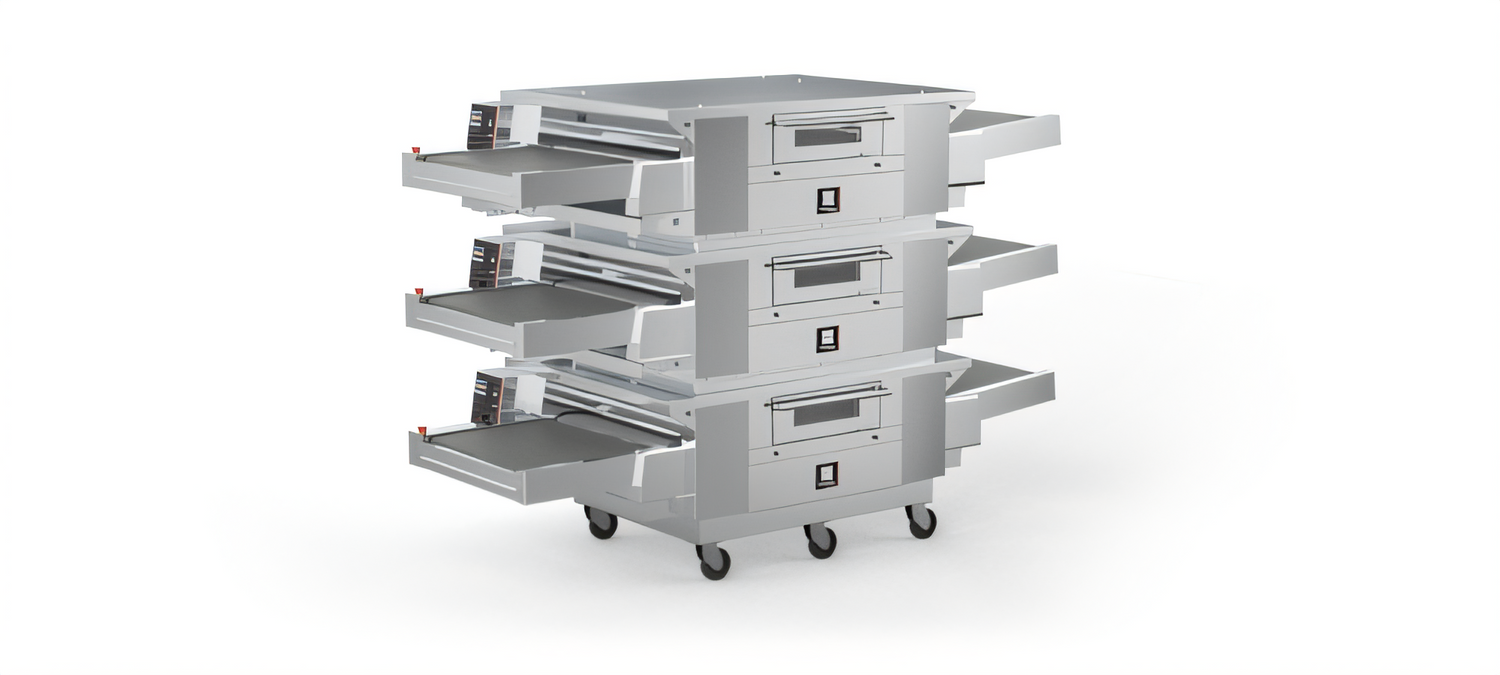

- Stackable design – double or triple capacity on the same footprint as your business grows.
- Industry 4.0 ready – remote monitoring, control and production analytics (optional kit).
- Complete stainless-steel structure (inside & out) for 24/7 durability and fast clean-up.
- UL & ETL listed for electrical safety and sanitation.
Throughput example*
| Pizza diameter | 1.5 min bake | 2 min bake | 3 min bake | 5 min bake |
|---|---|---|---|---|
| 10 “ (25 cm) | 780/hr | 468/hr | — | — |
| 12 “ (30 cm) | 542/hr | 325/hr | — | — |
| 16 “ (40 cm) | — | 182/hr | 130/hr | — |
| 22 “ (56 cm) | — | — | 86/hr | 33/hr |
*Single-deck Dragon 32E, continuous load, factory test dough.
Technical specifications
| Model | Dragon 32E (electric – deck only, stand sold separately) |
|---|---|
| Conveyor width | 32 “ / 81 cm |
| Chamber length | 65.7 “ / 167 cm |
| Chamber height | 2.3 “ / 6 cm |
| External dimensions | 124.4 “ W × 55.1 “ D × 51.1 “ H (316 × 140 × 130 cm) |
| Temperature range | Room temp – 840 °F / 450 °C |
| Electrical requirement | 208 V • 60 Hz • 3-phase • 105 A draw • 120 A breaker |
| Net weight | 1,741 lb / 790 kg |
| Shipping weight | 2,204 lb / 1,000 kg (crated) |
| Construction | Full stainless steel frame & interior, refractory stone deck, replaceable mesh infeed/outfeed belts |
| Certifications | UL • ETL Sanitation |
| Warranty | 5 years parts & labor (manufacturer terms) |
Installation checklist
- Requires hard-wired 208 V, 3-phase electrical service (certified electrician needed).
- Fits through a standard 36 " × 80 " doorway (minimum 25 " wide on its side).
- Professional installation time: 3–5 hours.
- Code-compliant ventilation hood required (consult local authorities).
- Safety chains and final electrical whip supplied by installer.
Stand, additional decks and Industry 4.0 connectivity kit sold separately. Specifications subject to change without notice.
