Pizza Group D24E - LR Conveyor Ovens
Description

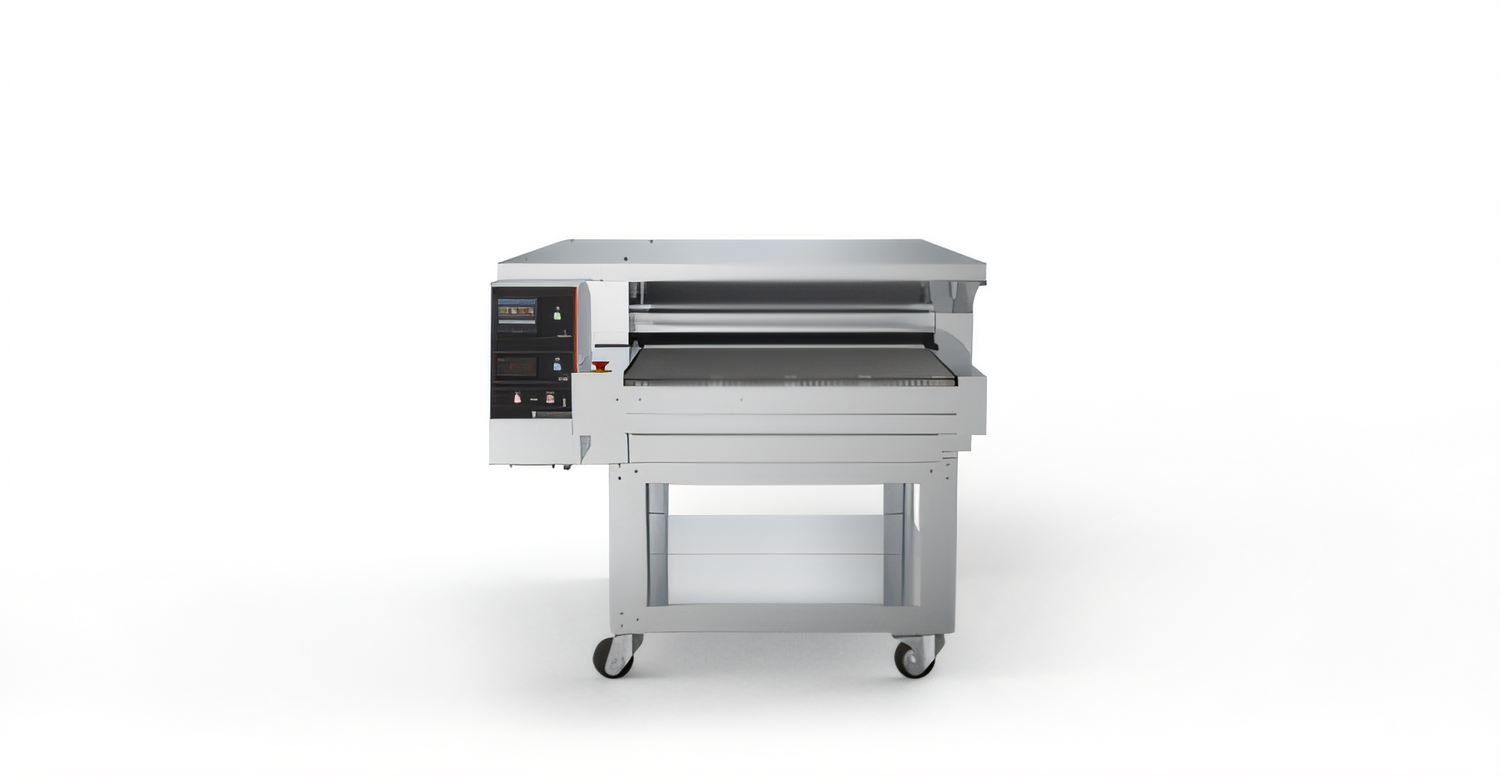

Pizza Group DRAGON 24E Electric Stone Conveyor Oven
24 in Belt • Left-to-Right Feed • Single-Deck (stand not included)Built for nonstop, high-volume pizza production, the Dragon 24E couples a genuine refractory-stone hearth with a precision static conveyor. Its patented ADPV System constantly adapts power to your rush-hour or off-peak flow, so you get perfect, repeatable bakes while saving energy between orders. With a blazing 840 °F (450 °C) ceiling, dual-direction belt, and fully stainless-steel build, this oven delivers artisan-quality results at an industrial pace.
Why You’ll Love It

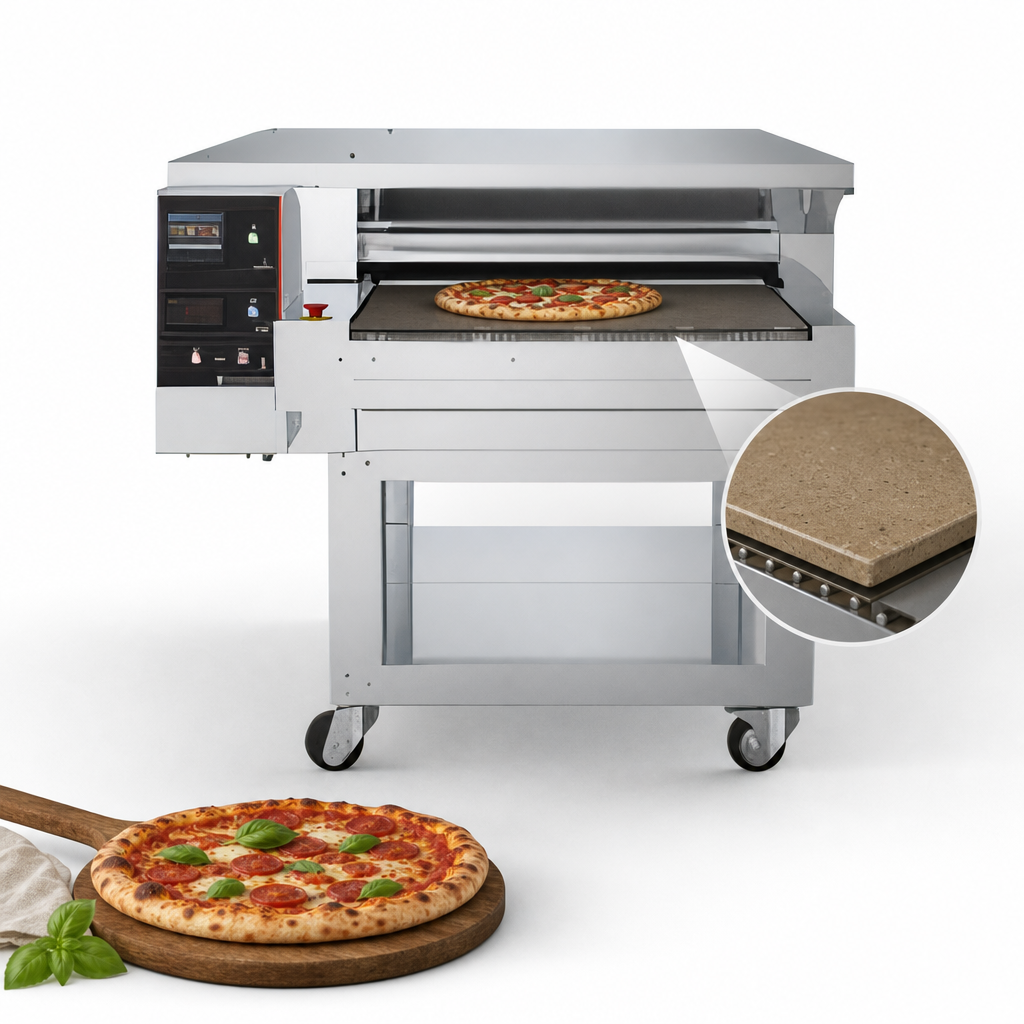

- Refractory stone baking surface for authentic hearth-baked texture—no pans or screens required.
- ADPV (Automatic Dynamic Power Variation) intelligently matches power to load, reducing energy use up to 30 % during idle.
- Three independent heat zones let you fine-tune entry and exit temperatures for any dough style.

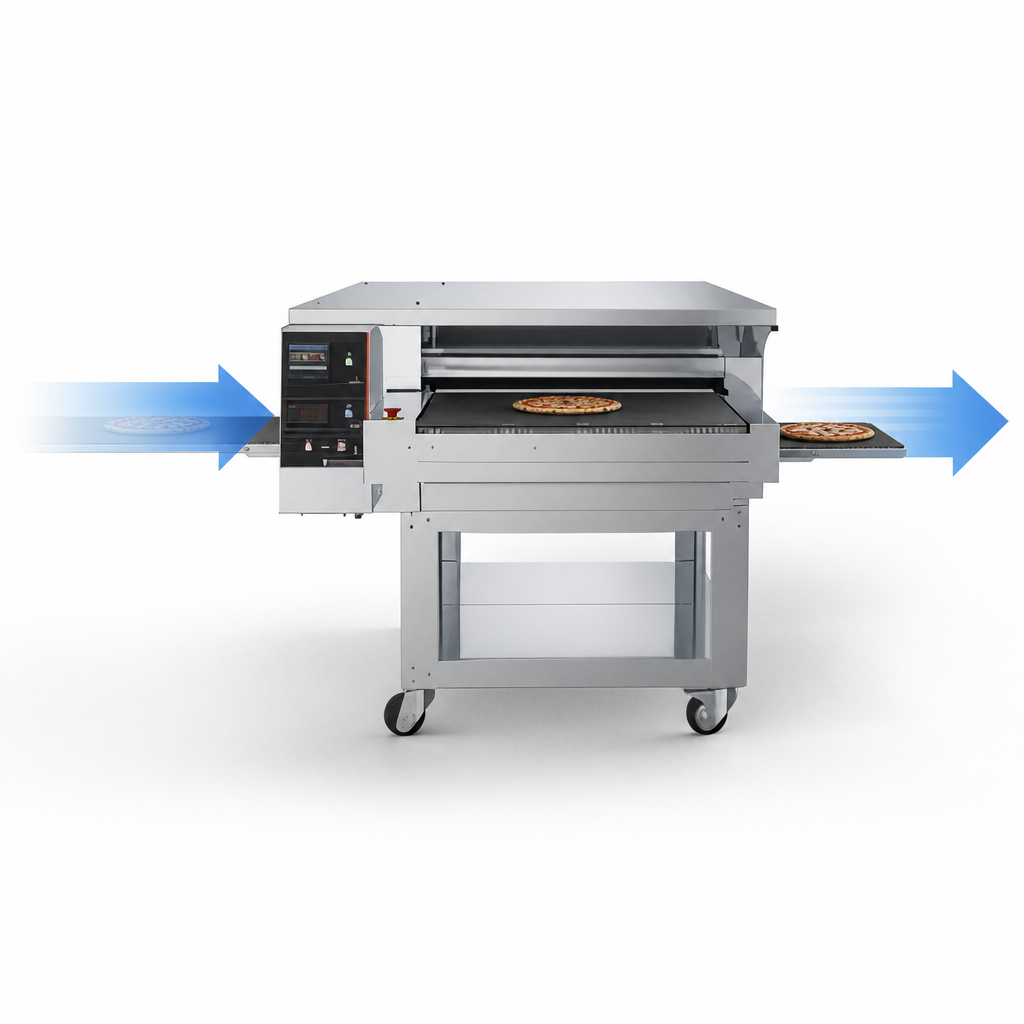

- 24 in (610 mm) conveyor with dual rotation—factory set left-to-right, reversible in minutes.
- Max temperature 840 °F / 450 °C—ideal for Neapolitan, Roman pinsa, flatbreads, sandwiches & more.
- Insulated center double-glass door for quick product checks or mid-bake loading.
- Detachable touch control panel mounts on the left, right, top or wall for ergonomic access.
- Completely stainless-steel inside and out (frame, linings, fasteners) for 24/7 durability and easy cleanup.

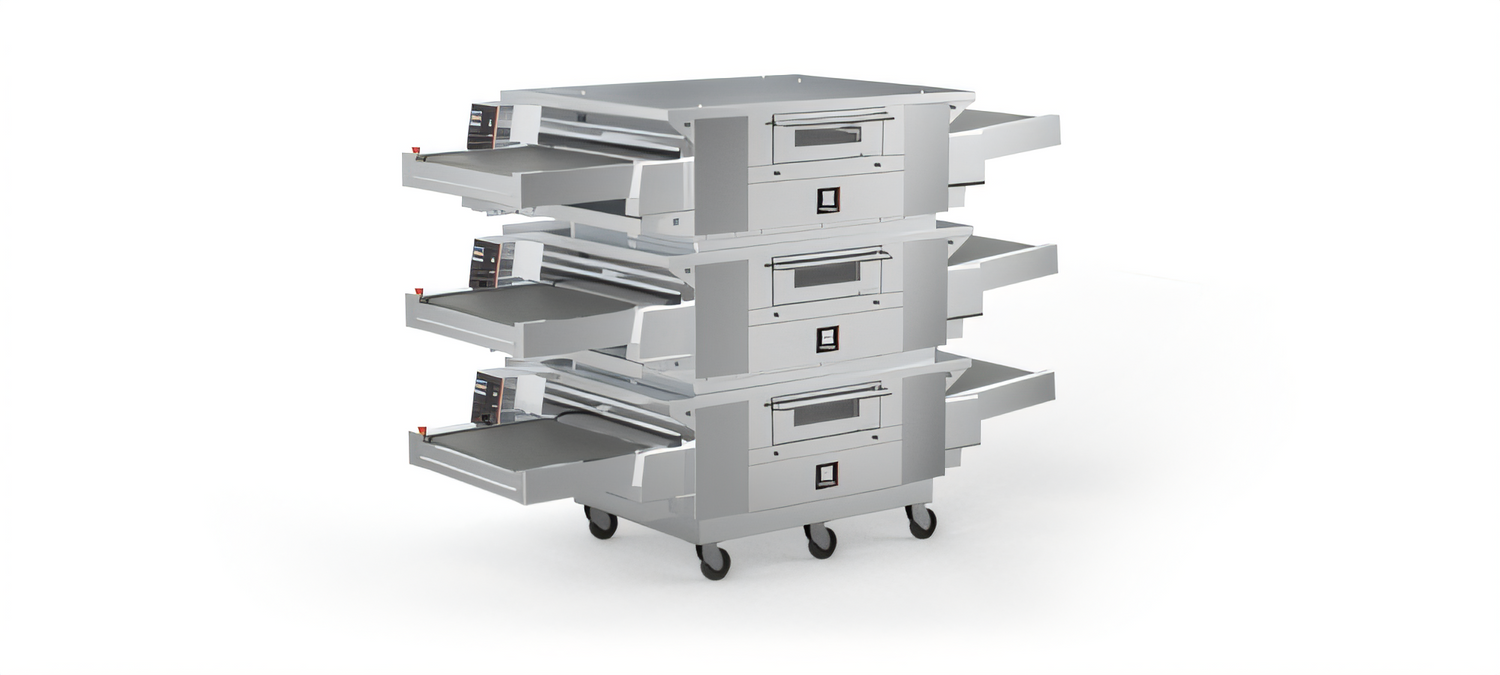

- Stackable up to three decks without increasing footprint—triple your capacity as you grow.
- Industry 4.0 ready: optional connectivity for remote monitoring, diagnostics & production analytics.
- American-made electrical components; UL & ETL listed for safety and sanitation.
Throughput at a Glance*
| Pizza Ø | Typical Bake Time | Pizzas / Hour |
|---|---|---|
| 10" / 25 cm | 1.5–2.5 min | ≈ 485 |
| 12" / 30 cm | 2–3 min | ≈ 337 |
| 14" / 35 cm | 2.5–4.5 min | ≈ 208 |
| 16" / 40 cm | 3–4 min | ≈ 185 |
| 18" / 45 cm | 4–5 min | ≈ 123 |
*Values are for a single deck with standard dough loads; actual results depend on recipe and settings.
Technical Specs
| Model | Dragon 24E – Electric, single deck (no stand) |
|---|---|
| External dimensions (W × D × H) | 104.7" × 47.2" × 51.1" (266 × 120 × 130 cm) |
| Conveyor width | 24" / 610 mm |
| Belt direction | Left-to-Right (field reversible) |
| Bake chamber clearance | 2.3" / 60 mm |
| Temperature range | Ambient – 840 °F (450 °C) |
| Electrical | 208 V • 60 Hz • 3 - ph • 85 A • 100 A breaker (hard-wired) |
| Net weight | ≈ 1,345 lb / 610 kg |
| Construction | Full stainless-steel chassis & interior, refractory stone hearth |
| Certifications | UL-Listed • ETL Sanitation |
| Warranty | 5-year parts & labor (conditions apply) |
Installation Notes
- Ships in sections that fit through a 36" × 80" doorway (minimum 25" wide).
- Typical installation time: 3-5 hours by certified technicians.
- Requires code-compliant exhaust hood and 208 V, 3-phase hard-wire connection.
- Stand, stacking kits, and venting not included—sold separately.
Need a double or triple stack, gas version, or wider 32" belt? Talk to our pizza-oven specialists for a custom Dragon configuration.
