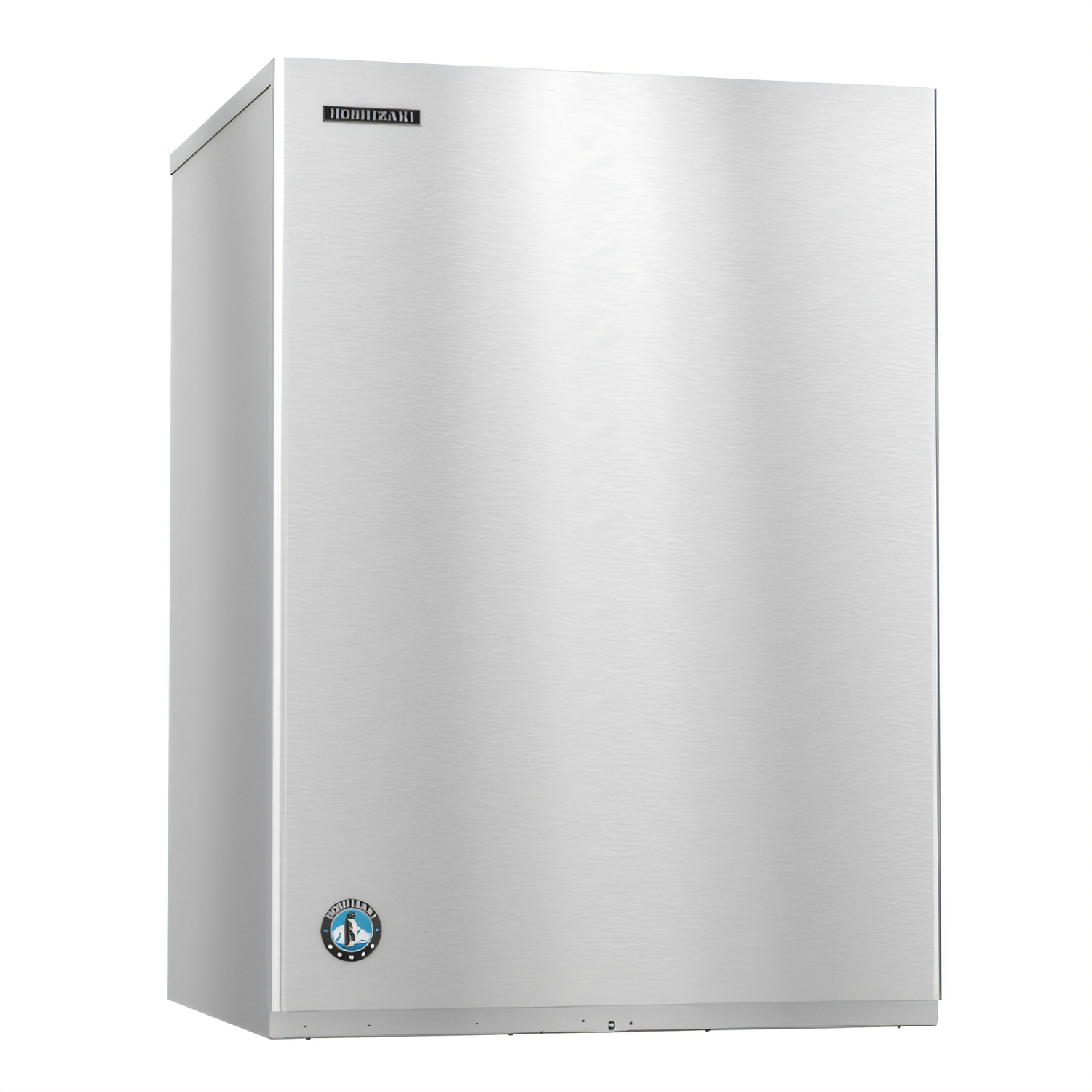

Hoshizaki KM-1601MRJZ3 30-Inch Wide Modular Crescent Cube Ice Maker Head, Remote Air-Cooled, 3-Phase

Stainless Steel Finish, 208-230V, Remote Condenser Sold Separately

Built for high-volume ice service, this modular head produces crescent cubes at up to 1,653 lb. per day with a matching remote condenser.

  • Produces individual crescent cubes up to 1,653 lb. per 24 hours.
  • AHRI certified output of 1,550 lb. per 24 hours at 90°F/70°F.
  • Remote air-cooled design keeps the condenser separate from the ice maker head.
  • Stainless steel exterior and stainless steel evaporator support long-term durability.
  • CycleSaver design and EverCheck alerts help support efficient operation and service.
  • 208-230V/60/3-phase electrical requirement with 12.9 amp draw.
  • Compatible with multiple Hoshizaki storage bins and brazed line sets.

Overall Dimensions:

30.0"W x 27.38"D x 41.62"H

Product Weight:

316.0 lb

Modular Crescent Cuber

Produces individual crescent cube ice for high-volume foodservice applications.

Remote Air-Cooled Design

Uses a separately sold remote condenser to handle heat rejection away from the ice maker head.

High Ice Output

Produces up to 1,653 lb. of ice per 24 hours at 70°F air / 50°F water; AHRI certified at 1,550 lb. per 24 hours at 90°F/70°F.

Stainless Steel Exterior

Durable stainless steel finish helps resist wear and simplifies cleaning.

Stainless Steel Evaporator

Built with a stainless steel evaporator for consistent performance and long-term reliability.

CycleSaver Design

Designed to improve efficiency and help reduce component wear during operation.

EverCheck Alert System

Provides service alerts to help operators identify maintenance needs.

Z-Model Matching Requirement

Z model ice machines must be paired with a matching Z model remote condenser.

R-404A Refrigerant

Uses R-404A refrigerant.

Type Ice Maker Head
Style Modular Crescent Cuber
Refrigeration Type Remote
Condenser Type Air-Cooled
Capacity 1653 lb. per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R-404A
Voltage 208-230 Volts
Amps 12.9 Amps
Hertz 60 Hz
Phase 3-Phase
Water Inlet Size 1/2 FPT
Drain Connection Size 3/4 FPT
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 42 Inches
Shipping Weight 316 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor; 5-year evaporator coverage; 5-year compressor coverage.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. It is a remote air-cooled model, and the remote condenser is sold separately.
It produces individual crescent cube ice.
Up to 1,653 lb. per 24 hours at 70°F air / 50°F water, with 1,550 lb. per 24 hours AHRI certified at 90°F/70°F.
208-230V/60/3-phase, 12.9 amps, with a 20A minimum circuit/max fuse size.
Allow 6 inches at the rear, sides, and top for proper air circulation and maintenance access.
The document lists the URC-22FZ remote condenser, HS-5323/HS-5324/HS-5325 brazed line sets, and multiple compatible storage bins.
