Summit Commercial Summit Appliance BIM26H32IF Undercounter Crescent Ice Maker, 15 in, 25 lb/day, Drain-Free, Panel-Ready

SKU: BIM26H32IF
$1,685.94
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blast Chilling & Medical Refrigeration Commercial Refrigeration Commercial Refrigerators Medical & Laboratory Refrigerators Medical Refrigeration Equipment Medical Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment Summit Commercial

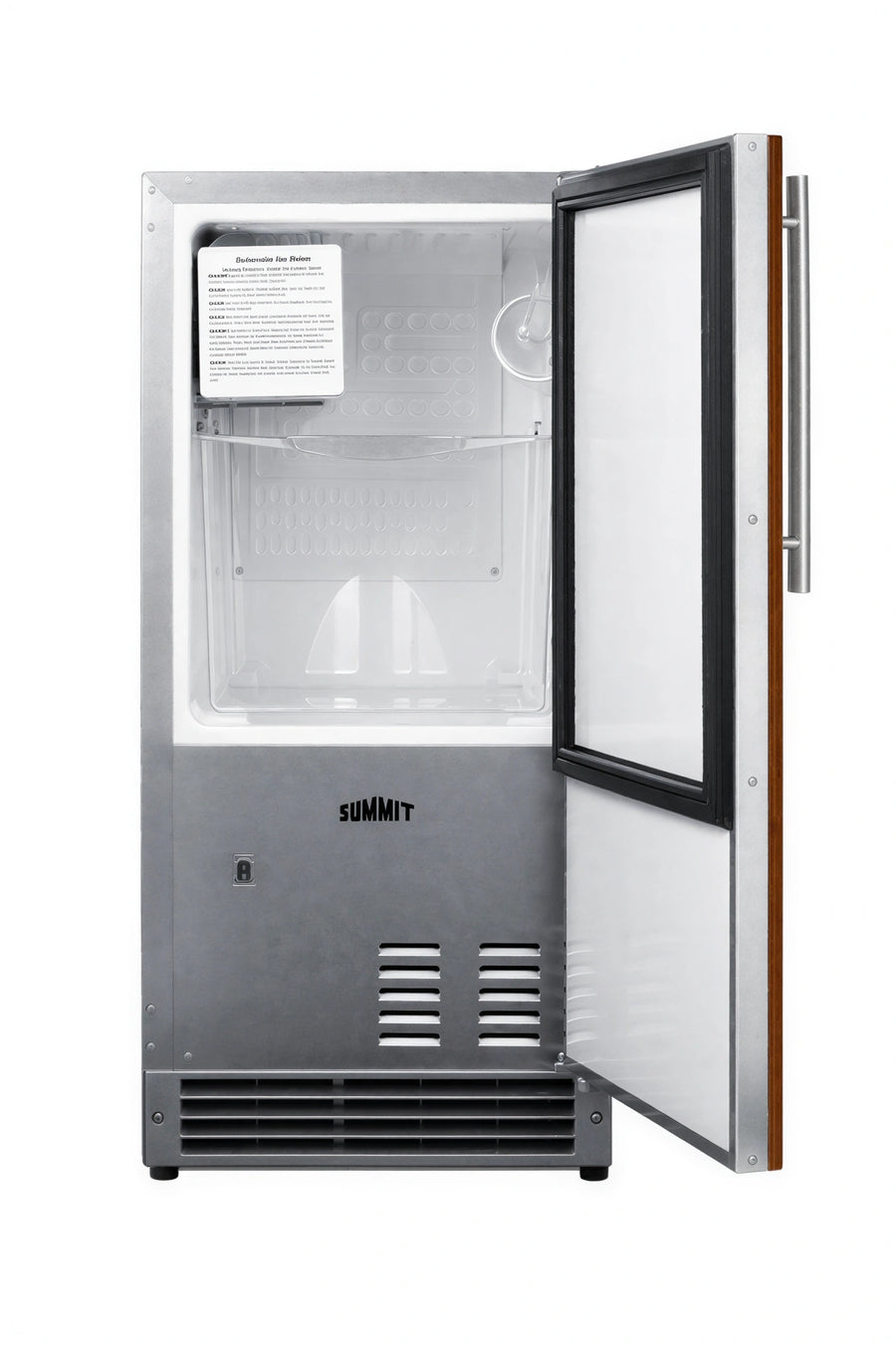

The Summit Appliance BIM26H32IF is a drain-free undercounter ice maker designed for ADA-compliant installations. It produces up to 25 lb of crescent-shaped ice per day and stores up to 22 lb.

  • Drain-free design: No drain is required, allowing greater flexibility in positioning the unit.
  • Panel-ready door: Accepts an overlay panel for a customized installation; the panel is not included.
  • Adjustable height: The 31.75-inch unit can be raised to 34 inches with the included taller kickplate.
  • Flexible installation: Suitable for built-in or freestanding use.
  • Stainless steel exterior: The 304-grade stainless steel exterior supports freestanding installation.

Overall Dimensions:

14.88"W x 20.13"D x 31.75"H

Product Weight:

95.0 lb

Drain-free design

No drain is required, providing flexibility in unit placement.

ADA-compliant height

The 31.75-inch height is designed for installation under lower ADA-compliant counters and can be raised to 34 inches with the included taller kickplate.

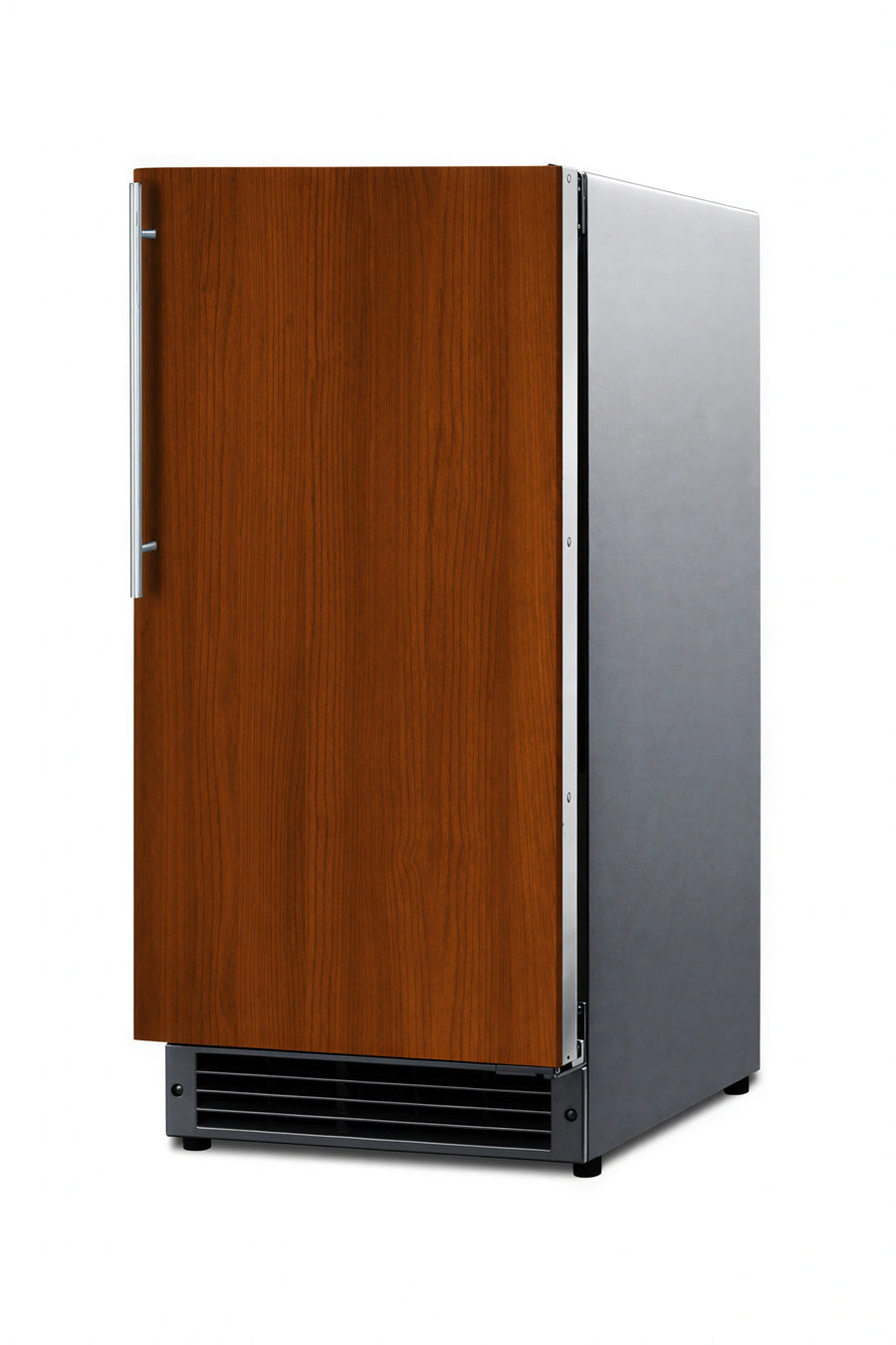

Panel-ready door

The door accepts an overlay panel for a customized look. The panel is not included; the specified panel size is 27 9/16 inches high by 14 13/16 inches wide at 3/4-inch thickness.

Crescent ice production

Produces up to 25 lb of crescent-shaped ice per day and stores up to 22 lb.

Flexible installation

Designed for built-in or freestanding use.

Stainless steel exterior

The 304-grade stainless steel exterior allows freestanding installation.

Reversible door

Configured with a right-hand door swing and a reversible door.

Manual defrost

Uses a manual defrost system.

Product Type Undercounter icemaker
Daily Ice Production Up to 25 lb/day
Ice Storage Capacity 22 lb
Ice Shape Crescent
Defrost Type Manual
Drain Requirement No drain required
Installation Type Built-in or freestanding
ADA Compliance Yes
Height Adjustment Adjustable up to 34 in
Door Swing Right-hand
Reversible Door Yes
Panel Ready Yes
Overlay Panel Included No
Water Supply Standard 1/4 in OD water supply line
Exterior Finish 304-grade stainless steel
Refrigeration Self-contained, rear-mounted
Refrigerant R600a hydrocarbon
Electrical 115 V AC / 60 Hz
Amperage 1.9 A
Storage Bin Insulated
Level Legs 4
CFC Content 100% CFC-free

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty; 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Product page PDF Download PDF Manual PDF Download PDF Assembly diagram PDF Download

Frequently Asked Questions

No. Its drain-free design does not require a drain.
It produces up to 25 lb of crescent-shaped ice per day and stores up to 22 lb.
No. The door is panel-ready, but the overlay panel is not included.
Yes. The door has a right-hand swing and is reversible.
Yes. The 31.75-inch unit can be raised to 34 inches with the included taller kickplate.
It operates at 115 V AC and 60 Hz.
