Ice-O-Matic MFI2306W Ice Machines
Description

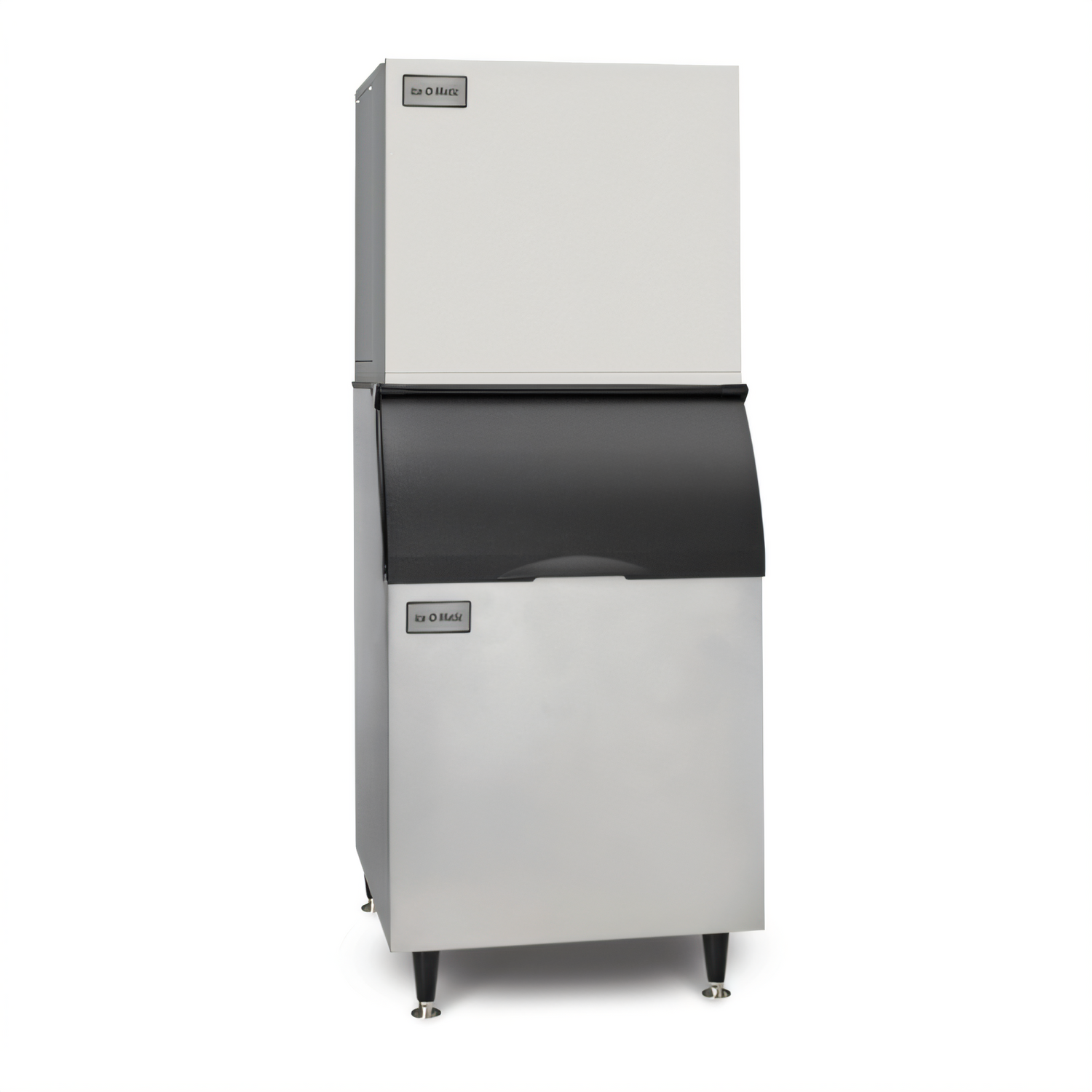

Ice-O-Matic MFI2306W Flake Ice Maker
Water-Cooled • Self-Contained • 2,600 lb (1,179 kg) per 24 hrDeliver mountains of fresh, moldable flake ice from a compact 30-inch footprint. The Ice-O-Matic MFI2306W is purpose-built for seafood displays, produce cases, healthcare hydration and high-volume food prep where rapid cooling and superior product presentation are critical.
Key Features
- Produces up to 2,600 lb of soft flake ice every 24 hours.
- SystemSafe® load monitoring shuts the unit down before gearbox damage can occur.
- Precision water sensor prevents low- or no-water failures—even in challenging conditions.
- Rugged stainless steel evaporator & auger resist corrosion for long-term reliability.
- Industrial-grade, maintenance-free roller bearings ensure whisper-quiet operation.
- Space-saving 30″ (762 mm) width pairs perfectly with a broad range of Ice-O-Matic bins.
- cULus & NSF listed for sanitation, electrical and mechanical safety.
Performance & Technical Specs
| Ice type | Flake |
|---|---|
| Daily production (70 °F air / 50 °F water) |
2,600 lb (1,179 kg) |
| Daily production (90 °F air / 70 °F water) |
2,000 lb (907 kg) |
| Cooling method | Water-cooled, self-contained |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 30 ″ × 24 ″ × 27 ″ (762 × 610 × 686 mm) |
| Electrical | 208-230 V / 60 Hz / 1-phase |
| Min. circuit ampacity | 23 A |
| Max. fuse / breaker | 35 A |
| Potable water usage | 2.6 gal per 100 lb of ice |
| Condenser water usage | 68 gal per 100 lb of ice |
| Energy consumption | 2.6 kWh per 100 lb of ice |
| Ambient temperature range | 50 – 100 °F (10 – 38 °C) |
| Water temperature range | 40 – 100 °F (4.4 – 38 °C) |
| Water pressure range | 20 – 120 PSI (1.4 – 8.3 bar) |
| Approx. shipping weight | 316 lb (143 kg) |
Compatible Ice Storage Bins
| Bin Model | Storage Capacity | Bin Width | Adapter Kit |
|---|---|---|---|
| B25 | 242 lb / 110 kg | 30 ″ | Not required |
| B40 | 344 lb / 156 kg | 30 ″ | Not required |
| B55 | 510 lb / 232 kg | 30 ″ | Not required |
| B700 | 680 lb / 308 kg | 30 ″ | Not required |
| B110 | 854 lb / 388 kg | 48 ″ | BPF-1 |
| B1000 | 1,000 lb / 454 kg | 48 ″ | BPF-1 |
| B1300 | 1,320 lb / 599 kg | 48 ″ | BPF-1 |
Ice storage bin sold separately.
Recommended Accessories
- IFQ2-XL twin-cartridge water filter manifold
- IOMQXL replacement cartridges (pack of 2)
Industry-Leading Warranty
• 3-year parts & labor coverage on the entire machine
• 5-year parts coverage on the compressor
