Ice-O-Matic CIM1447HA Elevation Series™ Ice Machines
$9,006.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Ice-O-Matic CIM1447HA Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM1447HA Elevation Series™ Ice Machines
$9,006.00
Unit price
/
Unavailable
Description
Ice-O-Matic Elevation Series™ CIM1447A Modular Cube Ice Maker – 1,560 lb/24 hr
Air-Cooled • Half-Cube • 48″ WidePush more ice through a smaller footprint with the Elevation Series™ CIM1447A. Standing just 26.8″ tall, this self-contained, air-cooled head produces up to 1,560 pounds of half-cube ice every 24 hours, all while delivering industry-leading food-safety features and the easiest routine cleaning in its class.
Key Advantages
- High-capacity output: ≈ 1,560 lb at 70 °F air / 50 °F water (≈ 1,174 lb at 90 °F / 70 °F).
- Dual exhaust design vents hot air upward or sideways for maximum installation flexibility.
- Built-in PURE ICE® antimicrobial protection guards every food-zone surface for the life of the machine.
- One-touch sanitize & descale cycles plus dishwasher-safe food-zone parts cut maintenance time by up to 30 %.*
- Harvest Assist technology maintains consistent production while reducing energy consumption.
- Durable stainless-steel cabinet with fingerprint-proof plastics and electroless-nickel-plated evaporator plates.
- Bright LED status panel provides at-a-glance machine diagnostics.
- Field-upgradable SafeIce® ozone purification option adds an extra layer of pathogen defense.
- Certified to cULus, NSF & CE standards for global compliance.
Technical Specifications

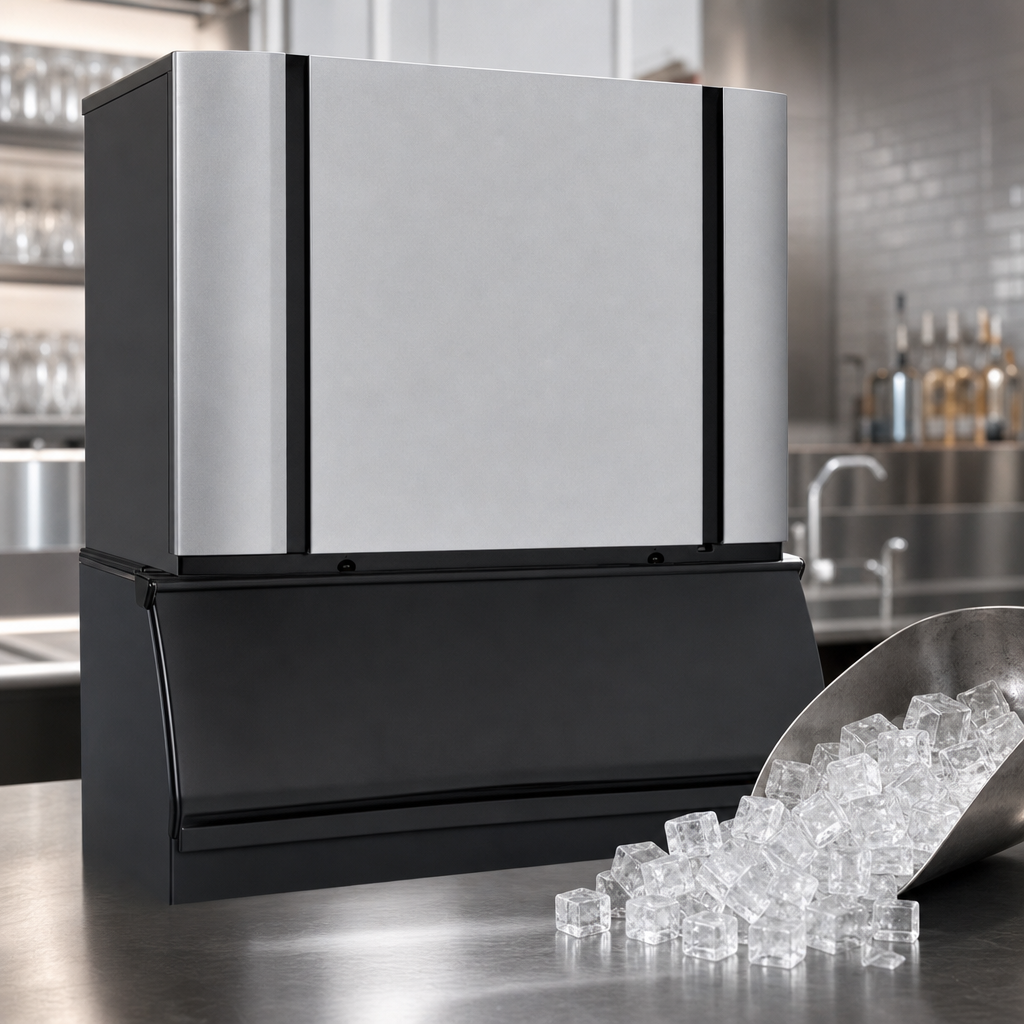

| Ice type | Half Cube – ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm) |
|---|---|
| Daily production @ 70 °F / 50 °F | ≈ 1,560 lb (708 kg) |
| Daily production @ 90 °F / 70 °F | ≈ 1,174 lb (532 kg) |
| Dimensions (W × D × H) | 48.25″ × 24.25″ × 26.8″ (1,226 × 616 × 660 mm) |
| Condenser | Self-contained, air-cooled with top/side dual exhaust |
| Electrical | 208–230 V / 60 Hz / 1-phase • 13.7 MCA • 20 A max breaker |
| Refrigerant | R404A |
| Potable water usage | 14.4 gal / 100 lb (54.5 L / 100 kg) |
| Energy consumption | 4.7 kWh / 100 lb of ice (measured @ 90 °F / 70 °F) |
| Operating limits | Air 50–100 °F • Water 40–100 °F • Water pressure 20–80 PSI |
| Certifications | cULus • NSF • CE |
Recommended Ice Storage Bins
- B110 – 854 lb capacity, slope-front (48″ wide)
- B1000-48 – 1,000 lb upright
- B1300-48 – 1,320 lb upright
- B1325-60 – 1,325 lb upright
- B1600-60 – 1,660 lb upright
Industry-Leading Warranty
- 3 years parts & labor on the entire ice maker
- 5 years parts on the compressor and evaporator
- 7 years parts & labor on the evaporator when registered with an Ice-O-Matic water filter (USA & Canada)
*Compared with previous Ice-O-Matic modular cube-ice models.
Heads-up: This listing is for the ice-maker head only. Storage bin, water filter and SafeIce® ozone
system are sold separately.
Features & Specs
Features & Specs
Manufacturer
Ice-O-Matic
Brand_name
Elevation Series™
Certifications
NSF, CE, cULus
Height
33.0in
Width
27.0in
Depth
51.0in
Shipping Weight
348.0lbs
Production per 24 hr
1501 - 1600 lb = 682 - 726 kg
Ice Type
half size / half dice cubes
Width (side - side)
40 - 49" wide
Refrigeration
self-contained refrigeration
Condenser Type
air-cooled
Specifications
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48" W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1407HA)
