Ice-O-Matic CIM2047HR Elevation Series™ Ice Machines
Description

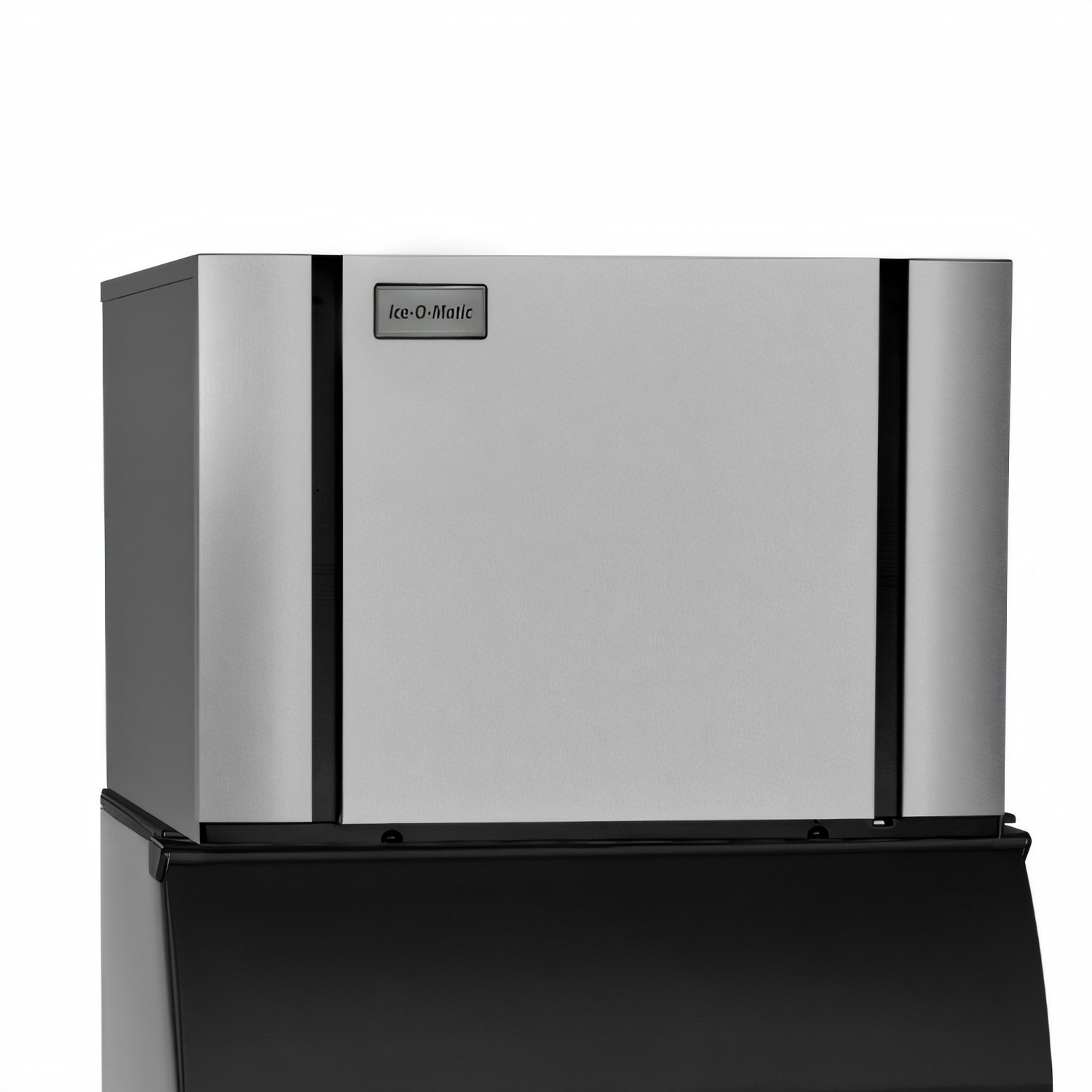

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Remote Air-Cooled • Half-Cube • Up to 1,830 lb / 24 hrKeep pace with your busiest dayparts while raising your hygiene and energy-efficiency standards. The Elevation Series™ CIM2046/2047 delivers industry-leading production in a low-profile, easy-to-clean design that moves heat and noise outside your kitchen.
Key Benefits
- High volume: Produces approx. 1,830 lb (830 kg) of half-size cubes every 24 hr at 70 °F air / 50 °F water.

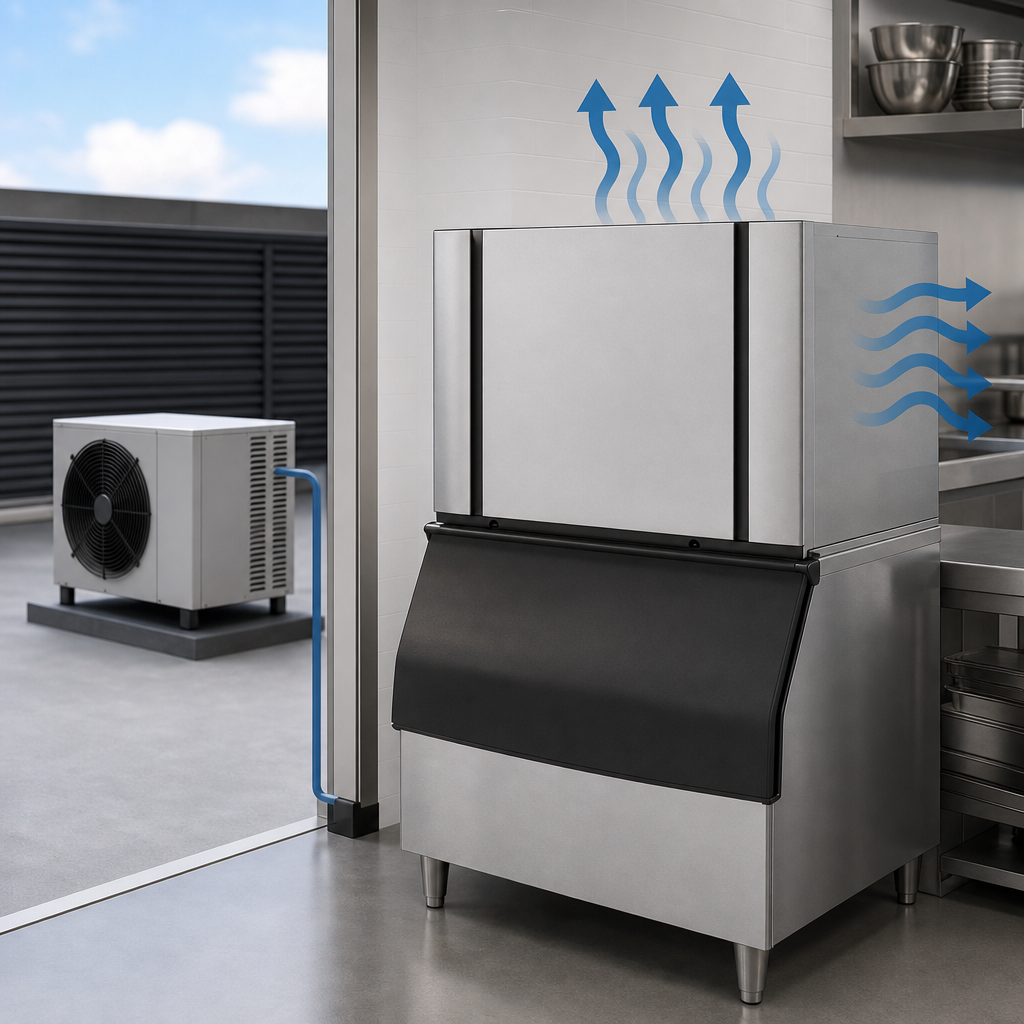

- Remote condenser: Pair with model RCA-3561 (sold separately) to expel heat outdoors for a cooler, quieter work space.
- Dual exhaust flexibility: Top or right-side discharge simplifies installation against walls or under low ceilings.
- PURE ICE® antimicrobial: Factory-integrated Agion® treatment inhibits microbial growth for the life of the machine.
- One-touch cleaning: LED status display plus sanitize & descale buttons; all food-zone components remove without tools and are dishwasher-safe.
- Energy-smart Harvest Assist: Reduces freeze cycles, lowers utility costs and maximises daily capacity.
- Built to last: Nickel-plated evaporator, corrosion-resistant aluminium cabinet and fingerprint-proof plastic front.

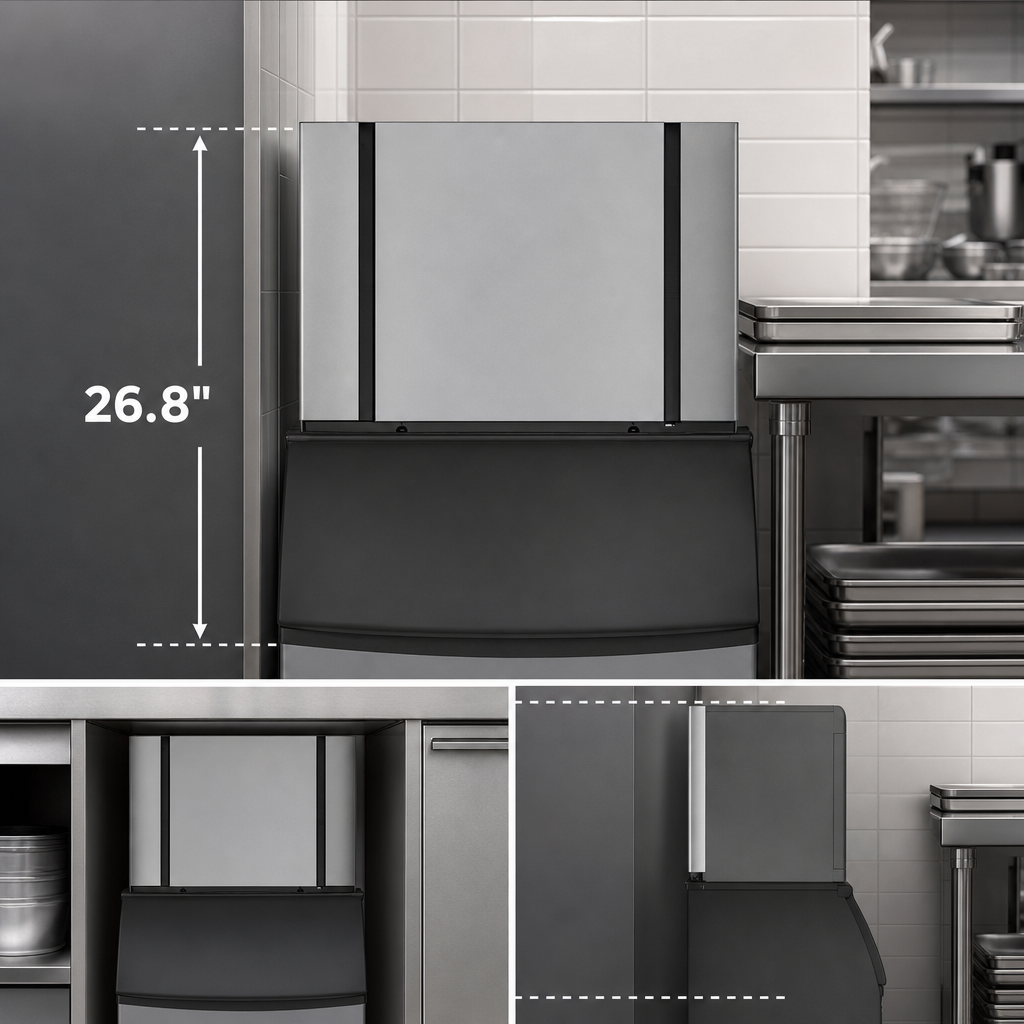

- Space-saving profile: Just 26.8" (681 mm) tall—ideal for stacking on 48" Ice-O-Matic storage bins.
- cULus, NSF & CE listed for worldwide compliance.
Performance & Utilities
| Specification | CIM2046R (1-Phase) | CIM2047R (3-Phase) |
|---|---|---|
| Ice type | Half Cube – ⅜ × ⅞ × ⅞ in. (10 × 22 × 22 mm) | |
| 24-hr production @ 70 °/50 °F | 1,830 lb (830 kg) | 1,830 lb (830 kg) |
| 24-hr production @ 90 °/70 °F | 1,533 lb (695 kg) | 1,533 lb (695 kg) |
| Energy use | 25.6 kWh / 100 lb | 16.6 kWh / 100 lb |
| Water use (potable) | 14.9 gal / 100 lb | 14.9 gal / 100 lb |
| Electrical | 208-230 V / 60 Hz / 1-ph • 40 A MCA | 208-230 V / 60 Hz / 3-ph • 25 A MCA |
| Dimensions (W × D × H) | 48.25 × 24.25 × 26.8 in. (1,226 × 616 × 660 mm) | |
| Shipping weight | Approx. 335 lb (152 kg) | |
| Refrigerant | R404A | |
Compatible Storage Bins (sold separately)
- B55PS – 510 lb application capacity
- B110PS – 854 lb application capacity

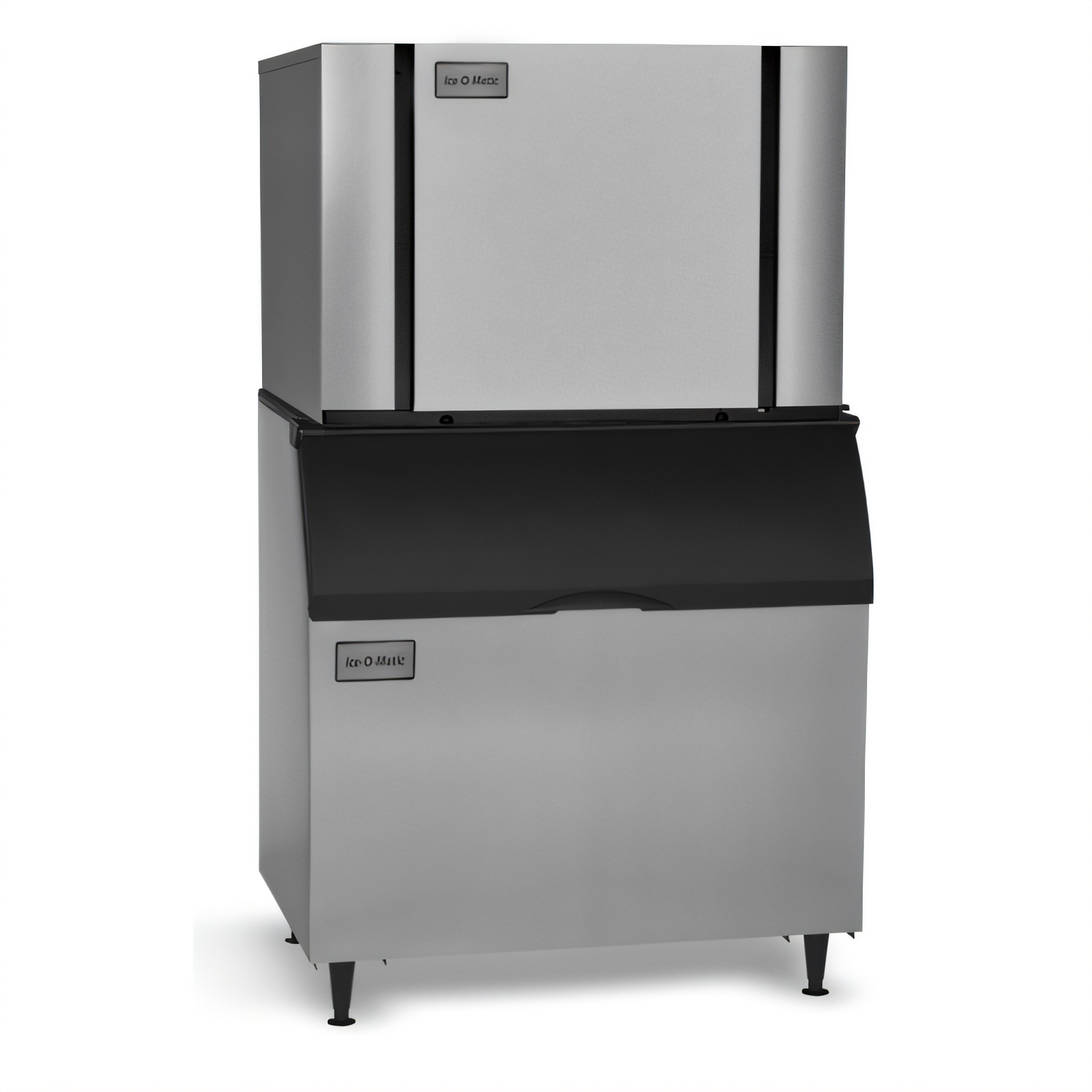

- 48" upright bins: B1000-48, B1300-48, B1325-60, B1600-60 (no adapter kit required)
Need a different capacity? Our team will gladly size the right Ice-O-Matic bin for your operation.
Industry-Leading Warranty
• 3-year parts & labor on the entire ice maker • 5-year parts on the compressor & evaporator • 7-year parts & labor on the evaporator when enrolled in Ice-O-Matic’s water-filter program (USA & Canada)
