Ice-O-Matic CIM1447HW Elevation Series™ Ice Machines
Description
Elevation Series™ Modular Cube Ice Maker
Model CIM1447W — Water-Cooled, Half-Cube ProductionEngineered for the busiest food-service environments, the Ice-O-Matic Elevation Series™ CIM1447W delivers up to 1,560 lb of ice every 24 hours while standing just 26.8″ tall. With built-in antimicrobial defense, tool-free cleaning and a whisper-quiet water-cooled condenser, it’s the high-capacity solution that keeps the heat—and the hassle—out of your kitchen.
Top Features

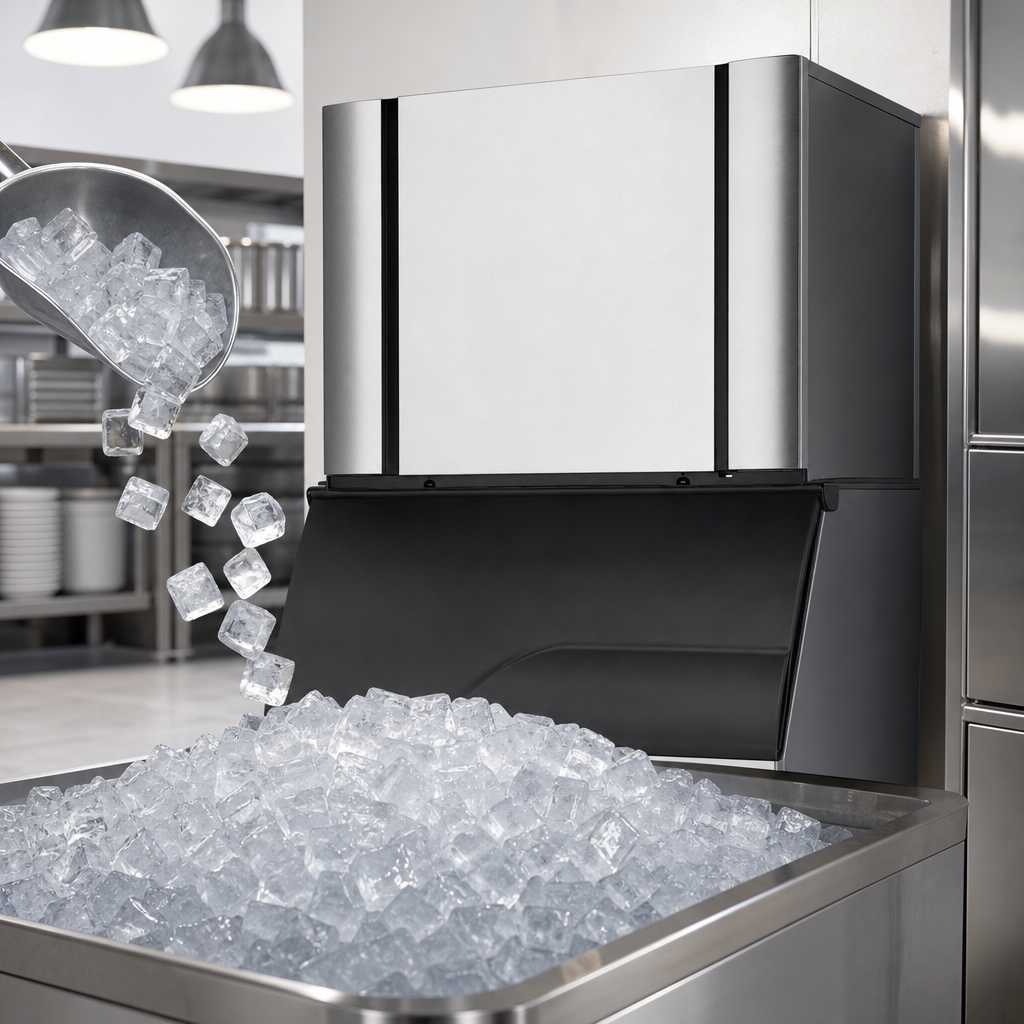

- Unmatched output: 1,560 lb @ 70 °F air / 50 °F water (1,440 lb @ 90 °F / 70 °F).

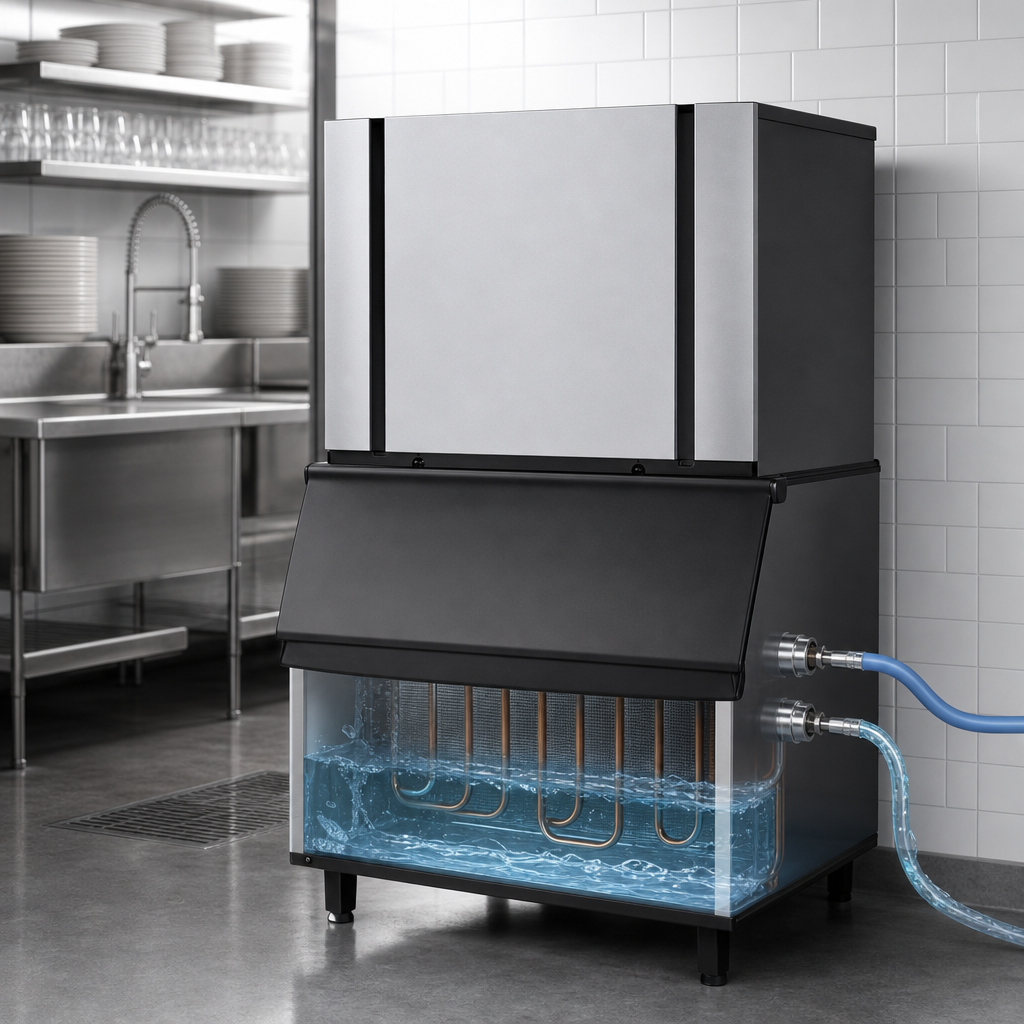

- Water-cooled, self-contained condenser eliminates hot-air discharge and lowers sound levels.
- Half-cube ice (⅜″ × ⅞″ × ⅞″) packs densely in drinks and merchandisers.
- Pure Ice® antimicrobial protection is molded into food-zone components—no coatings to wear off.
- Front-facing LED status panel for instant machine diagnostics and reminders.
- One-touch sanitize & descale cycle plus dishwasher-safe, snap-out parts slash cleaning time.
- Energy-saving Harvest Assist maintains peak production with lower kWh consumption.
- Corrosion-resistant stainless steel with fingerprint-proof, composite side panels.
- Industry-leading warranty: up to 7 years parts & labor on the evaporator with Ice-O-Matic filter program.
- Fully vetted for global use — cULus, NSF & CE certified.
Perfect For
- High-volume bars & nightclubs
- Resort, banquet & convention kitchens
- Hospitals & healthcare facilities
- Supermarkets, C-stores & cafeterias
Technical Specifications
| Daily Ice Production | 1,560 lb / 24 hr @ 70 °F air / 50 °F water 1,440 lb / 24 hr @ 90 °F air / 70 °F water |
|---|---|
| Ice Type | Half Cube • ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm) |
| Dimensions (W × D × H) | 48.25″ × 24.25″ × 26.8″ (1,226 × 616 × 660 mm) |
| Condenser | Self-contained, water-cooled • Refrigerant R404A |
| Electrical | 208-230 V / 60 Hz / 3-phase Min circuit: 12.6 A • Max fuse: 20 A |
| Water Usage | Potable: 14.7 gal / 100 lb ice Condenser: 104 gal / 100 lb ice |
| Net / Ship Weight | ≈ 300 lb (136 kg) |
| Compatible Ice Bins (48″ wide) | B55PS, B700-30, B1000-48, B1300-48, B1600-60 (adapter kits may apply) |
Cleaner by Design
Every Elevation Series component that touches water or ice pops out without tools and fits in a standard dishwasher rack. Pair the CIM1447W with the optional SafeIce™ ozone system for hands-free, chemical-free purification inside the bin.
Included & Optional Accessories
- Universal mounting legs & junction box
- IFQ2-XL water-filter manifold (recommended for taste & warranty extension)
- SafeIce™ ozone purification module (factory or field install)
- Ice storage bins, scoops & adapters sold separately
Need help sizing a bin or choosing the right filtration? Our food-service specialists are ready to assist.
