Ice-O-Matic CIM1447FA Elevation Series™ Ice Machines
Description
Elevation Series™ CIM1446A Modular Cube Ice Maker
1,560 lb / 24 hr • Air-Cooled • Full Cube • 48 in WideEngineered for demanding food-service, hospitality and healthcare operations, the Ice-O-Matic Elevation Series™ CIM1446A delivers up to 1,560 lb of pure, full-size cubes every 24 hours, while its dual top/side exhaust lets you slide the unit into the tightest layouts with no loss of performance. Tool-free food-zone access, snap-in dishwasher-safe components and built-in PURE ICE® antimicrobial protection slash cleaning time and keep every batch fresh and safe.
Why you’ll love it

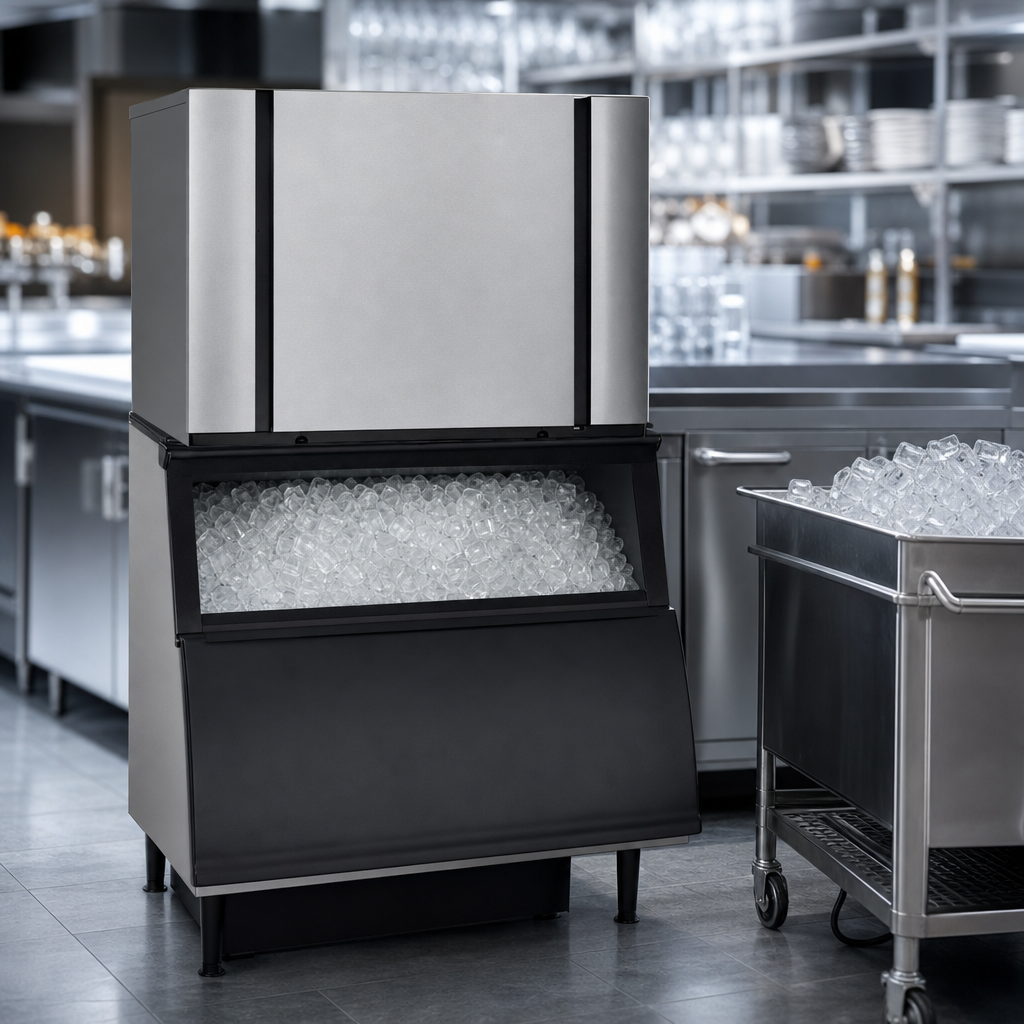

- High-volume production: 1,560 lb at 70 °F air / 50 °F water (1,210 lb at 90 °F / 70 °F).

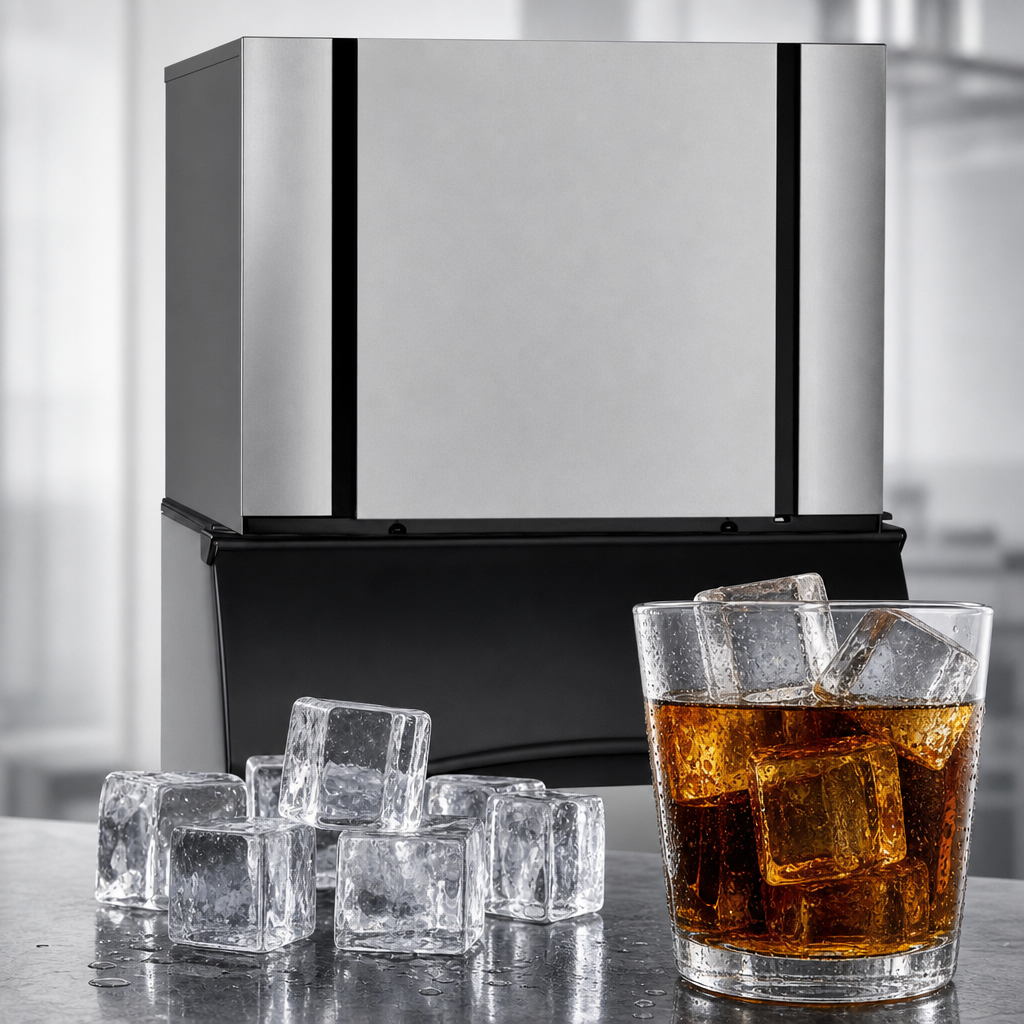

- Full cube format: ⅞ in (22 mm) square cubes ideal for premium cocktails and bulk cooling.
- Self-contained, air-cooled condenser with dual exhaust (top or side) for flexible installation and reduced footprint.
- PURE ICE® antimicrobial protection molded into key components—stays active for the life of the machine.
- One-touch sanitize & descale plus LED status display for at-a-glance diagnostics.
- Dishwasher-safe food zone: components snap out without tools to cut daily maintenance to minutes.
- Harvest Assist technology shortens freeze cycles, saving energy and extending capacity.
- Electroless nickel-plated evaporator plates resists corrosion for years of reliable ice making.
- Durable stainless-steel cabinet with fingerprint-resistant front panels.
Technical specifications
| Model No. | CIM1446A (replaces ICE1407FA) |
|---|---|
| Ice type / size | Full cube, ⅞ in × ⅞ in × ⅞ in (22 mm) |
| 24-hr production | 1,560 lb @ 70 °F air / 50 °F water 1,210 lb @ 90 °F / 70 °F |
| Energy usage | 4.6 kWh per 100 lb of ice |
| Water usage | 14.4 gal per 100 lb of ice |
| Condenser | Self-contained, air-cooled, dual exhaust (top / side) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 19.2 F.L.A., 30 A max breaker |
| Dimensions | 48.25 in W × 24.25 in D × 26.8 in H (1,226 mm × 616 mm × 660 mm) |
| Clearance | 6 in (152 mm) each side for air intake / exhaust |
| Connections | 3/8 in FPT potable water inlet, 3/4 in FPT drain |
| Approx. shipping weight | 310 lb (141 kg) |
| Certifications | cULus, NSF, CE |
Compatible Ice-O-Matic storage bins—no adapter kit required
- B55PS (510 lb capacity)
- B700-30 (680 lb)
- B1000-48 (1,000 lb)
- B1300-48 (1,320 lb)
- B1325-60 (1,325 lb)
- B1600-60 (1,660 lb)
Popular options & accessories
- IFQ2-XL manifold water filtration system (extends evaporator warranty to 7 years when filters are changed every 6 months).
- SafeIce™ ozone sanitation device—factory or field install.
- 82 oz and 16 oz NSF ice scoops with built-in bin mounts.
Production capacities are based on incoming water at 50 °F and ambient air at 70 °F. For optimum performance, connect to cool, filtered water and maintain recommended clearances.
