Ice-O-Matic

Ice-O-Matic Elevation Series Water-Cooled Modular Cube Ice Maker with Self-Contained Condenser, 48-Inch Wide, Full Cube

SKU: CIM2047FW
$10,062.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

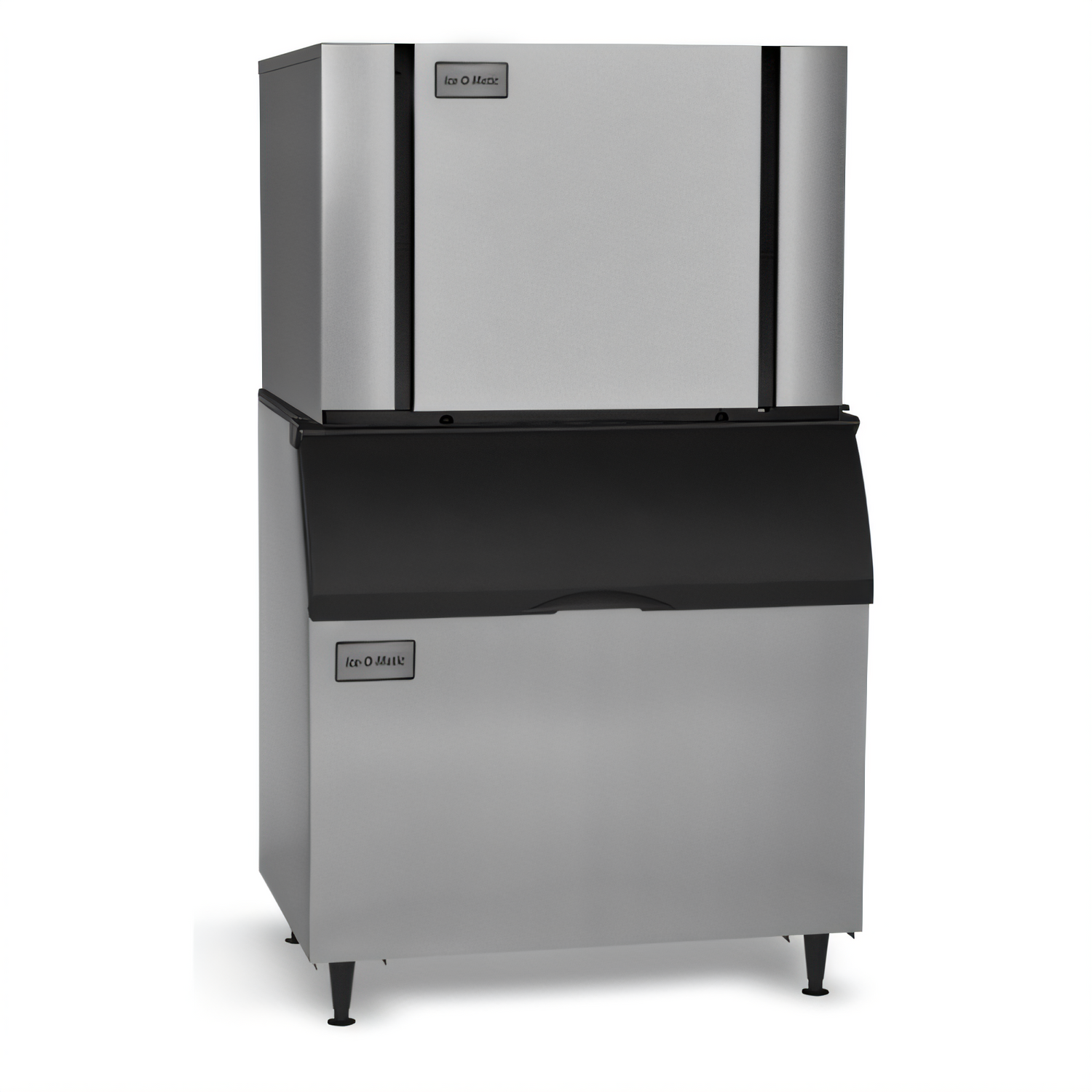

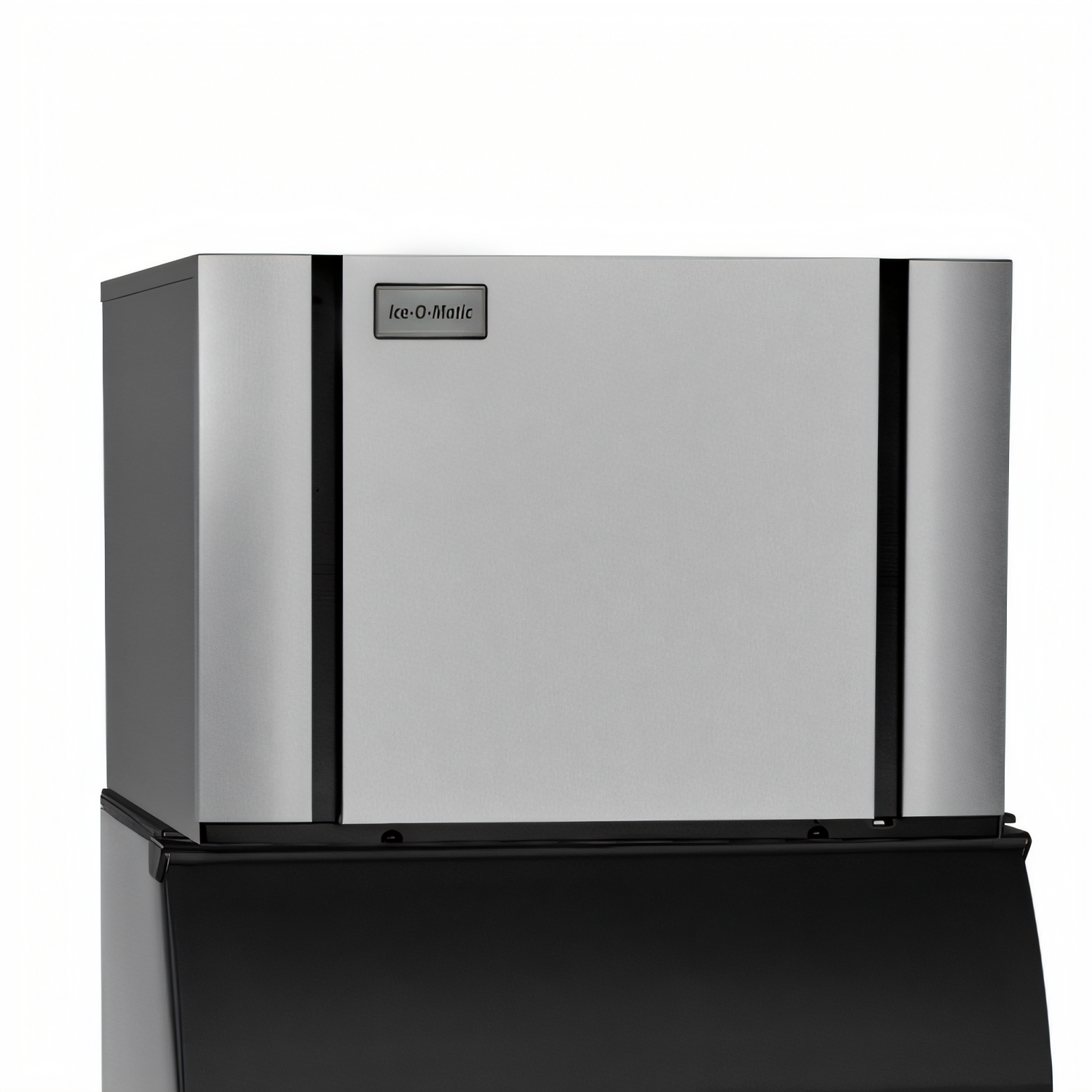

Ice-O-Matic Elevation Series Water-Cooled Modular Cube Ice Maker with Self-Contained Condenser, 48-Inch Wide, Full Cube

Dual Top/Side Exhaust, PURE ICE Antimicrobial Protection, Up to 1,860 lb Per Day

Built for high-volume service, this 48-inch modular ice maker combines full-cube output, water-cooled reliability, and easy-clean sanitation features.

  • Produces approximately 1,860 lb of full-cube ice per day at 70°F air / 50°F water.
  • Water-cooled, self-contained design with dual top/side exhaust for flexible installation.
  • PURE ICE built-in antimicrobial protection helps inhibit bacteria growth on ice-maker surfaces.
  • Harvest Assist helps maintain consistent ice production while reducing energy consumption.
  • LED status display and one-touch sanitize/descaling controls simplify operation.
  • Dishwasher-safe food-zone components and corrosion-resistant construction support easier maintenance.

Overall Dimensions:

27.0"W x 51.0"D x 33.0"H

Product Weight:

329.0 lb

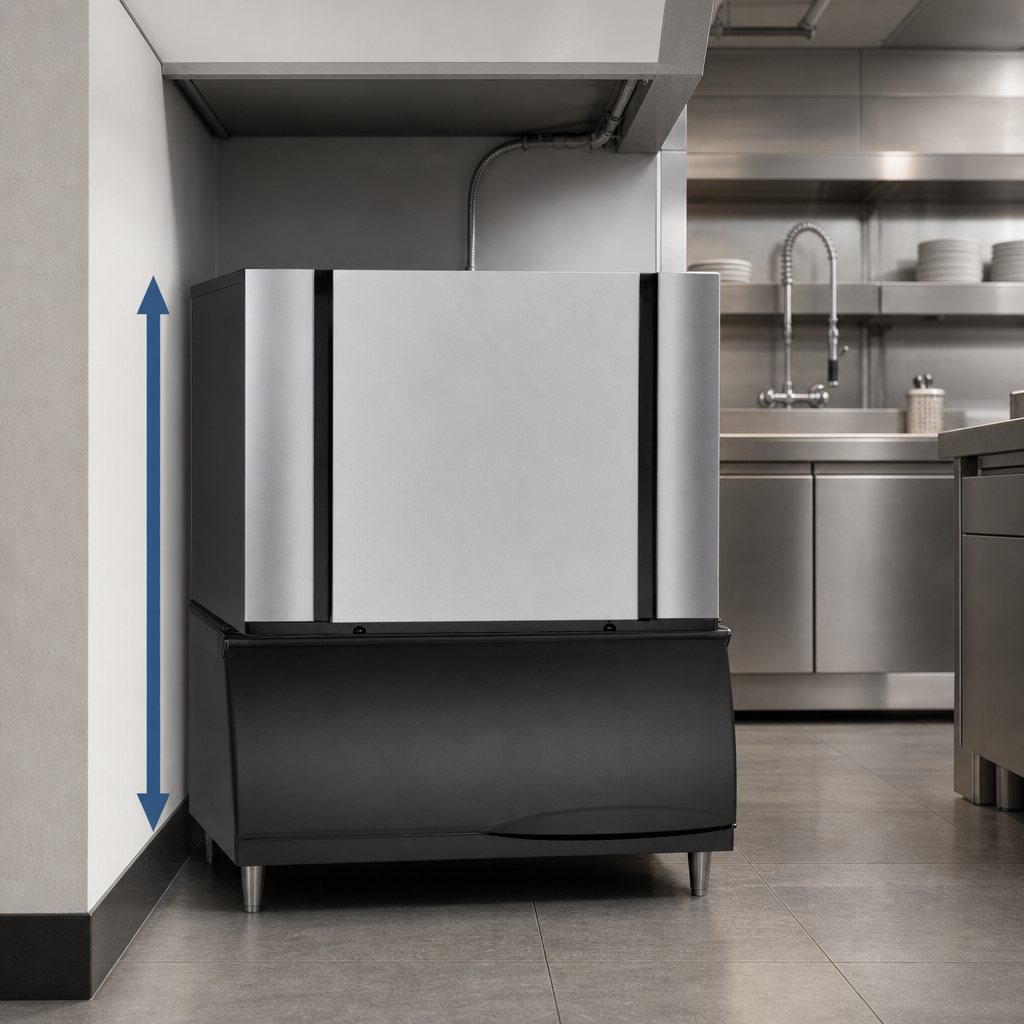

Space-Saving Height

26.8-inch-tall design helps conserve vertical space in tight mechanical areas.

Harvest Assist

Helps provide consistent ice production while reducing energy consumption and increasing capacity.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps inhibit bacteria growth on ice-maker surfaces for the life of the machine.

LED Status Display

Provides clear at-a-glance machine status for easier monitoring.

One-Touch Sanitize/Descaling Controls

Simplifies routine cleaning and maintenance.

Dishwasher-Safe Food Zone Components

Removable food-zone parts can be cleaned more easily.

Dual Exhaust Top/Side Discharge

Top or side discharge helps add installation flexibility in a variety of layouts.

Durable Construction

Constructed from corrosion-resistant aluminum, fingerprint-proof plastic, and electroless nickel-plated evaporator plates for long-term reliability.

Type Modular Cube Ice Maker
Style Full Cube
Refrigeration Type Self-Contained
Condenser Type Water Cooled
Ice Production Per 24 Hours Approximately 1,860 Pounds at 70°F Air / 50°F Water; 1,690 Pounds at 90°F Air / 70°F Water
Material Aluminum
Refrigerant Type R404A
Water Inlet Size 3/8 Inches FPT
Drain Connection Size 3/4 Inches FPT
Water Connection Required
Drain Connection Required
Hertz 60 Hz
Shipping Width 27 Inches
Shipping Depth 51 Inches
Shipping Height 33 Inches
Shipping Weight 335 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor; 5 years parts on evaporator and compressor; 7 years parts and labor on the evaporator when enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes full-size cube ice.
Approximately 1,860 lb per 24 hours at 70°F air / 50°F water, and about 1,690 lb at 90°F air / 70°F water.
It includes an LED status display, one-touch sanitize/descaling controls, dishwasher-safe food-zone components, and built-in antimicrobial protection.
The unit uses 3/8" FPT water inlet connections and a 3/4" FPT drain connection. The water-cooled condenser also uses 3/8" FPT water in and 1/2" FPT water out connections.
The commercial warranty is 3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator when enrolled in the filter program.
