Hoshizaki KM-1340MRJZ3 Modular Crescent Cube Ice Maker, 1,428 lb/24 hr, Remote Air-Cooled, 3-Phase

SKU: KM-1340MRJZ3
$9,435.00
/each Configurable
Free Shipping
Alternative products
KM-1340MRJZ3 Current product Current
KM-1340MAJ Loading live product details…
KM-1340MWJ Loading live product details…
KM-1340MRJZ Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Refrigerated Prep Tables & Cold Food Stations Merchandising & Display Refrigeration Bar, Beverage & Wine Cooling Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment

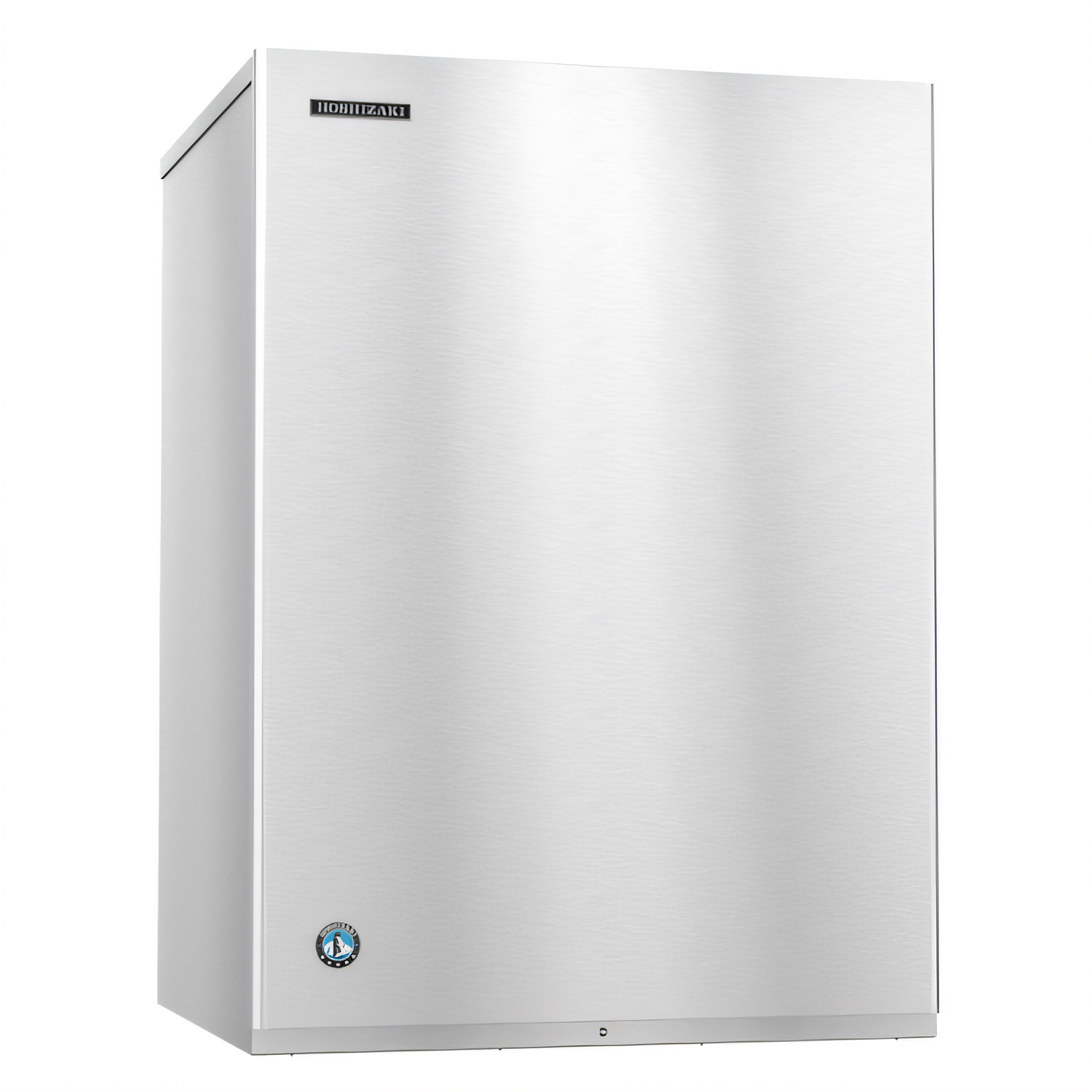

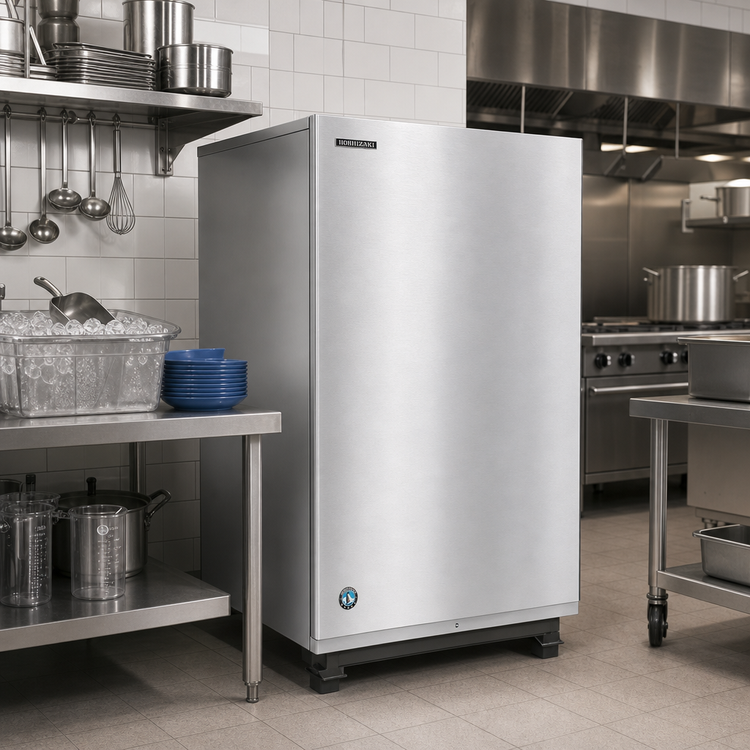

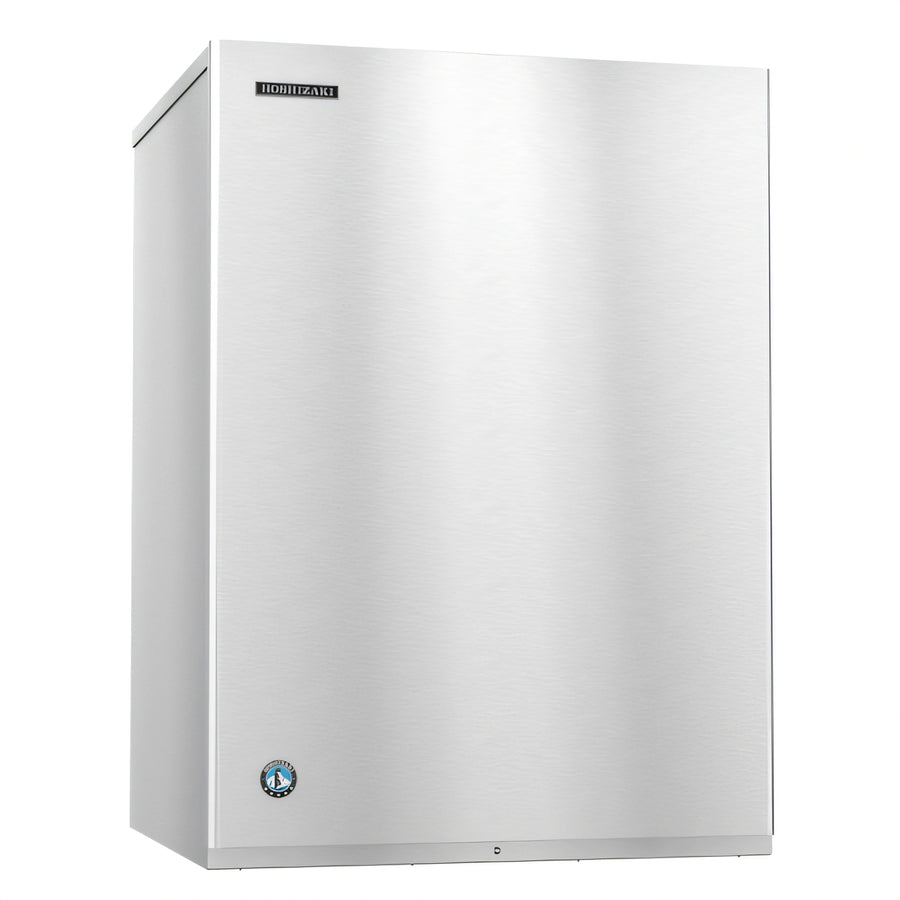

Hoshizaki KM-1340MRJZ3 Remote Air-Cooled Modular Crescent Cube Ice Maker, 3-Phase

30-inch wide, 1,428 lb/day, remote condenser sold separately

Built for high-volume operations, this 30-inch modular crescent cube machine delivers up to 1,428 lb of ice per day with a separate remote condenser for flexible installation.

  • Produces up to 1,428 lb of crescent cube ice per 24 hours.
  • Remote air-cooled design uses a separate condenser for installation flexibility.
  • Stainless steel exterior and stainless steel evaporator support durability.
  • CycleSaver design and EverCheck alerts help improve efficiency and maintenance visibility.
  • Hard-wired 208-230V, 3-phase power connection; power cord not included.

Overall Dimensions:

30.0"W x 27.38"D x 41.5"H

Product Weight:

289.0 lb

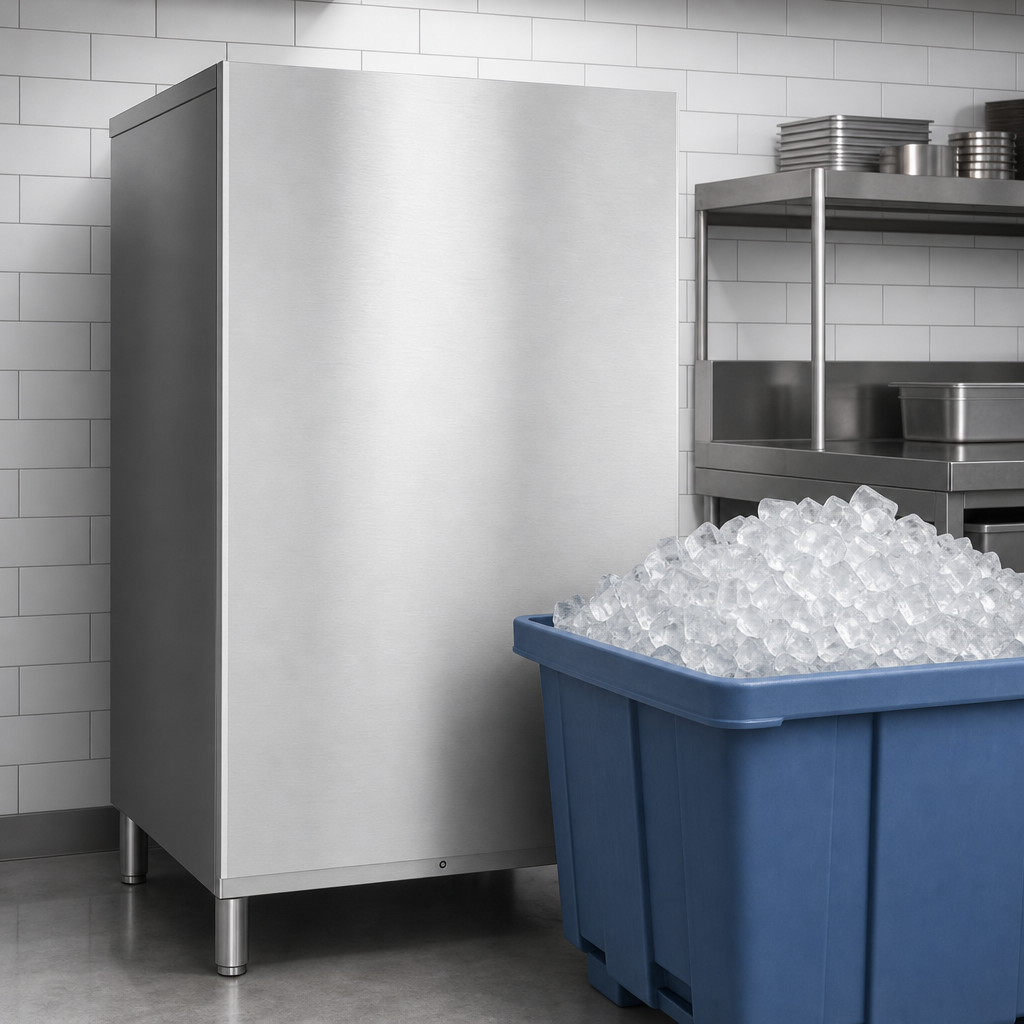

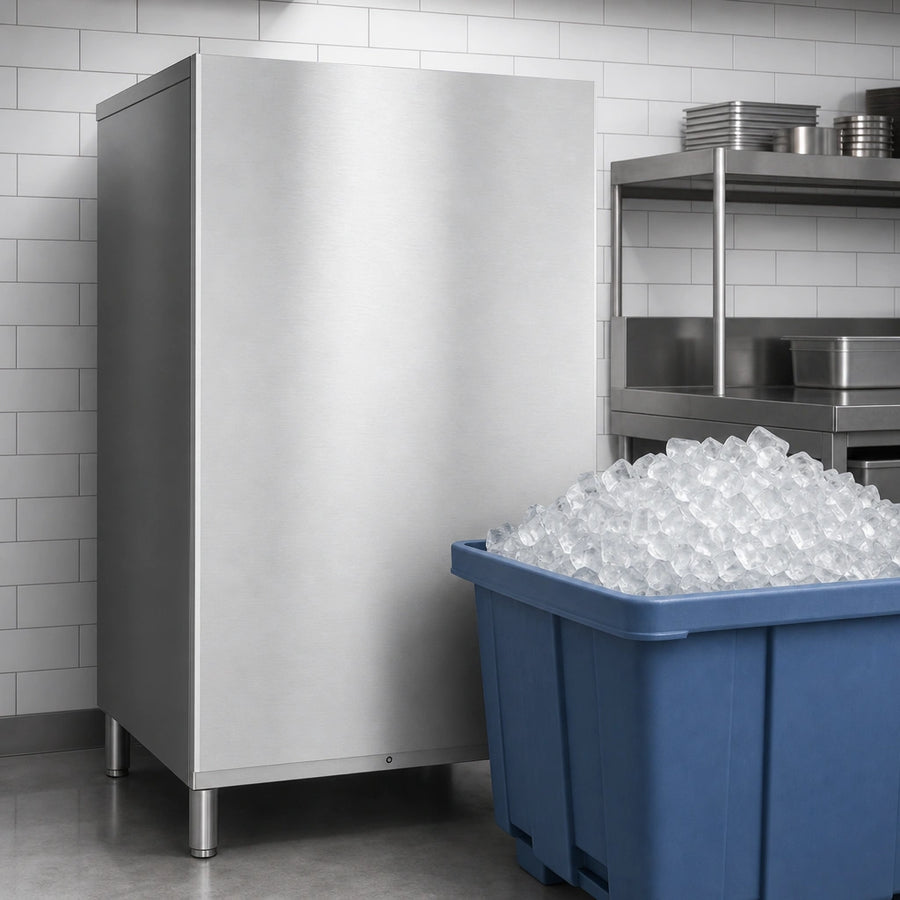

High Ice Production

Delivers up to 1,428 lb of ice per 24 hours, with 1,266 lb AHRI certified at 90°F/70°F.

High Ice Production

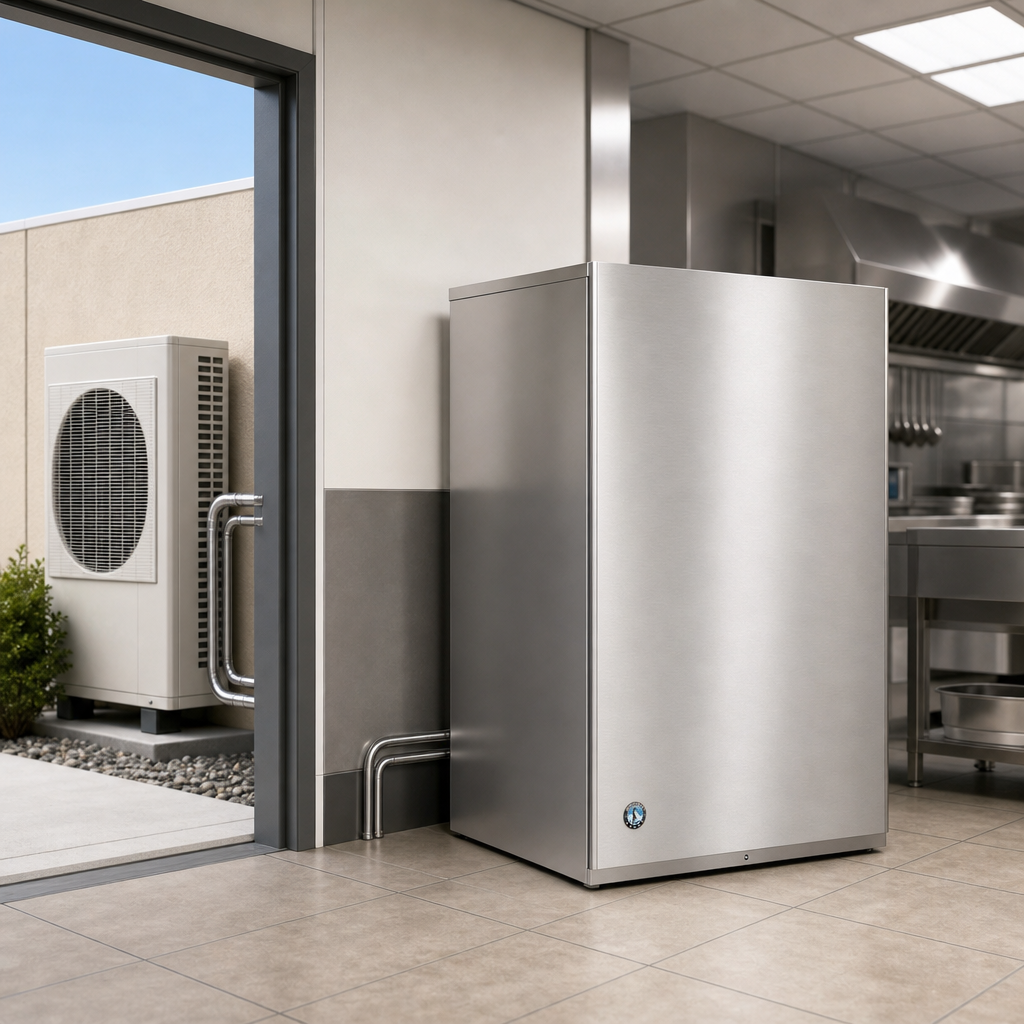

Remote Air-Cooled Design

Uses a separate remote condenser for flexible placement and service access.

Remote Air-Cooled Design

Crescent Cube Ice

Produces individual crescent cubes for a popular all-purpose drink presentation.

Stainless Steel Construction

Stainless steel exterior and stainless steel evaporator help provide long-lasting durability.

CycleSaver and EverCheck

CycleSaver design improves operating efficiency, while EverCheck alerts help monitor machine status.

Side-by-Side Installation

Two units can be mounted side-by-side in only 60 inches of floor space for higher output.

Hard-Wired Electrical Connection

Power cord is not included; the unit must be hard-wired at the installation site.

Service-Friendly Access

Panels remove easily and components are accessible for service; 6 inches of clearance is recommended at the rear, sides, and top.

Type Ice Maker
Style Crescent Cube
Refrigeration Type Remote Air-Cooled
Capacity 1,428 lb/24 hr
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch FPT
Voltage 208-230 Volts
Amps 12.5 Amps
Hertz 60 Hz
Phase 3-Phase
Plug Type Hard Wired
Breaker Size 20 Amps
Refrigerant Type R-404A
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Width 30 Inches
Depth 28 Inches
Height 42 Inches
Weight 289 lb
Selling Unit Each
Units Per Case 1

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor.

Documents

PDF Cutsheet PDF Download PDF Ice maker calculator PDF Download PDF Cleaning sheets PDF Download PDF Ice machine brochure PDF Download PDF Kmedge cuber flyer PDF Download

Frequently Asked Questions

It produces up to 1,428 lb of ice per 24 hours at 70°F ambient/50°F water, and 1,266 lb is AHRI certified at 90°F/70°F.
No. The remote condenser is sold separately. The recommended companion model is URC-14FZ.
It requires 208-230V, 60 Hz, 3-phase power at 12.5 amps, with a minimum 20A circuit/fuse. The unit must be hard-wired.
It produces individual crescent cubes.
Allow 6 inches of clearance at the rear, sides, and top for air circulation and maintenance access.
A transformer kit, model HS-5030, is required if neutral is not available.
