Hatco HWBLI-5DA Steam Tables & Food Wells
Description

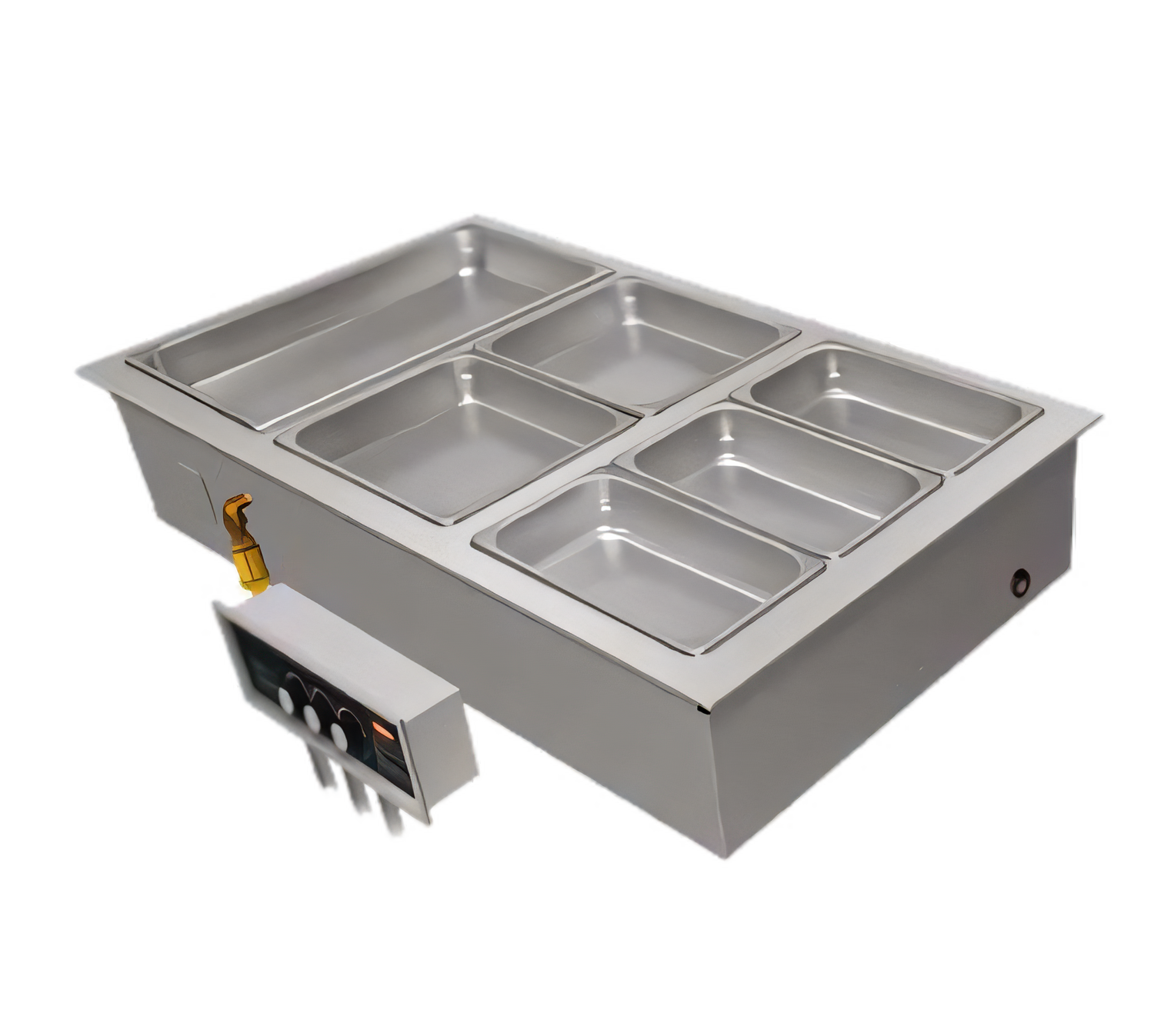

Hatco HWBI-5DA Drop-In Modular Heated Well – 5 Wells, Drain & Auto-Fill
Low-Watt 3,750 W | 120 V, 60 Hz, 1-Phase | Made in USATurn any counter into a high-capacity steam table with Hatco’s five-pan HWBI-5DA. Built for busy buffets and concession lines, this insulated, top-mounted module delivers precise holding temperatures, effortless water management and unmatched durability in one sleek drop-in package.
Key Advantages
- Five independent, full-size (12 × 20 in) wells in one seamless 71 ½ in unit.
- Remote control box: lighted rocker switch & thermostat for each well.

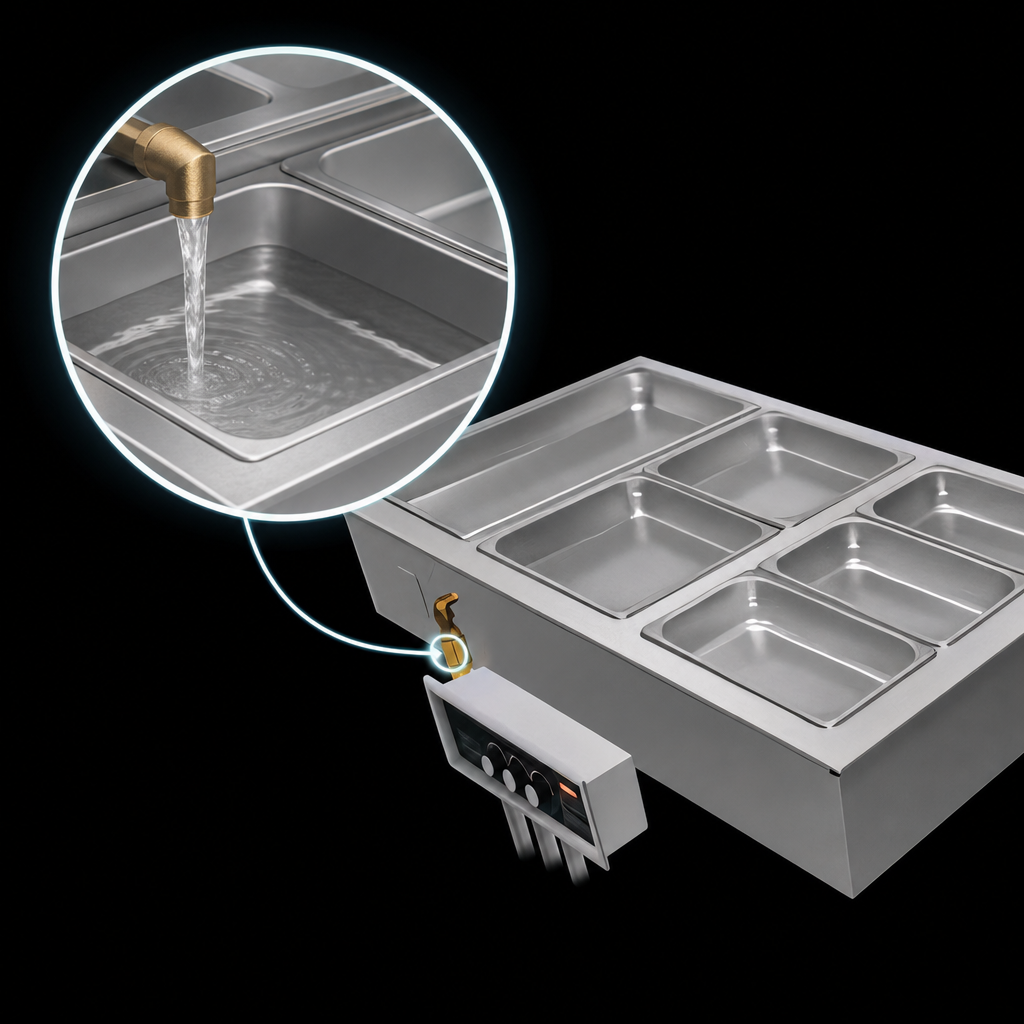

- Automatic water fill prevents element burnout and saves labor.
- ¾ in NPT drains with flat screens speed clean-up and keep pans level.
- Energy-saving 3,750 W low-watt design (≈ 31 A) on a standard 120 V circuit.
- EZ-Lock™ top-mount system secures the well from above the counter—no crawling underneath.
- Stainless steel interior & aluminized exterior with full insulation for maximum efficiency.
- 6 ft (1.8 m) flexible conduit included for convenient control placement.
- Certified cULus, CE & UL EPH Classified for sanitation and safety.
- Backed by Hatco’s legendary 24/7 service and proudly built in Milwaukee, Wisconsin.
Perfect For
- Buffets & salad bars
- School, corporate & healthcare cafeterias
- Stadium and arena concessions
- Catering lines & banquet facilities
Technical Specifications
| Model | HWBI-5DA (drain & auto-fill) |
|---|---|
| Pan Capacity | 5 × full-size steam pans (GN 1/1) |
| Overall Dimensions | 71.5 in W × 23.63 in D × 9.56 in H (1,816 × 600 × 243 mm) |
| Countertop Cut-Out* | 70.13–70.38 in W × 23.25 in D (verify with spec sheet) |
| Electrical | 120 V / 60 Hz / 1-ph, 3,750 W, 31.3 A – hard-wired |
| Plumbing | Auto-fill inlet: ¼ in NPT cold water Individual drains: ¾ in NPT (one per well) |
| Construction | Stainless steel wells, aluminized steel exterior; fully insulated |
| Controls | Remote thermostats with lighted power switches (6 ft conduit) |
| Certifications | cULus, CE, UL EPH Classified |
| Approx. Ship Weight | ≈ 167 lb (76 kg) |
| Country of Origin | USA |
Optional Accessories
- Simulated-stone well covers (Night Sky, Gray Granite, Bermuda Sand)
- Full, half & third-size stainless steam pans
- Round pan adapters & hinged lids (4 qt / 7 qt)
- Copper drain manifold (side or bottom exit)
- Remote drain handles & shut-off valves
*Cut-out dimensions vary with mounting method. Always refer to the latest Hatco specification sheet before cutting countertops.
