Delfield N8717-DESP Steam Tables & Food Wells
Description
Delfield N8717-DESP ESP Drop-In Hot Food Well – 1 Pan
Energy-Saving | Wet or Dry | Digital Precision ControlGive every serving the fresh-from-the-kitchen heat it deserves. The Delfield N8717-DESP is a compact, single-well hot holding solution that drops straight into your counter, delivers accurate temperature control with a low-watt 500 W heat pad and keeps operating costs in check.
Top-line features
- True wet or dry operation for menu flexibility.
- Individual solid-state digital control (remote panel with 4 ft conduit) for pinpoint temperature adjustment.
- Flush-mount 18-ga stainless steel top with drawn 20-ga 12" x 20" well—sanitary, durable and easy to wipe clean.
- Energy Saving Power (ESP) design uses just 500 W while maintaining safe NSF hot-holding temps.
- ½" FNPT drain integrated into the well and manifolded to a gate valve—makes end-of-shift cleanup fast.
- 1" fiberglass insulation on all sides keeps heat in the well, not in your workspace.
- Press-fit perimeter gasket is factory-installed—simply drop into a 16-7/8" × 25" cut-out and tighten.
- Galvanized exterior body stands up to the rigors of commercial kitchens.
- Safety & compliance: UL, cUL, NSF & CE listed.
- 1-year parts & labor warranty backed by Delfield’s nationwide service network.
Perfect for
- Buffet and cafeteria serving lines
- QSR & fast-casual build stations
- C-stores, delis & coffee bars
- Hotel banquet & catering set-ups
Technical specs
| Model | N8717-DESP |
|---|---|
| Pan capacity | (1) full-size steam table pan 12" × 20" (6.25" deep well) |
| Counter cut-out | 16.87" W × 25.00" D (430 mm × 635 mm) |
| Well depth | 6.25" (159 mm) |
| Voltage / Phase | 208–230 V / 60 Hz / 1-phase (hard-wired) |
| Wattage / Amps | 500 W • 2.4–2.7 A |
| Drain connection | ½" FNPT, right-rear; manifolded to left-side gate valve |
| Control panel cut-out | 5.00" W × 6.88" H × 7.50" D (127 × 175 × 191 mm) |
| Construction | 18-ga stainless top & 20-ga well • Galvanized exterior |
| Shipping weight | 41 lb (19 kg) |
| Certifications | UL • cUL • NSF • CE |
Popular options & accessories
- Fill faucet or auto-fill kit
- Adapter bars & plates for fractional pans
- Single- or double-service flip-up sneeze guards
- Telescoping stainless covers
- 240 V / 50 Hz or 3-phase electrical (factory-installed)

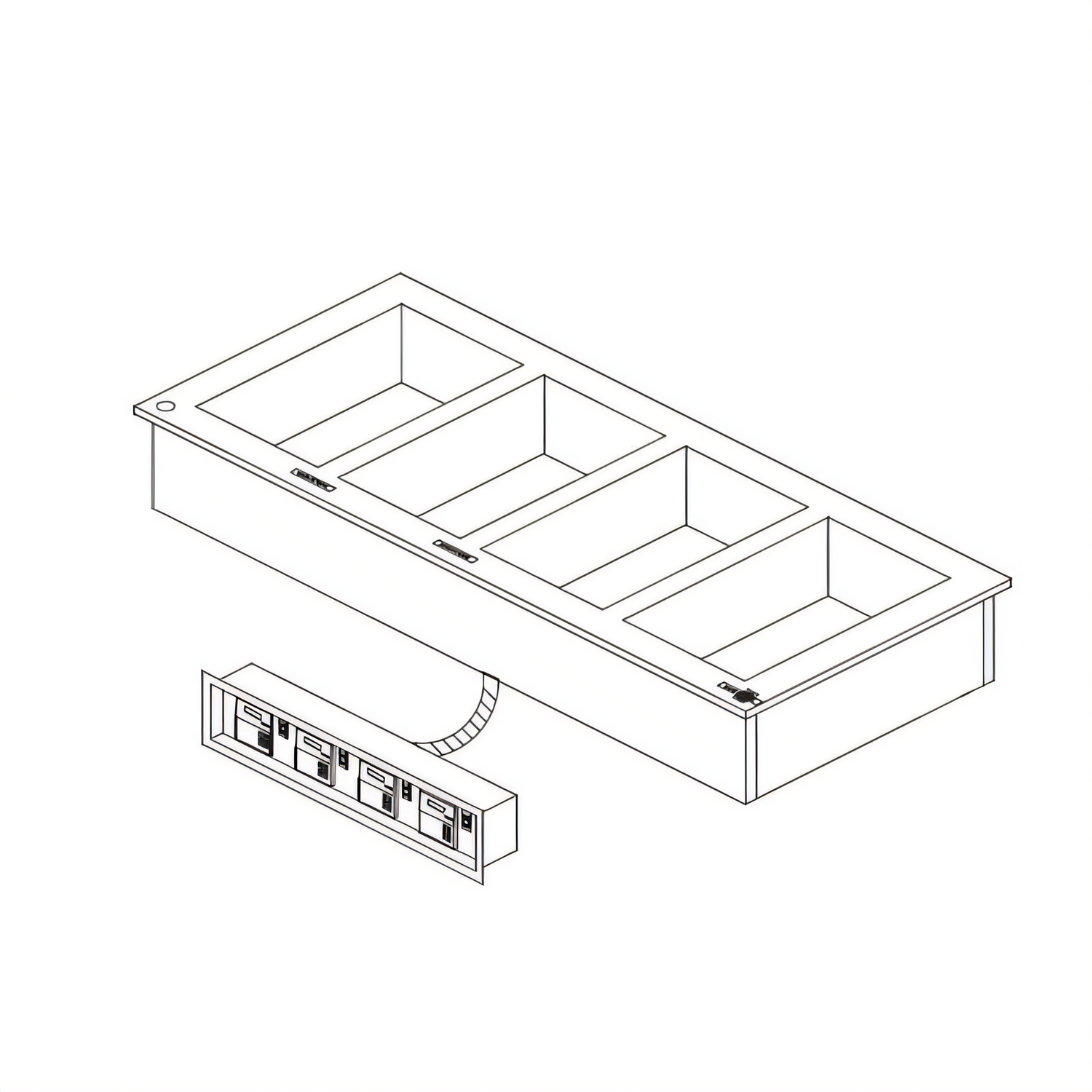

Need multiple wells? Check out the Delfield N8731-DESP through N8787-DESP models for 2- to 6-pan configurations.
