Delfield  |  SKU: N8759-DESP

Delfield N8759-DESP Steam Tables & Food Wells

$6,645.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Service manual Warranty sheet
Related Searches
Delfield Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

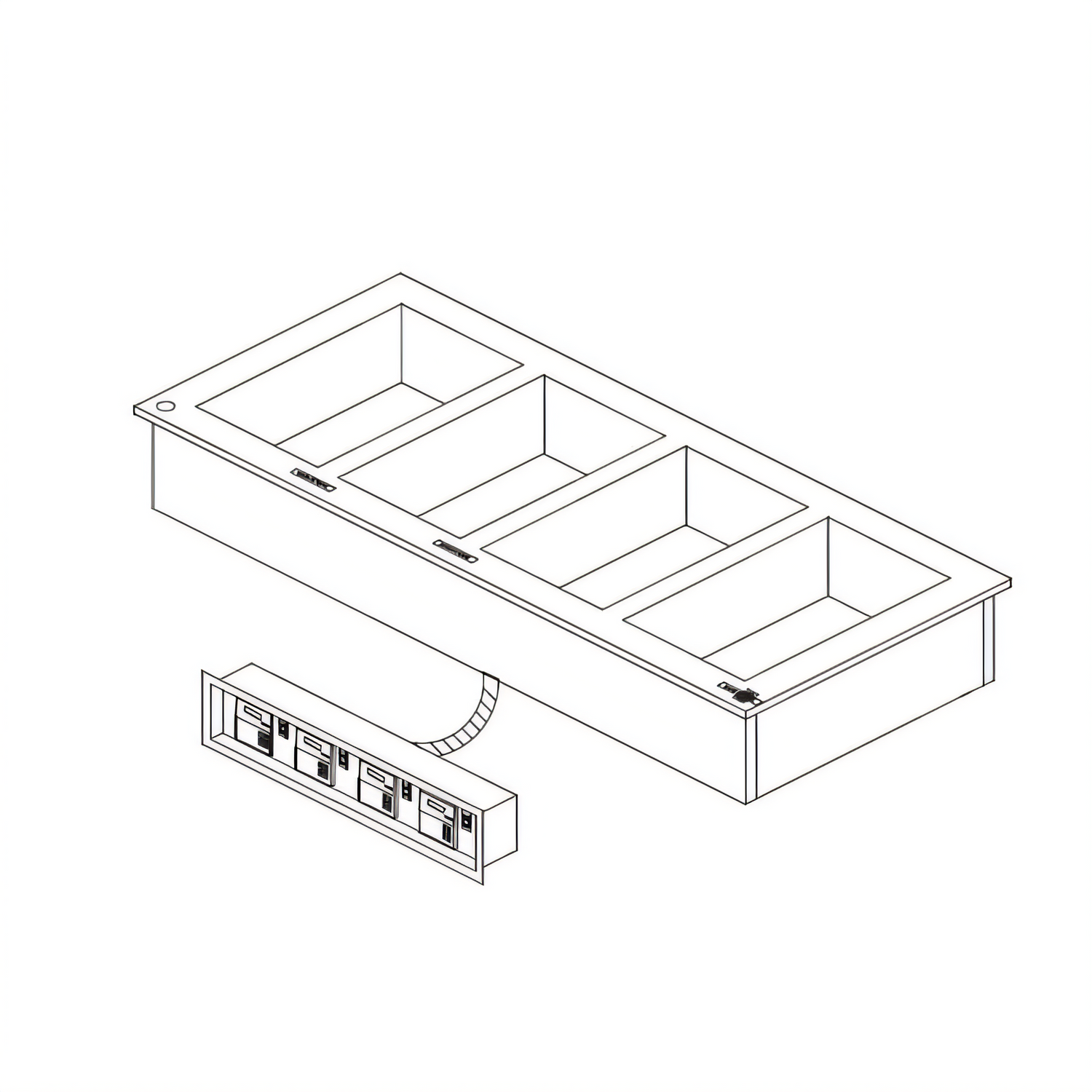

Delfield N8759-DESP Drop-In ESP Hot Food Well – 4 Pan

Energy-Saving Power (ESP) series · individual digital controls

Serve every entrée at its ideal holding temperature while trimming utility costs. The low-watt Delfield N8759-DESP delivers consistent, NSF-approved hot holding for four full-size pans in a single, easy-to-install drop-in unit.

Key Benefits

  • Fits four standard 12" × 20" (305 × 508 mm) hotel pans—no adapters needed.
  • Individual solid-state digital temperature controls for precise holding on every well.
  • 500 W heat pad per well (2,000 W total) slashes energy use vs. traditional elements.
  • Wet or dry service with ½" stainless drains manifolded to a single gate valve.
  • 18-ga stainless top & 20-ga drawn wells resist corrosion and wipe clean fast.
  • 1" fiberglass insulation keeps heat in the wells—not in your counter.
  • Pre-installed press-fit perimeter gasket means drop it in and go.
  • UL, cUL, NSF & CE listed for worldwide code compliance.

Technical Specifications

Model N8759-DESP
Pan capacity 4 × full-size 12" × 20"
Well depth 6.25" (159 mm)
Counter cutout 58.50" × 25.00" (1486 × 635 mm)
Control panel cutout 5.00" H × 22.88" W × 7.50" D (127 × 581 × 191 mm)
Total wattage 2,000 W (4 × 500 W)
Electrical 208-230 V / 60 Hz / 1 Ph, 9.6–10.8 A  •  Optional 240 V, 8.4 A
Drain ½" NPT, manifolded to left-side gate valve
Construction 18-ga stainless top, 20-ga stainless wells, galvanized exterior
Shipping weight ≈166 lb (75 kg)
Warranty 1-year parts & labor

Ideal Applications

  • Buffet & cafeteria service lines
  • QSR build stations
  • Banquet & catering hold stations
  • Operations seeking lower energy bills
Installation note: Unit ships without a cord and must be hard-wired to a grounded circuit. Maintain 3" (76 mm) clearance from combustible materials around the exterior housing.

Food pans, lids, and sneeze guards are sold separately. Dry operation is recommended for maximum energy efficiency.

Features & Specs

Manufacturer

Delfield

Certifications

NSF, CE, UL

Height

9.5in

Width

59.5in

Depth

26.0in

Shipping Weight

166.0lbs

Insulated or Non-Insulated

insulated

Controls

digital controls

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet or dry

Style

individual pans

Drain

with drain

Pan Capacity

(4) full size (12" x 20")

Specifications

Drop-In Hot Food Well Unit, Electric, individual pans, wet/dry type with drain & manifold, 4-pan size for 12" x 20" pan, individual digital temperature controls, stainless steel top & wells, galvanized exterior body, (58-1/2" x 25" cutout required), UL, NSF, cUL, CE
