Vollrath 36466 Steam Tables & Food Wells
Description

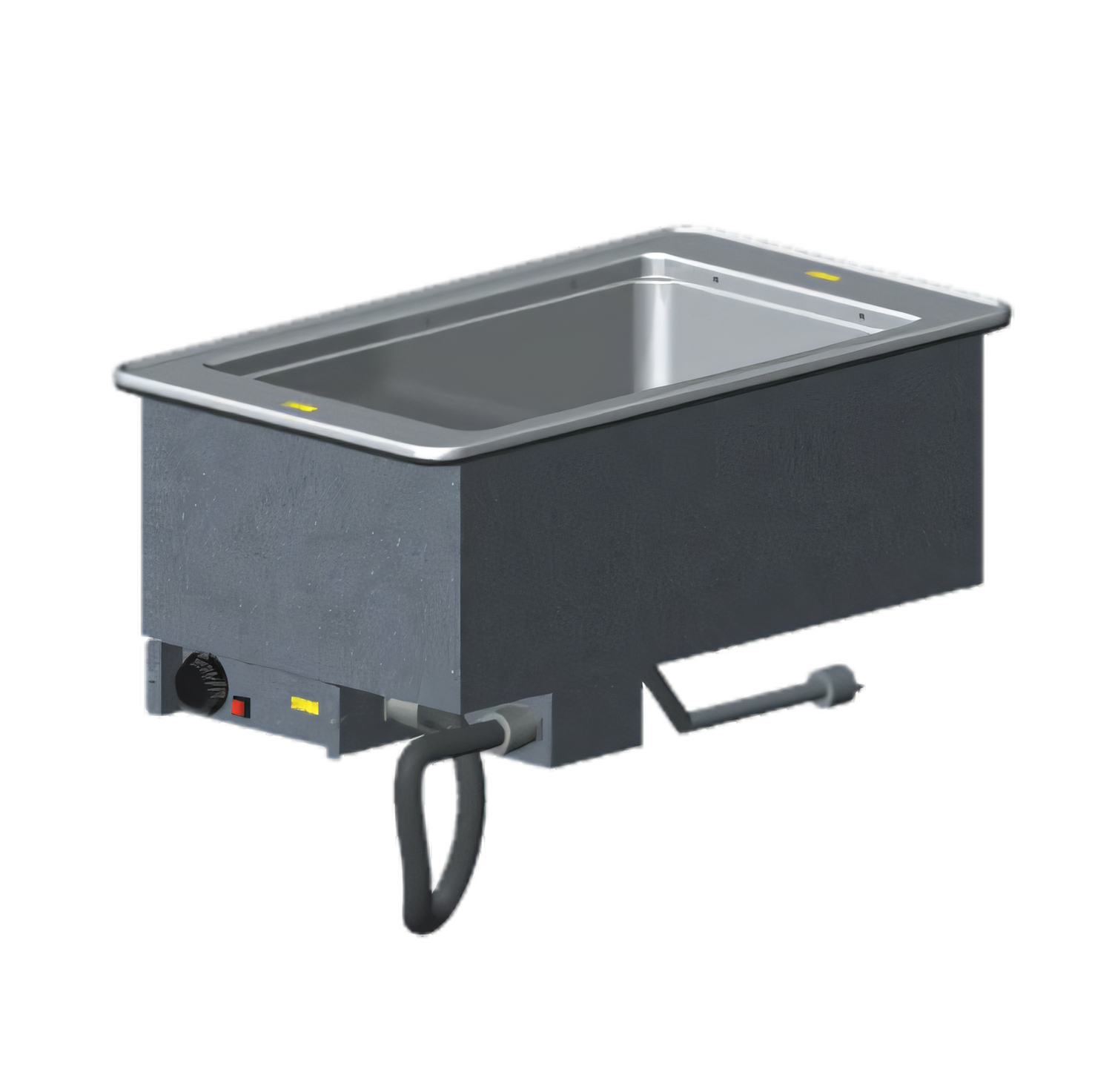

Vollrath 36466 1-Well Hot Drop-In Unit
625 W • 120 V • Wet Operation • Infinite ControlServe hot entrées, soups and sauces right from the counter with the plug-and-play convenience of Vollrath’s made-in-USA 1-well hot module. The 36466 model drops neatly into a 14-¼" × 25-¼" cut-out, delivers gentle, even heat through a water bath and includes everything you need for a professional, NSF-compliant install.
Top Features
- Deep-drawn 20-ga 12" × 20" stainless steel well accepts full-size or fractional pans up to 6" (15.2 cm) deep.
- 18-ga stainless top with full-perimeter drip edge keeps spills and condensation off the counter.
- Wet-heat design meets NSF 4 standards and maintains consistent holding temperatures.
- Front power-indicator light plus infinite control dial on a stainless panel (3' tether allows remote mounting).
- ½" MPT stainless drain with ball-valve shut-off for fast, mess-free water removal.
- High-density glass-fiber insulation on all sides—zero-clearance installation, reduced energy loss.
- Ships ready to use with 6' (1.8 m) cord and NEMA 5-15P plug—no hard-wiring required.
- Includes breaker gasket, positioning clips and adjustable mounting clips for counters up to 3" (7.6 cm) thick.
- NSF & cULus listed and proudly made in the USA.
Key Specifications
| Model | 36466 |
|---|---|
| Well Count / Size | (1) 12" × 20" well – up to 6" pan depth |
| Operation | Wet only |
| Control Type | Infinite (dial) |
| Wattage | 625 W |
| Electrical | 120 V / 60 Hz / 1-ph • 5.2 A • NEMA 5-15P |
| Overall Dimensions | 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm) |
| Counter Cut-out | 14-¼" W × 25-¼" D (36.2 × 64.1 cm) – 7⁄8" corner radius |
| Construction | 18-ga stainless top, 20-ga stainless well, 18-ga galvanized exterior housing |
| Drain | ½" stainless fitting with ball valve |
| Cord Length | 6' (1.8 m) |
| Certifications | NSF, cULus |
| Warranty | 1-year parts & labor (see Vollrath policy) |

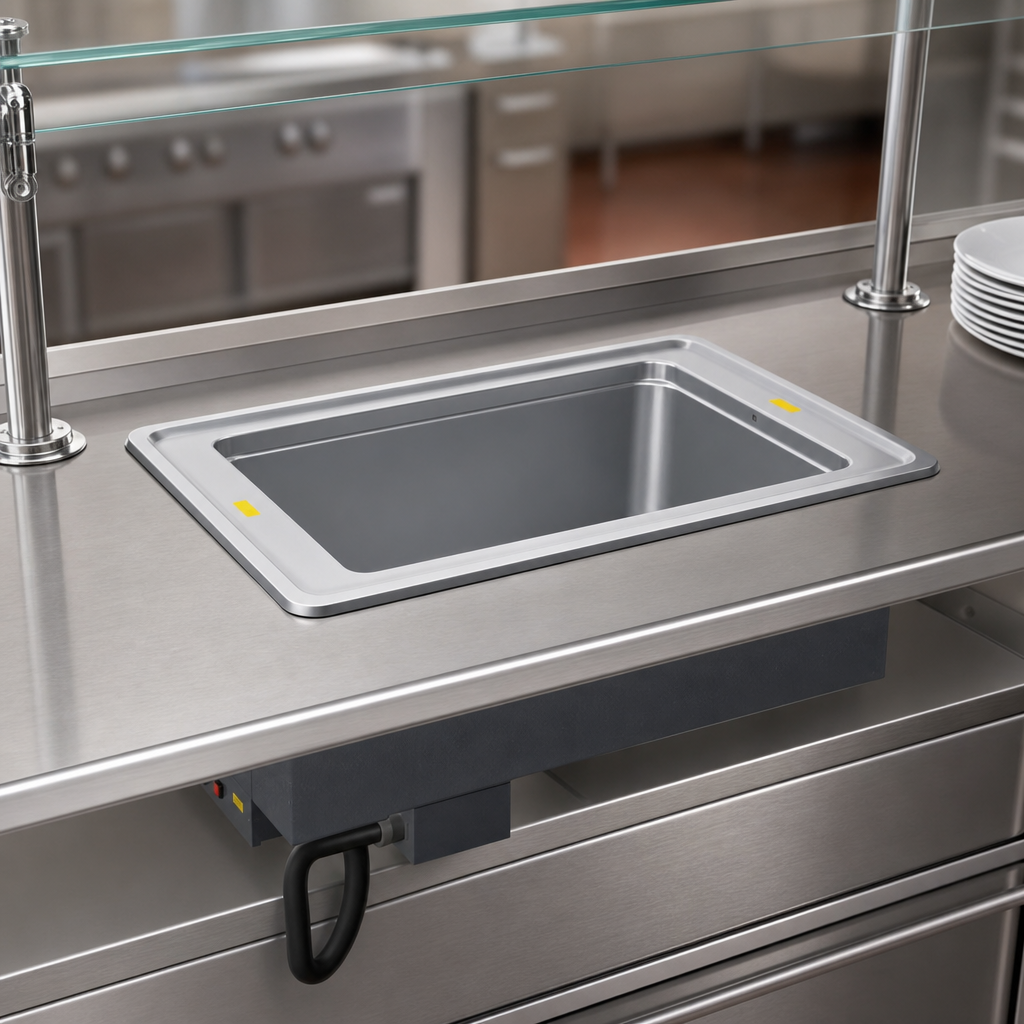

Installation & Use
- Apply the included breaker gasket beneath the drip flange for a sanitary, drip-free seal.
- Center the unit in the cut-out with the supplied positioning clips, then secure with mounting clips.
- Fill the well with water before energizing. Maintain proper water level during operation for even heat and element protection.
- Open the ball valve and connect to suitable drain plumbing for quick end-of-day clean-up.
Modular drop-ins are built to order and are non-returnable once ordered. For complete warranty terms visit vollrathfoodservice.com.
