Lang Manufacturing (Middleby) DO54B3M Lang® Marine Deck Ovens
Description

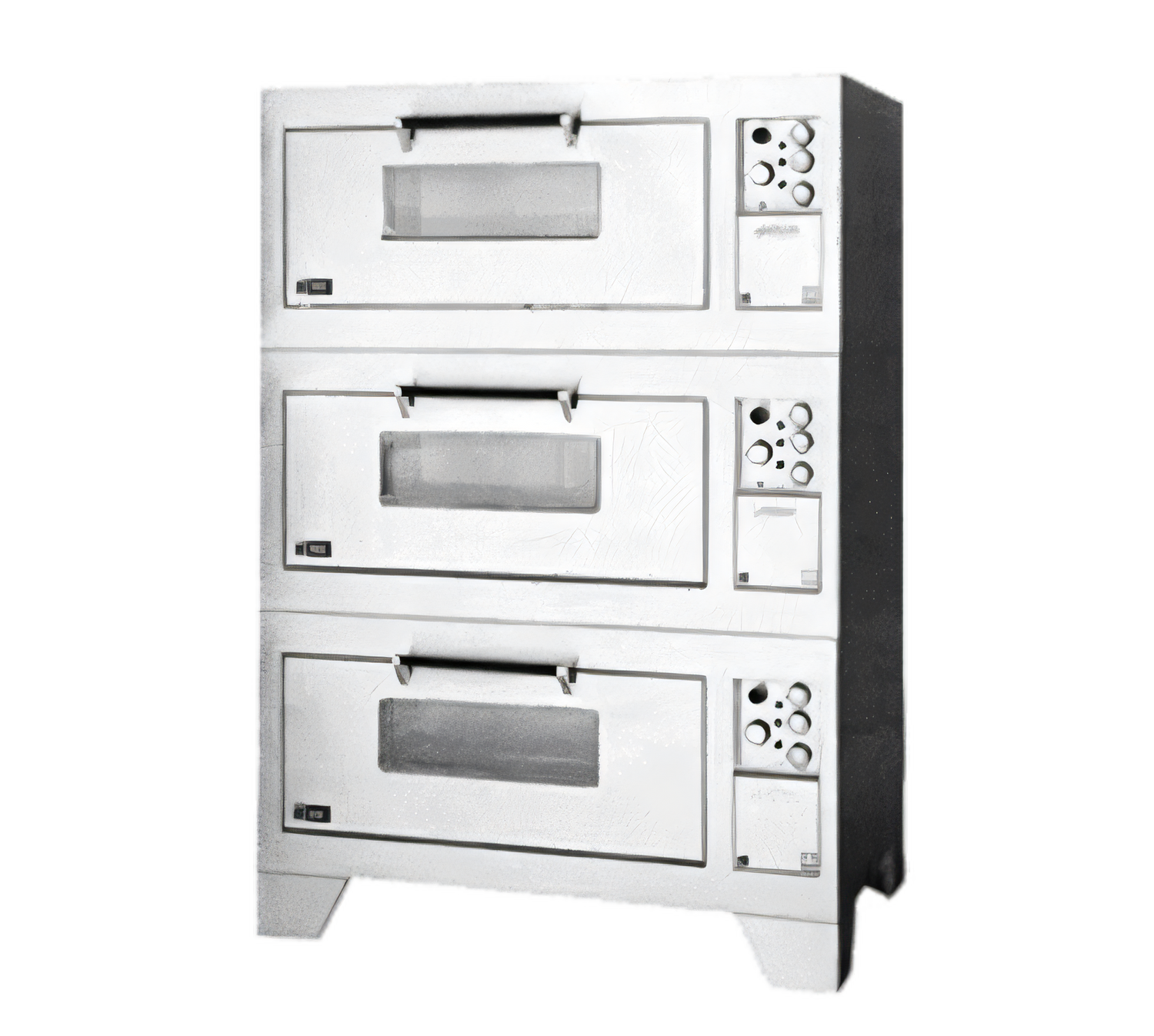

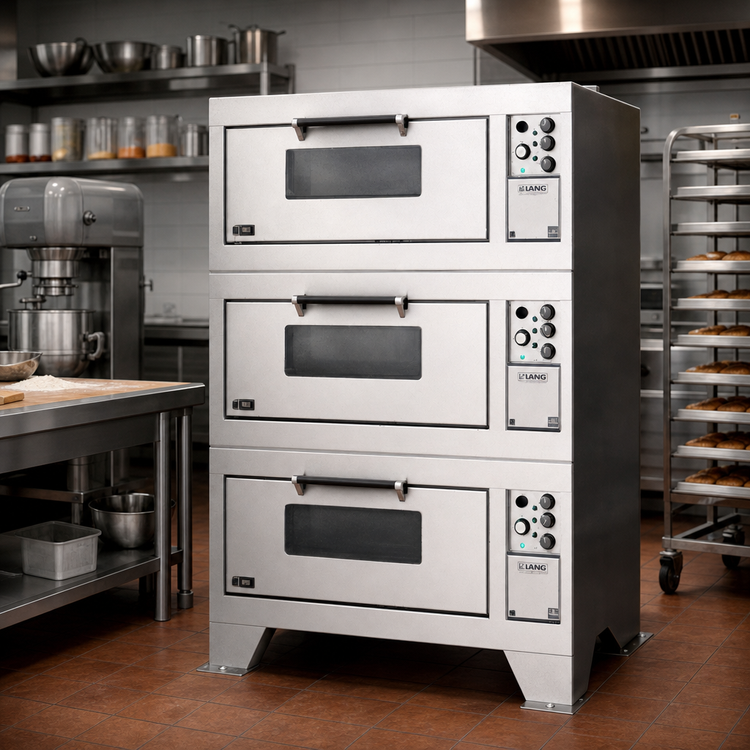

Lang® Marine Triple-Deck Electric Bake Oven
Model DO54R3M | 38" × 30" deck | 18 kW | Marine-cUL & NSFBuilt to thrive in the demanding marine galley, the Lang® Marine DO54R3M packs three independent 38"-wide baking decks into a remarkably compact footprint. From fresh breads to perfectly roasted proteins, you’ll enjoy consistent, even results voyage after voyage.
Why you’ll love it
- High-volume throughput – 3 decks hold up to six 18" × 26" full-size sheet pans (2 per deck).
- Marine-ready construction – Heavy-duty 430 stainless steel exterior, fully insulated aluminized-steel chambers, and 6" bolt-down legs for superior stability at sea.

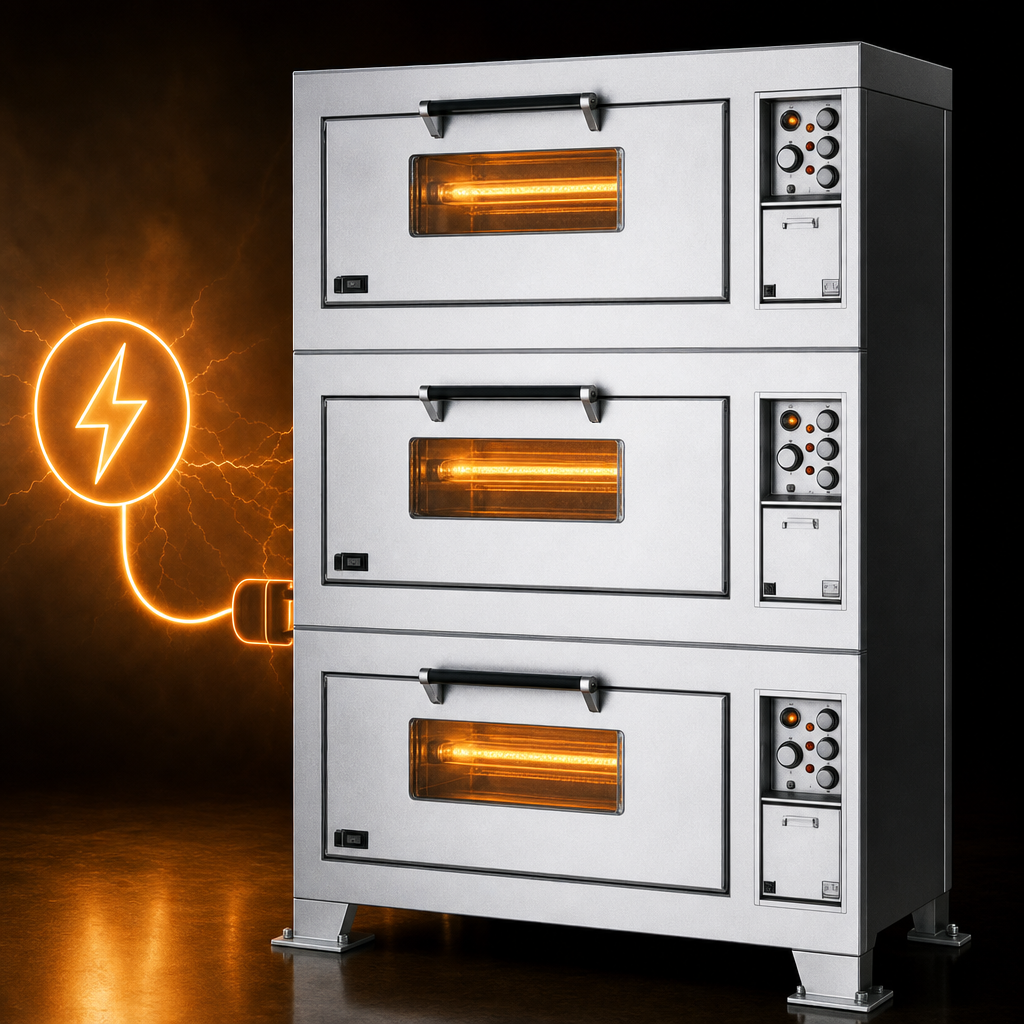

- Precise deck control – Top & bottom Incoloy-sheathed elements per deck with a 3-heat selector (top, bottom, or both) for perfect crust development.
- Wide temperature range – 100 °F – 550 °F (38 °C – 288 °C) gives you the flexibility to bake, roast, or finish.
- Operator-friendly doors – Spring-loaded, pull-down doors double as loading platforms and latch securely in rough seas.
- Simple analog controls – Knob-set thermostat and 60-minute timer per deck mean quick training and dependable service life.
- Easy serviceability – Right-side recessed control panel and front-access components minimize downtime.
- Peace of mind – 2-year parts & labor warranty backed by Lang & Middleby’s global service network.
Technical specifications
| Deck size (W × D × H) | 38" × 30" × 8" (965 × 762 × 203 mm) |
|---|---|
| Number of decks / racks supplied | 3 decks / 1 heavy-duty chrome rack (additional racks optional) |
| Pan capacity | 6 full-size (18" × 26") sheet pans total |
| Temperature range | 100 °F – 550 °F (38 °C – 288 °C) |
| Total connected load | 18 kW |
| Electrical options |
208 V / 60 Hz / 1 φ – 86.5 A 240 V / 60 Hz / 1 φ – 75.0 A 208 V / 60 Hz / 3 φ – 57.7 A/line 240 V / 60 Hz / 3 φ – 43.3 A/line 480 V / 60 Hz / 3 φ – 21.7 A/line |
| Overall dimensions* (W × D × H) | 54" × 36" × 24" (1372 × 915 × 610 mm) without legs |
| Clearances | 2" (51 mm) sides & back, non-combustible floor |
| Shipping weight | 1,240 lb (564 kg) |
| Certifications | NSF, Marine-cUL |
| Warranty | 2 years parts & labor (Lang Marine) |
*Add 6" (152 mm) for included bolt-down legs.
