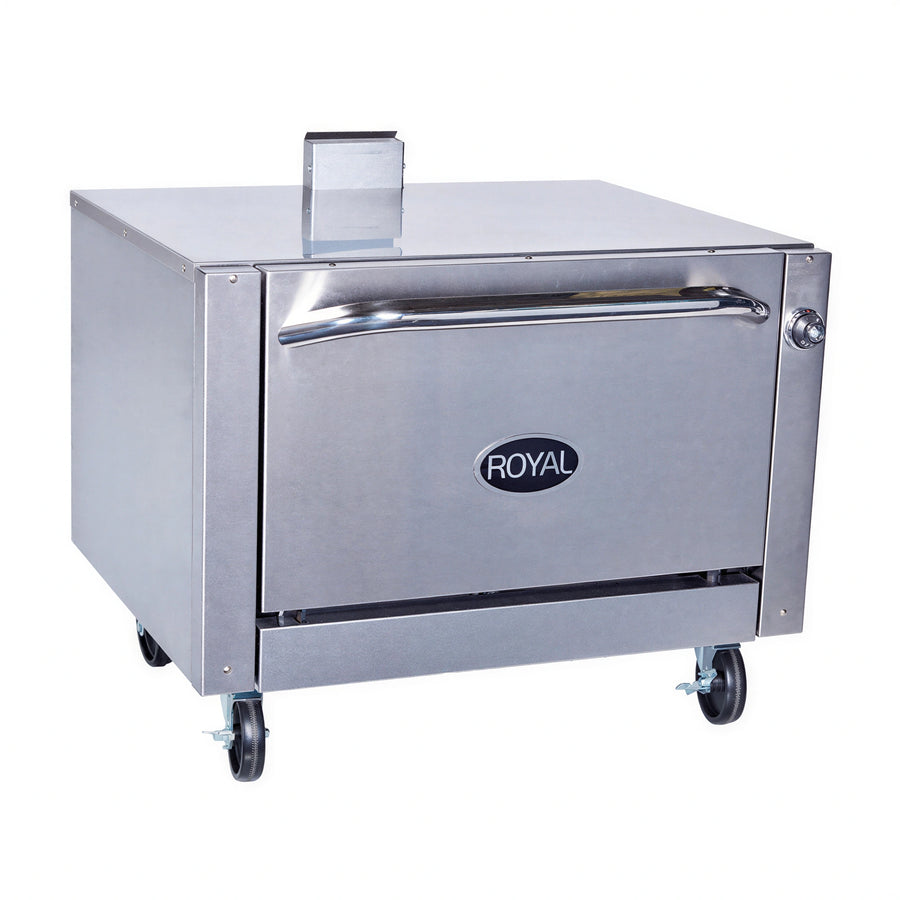

Royal Range of California Royal Series RR-36-LB-C 36-Inch Gas Deck Oven, Single-Deck, Convection, Stainless Steel Front & Sides
SKU: RR-36-LB-C
$9,027.00
The RR-36-LB-C is a single-deck gas convection deck oven with a stainless steel front and sides, porcelain interior, and a welded metal frame.
- Temperature control: Adjustable from 150°F to 500°F.
- Heating: Stainless steel 30,000 BTU/hr U-shaped burner.
- Construction: Stainless steel front, sides, and kick plate with legs.
- Rack: One heavy-duty chrome-plated adjustable rack.
- Controls: Piezo-type ignition, cook-and-cool switch, two-speed fan switch, and one-hour manual timer.
Overall Dimensions:
36.0"W x 28.75"D x 29.0"HProduct Weight:
205.0 lbSingle-deck convection design
Configured as one gas-fired convection oven deck.
Adjustable temperature control
Thermostat range is 150°F to 500°F.
Gas heating
Uses a stainless steel U-shaped burner rated at 30,000 BTU/hr.
Adjustable rack
Includes one heavy-duty chrome-plated adjustable rack.
Durable construction
Features a welded metal frame, stainless steel front, sides, and kick plate, legs, and a porcelain interior.
Ignition
Uses piezo-type ignition.
Convection controls
Includes a cook-and-cool switch, two-speed fan switch, and one-hour manual timer.
Deck Qty
1 deck
Oven Type
Convection oven
Fuel Type
Gas
Temperature Range
150°F to 500°F
Burner Input
30,000 BTU/hr
Rack
1 heavy-duty chrome-plated adjustable rack
Ignition Type
Piezo type
Exterior Finish
Stainless steel front and sides
Interior Finish
Porcelain
Frame
Metal welded frame
Design
Range match
Electrical Requirement
120 V, 50/60 Hz, 1 phase, 8 A
Motor
Two-speed, 1/2 HP; 1725/1140 RPM
Power Cord
6 ft with standard three-prong grounded plug
Gas Connection
3/4 in NPT on the right-hand rear
Gas Pressure
5 in W.C. natural gas; 10 in W.C. propane
Certifications & Compliance
Warranty & Protection
Two-year limited parts-and-labor warranty for the original purchaser.
Frequently Asked Questions
The thermostat is adjustable from 150°F to 500°F.
The RR-36-LB-C has one oven deck.
It requires 120 V, 50/60 Hz, single-phase service at 8 A.
The oven is 36.0 in wide, 28.75 in deep, and 29.0 in high, with a listed weight of 205.0 lb.
The product is covered by a two-year limited parts-and-labor warranty for the original purchaser, not to exceed 30 months from the date of manufacture, subject to the warranty terms.
