Lang Manufacturing (Middleby) DO54B2M Lang® Marine Deck Ovens
Description

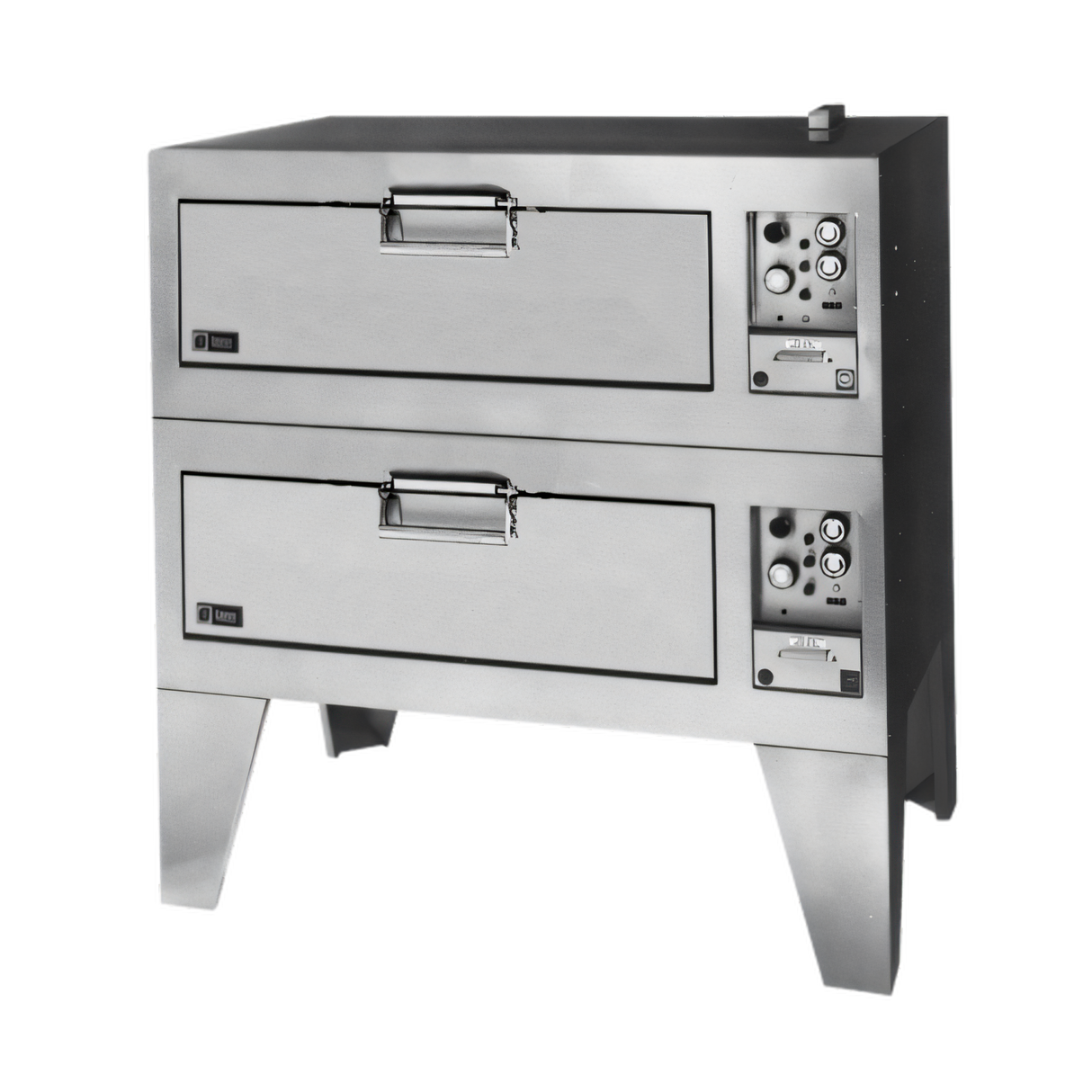

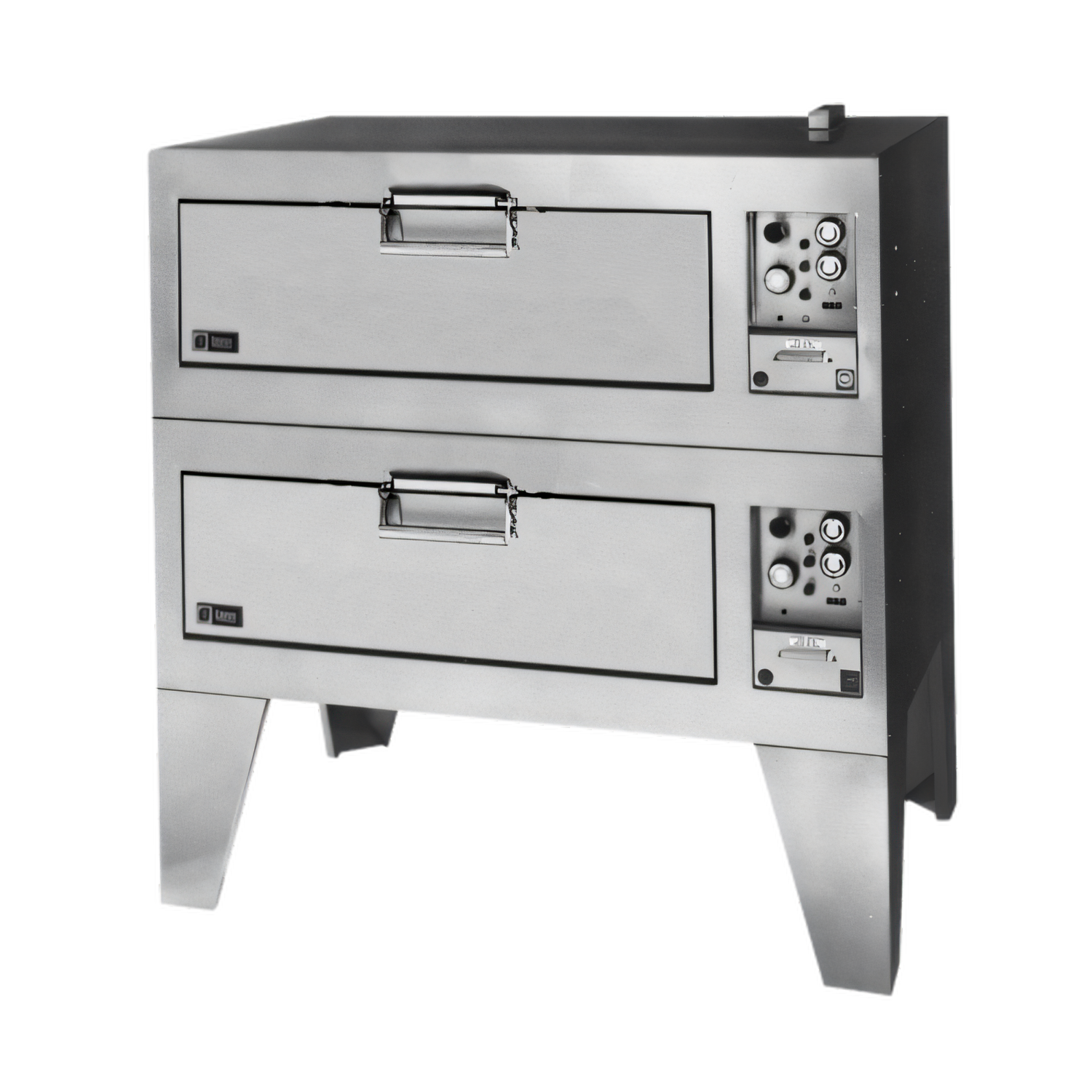

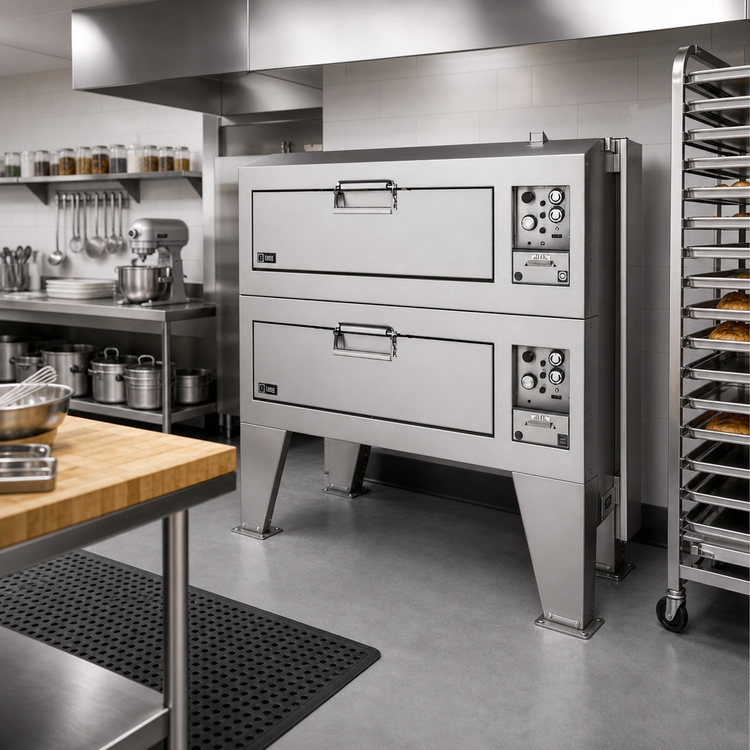

Lang® Marine Double-Deck Bake Oven – Model DO54R2M
Electric • 12 kW • Marine-cUL & NSF ListedEngineered for the relentless demands of shipboard and offshore kitchens, the Lang® Marine double-deck deck-type oven delivers powerful, even heat in a rugged, space-saving package that bolts securely to the galley deck.
Key Features

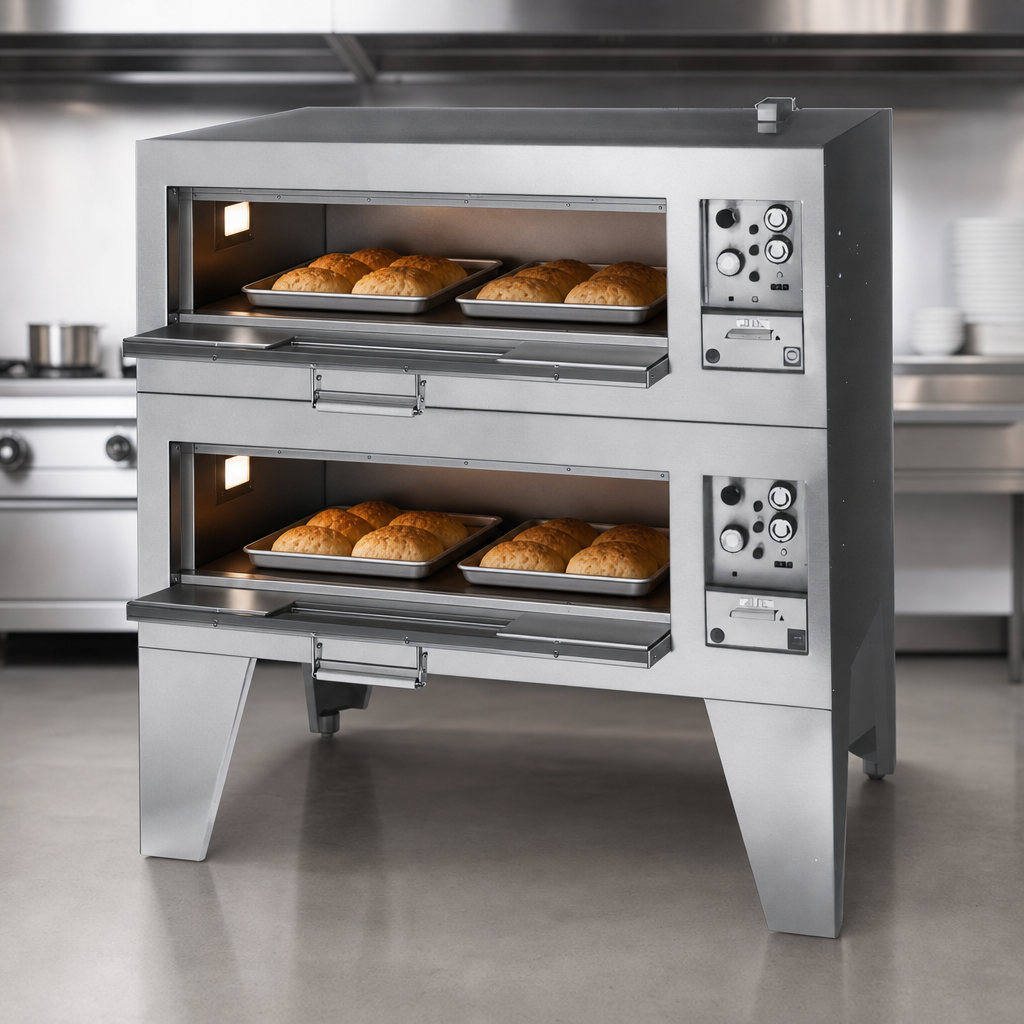

- Two reinforced 38 in × 30 in baking decks – each holds two full-size (18 × 26 in) sheet pans.

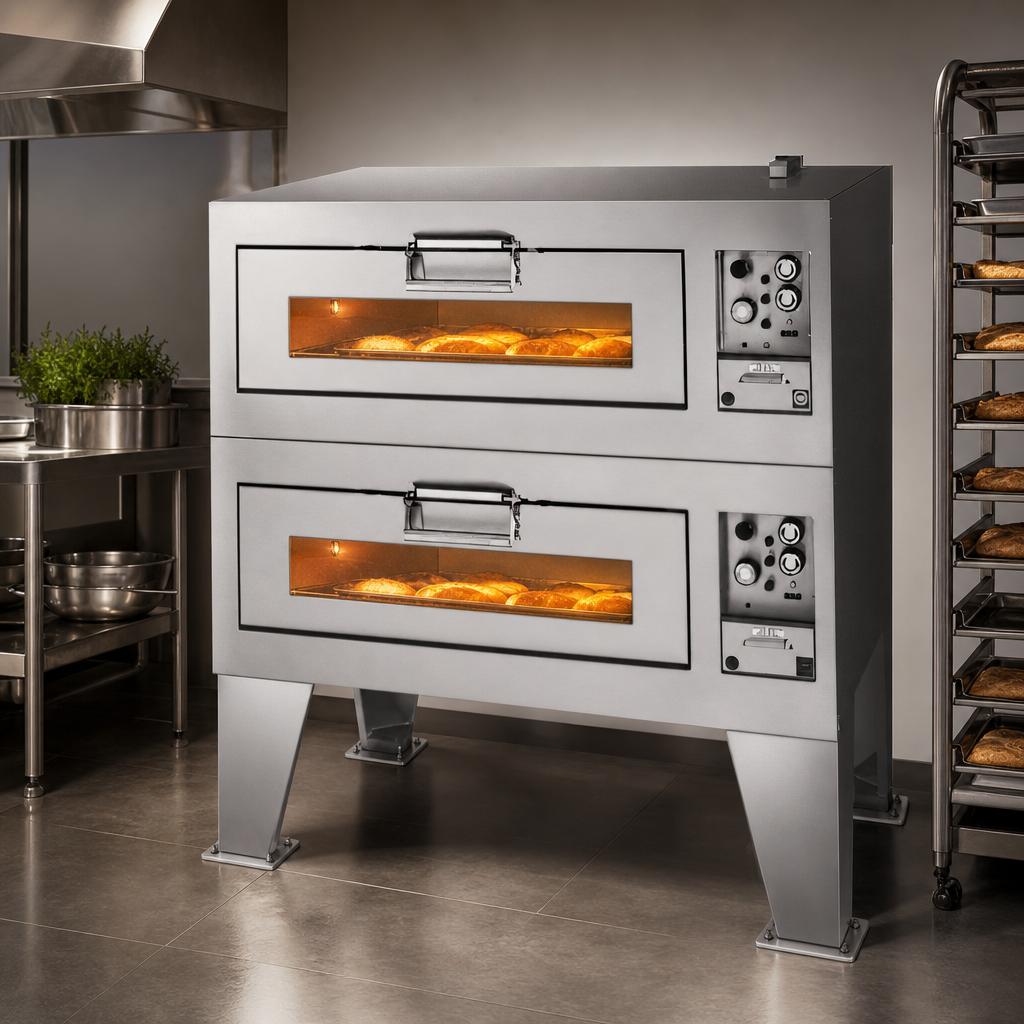

- Total output 12 kW (6 kW per deck) with top & bottom Incoloy-sheathed elements for uniform baking, roasting, or finishing.
- Wide 100 – 550 °F thermostat and 3-heat selector (top only • bottom only • both).
- Marine-rated, spring-loaded pull-down doors double as loading platforms and stay latched in heavy seas.
- 430 stainless-steel exterior (#4 finish) resists corrosion; aluminized-steel interior is fully insulated on all six sides.
- 16 in stainless, angular bolt-down legs keep the oven fixed to the deck.
- Recessed, right-side control panel with mechanical thermostat, 60-minute timer, and manual vent rod – no electronics to fail at sea.
- Stacked two-high from the factory – no field-stacking kit required.
- Certified Marine-cUL & NSF for commercial galley use.
- Ships with one heavy-duty chrome rack; additional racks optional.
At-a-Glance Specifications
| Model | DO54R2M Marine (double deck) |
|---|---|
| Internal deck (each) | 12 in H × 38 in W × 30 in D |
| Capacity | 4 full-size sheet pans | approx. 250 lb meat | 8 whole turkeys |
| Total power | 12 kW – 208 / 240 V, 1- or 3-phase (480 V 3-phase optional) |
| Amperage @ 240 V | 1-phase 50 A | 3-phase 43.3 A |
| Exterior (w/o legs*) | 54 in W × 36 in D × 24 in H |
| Leg height | 16 in bolt-down marine legs (included) |
| Net weight | 755 lb / 343 kg |
| Clearances | 2 in sides & back (non-combustible floor) |
| Listings | Marine-cUL, NSF |
*Overall height with legs: 40 in.
Why It Excels in Marine Galleys
- Low deck-to-deck profile minimizes reach height for safer loading on rolling vessels.
- Bolt-down legs and locking doors maintain stability during rough seas.
- Durable stainless finish stands up to salt-laden, high-humidity environments.
- All-electric design reduces fire risk and simplifies ventilation compared with open flames.
Warranty
Covered by Lang’s 2-year parts & labor warranty for Marine-series equipment when installed and serviced by an authorized technician.
