Lang Manufacturing (Middleby) DO361M Lang® Marine Deck Ovens
Description
Lang® Marine Series Single-Deck Electric Deck Oven
Model DO361M • 6 kW • Marine-cUL & NSF ListedPurpose-built for shipboard galleys, the Lang Marine DO361M gives you full-size baking power in a compact, bolt-down package that passes easily through a 26" × 66" watertight hatch. Heavy-duty stainless construction, precise deck-style heat, and a rugged pull-down door make this oven the reliable workhorse your crew can count on—no matter how rough the seas get.
Key Features & Benefits

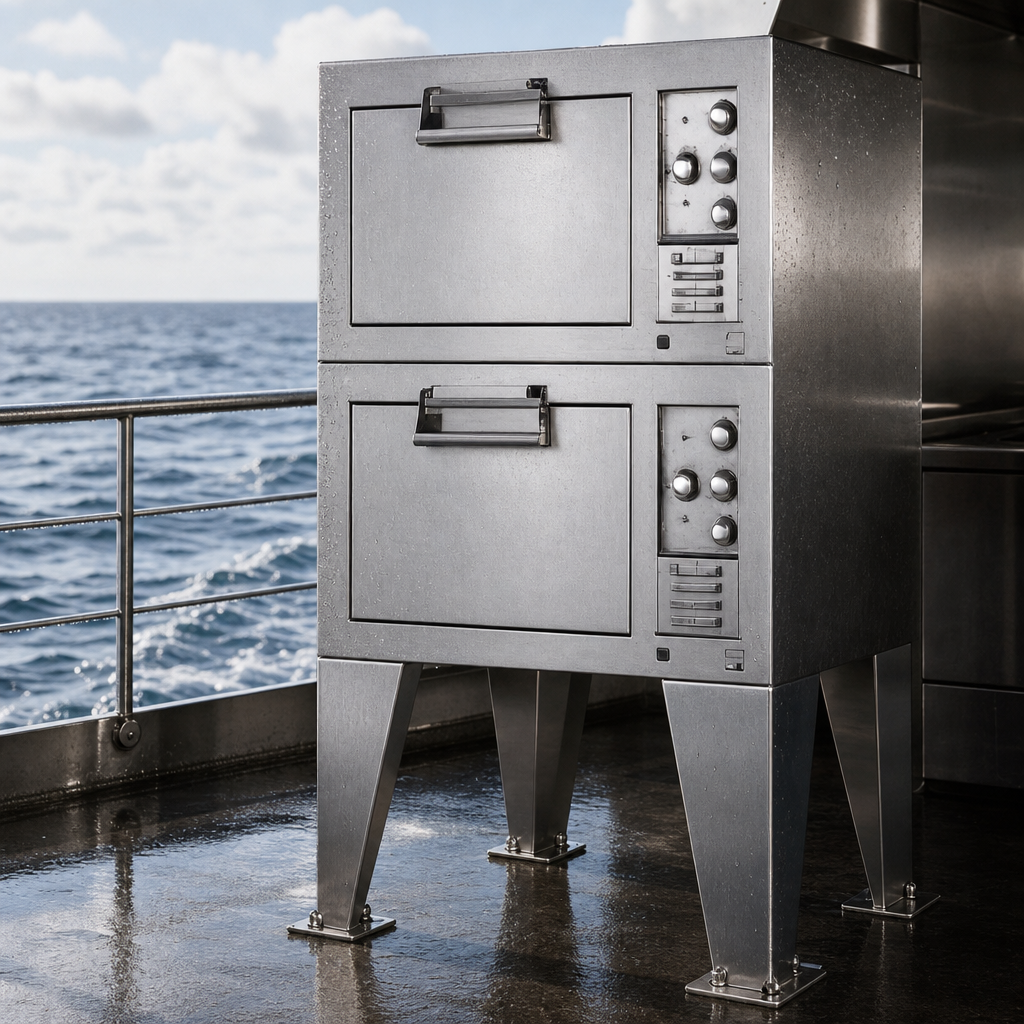

- Marine-grade 430 stainless steel exterior with fully-insulated aluminized steel interior—built to resist corrosion at sea.
- Top & bottom Incoloy-sheathed elements deliver even deck heat for breads, pizzas, roasts and more.
- 150 – 550 °F thermostat plus (2) three-heat switches (top only / bottom only / both) give you pinpoint control.
- 1-hour timer with loud buzzer prevents over-baking in busy galleys.
- Recessed, right-side cool-zone control panel protects settings from accidental bumps.
- Spring-loaded pull-down door doubles as a loading platform; reinforced deck prevents warping.
- Includes one heavy-duty wire rack; additional racks available.
- 27" stainless steel bolt-down legs meet USCG stability requirements and keep the oven secure underway.
- Stackable up to three decks—expand capacity without increasing footprint.
Pan & Production Guide (per deck)
| Full-Size 18" × 26" Sheet Pans | 1 |
|---|---|
| 9" Pies | Up to 6 |
| 1-lb Bread Loaves | Up to 10 |
Technical Specifications
| Interior (Bake Deck) Size | 22" W × 27.8" D × 12" H |
|---|---|
| Exterior (without legs) | 22" W × 36" D × 34" H |
| Total Height (with 27" legs) | 61" |
| Heat Output | 6.0 kW |
| Electrical | 208 or 240 V, 1-Phase (3-Phase optional) • 29 A @ 208 V / 25 A @ 240 V |
| Temperature Range | 150 – 550 °F (65 – 288 °C) |
| Control Package | Thermostat, (2) 3-heat switches, 1-hr timer |
| Certifications | Marine-cUL, NSF |
| Ship Weight | 285 lb (129 kg) |
Required clearances to combustible surfaces: 2" to sides, 2" to back. Professional installation and a dedicated electrical circuit are mandatory.
Warranty
Lang backs every Marine Series oven with a 2-year parts & labor warranty, giving you added peace of mind when you’re far from shore.
