Insinger TRAC 321-2 Traywashers Undercounter Dishwashers
Description

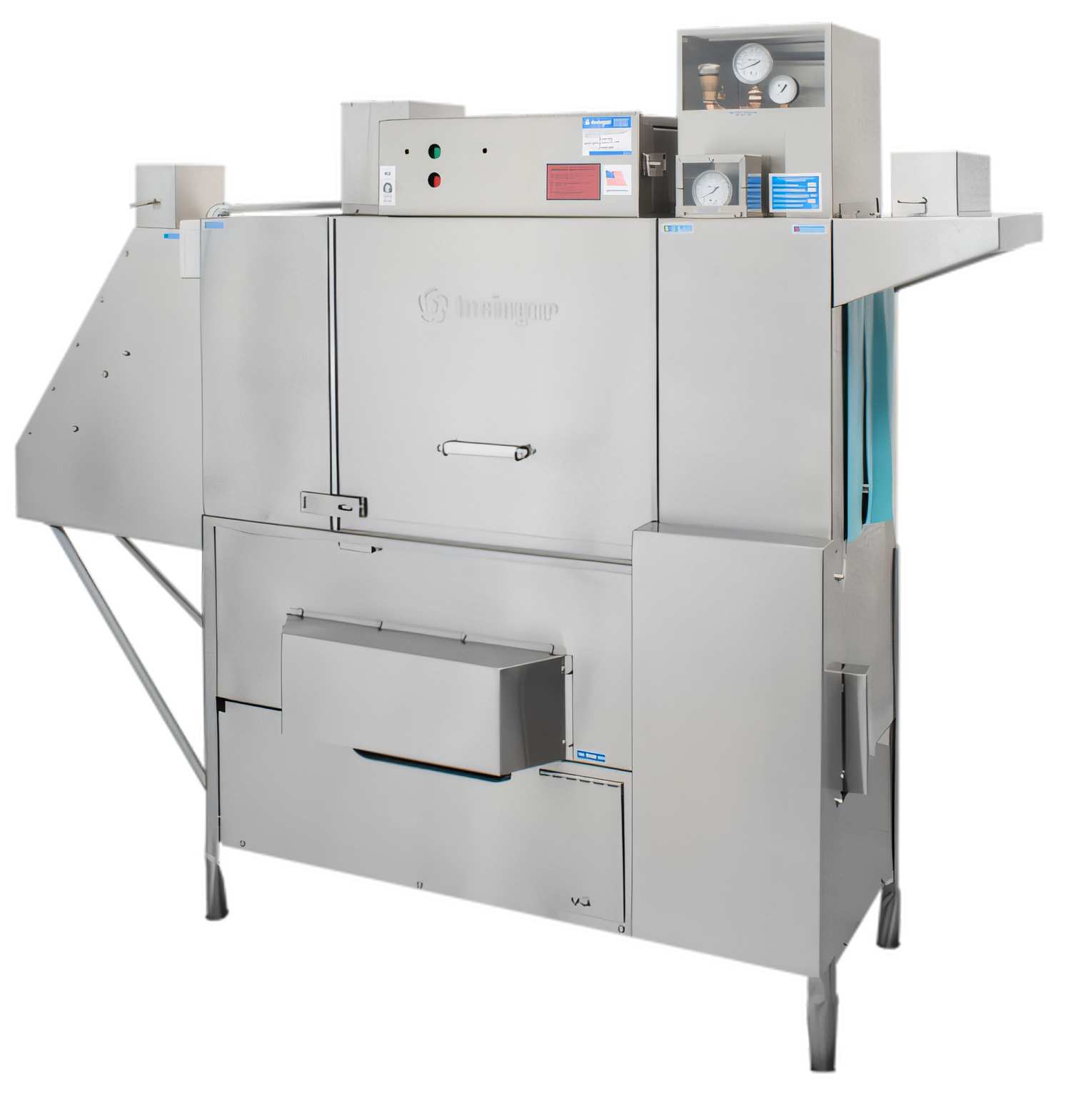

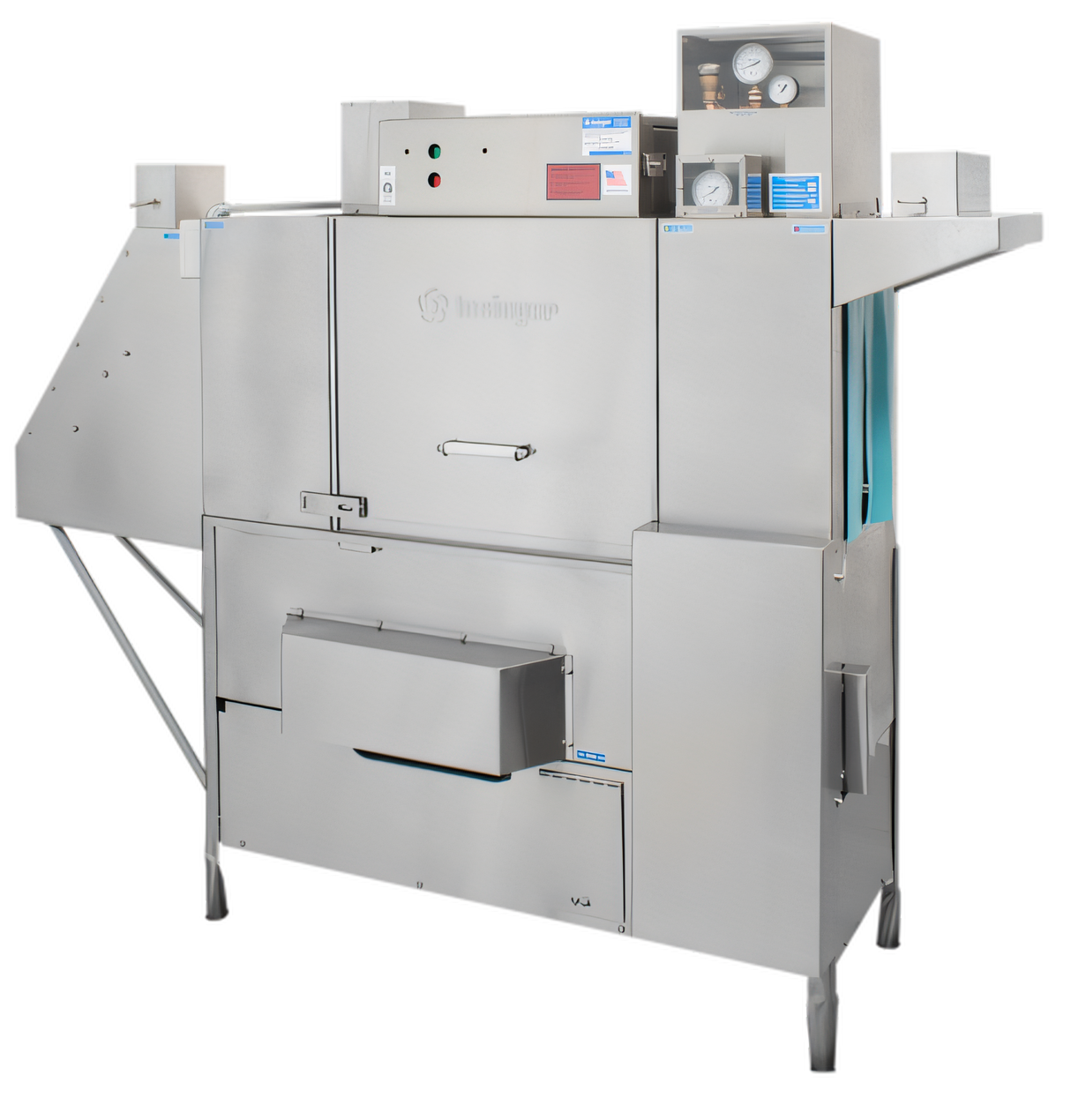

Insinger TRAC 321 Automatic Tray Washer
528 trays / hour • Single-tank • Made in USAPurpose-built for correctional, healthcare and high-volume institutional kitchens, the Insinger TRAC 321 powers through up to 528 trays per hour while meeting NSF/ANSI 3 sanitation standards—without chemical additives. 304 stainless-steel construction, automatic tank fill and a top-mounted NEMA 12 control panel combine to deliver years of low-maintenance, plug-and-play performance.
Key benefits
- High-temperature final rinse for guaranteed 180 °F sanitizing
- Compact 115" footprint saves valuable floor space
- Single-tank design cuts water and energy use (only 248 gal/hr)
- Automatic tank fill with low-water protection extends heater life
- Capillary & in-line thermometers monitor wash and rinse temperatures in real time
- Vacuum breaker on all incoming water lines prevents back-flow contamination
- Door safety switch and drip-proof motors protect operators
- Includes matching unload table for a seamless work flow
- Rugged 304 stainless-steel frame, legs & enclosure panel
Popular factory options
- Tray Dryer & automatic Tray Stacker add-ons
- Electric or steam booster heater (40 °F or 70 °F rise)
- Stainless-steel steam-coil tank heat
- Insulated hood and doors for lower radiant heat
- Chemical sanitizer injector package for low-temp operation
- Security package for detention facilities
- Single-point electrical connection package
- Vents with adjustable damper controls
Specification snapshot
| Capacity | 528 trays/hr (Ø 15" tray) |
|---|---|
| Configuration | Single tank, high-temperature sanitizing |
| Wash Tank Heat | 15 kW electric immersion or steam injector |
| Optional Booster Heat | 27 kW (40 °F rise) or 45 kW (70 °F rise) |
| Motors | Wash – 9 HP | Conveyor Drive – 1/15 HP |
| Water Consumption | 248 gal/hr @ 20 psi |
| Wash Tank Capacity | 24.1 gal |
| Peak Drain Flow | 9 gal/min |
| Steam Consumption | 54 lb/hr @ 20 psi (steam model) |
| Electrical Options | 208, 240, 380 or 480 V / 3 ph |
| Vent Requirements | 100 CFM (load end) | 300 CFM (unload end) |
| Overall Dimensions | 115" L × 26–48" W × 54" H |
| Shipping Weight | ≈ 700 lb |
Looking for Revit/KCL files or a site-specific installation drawing? Call Insinger at 800-344-4802 or visit insingermachine.com.
