Hobart PW10N-ADV-1 Warewash Dishwashers
$31,559.22
Unit price
/
Unavailable
Description

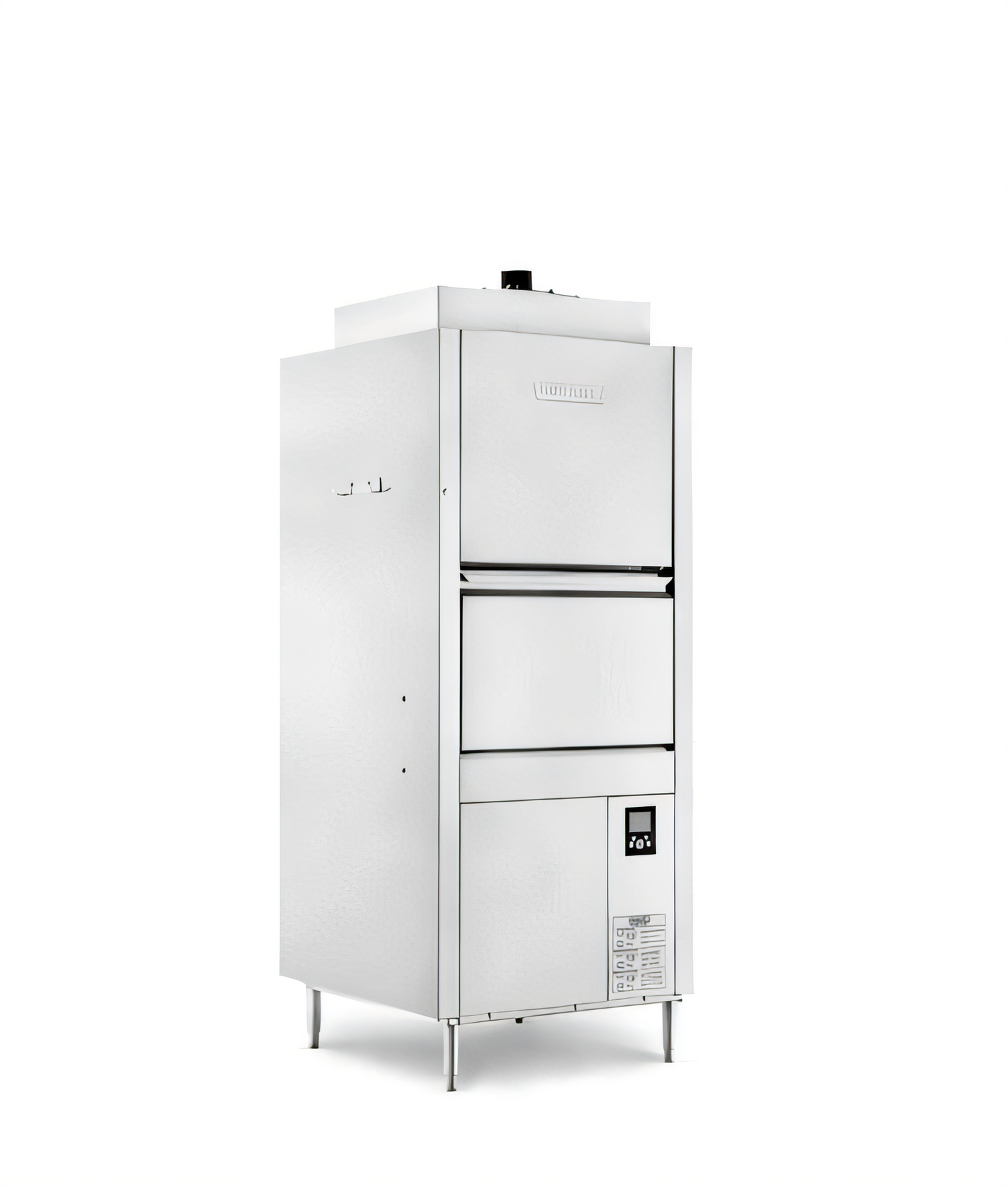

Hobart PW10n-ADV Advansys™ Ventless Pot, Pan & Utensil Washer
High-temperature sanitizing • 10-pan capacity • Smart touchscreen controlsReplace hours of scrubbing with the only ventless, high-temperature pot & pan washer in its class. Hobart’s PW10n-ADV slashes water, energy and labor while delivering NSF-approved results in as little as two minutes per rack.
Key advantages

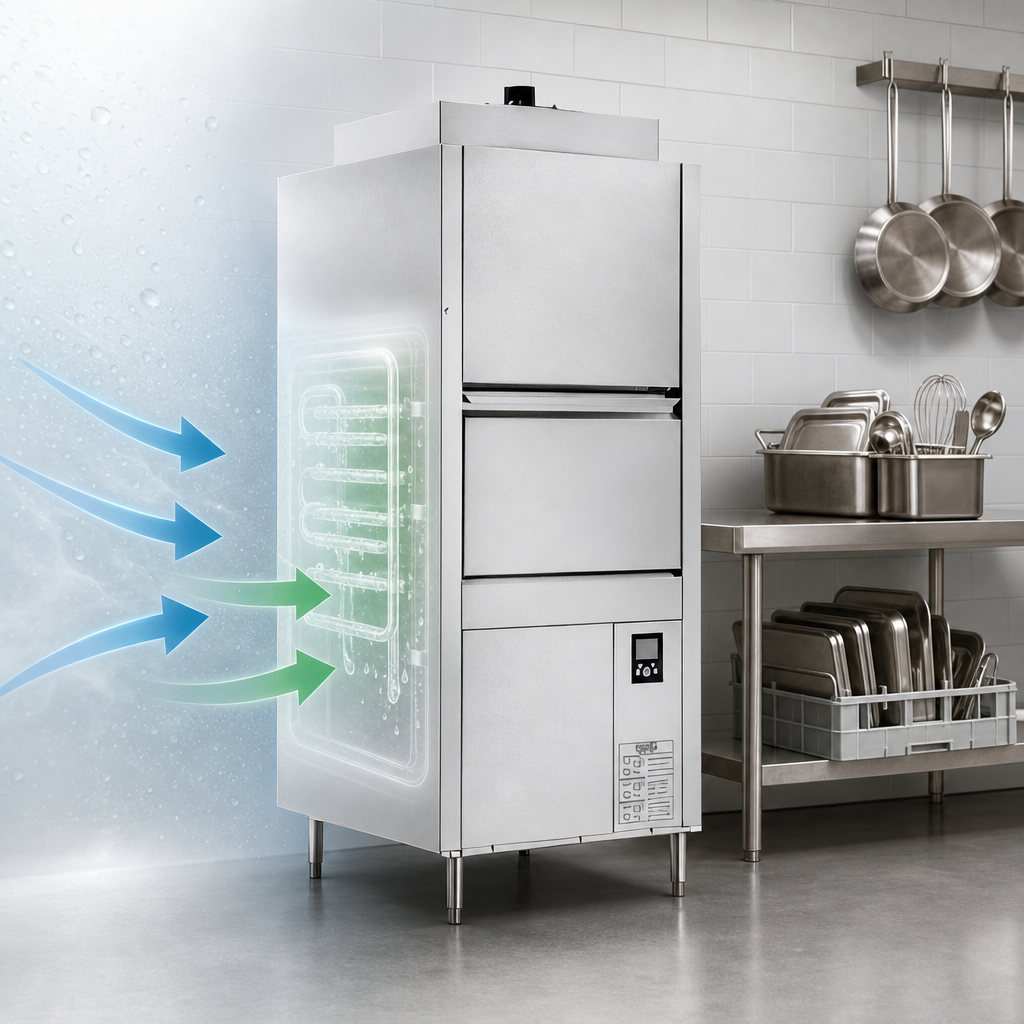

- Advansys™ Ventless Energy Recovery captures steam heat—no external hood required.
- User-friendly smart touchscreen with on-board diagnostics, temperature alerts and Wi-Fi connectivity to the SmartConnect app.
- Three selectable cycles (2/4/6 min) process up to 13 racks per hour using just 1.2 gal of water each.
- Sense-A-Temp™ 16.4 kW booster heater provides a guaranteed 70 °F rise for automatic high-temp sanitizing.
- Complete Delime™ system with Delime Notification, Auto Dispensing and Booster Guard™ keeps scale at bay.
- X-shaped, interchangeable upper & lower wash arms plus pumped rinse and pumped drain for uniform coverage.

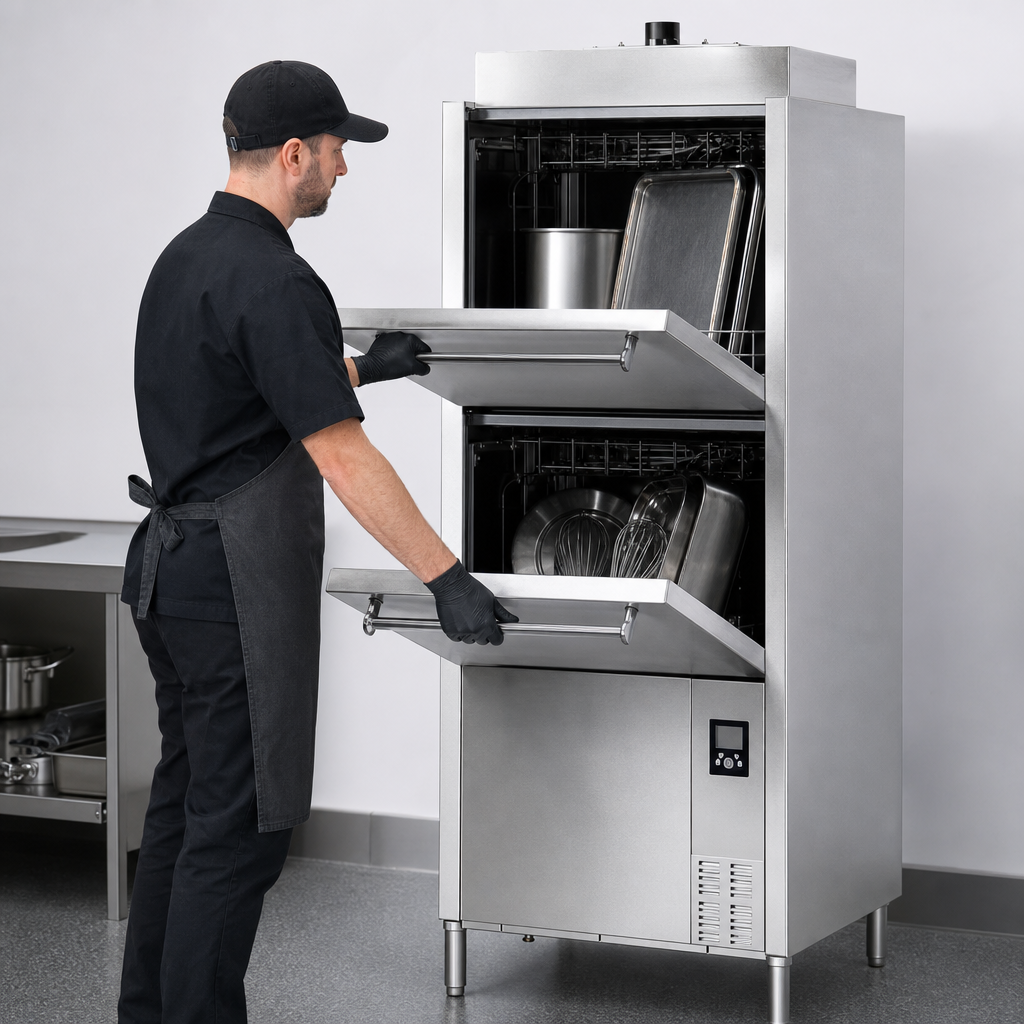

- Front-loading split door accepts (10) full-size sheet pans or a 140 qt mixing bowl; integrated door lock protects cycle integrity.
- Factory-installed drain-water tempering meets plumbing code without extra parts.
- ENERGY STAR®, NSF & cULus listed—eligible for many local rebates.
What’s included
- (1) Flat grid rack
- (1) Tray rack—holds up to 10 sheet pans
- (1) Flat bottom rack
- Factory start-up—free within 100 mi of a Hobart Service Office*
Performance specifications
| Wash time selections | 2, 4, 6 min |
|---|---|
| Racks per hour | 13 (2-min), 9 (4-min), 7 (6-min) |
| Water use | 1.2 gal per rack │ 17.8 gal /hr max |
| Tank capacity | 21 gal |
| Sheet pan capacity | 10 pans (18 × 26") |
| Electrical | 208/240 V, 60 Hz, 3-ph (49.2 – 54.5 A) 480 V, 60 Hz, 3-ph (29.7 A) option |
| Heating elements | 16.4 kW tank heat │ 16.4 kW booster |
| Door opening | 33.79" H × 26.19" W |
| Rack size | 23.71" W × 26.85" D |
| Overall dims (H × W × D) | 87" × 32.19" × 37.19" (door closed) |
| Shipping weight | ≈ 575 lb |
Perfect for
- Bakeries & commissaries
- Supermarket prep rooms
- Hotels, resorts & convention centers
- Kitchens where a vent hood is impractical or unavailable
Note: Factory start-up is available at no charge for installations located within 100 miles (accessible by public roadway)
of a Hobart Service Office during normal business hours. Sites beyond this radius or with limited access will incur a quoted fee.
Need extra racks or accessories? Contact our foodservice team for custom configurations, lead times and rebate information.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Height
88.47in
Width
34.86in
Depth
37.2in
Shipping Weight
575.0lbs
Spray arms
over/under rotating
Rack Capacity
approximately (15) racks/hour (and under)
Load Design
front
Racks
single
Energy Efficiency
ENERGY STAR®
Construction
stainless steel
Specifications
Advansys™ Ventless Pot/Pan/Utensil Washer with Ventless Energy Recovery, front loading with split door design, 208/240v/60/3-ph, (10) sheet pan capacity, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, X-shaped interchangeable wash arms, 2/4/6 minute cycles, up to (13) racks/hour, 1.2 gallons/rack, high temperature sanitizing with Sense-A-Temp™ 70° rise booster, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, Factory installed drain water tempering (all ADV), stainless steel construction, pumped rinse, pumped drain, includes: (1) flat grid, (1) tray rack & (1) flat bottom rack. cULus, NSF, ENERGY STAR®, Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
