Insinger DA-3 Pot & Pan Washers Dishwashers
Description

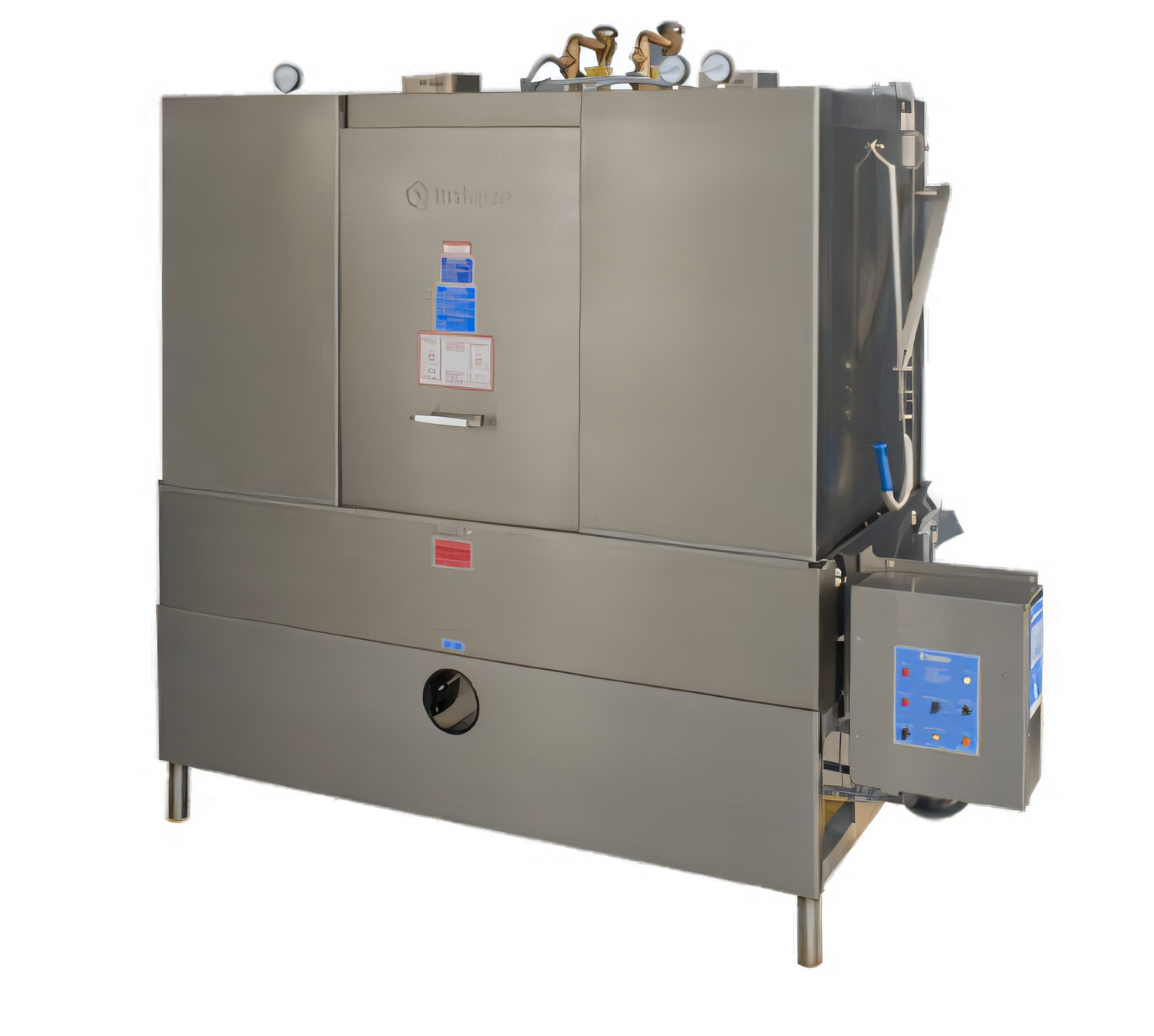

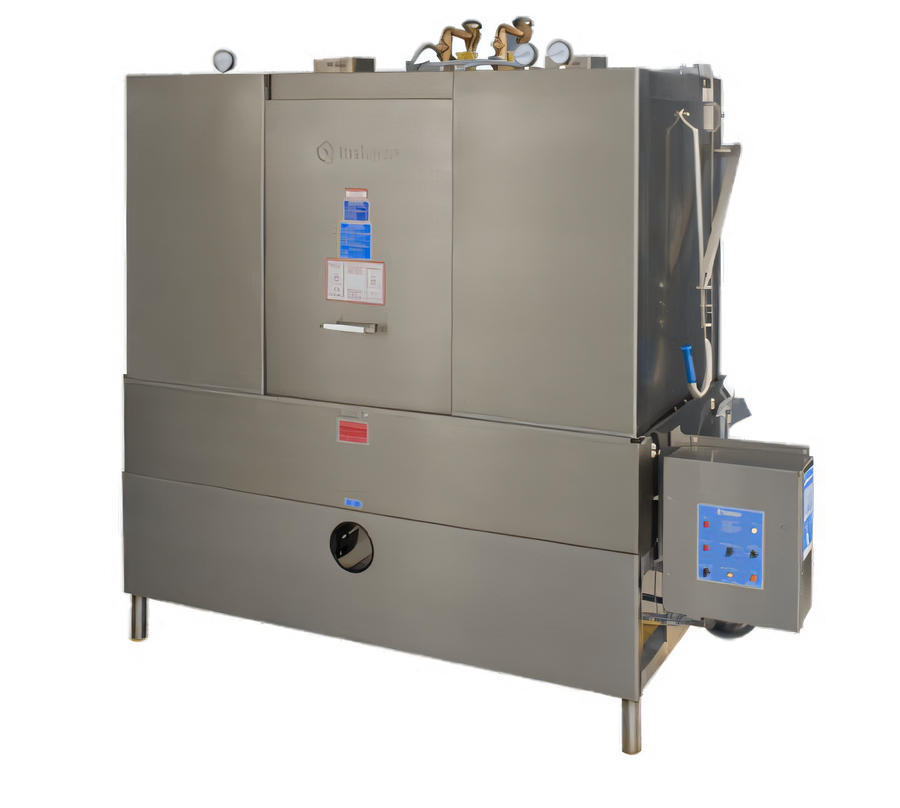

Insinger DA-3 Automatic Pot & Pan Washer
Rack-type • Straight-thru design • 50 racks/hourBuilt for the toughest baked-on soils, the DA-3 blasts pots, pans, sheet-trays and smallwares clean in minutes—freeing your staff for higher-value tasks while slashing water and utility costs. A rugged 304 stainless-steel frame, over/under rotating spray arms and a generous 24" × 28" rack capacity make this American-made workhorse a perfect fit for high-volume commissaries, bakeries and institutional kitchens.
Top Reasons Operators Choose the DA-3
- High throughput: up to 50 racks or 276 sheet pans per hour.
- Rollers for easy rack swapping keep production moving without heavy lifting.
- Pressure-regulated final rinse guarantees constant sanitizing performance.
- Interchangeable spray arms (upper & lower) simplify maintenance and part stocking.
- Low water protection & door safety switches safeguard the machine and your team.
- Single-point electrical connection speeds installation and reduces electrician costs.
- Made in the USA and supported nationwide by Insinger’s factory-trained service network.
Standard Features
- Simplified scrap screen design with manifold clean-out brush
- 5 kW electric or steam-injected wash-tank heat

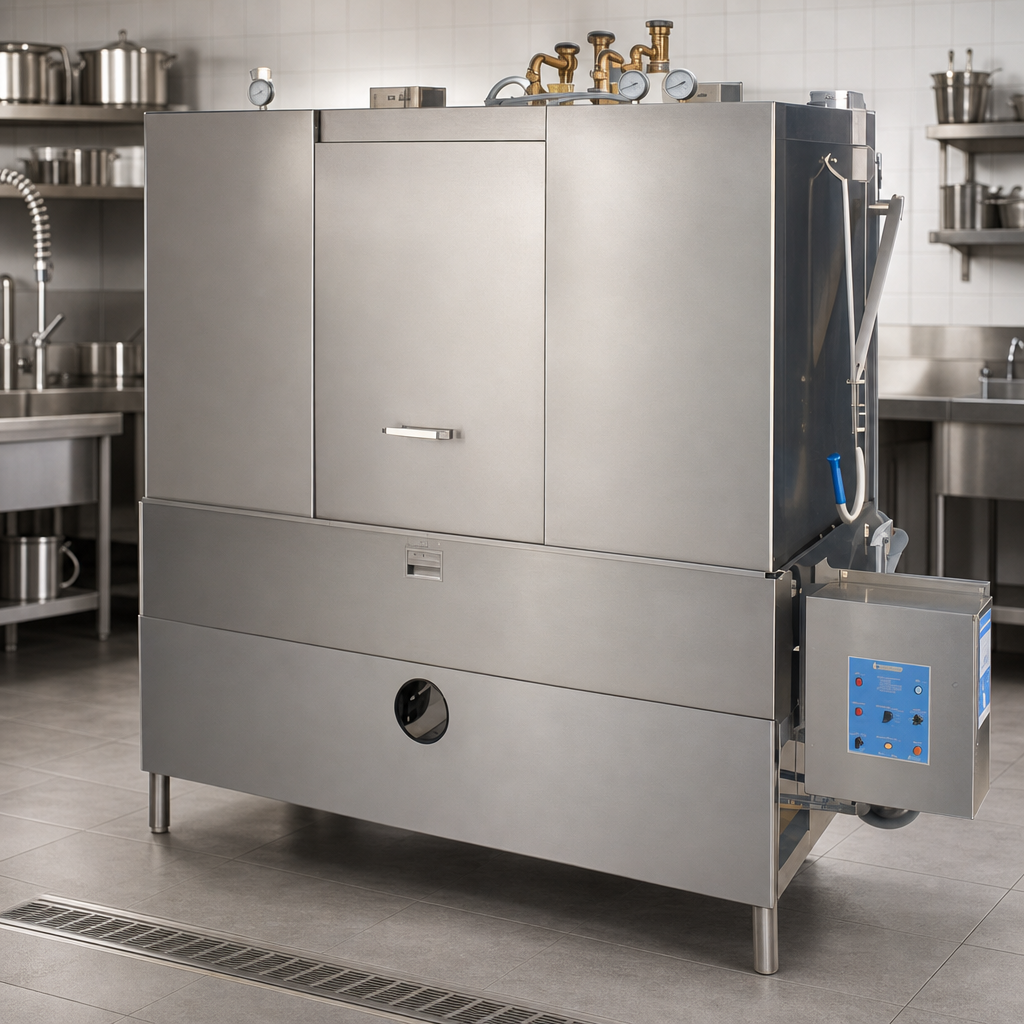

- 304 stainless-steel construction with drip-proof motor
- Automatic fill & detergent connection provision

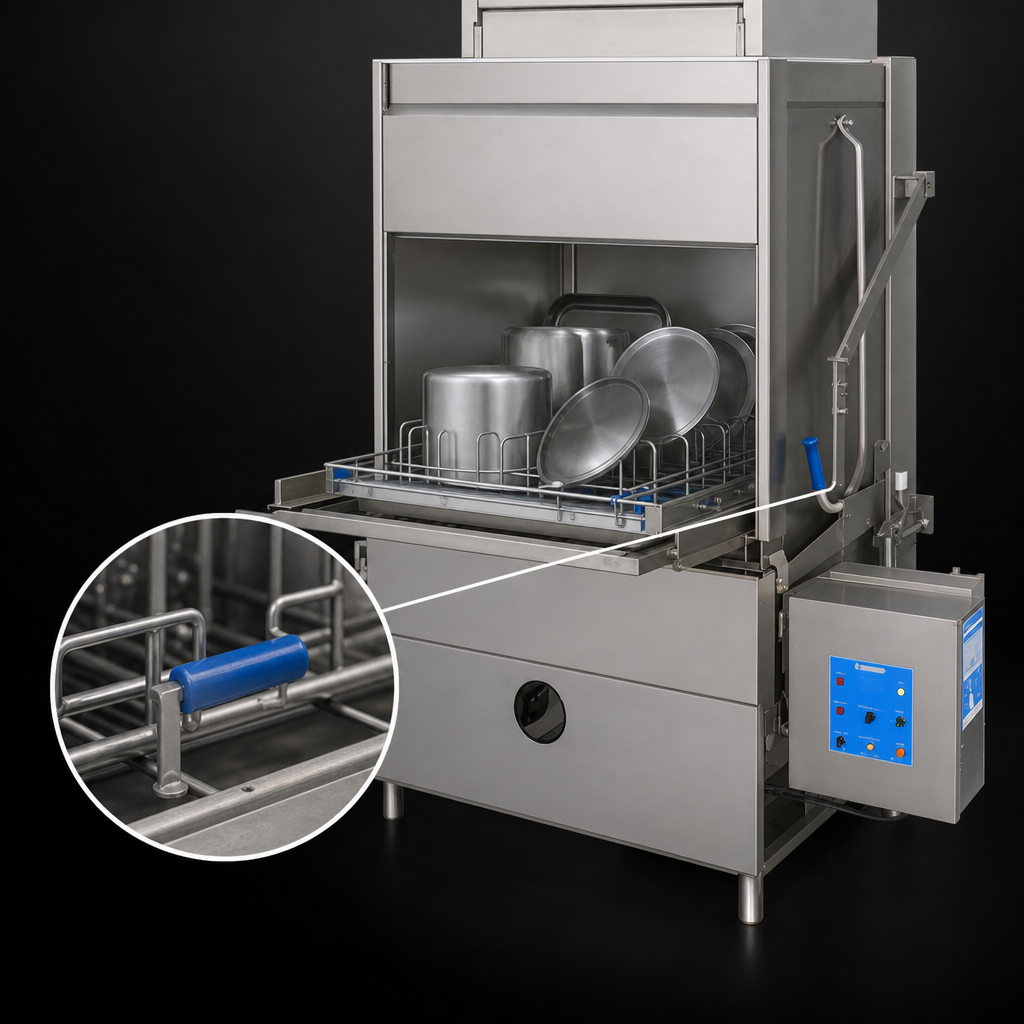

- Hold-down rack system and two adjustable vent openings
- Vacuum breaker on all incoming water lines
- Side-mounted NEMA 12 control panel with manual bypass selector switch
- Comprehensive starter rack set: 2 general utility, 2 bake-sheet, 1 basket, 1 counter-pan
Popular Factory Options
- Stainless-steel steam coil, steam booster or electric booster (9 kW or 24 kW ×2)
- Totally enclosed motor & security package for correctional applications
- Pressure reduction valve with line strainer
- Door-activated drain closures & drain cool-down system
- Telescoping doors for tight clearances
Specifications
| Capacity | 50 racks/hr • 276 sheet pans/hr |
|---|---|
| Rack Size | 24" × 28" |
| Wash Tank Heat | 5 kW electric or steam injection |
| Booster Heat (40 °F Rise) | 9 kW ×2 (optional) |
| Booster Heat (70 °F Rise) | 24 kW ×2 (optional) |
| Water Consumption | 140 gal/hr @ 20 psi |
| Wash Tank Capacity | 62 gal |
| Peak Drain Flow | 16 gal/min |
| Wash Motor | 10 HP |
| Vent Requirement | 600 CFM |
| Dimensions (L × W × H) | 86" × 35" × 57" (143" overall length with boosters) |
| Shipping Weight | 1,500 lb |
| Electrical (machine only) | 208 V/60/3 – 48 A • 240 V/60/3 – 43.1 A • 380 V/50/3 – 26.4 A • 480 V/60/3 – 21.5 A |
NSF, ETL & AQ listed. Includes a 1-year parts & labor warranty when installed in accordance with Insinger guidelines.
