Insinger CA-3 Pot & Pan Washers Dishwashers
Description

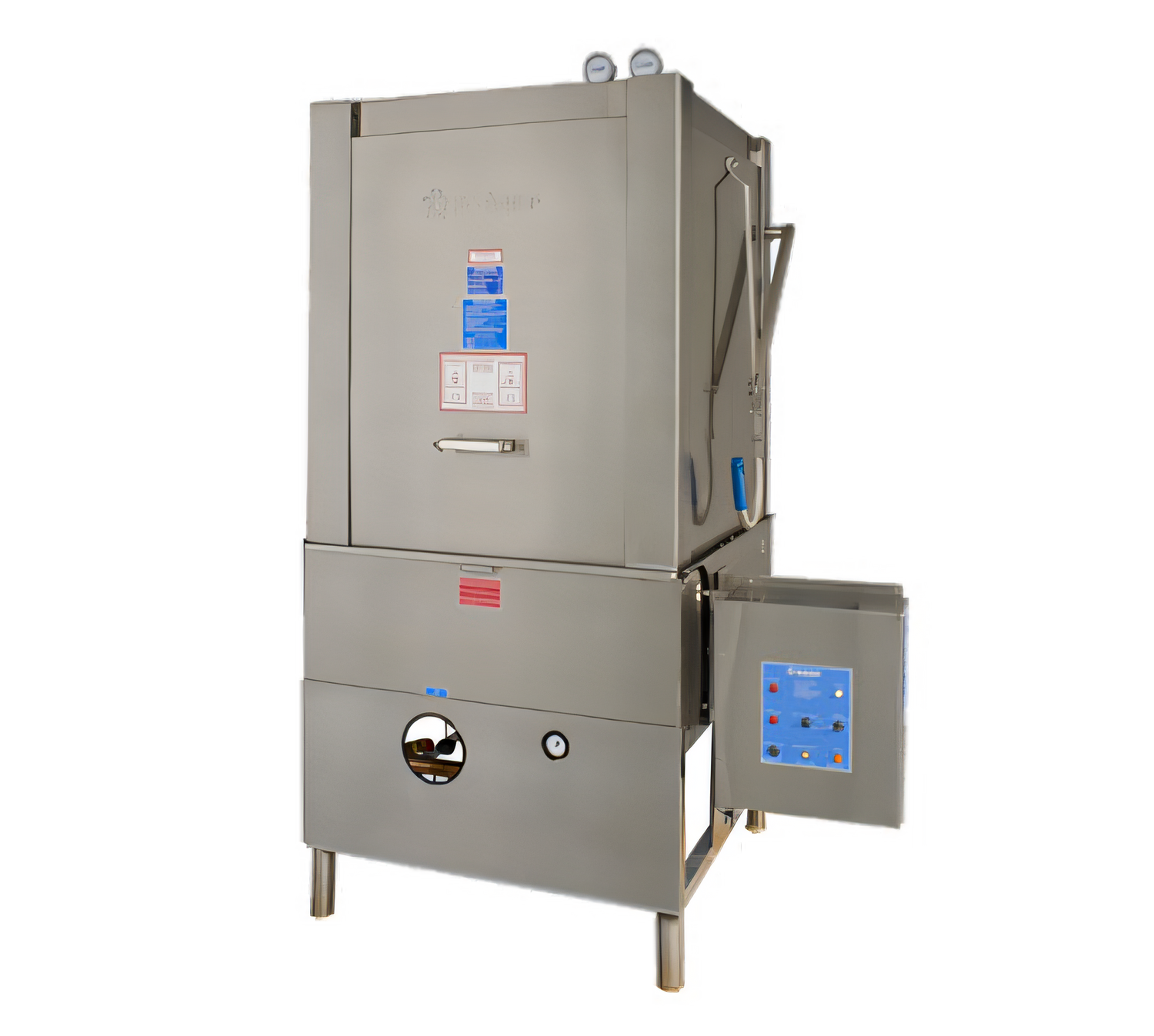

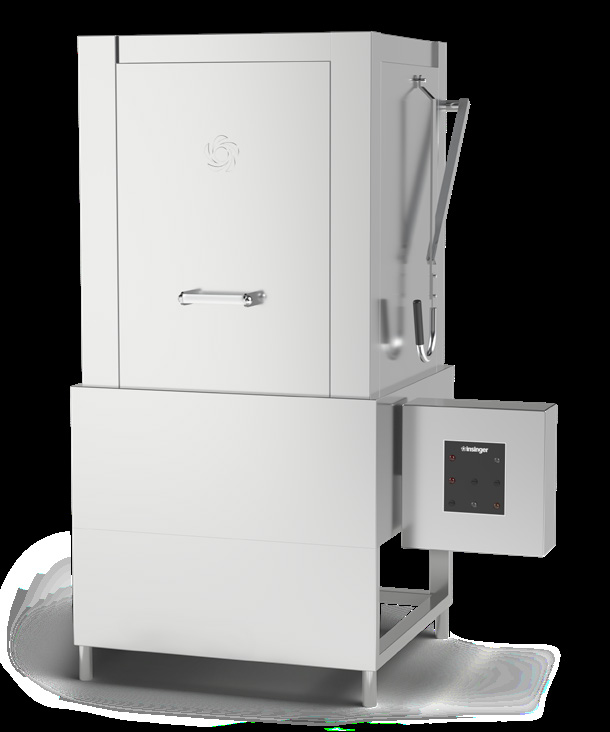

Insinger CA-3 Automatic Pot & Pan Washer
25 racks / hr • 24 × 28 in. rack • Made in the USABuilt for heavy-duty kitchens that refuse to slow down, the CA-3 delivers spotless sheet-pans, stockpots and hotel pans at a rate of 25 racks per hour. Its straight-thru, single-rack design partners dual 5 HP wash motors with over/under rotating spray arms to remove the worst baked-on residue—all inside a rugged 304 stainless-steel cabinet that’s engineered and assembled in Philadelphia.
Key performance features
- 25 racks—or up to 150 full-size sheet pans—per hour

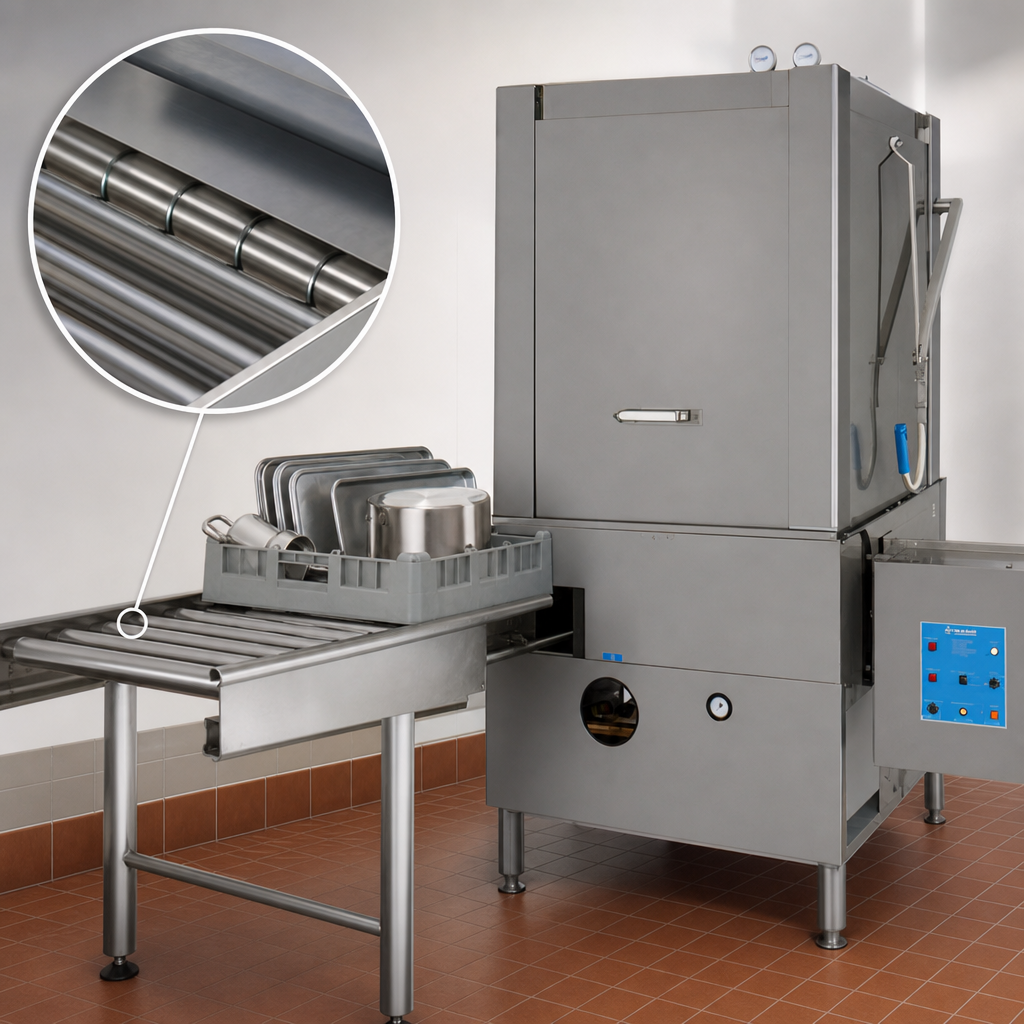

- 24 × 28 in. rack with rollers for effortless loading & swapping
- Independent upper & lower rotating spray arms powered by dual 5 HP motors
- Pressure regulator and low-water protection for consistent, safe operation

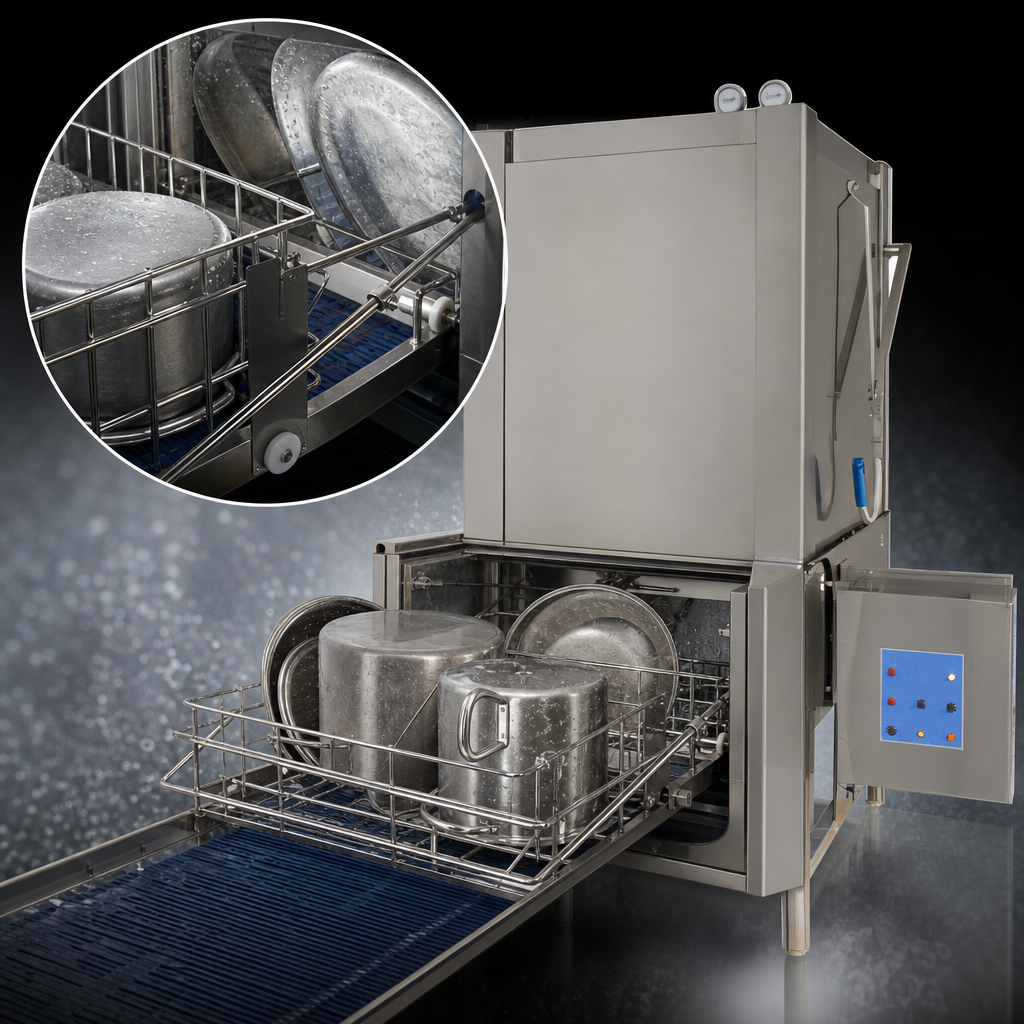

- Automatic fill plus hold-down rack system keep cycles on schedule
- Drip-proof frame motor and simplified scrap screen reduce maintenance time
- 304 stainless-steel frame, legs & feet—built to withstand industrial workloads
- NSF & ETL certified for food-service sanitation & safety
What’s included
- Rack assortment: 1 general-utility, 1 bake-sheet, 1 basket rack
- Manifold clean-out brush
- Capillary thermometer for wash & final-rinse monitoring
- Vacuum breaker on all incoming water lines
- Side-mounted control panel (NEMA 12) with manual bypass selector
- One vent opening with adjustable damper
Popular factory options
- Steam or electric booster heater (40 °F or 70 °F rise)
- Stainless-steel steam-coil tank heat
- Door safety/interlock switches & telescoping doors
- Security package for correctional or high-security installations
- Drain cooldown or quench system
- Totally enclosed wash motors
- Pressure-reduction valve with line strainer
At-a-glance specifications
| Capacity | 25 racks / hr | 150 sheet pans / hr |
|---|---|
| Rack size | 24 in. W × 28 in. D |
| Design | Straight-thru (corner model available) |
| Wash tank heat | 5 kW electric or steam injection |
| Booster heat (opt.) | 9 kW (40 °F rise) or 24 kW (70 °F rise) |
| Water consumption | 70 gal/hr @ 20 PSI |
| Wash tank capacity | 31 gal |
| Peak drain flow | 9 gal/min |
| Vent requirement | 300 CFM |
| Wash motors | 2 × 5 HP |
| Electrical (machine only) |
208 V/60/3 – 31.3 A 240 V/60/3 – 27.9 A 380 V/50/3 – 17.2 A 480 V/60/3 – 13.9 A |
| Overall length | 84 in. with electric booster |
| Table clearance | 34 in. between entry & exit tables |
| Shipping weight | ≈ 800 lb |
Why choose Insinger?
- Over 125 years of American manufacturing expertise
- Nationwide network of authorized service agencies
- 1-year parts & labor warranty included
Specifications are subject to change without notice.
