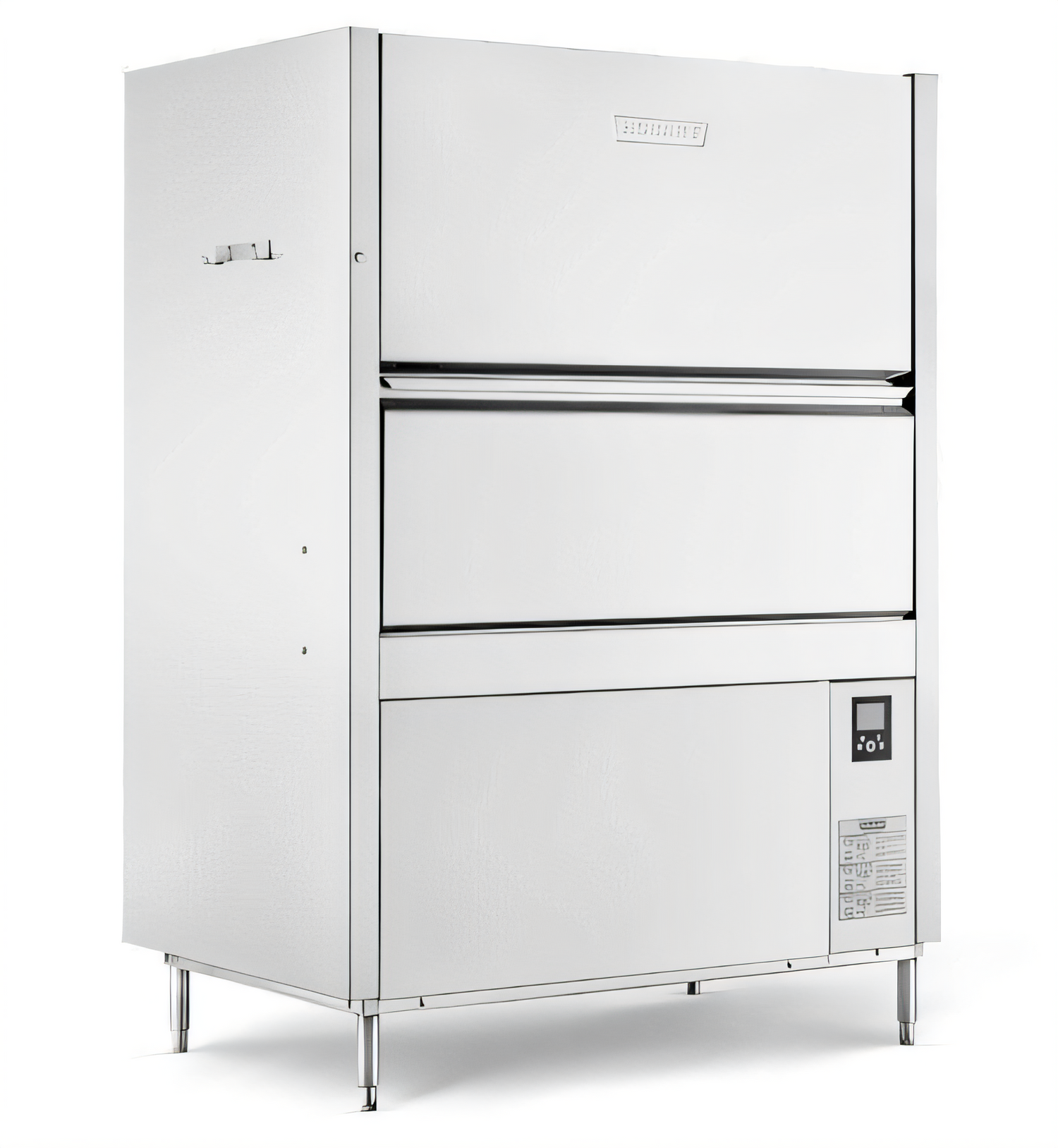

Hobart Warewash PW20N-BAS-2 High-Temperature Door-Type Pot, Pan & Utensil Washer, Front-Loading Split Door, 20-Sheet-Pan Capacity, Smart Controls

SKU: PW20N-BAS-2
$39,658.92
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Hobart Warewash PW20N-BAS-2 Electric High Temperature Door-Type Pot, Pan & Utensil Washer, 20 Sheet Pan Capacity, 480V

Front-loading split door, smart touchscreen controls, Wi-Fi connectivity

Built for heavy warewashing loads, this high-temperature washer combines a 20-sheet-pan chamber, smart Wi-Fi controls, and fast 2- to 6-minute cycles for efficient, sanitized cleanup.

  • Front-loading split-door design improves access for oversized pots, pans, and utensils.
  • Accepts up to 20 full-size sheet pans or a 140-quart mixing bowl.
  • Timed 2-, 4-, and 6-minute wash cycles support up to 20 racks per hour.
  • Smart touchscreen controls and Wi-Fi connectivity with SmartConnect cloud reporting.
  • High-temperature sanitizing uses a Sense-A-Temp booster heater with a 70° rise.
  • Pumped drain and pumped rinse help simplify installation and operation.
  • Stainless steel construction and delime notification support durability and maintenance.

Overall Dimensions:

58.26"W x 37.2"D x 78.6"H

Product Weight:

705.0 lb

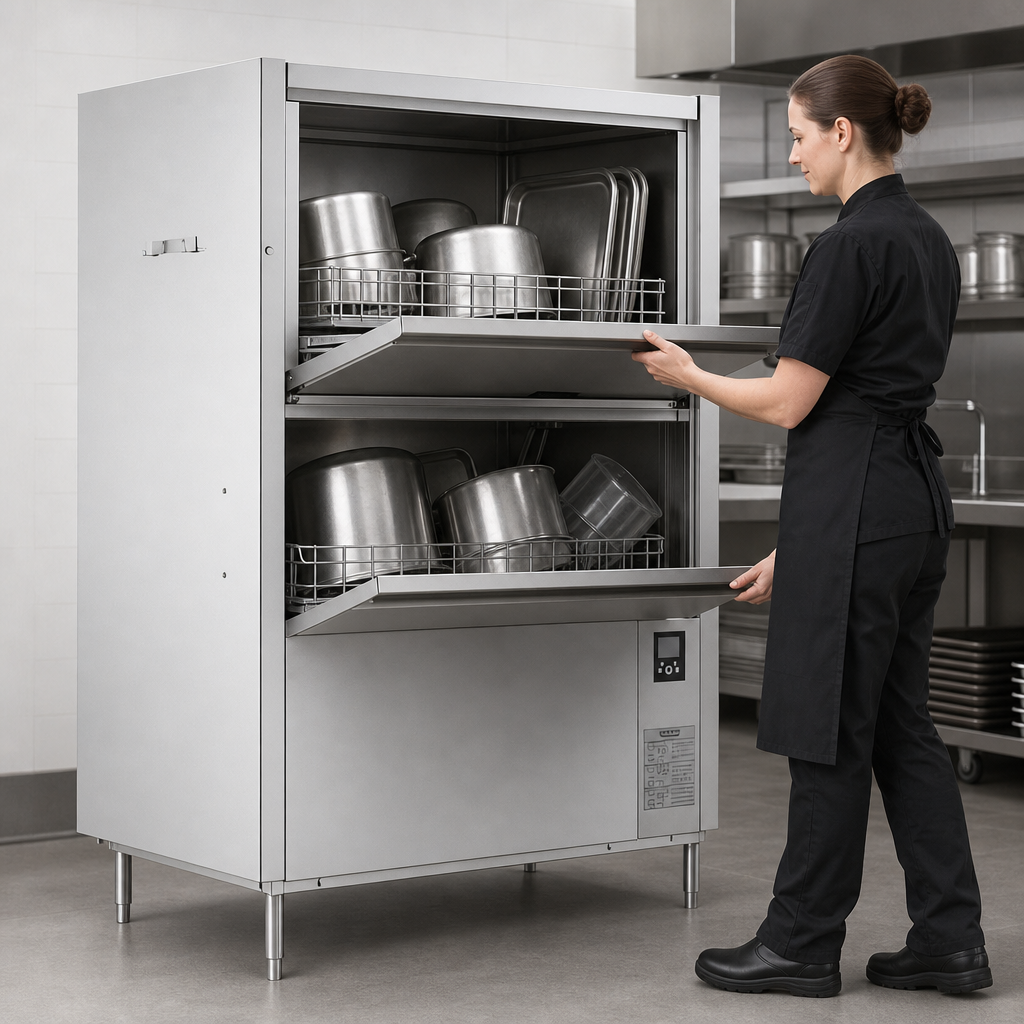

Front-Loading Split-Door Design

Makes it easier to load and unload large ware while saving effort in a busy dishroom.

Front-Loading Split-Door Design

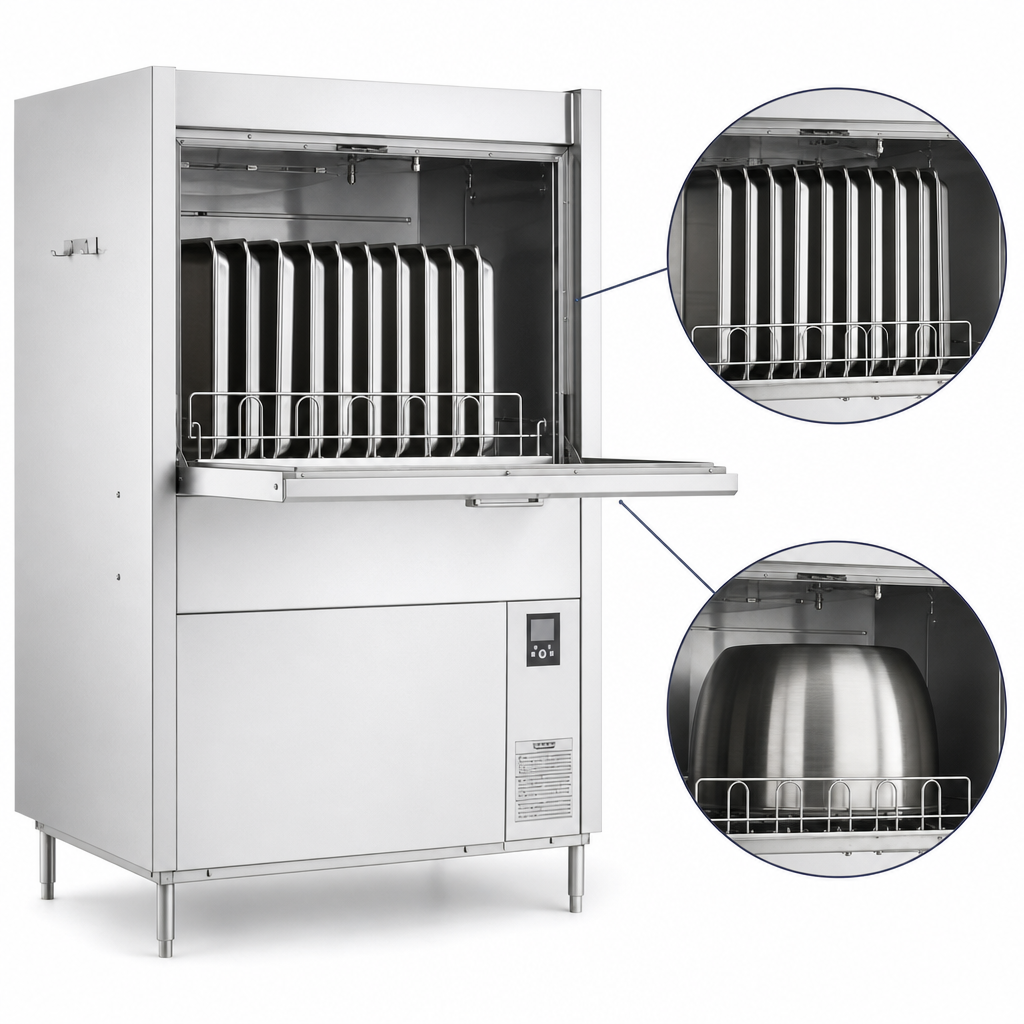

20 Sheet Pan Chamber

Chamber accepts 20 full-size sheet pans or a 140-quart mixing bowl for high-capacity cleaning.

20 Sheet Pan Chamber

Smart Touchscreen Controls

User-friendly touchscreen interface includes service diagnostics and operating information.

Wi-Fi and SmartConnect Connectivity

Provides machine status, temperature logs, error code reporting, and usage analysis through the app and cloud.

High-Temperature Sanitizing

Sense-A-Temp booster heater delivers a 70° rise for hot water sanitization.

Interchangeable Wash and Rinse Arms

X-shaped upper and lower revolving arms help reduce clogging and support consistent wash performance.

Timed Wash Cycles

Select 2-, 4-, or 6-minute cycles; machine can process up to 20 racks per hour.

Pumped Drain and Pumped Rinse

Built-in pumped drain and pumped rinse support flexible installation and dependable rinsing.

Stainless Steel Construction

Durable stainless steel build with a deep-drawn tank for demanding commercial use.

Delime Notification

Alerts operators when deliming is needed to help maintain performance.

Vent Fan Control

Supports the machine’s vent fan operation as part of the installation setup.

Related Searches

Best Sellers Commercial Dishwashers Commercial Dishwashers Dishwashers Dishwashing & Sanitation Door-type Dishwashers Door-Type Dishwashers Equipment Equipment Hobart New Arrivals Restaurant Equipment Warewashing Equipment Warewashing Equipment
Type Pot, Pan & Utensil Washer
Style Door-Type
Installation Type Floor Model
Voltage 480 Volts
Hertz 60 Hz
Phase 3-Phase
Controls Smart Touchscreen
Pan Capacity 20 Full-Size Sheet Pans
Material Stainless Steel
Water Inlet Size 3/4 Inch Female Garden Hose Fitting
Drain Connection Size 7/8 Inch Barb Fitting
Water Connection Required
Drain Connection Required
Width 59 Inches
Depth 38 Inches
Height 79 Inches
Weight 705 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service terms & conditions PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It offers 20 cycles per hour at 2 minutes, 12 cycles per hour at 4 minutes, and 8 cycles per hour at 6 minutes.
The chamber accepts 20 full-size sheet pans or a 140-quart mixing bowl.
Yes. It includes Wi-Fi connectivity and SmartConnect app/cloud features for machine status, temperature logs, error code reporting, and usage analysis.
It is a high-temperature sanitizing machine with a Sense-A-Temp booster heater capable of a 70° rise.
The machine uses a hot water connection with a 3/4 inch female garden hose fitting and a drain connection with a 7/8 inch barb fitting. The documentation also notes a minimum flowing water pressure of 15 PSIG.
Documented accessories include a drain water tempering kit, steam pan rack, door height lowering kit, 12 pan rack, water hammer arrestor kit, spray hose, seismic feet with holes, flange feet for weld down, pumped drain air gap, and combination rack.
