Insinger CA-3C Pot & Pan Washers Dishwashers
Description

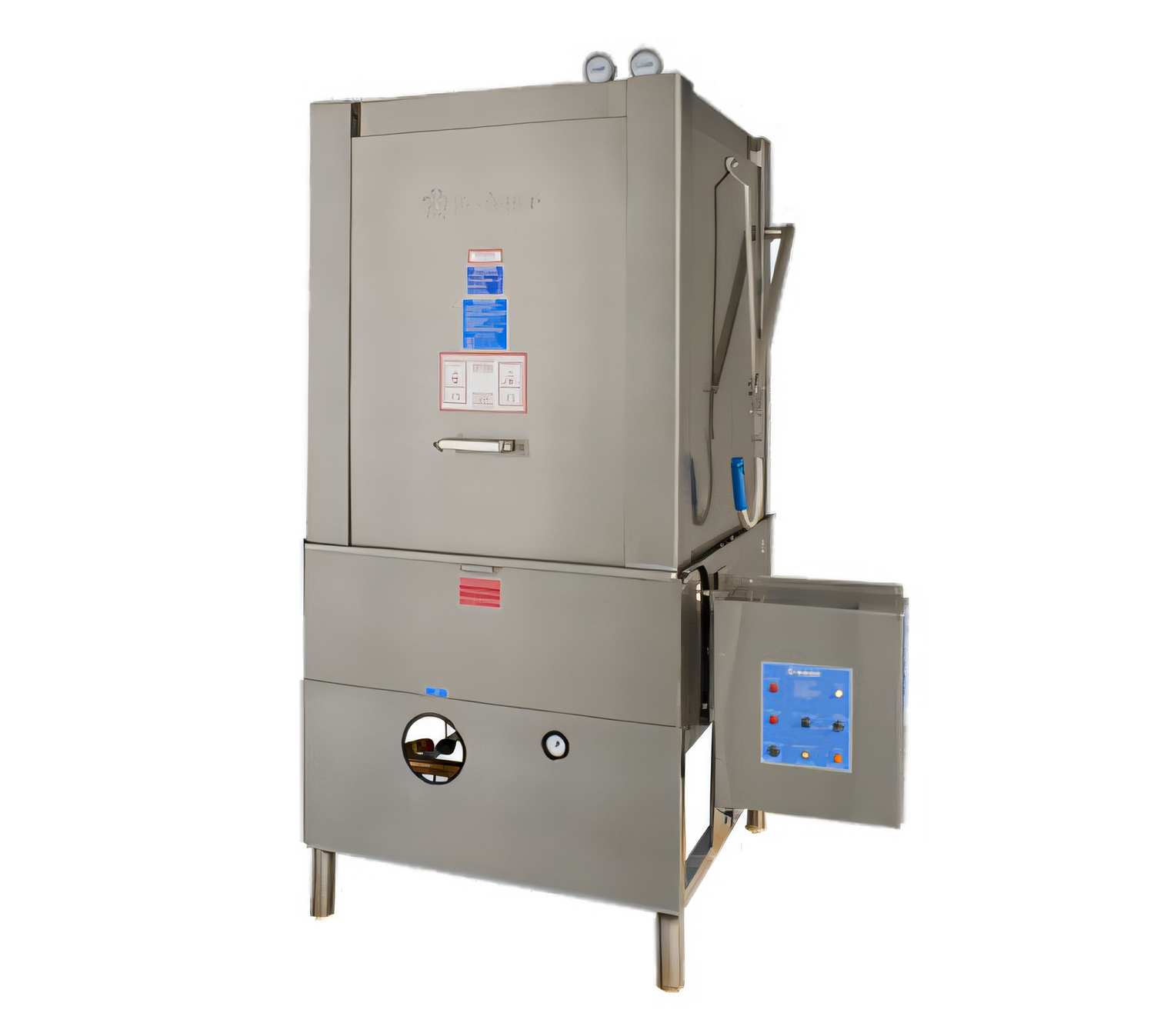

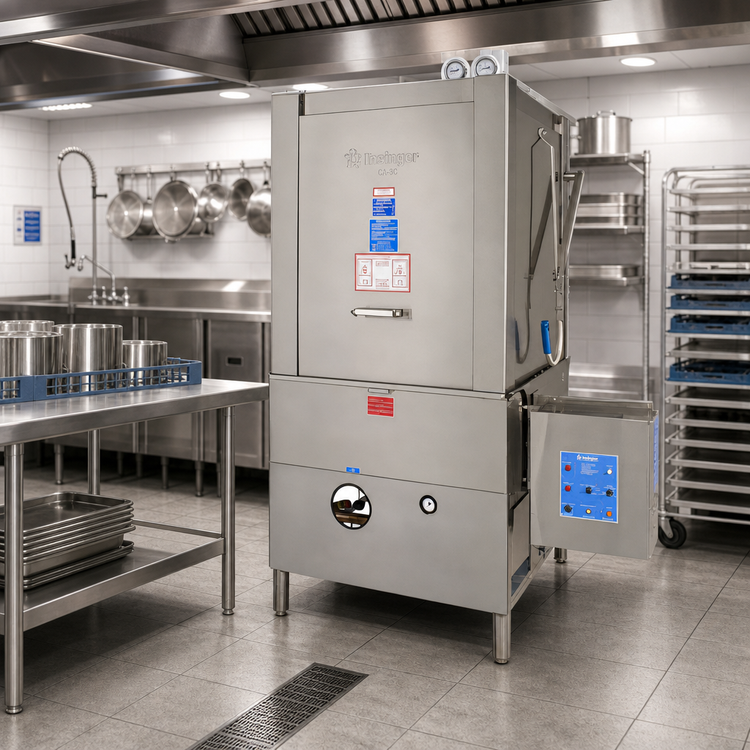

Insinger CA-3 Automatic Pot & Pan Washer
25 racks/hr • Corner configuration • 24" × 28" rack size • Made in the USAEngineered for the heaviest kitchenware, the Insinger CA-3 tackles baked-on sheet pans, stock pots and mixing bowls faster and more efficiently than manual scrubbing ever could. Over/under rotating spray arms, a stainless-steel frame and dual 5 HP wash motors deliver relentless cleaning power while conserving labor and water. If you operate a high-volume bakery, commissary or hotel kitchen, this washer will have your wares back in service and your sink line clear.
Key Performance Highlights
- 25 racks per hour – up to 150 full-size sheet pans each cycle

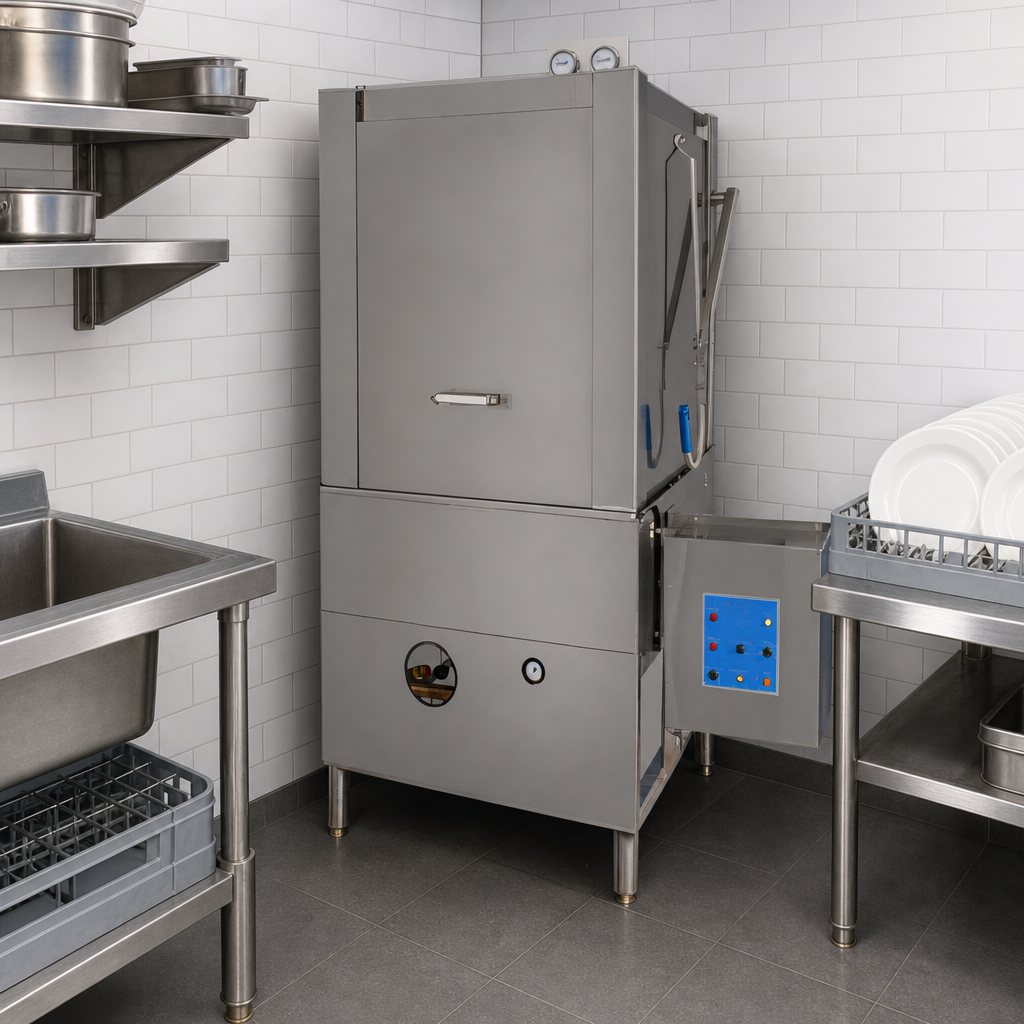

- Corner rack-type layout saves linear space and speeds pass-thru workflow

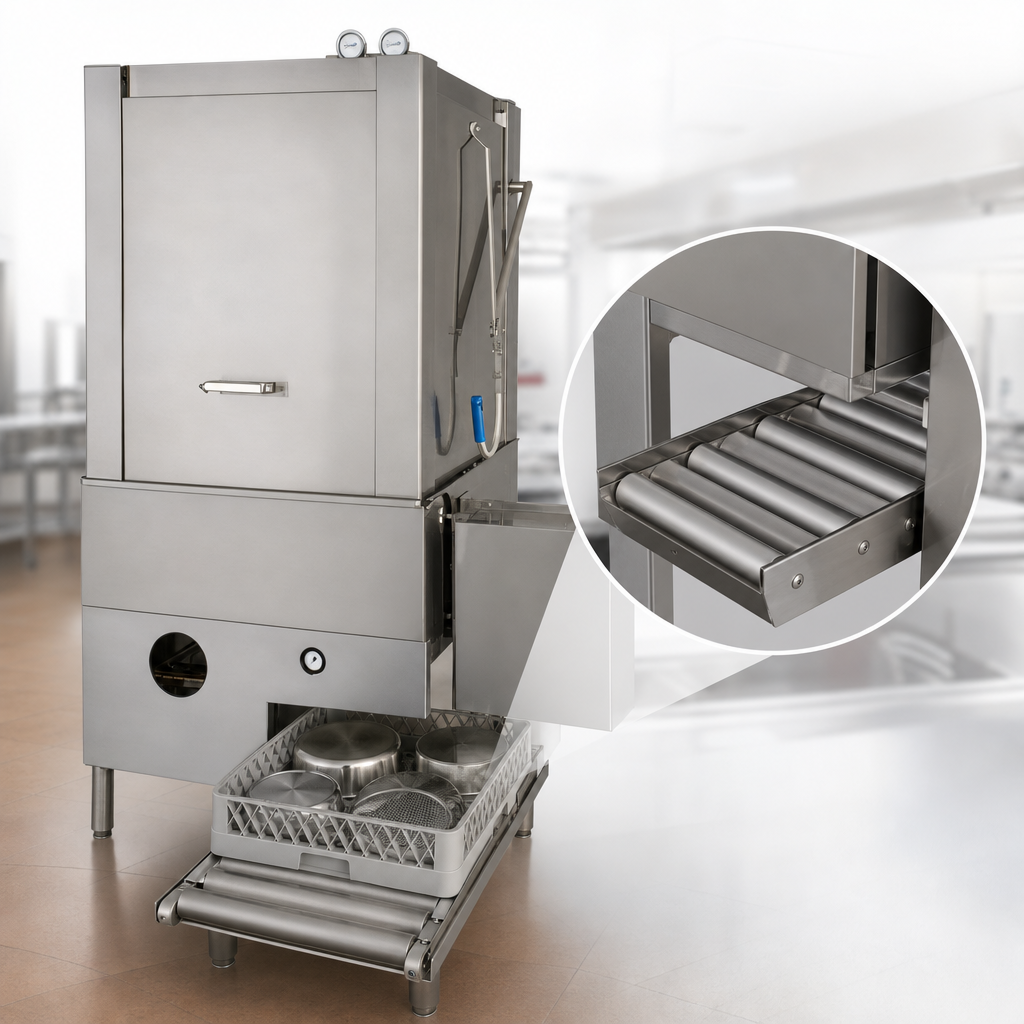

- 24" × 28" nylon roller conveyor for effortless rack loading & swapping
- Over/under interchangeable spray arms ensure 360° coverage on every pass
- 304 stainless-steel frame, legs & feet withstand harsh detergents and daily abuse
- Automatic fill with low-water protection safeguards the pump and heating elements
- Built-in pressure regulator & vacuum breaker for code-compliant installation
- Side-mounted NEMA 12 control panel keeps electronics high, dry and easy to service
- Includes three commercial racks: 1 utility, 1 sheet-pan and 1 utensil basket
What’s Included
- Dual 5 HP drip-proof wash motors
- 5 kW electric wash-tank heat (steam injector standard on steam models)
- Manifold clean-out brush & simplified scrap screen
- Capillary thermometers for both wash and final rinse
- Hold-down rack system for lightweight wares
- Manual bypass selector switch for quick service diagnostics
Factory-Installed Options (order separately)
- Electric or steam booster heaters (40 °F or 70 °F temperature rise)
- Stainless-steel steam-coil tank heat
- Door safety switches & telescoping doors
- Security package for correctional facilities
- Pressure-reduction valve with line strainer
- Drain quench / cooldown & door-activated drain closures
- Totally-enclosed wash motors for wet environments
Technical Specifications
| Racks / Hour | 25 |
|---|---|
| Sheet Pans / Hour | 150 |
| Wash Tank Heat | 5 kW electric or steam injection |
| Booster Heat (40 °F rise) | 9 kW |
| Booster Heat (70 °F rise) | 24 kW |
| Water Consumption | 70 gal/hr @ 20 PSI |
| Wash Tank Capacity | 31 gal |
| Peak Drain Flow | 9 gal/min |
| Venting Requirement | 300 CFM |
| Motor Horsepower | 5 HP × 2 |
| Overall Dimensions (L × W × H) | 84" × 52" × 62" (with electric booster) |
| Shipping Weight | 800 lb |
Electrical Ratings (three-phase)
| Voltage | Base Unit | + 9 kW Booster | + 24 kW Booster |
|---|---|---|---|
| 208 V / 60 Hz | 31.3 A | 38 A | 67.7 A |
| 240 V / 60 Hz | 27.9 A | 33 A | 57.8 A |
| 380 V / 50 Hz | 17.2 A | Contact factory | |
| 480 V / 60 Hz | 13.9 A | 16.3 A | 29.9 A |
Warranty
One-year parts & labor (15 months from shipment) — see Insinger warranty statement for complete terms.
Specifications are subject to change without notice. Consult the factory or an authorized dealer for custom configurations and up-to-date installation drawings.
