Hoshizaki KM-1100MAJ50 Ice Machines
Description

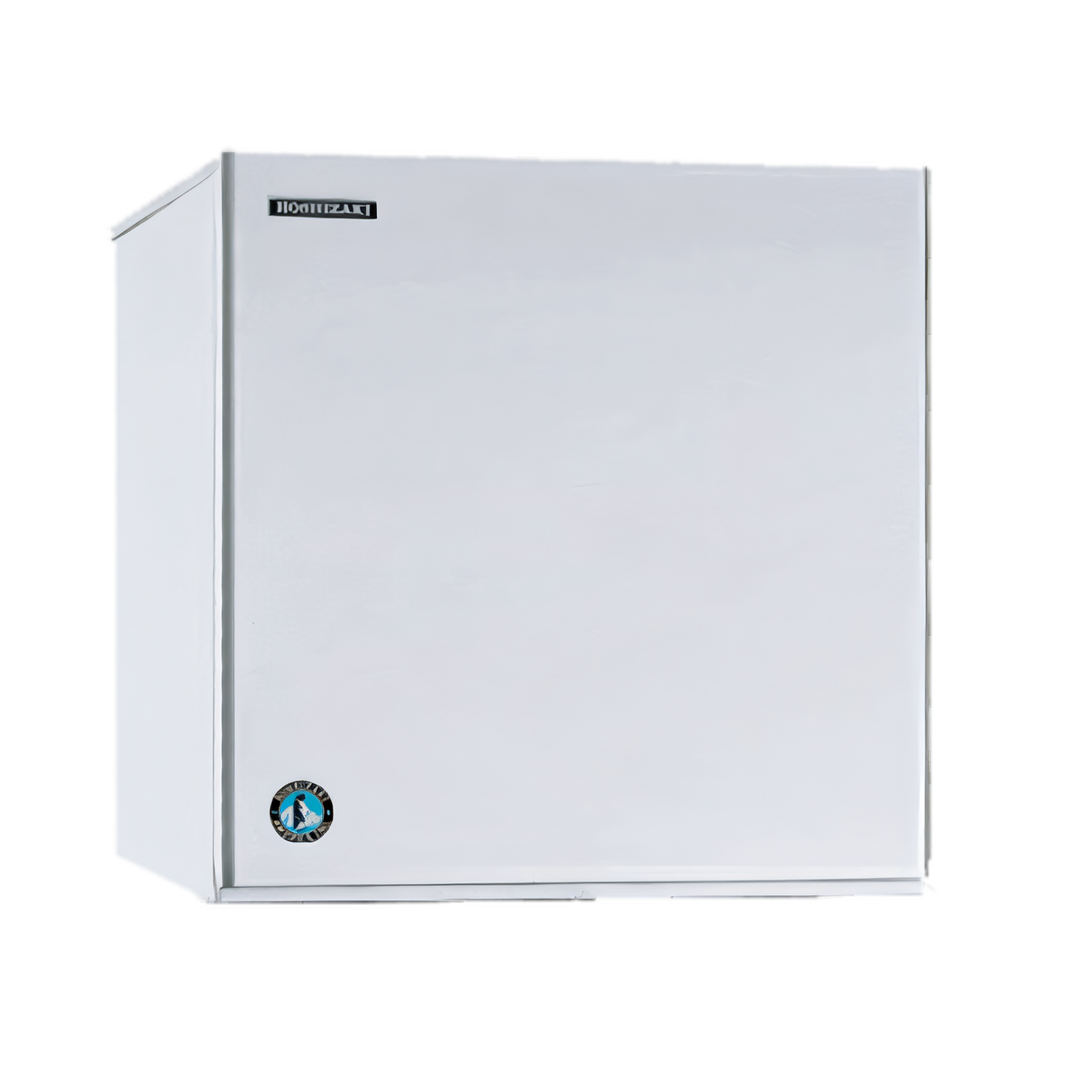

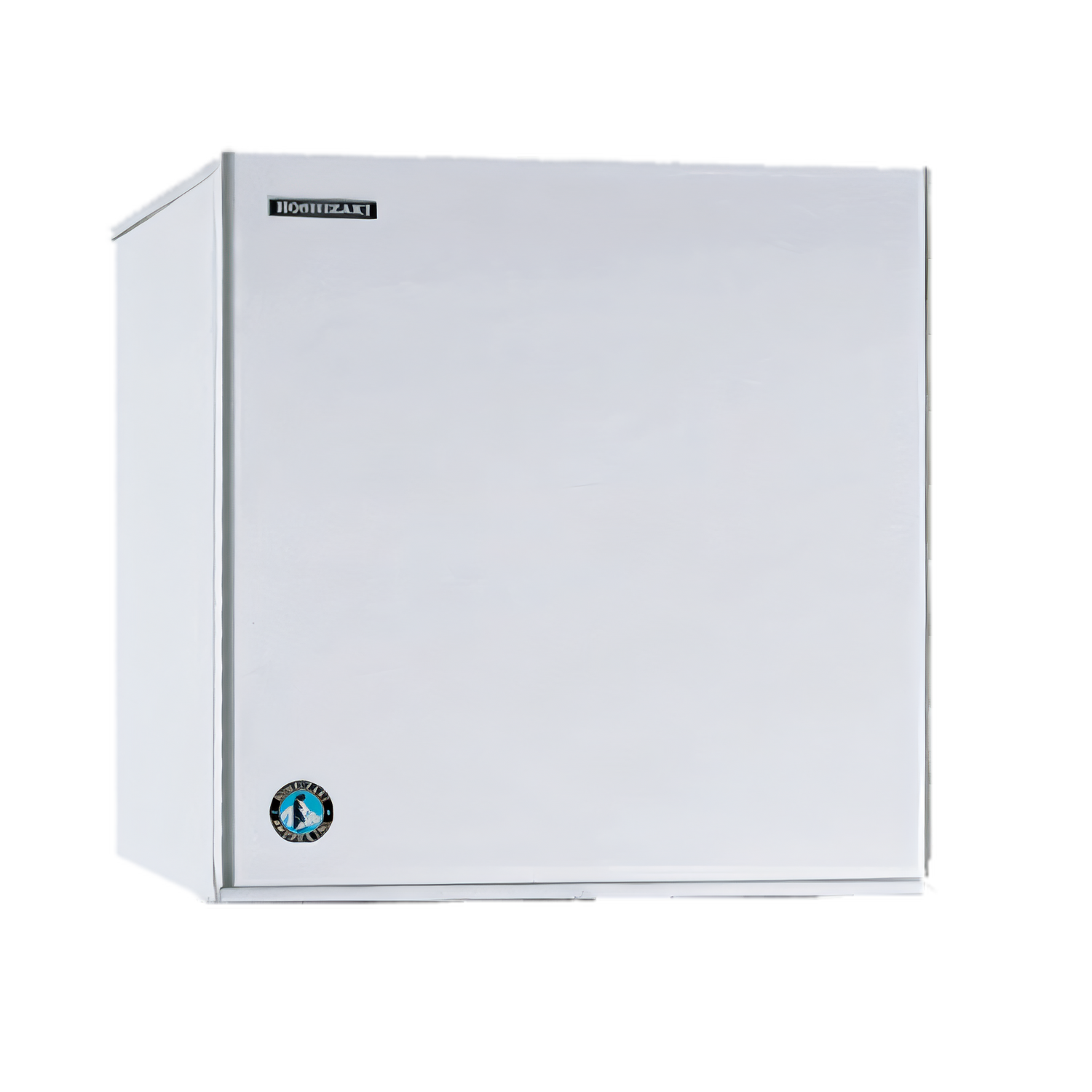

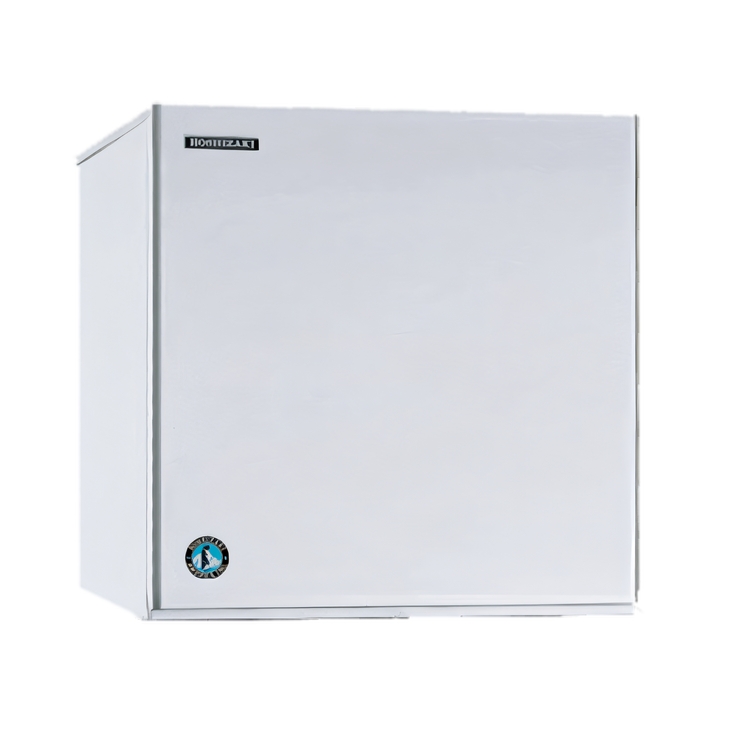

Hoshizaki KM-1100MAJ50 Modular Crescent Ice Machine
50 Hz • Air-cooled • Up to 464 kg of ice every 24 hoursEngineered for high-volume, high-quality ice production, the KM-1100MAJ50 delivers up to 464 kg of Hoshizaki’s signature crescent cubes in a single day—perfect for busy restaurants, hotels, healthcare facilities and convenience stores that demand crystal-clear, long-lasting ice.
Why choose the KM-1100MAJ50?
- Individual crescent cubes (≈29 × 38 × 13 mm) for excellent liquid displacement and minimal splash.
- Powerful 464 kg/24 hr production at 21 °C ambient / 10 °C water (356 kg at 32 °C / 21 °C).
- Air-cooled, self-contained condenser—no remote components to install.
- Dual-sided stainless steel evaporator maximises heat exchange and resists corrosion.
- CycleSaver™ design produces the same ice in half as many cycles for lower energy use.
- EverCheck™ control board provides audible diagnostics to reduce downtime.
- Removable, washable air filter simplifies routine maintenance.
- Durable stainless steel exterior stands up to commercial environments.
- Uses environmentally friendly R-404A refrigerant.
- NSF & UL listed for food-service safety and electrical compliance.
Technical Specifications
| Model | KM-1100MAJ50 (50 Hz) |
|---|---|
| Ice style | Crescent cube |
| Daily production | 464 kg @ 21 °C air / 10 °C water 356 kg @ 32 °C air / 21 °C water |
| Electrical | 220-240 V / 50 Hz / 1-phase, 11.2 A, MCA 20 A (hard-wired) |
| Energy usage | 5.65 kWh per 45 kg of ice |
| Water usage | 72 L potable water per 45 kg of ice |
| Refrigerant | R-404A (1.4 kg charge) |
| Heat rejection | 12,600 BTU/hr |
| Dimensions (W×D×H) | 762 × 695 × 825 mm (30 × 27.4 × 32.5 in) |
| Net / Ship weight | 122 kg / 136 kg |
| Compatible bins* | B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS Two-unit installs: B-1500SS, B-1650SS |
| Operating limits | Ambient 7–38 °C • Water 7–32 °C • Water pressure 69–779 kPa |
| Connections | 10 mm water inlet • 18 mm gravity drain |
*Bin sold separately. If two machines are stacked side-by-side, combined production is 928 kg in only 1524 mm (60 in) of floor space.
Designed for easier ownership
- Front-accessible components and snap-fit float switch speed up servicing.
- Fully compartmentalised interior isolates wet and hot zones for improved sanitation.
- Factory-installed ultrasonic bin control—no mechanical probes to adjust or clean.
- 30 cm (12 in) side, rear and top clearance recommended for ventilation.
Invest in the Hoshizaki KM-1100MAJ50 and give your customers the crystal-clear ice they expect—shift after shift, day after day.
