Bakers Pride (Middleby) ER-1-12-3836 Super Deck Series Deck Ovens
Description

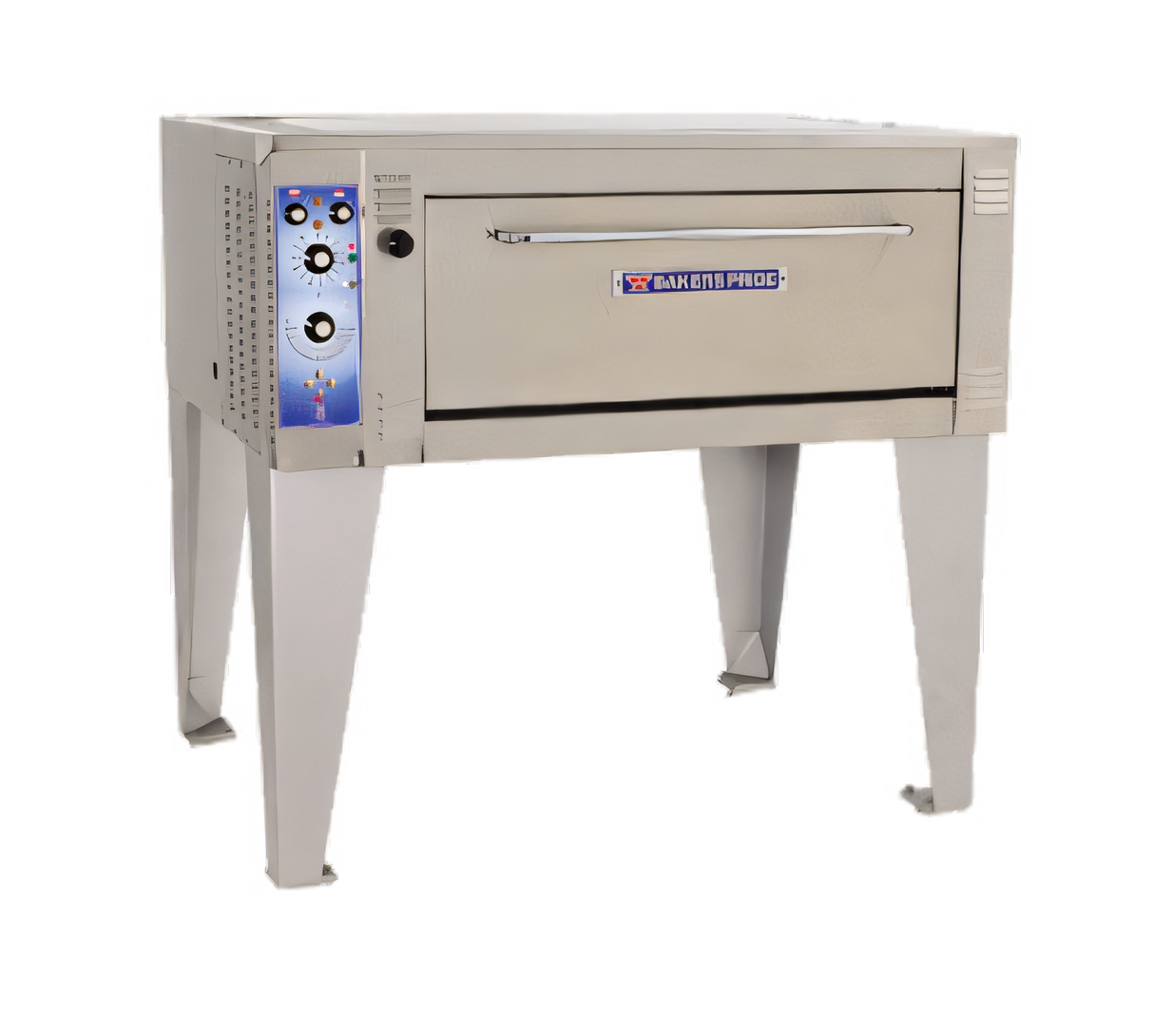

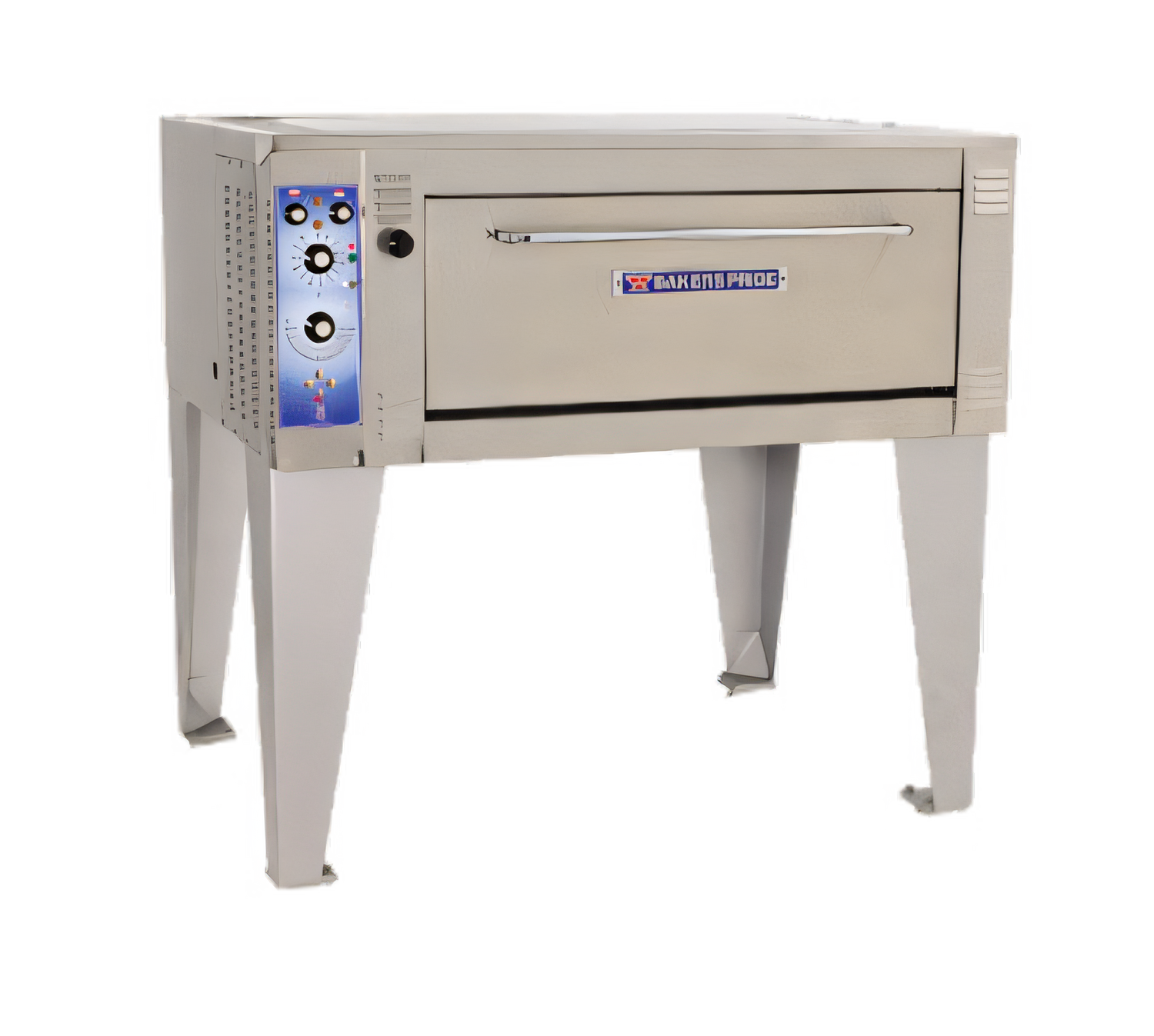

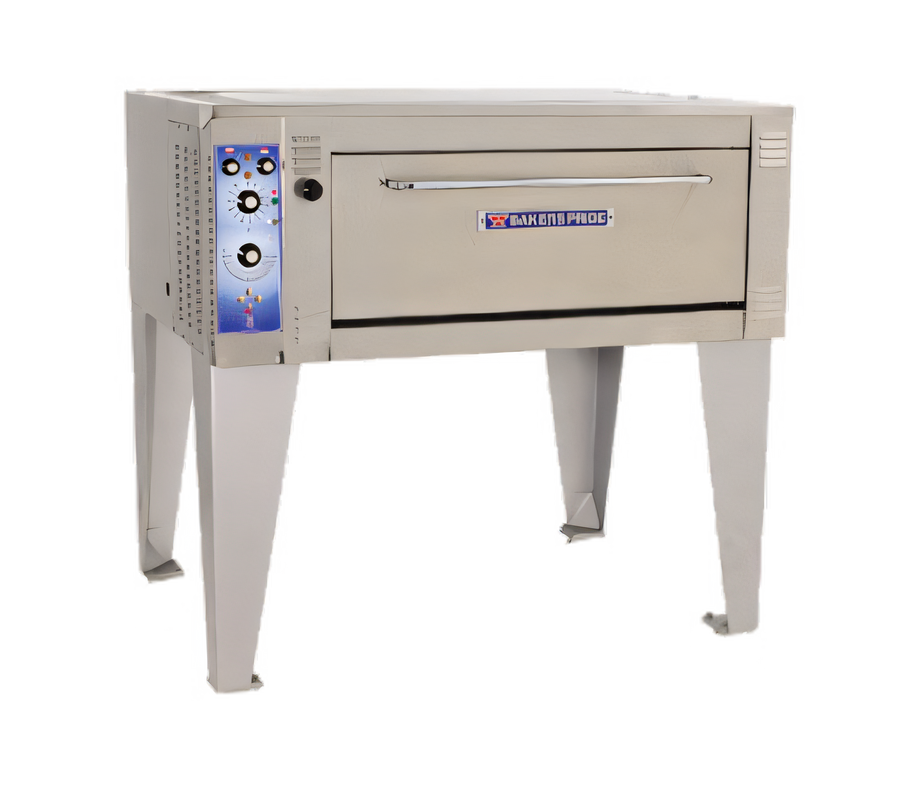

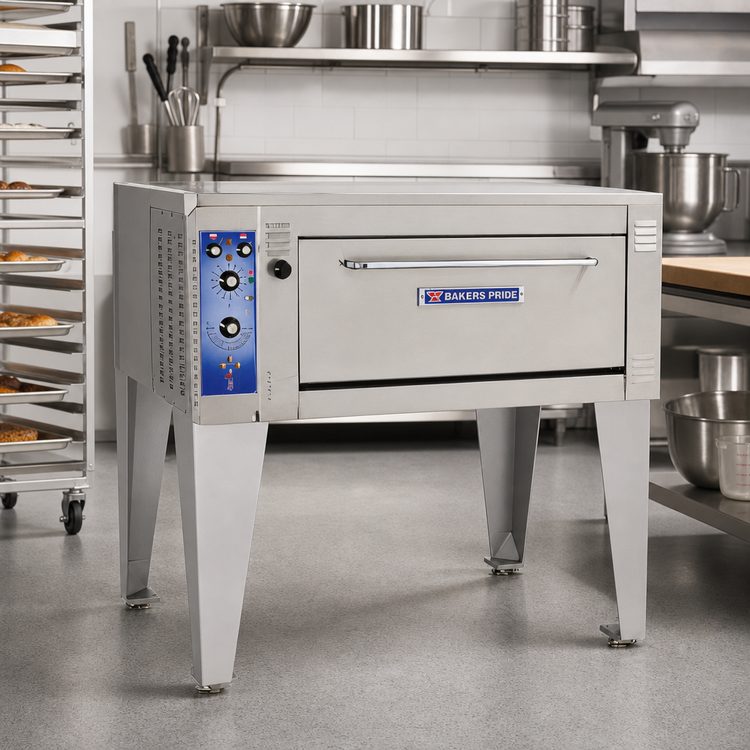

Super Deck Series Electric Bake/Roast Deck Oven
Model ER-1-12-3836 | 38" × 36" Steel Deck | 8 kW | 12" Deck HeightBuilt for busy kitchens that demand rock-solid reliability, the Bakers Pride® Super Deck Series delivers the authentic deck-oven bake you love with the low-maintenance benefits of an electric system. A fully welded, angle-iron frame supports a single, 38" × 36" steel deck while independently controlled U-shaped elements above and below the deck ensure perfectly balanced heat—ideal for pizza, breads, roasting pans, and more.
Key Features & Benefits
- 8,000 W electric heat with field-wiring for 208–240 V, single or three phase
- Top & bottom U-shaped elements every 9½" for even, edge-to-edge baking
- Infinite heat controls plus 60-minute timer; bake range 140–550 °F (60–288 °C)
- 12" deck height accommodates deep pans or high-rising artisan loaves

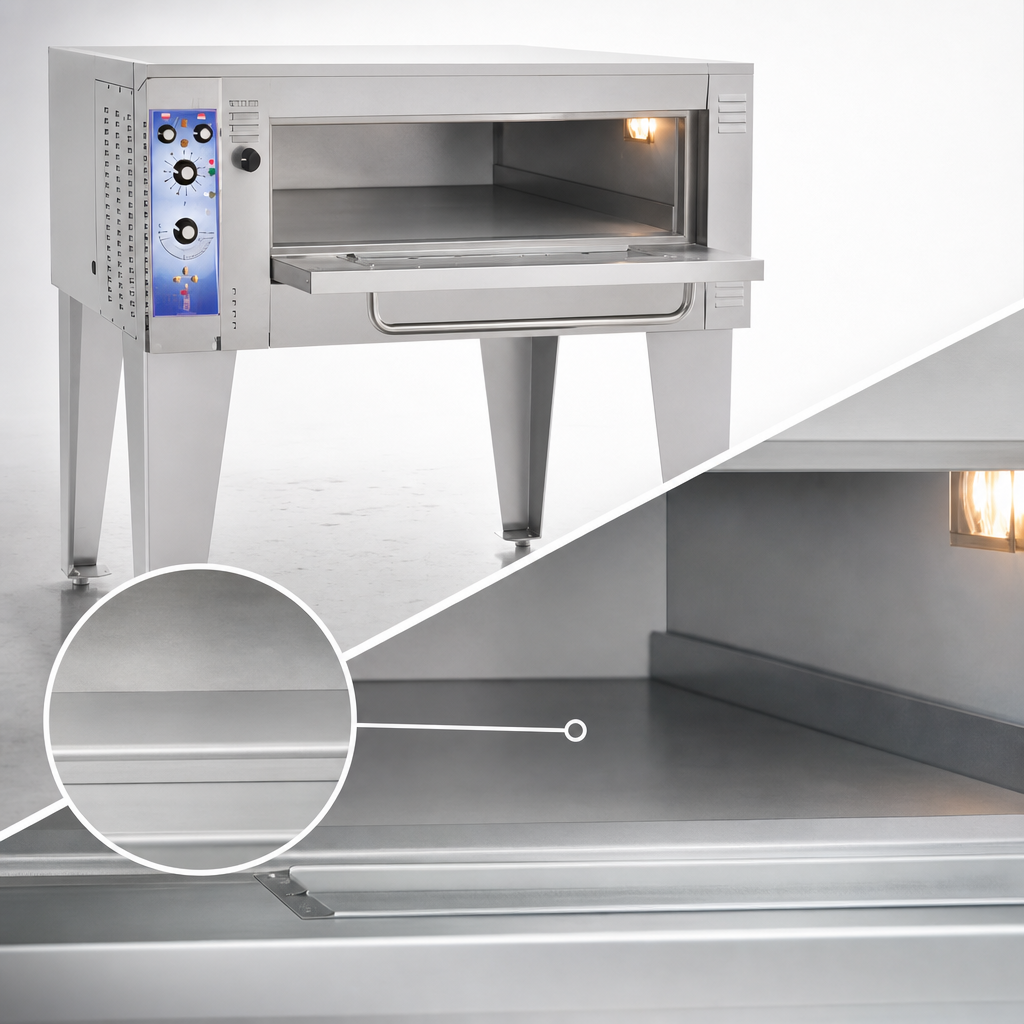

- Heavy-duty 1" thick steel deck seasons over time for signature crusts
- Spring-balanced, fully insulated door for easy one-hand loading
- All-stainless exterior & aluminized steel interior—built for decades of service
- Fully welded, stack-ready frame—add up to two additional decks as you grow
- 36" painted steel legs (optional casters available)
- NSF, UL, and CSA listed; 1-year limited parts & labor warranty
Popular Factory Options
- 5-hour timer upgrade
- Cordierite or Lightstone decks for crisp-finish baking
- Stainless steel wood-chip box for light smoke flavor
- Deck brush & scraper (48" wood handle)
- Casters for mobile installations
Technical Specifications
| Overall Dimensions (W × D × H) | 55" × 43" × 58" (1397 × 1092 × 1473 mm) – includes 36" legs |
|---|---|
| Deck / Baking Area | 38" × 36" (965 × 914 mm) |
| Deck Height | 12" (305 mm) |

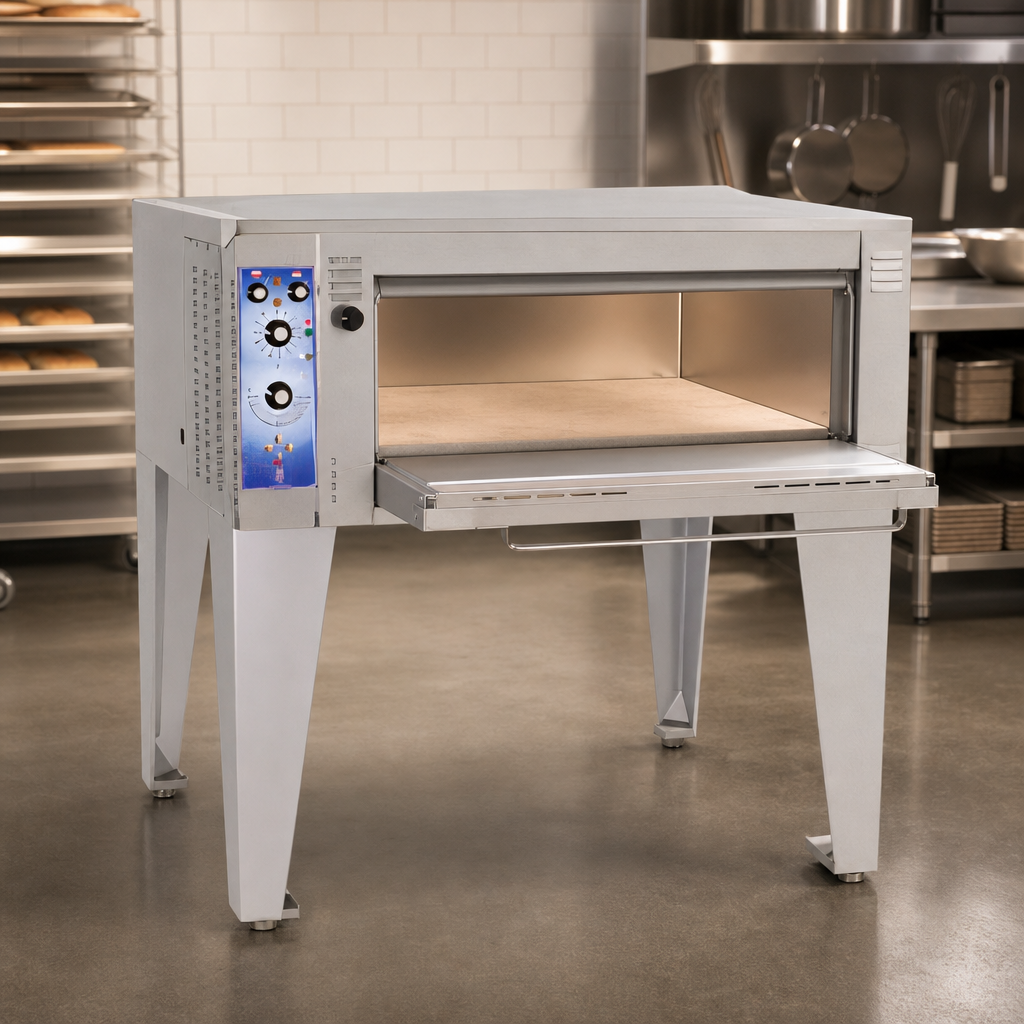

| Capacity | 1 baking cavity |
| Temperature Range | 140–550 °F (60–288 °C) |
| Heating Elements | Top & bottom, U-shaped, independently controlled |
| Electrical Load | 8 kW – 208/240 V, 1 ph (35–39 A) or 3 ph (22–29 A) |
| Timer | 60-minute mechanical |
| Construction | Stainless steel exterior, aluminized steel interior, welded angle-iron frame |
| Legs | 36" steel legs with Bakertone finish |
| Certifications | NSF, UL, CSA |
| Shipping Weight | Approx. 600 lb (272 kg) |
| Warranty | 1-year limited parts & labor |
