Key specifications

Amps
7.9 Amps
Phase
1-Phase
Dimensions
88.0"W × 28.0"D × 36.0"H
Type
Frost Top Counter
Style
Mobile Modular
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP6FT

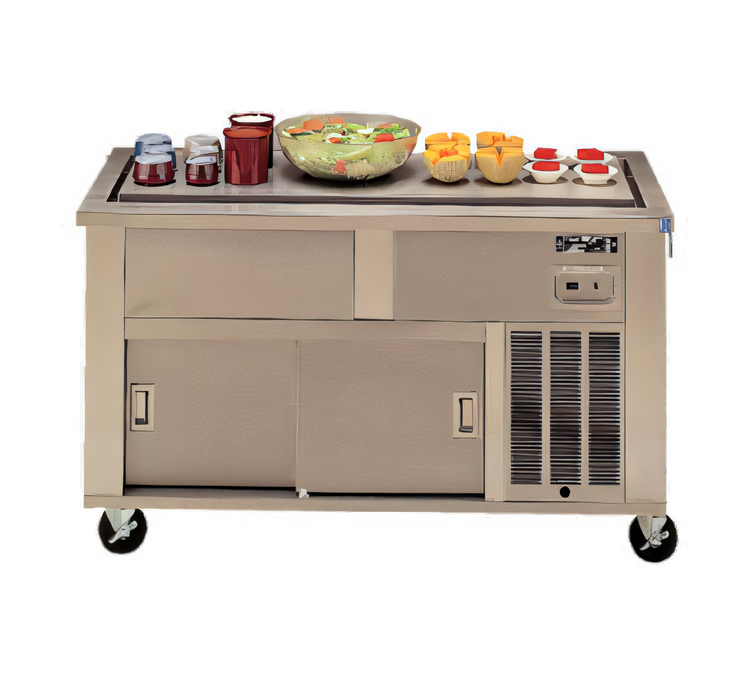

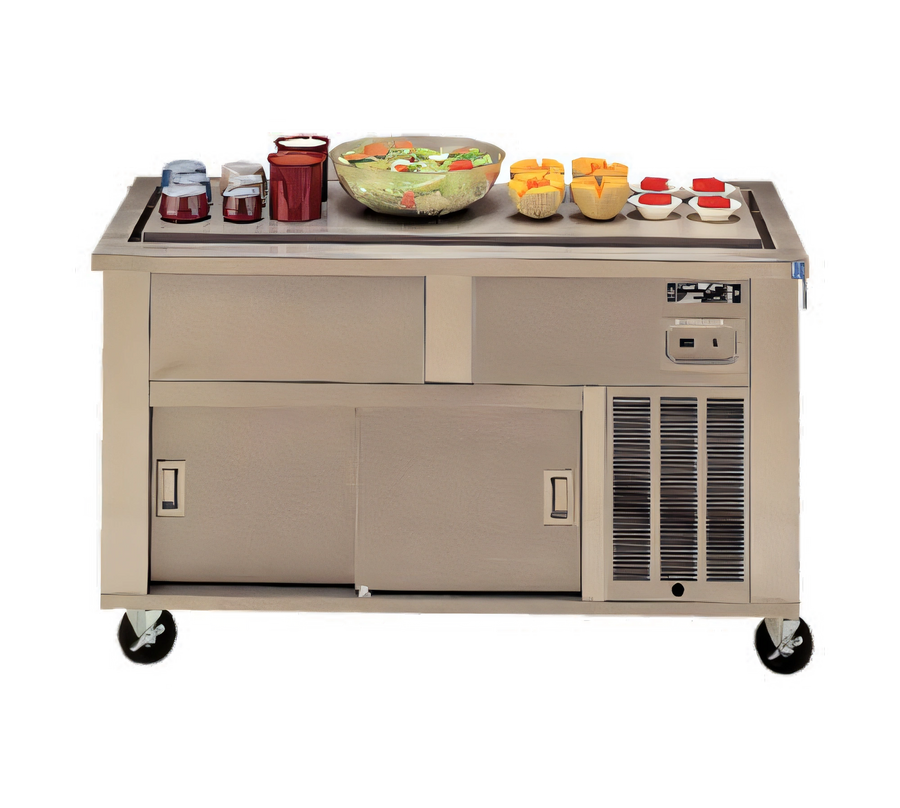

Dinex DineXpress DXP6FT 6-Pan Mechanically Cooled Frost Top

$17,772.48
/each
Estimated to ship in 4–7 business days
Pan capacity
Height
Understorage
Protector guard
Finish
Mobility

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,644/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Frost Top Counter
Style Mobile Modular
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Pan Capacity 6 Pans
Overall Width 88 Inches
Overall Depth 28 Inches
Working Height 36 Inches
Top Gauge 14 Gauge
Compressor Horsepower 1/2 HP
Voltage 120 Volts
Amps 7.9 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Refrigeration Type Mechanically Cooled
Controls On/Off Switch, Pilot Light
Door Type Sliding
Caster Diameter 5 Inches
Caster Type Swivel Plate
Braking Casters 2 Casters
Drain Valve 3/4 Inch FPT
Weight 500 Pounds

Description

The DineXpress DXP6FT is a 6-pan mechanically cooled frost top serving counter for chilled food merchandising.

It features an 88-inch, 14-gauge stainless steel top with stainless steel front and end panels, sliding doors, an undershelf, and 5-inch swivel plate casters. The unit uses a 1/2 hp refrigeration system and operates on 120-volt, single-phase power.

  • Standard drain valve exits on the operator's left side.
  • An interlocking mechanism supports modular serving line configurations.
  • Removable louvered panel provides access to the compressor.

Overall Dimensions:

88.0"W x 28.0"D x 36.0"H

Product Weight:

500.0 lb

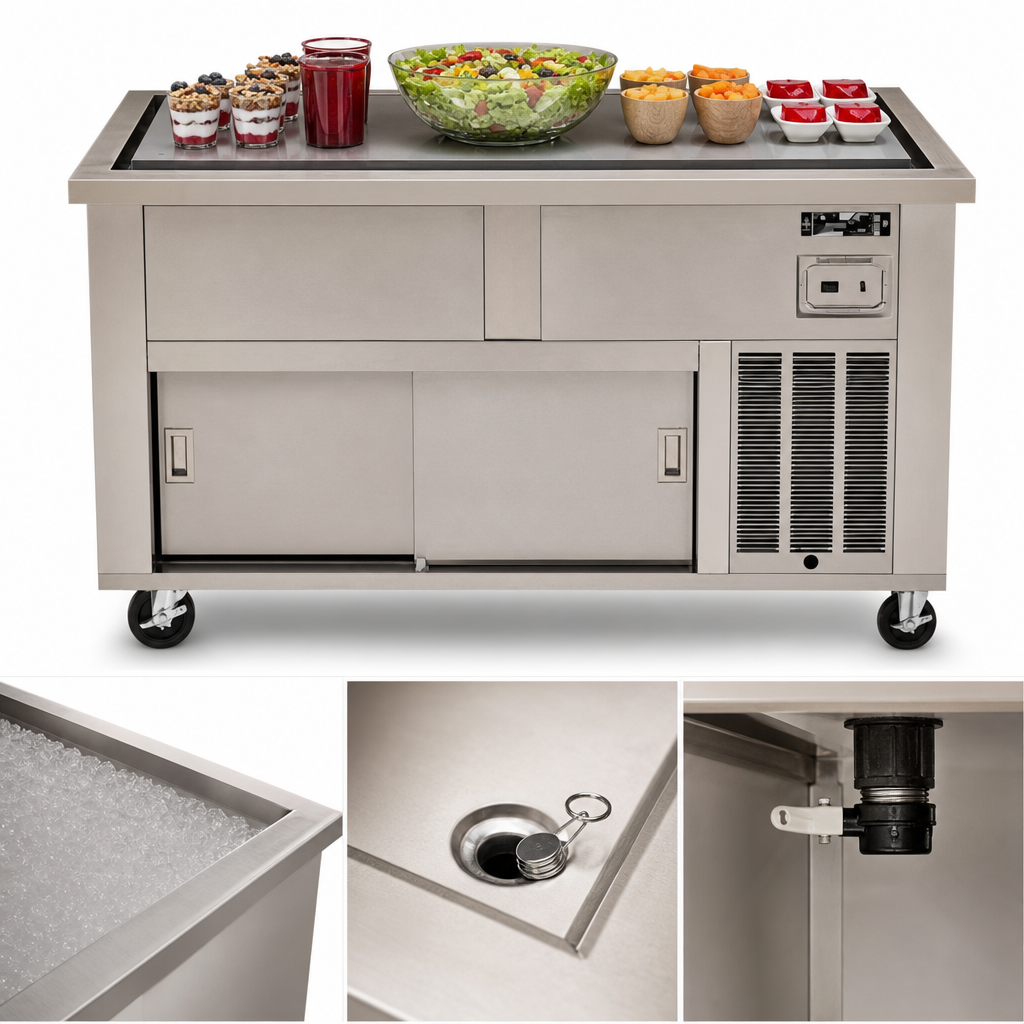

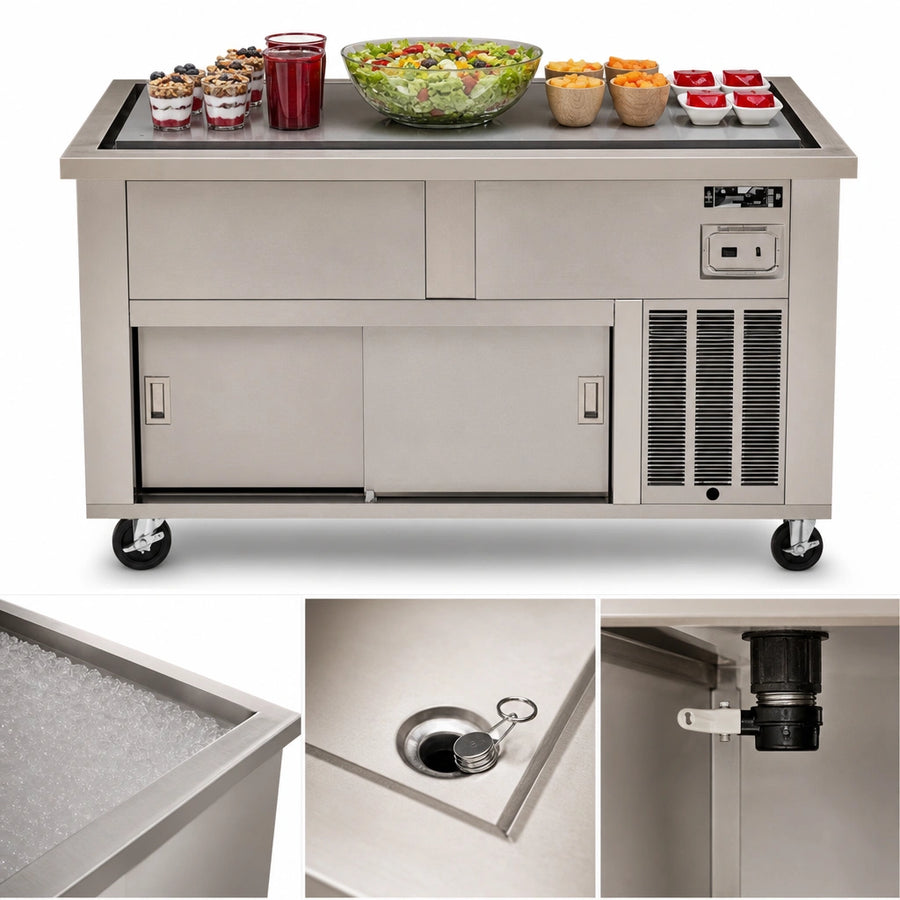

Mechanically Cooled Frost Top

Fan-cooled condensing unit with an expansion valve and control pressure switch; copper tubing refrigerant coils attach to the bottom of the cold plate and are fully insulated.

Stainless Steel Top

14-gauge stainless steel top with a 1-1/2-inch turndown on all sides and a raised one-piece cold plate.

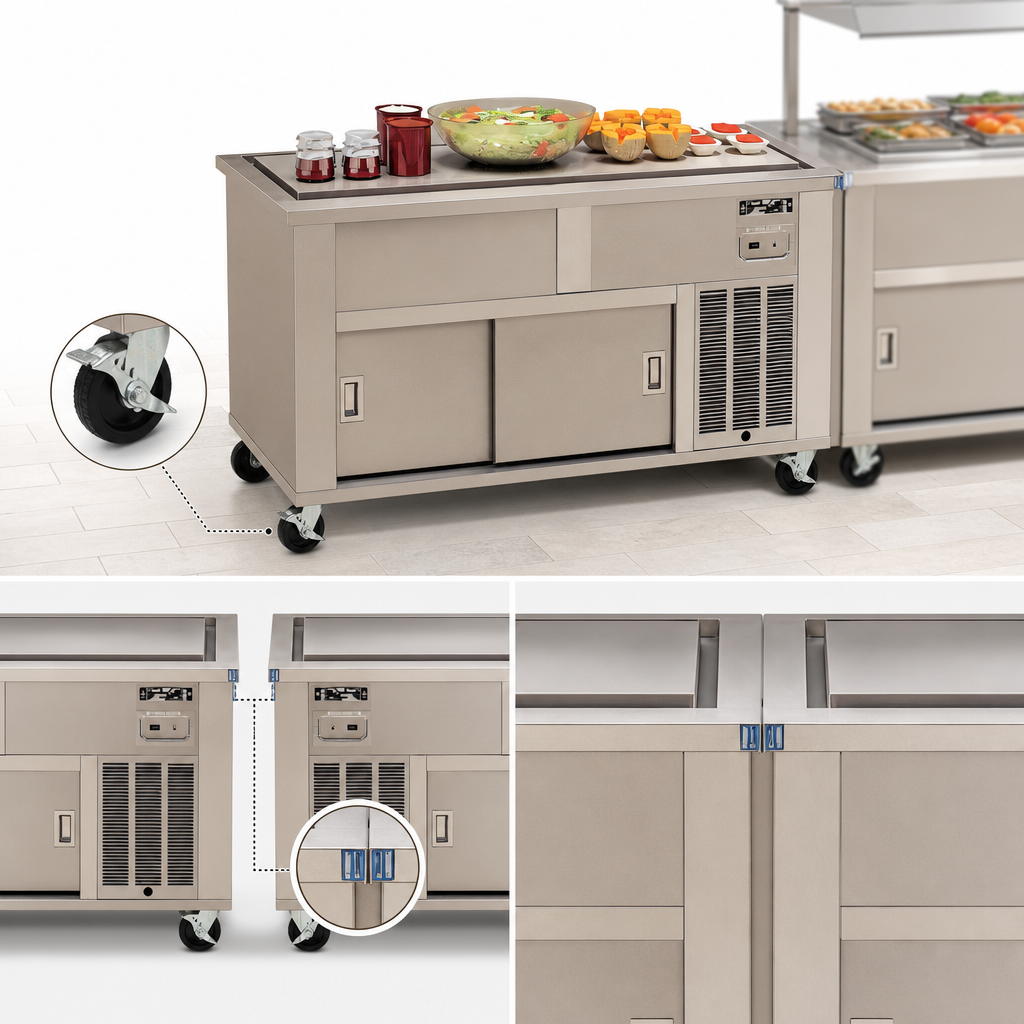

Mobile Modular Design

5-inch swivel plate casters, two with brakes, and an interlocking mechanism for modular lineups.

Sliding Doors and Undershelf

Standard sliding doors and undershelf provide enclosed lower storage.

Removable Louvered Panel

Removable louvered panel provides access to the compressor.

Electrical Connection

120-volt, single-phase electrical service with an 8-foot cord and NEMA 5-15P plug.

Operator Controls

On/off switch and pilot light are mounted on the operator-side control panel.

Drain Valve

Standard 3/4-inch FPT drain valve exits on the operator's left side.

Frequently Asked Questions

The DXP6FT is specified as a 6-pan frost top serving counter.
Yes. It has a mechanically cooled frost top with a fan-cooled condensing unit and insulated refrigerant coils.
The unit measures 88 inches wide by 28 inches deep by 36 inches high.
The specification lists 120 volts, single-phase, 7.9 amps, an 8-foot cord, and a NEMA 5-15P plug. Amperage and plug type may vary with options.
Yes. Standard features include sliding doors and an undershelf.
The warranty is one year covering parts and labor.
