Key specifications

Amps
6 Amps
Phase
1-Phase
Dimensions
74.0"W × 28.0"D × 36.0"H
Type
Serving Counter
Style
Frost Top
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP5FT

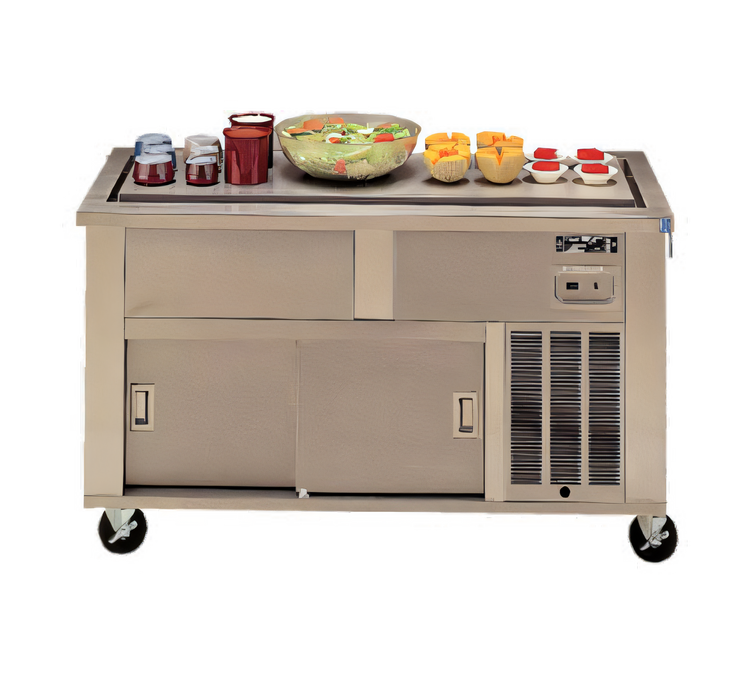

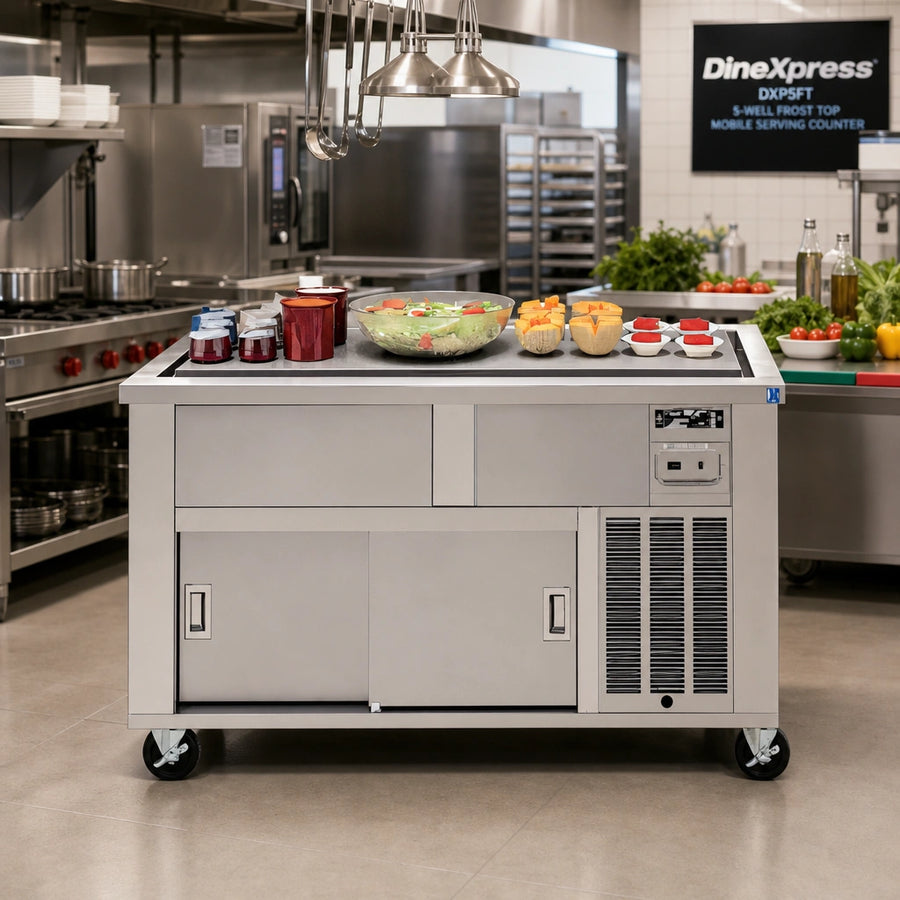

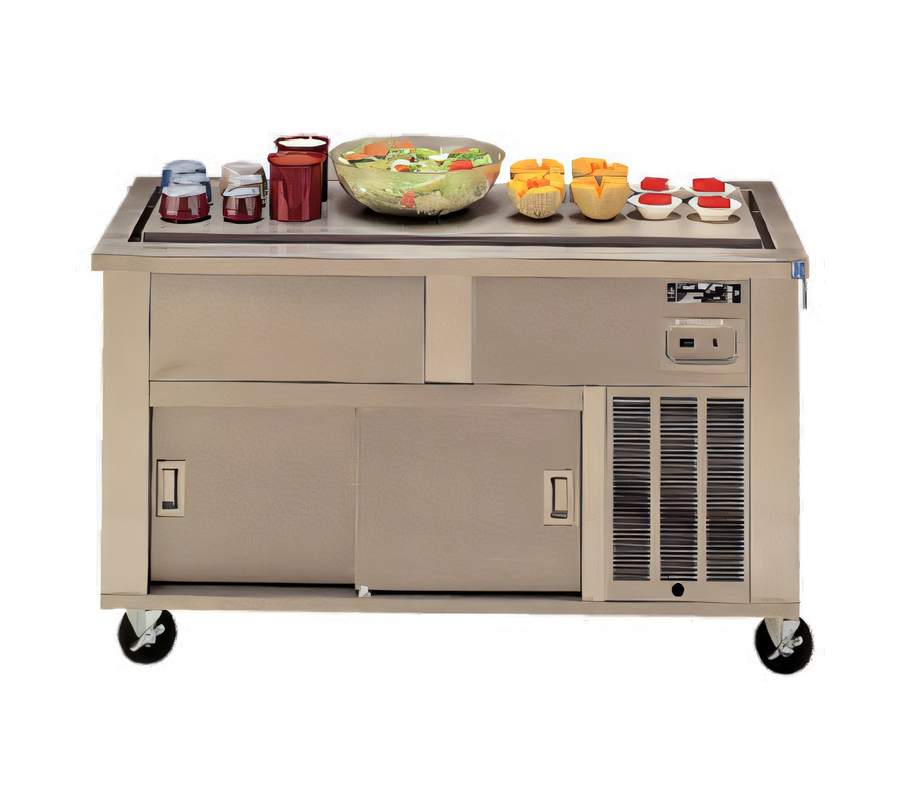

Dinex DineXpress DXP5FT 5-Pan Mechanically Cooled Frost Top

$14,910.39
/each
Estimated to ship in 4–7 business days
Width
Height
Storage base
Door type
Protector guard
End guard side

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,379/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Frost Top
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Design Mobile Modular
Pan Capacity 5 Pans
Frost Area 18-5/8 x 66-5/8 Inches
Width 74 Inches
Depth 28 Inches
Height 36 Inches
Weight 455 Pounds
Refrigeration Type Mechanically Cooled
Compressor Horsepower 1/3 HP
Voltage 120 Volts
Amps 6 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls On/Off Switch, Pilot Light
Door Type Sliding Doors
Undershelf Included
Caster Diameter 5 Inches
Caster Brakes 2 Casters
Drain Connection 3/4 Inch FPT

Description

The DXP5FT is a mobile, mechanically cooled frost top serving counter with a five-pan layout. It measures 74 inches wide, 28 inches deep, and 36 inches high.

The counter has a 14-gauge stainless steel top, stainless steel front and end panels, sliding doors, an undershelf, a drain valve, and a modular interlocking mechanism. Five-inch swivel plate casters provide mobility, with two casters equipped with brakes.

  • Cooling: Mechanically cooled frost top with a 1/3 HP compressor.
  • Electrical: 120-volt, single-phase operation with a NEMA 5-15P plug.
  • Construction: Stainless steel top, front, end panels, and undershelf.

Overall Dimensions:

74.0"W x 28.0"D x 36.0"H

Product Weight:

455.0 lb

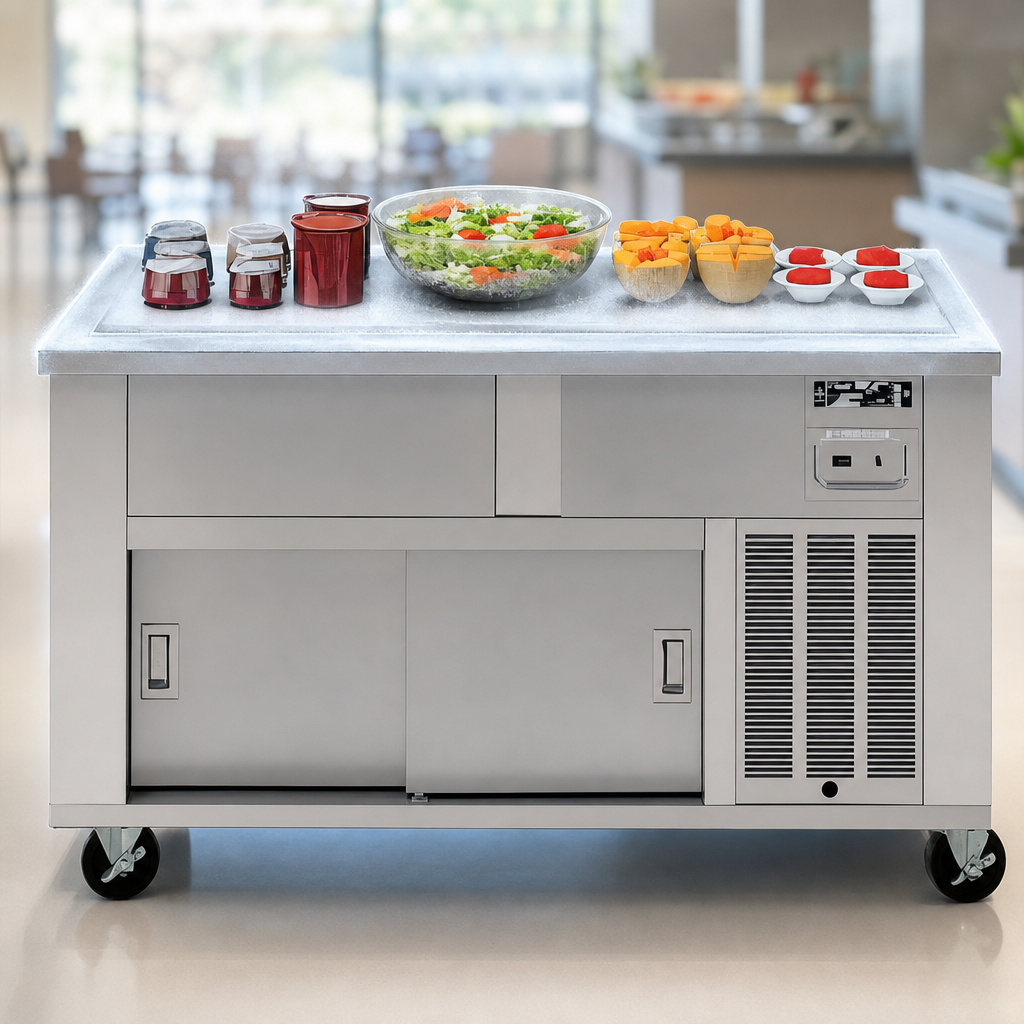

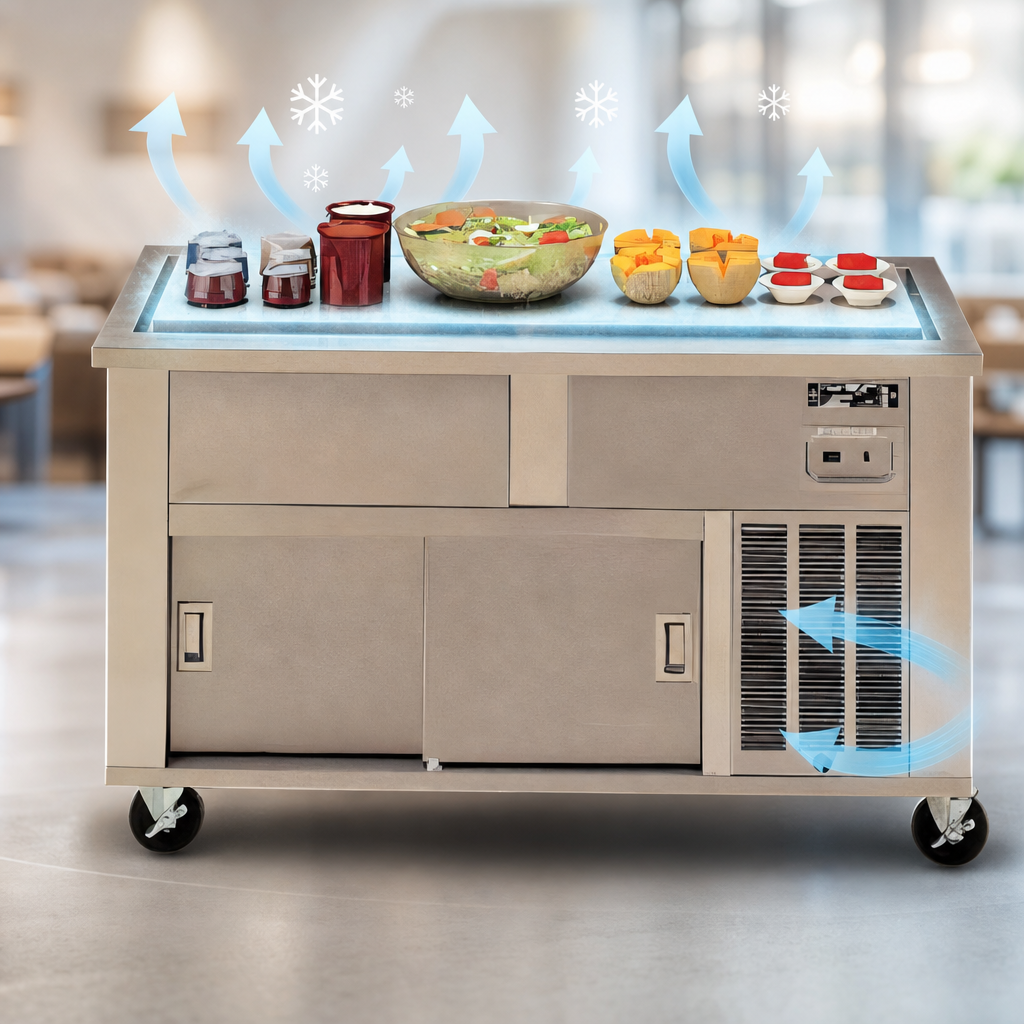

Mechanically Cooled Frost Top

Uses a mechanically cooled frost top with a fan-cooled condensing unit and insulated refrigerant coils.

Five-Pan Format

Provides a five-pan frost top layout.

Stainless Steel Construction

Includes a 14-gauge stainless steel top, stainless steel front and end panels, and a stainless steel undershelf.

Mobile Modular Design

Includes 5-inch swivel plate casters, with two casters equipped with brakes, and an interlocking mechanism for modular lineups.

Sliding Doors

Standard sliding doors provide access to the under-counter area.

Drain Valve

The drain valve exits on the operator's left side and uses a 3/4-inch FPT connection.

Electrical Controls

Includes an On/Off switch and pilot light on the operator-side control panel.

Frequently Asked Questions

The counter is 74 inches wide, 28 inches deep, and 36 inches high.
The DXP5FT has a five-pan frost top layout.
Yes. It uses a mechanically cooled frost top with a 1/3 HP compressor.
It operates at 120 Volts, 1-Phase and 6 Amps, with a NEMA 5-15P plug and an 8-foot electrical cord.
Yes. The DXP5FT includes sliding doors and an undershelf.
Yes. It includes 5-inch swivel plate casters, with two casters equipped with brakes.
The product has a one-year parts and labor warranty.
