Key specifications

Amps
6 Amps
Phase
1-Phase
Dimensions
60.0"W × 28.0"D × 36.0"H
Type
Frost Top Counter
Style
Mobile Modular
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP4FT

Dinex DineXpress DXP4FT 4-Pan Mechanically Cooled Frost Top Counter

$11,715.66
/each
Estimated to ship in 4–7 business days
Pan capacity
Height
Understorage
Finish
Cutting board
Tray slide

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,084/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Frost Top Counter
Style Mobile Modular
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Top Material 14 Gauge Stainless Steel
Pan Capacity 4 Pans
Refrigeration Type Mechanically Cooled
Compressor Horsepower 1/3 HP
Voltage 120 Volts
Amps 6 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Door Type Sliding
Caster Diameter 5 Inches
Braking Casters 2
Drain Connection 3/4 Inch FPT

Description

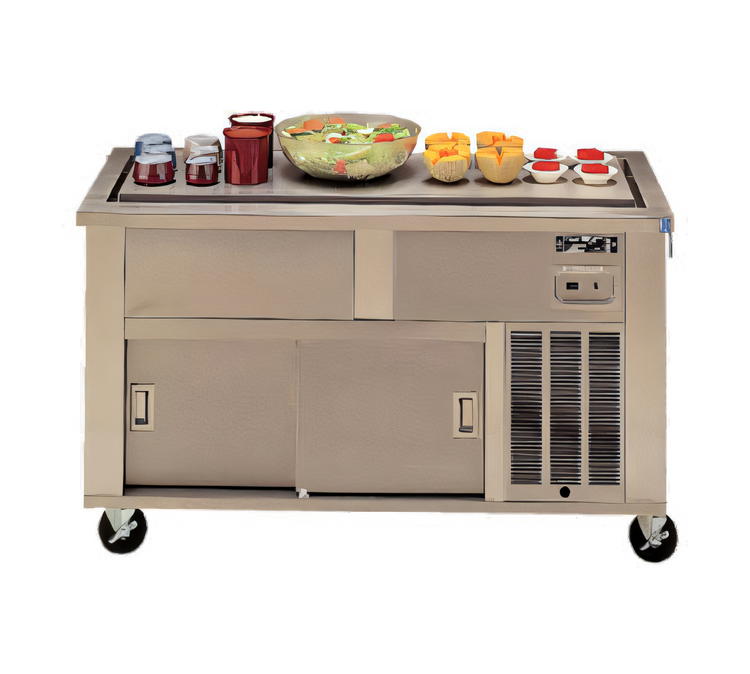

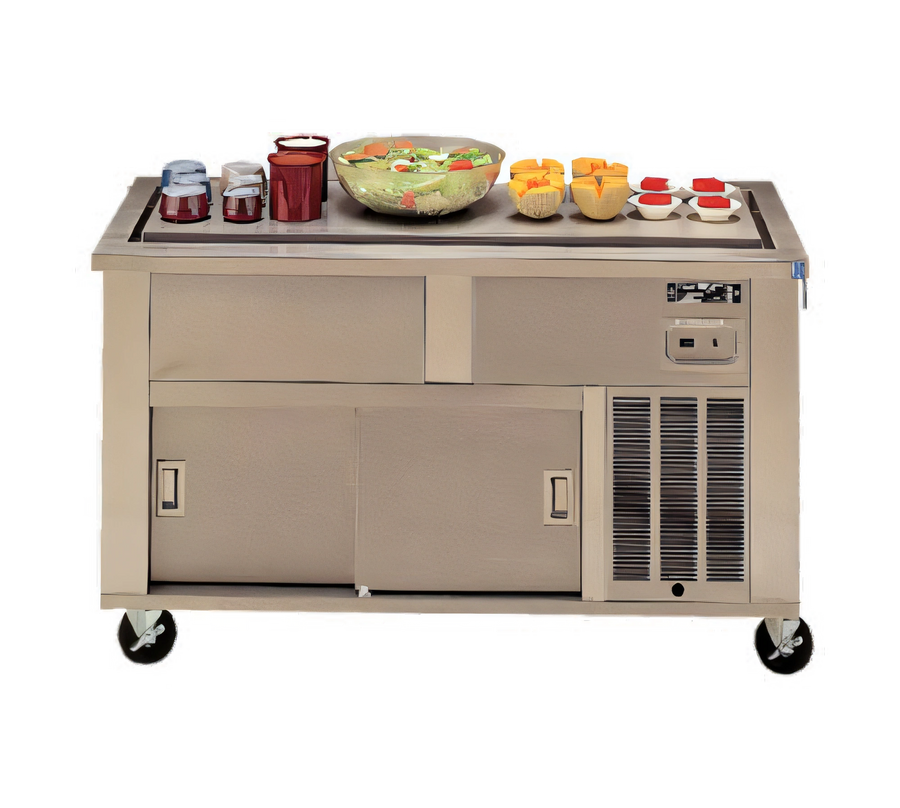

The DineXpress DXP4FT is a mechanically cooled frost top serving counter with a four-pan configuration, mobile modular design, and a 60-inch length.

  • 14-gauge stainless steel top with stainless steel front and end panels
  • Sliding doors and undershelf for enclosed under-counter storage
  • Five-inch swivel plate casters, including two with brakes
  • 120-volt, single-phase electrical connection with an 8-foot cord and NEMA 5-15P plug

Overall Dimensions:

60.0"W x 28.0"D x 36.0"H

Product Weight:

410.0 lb

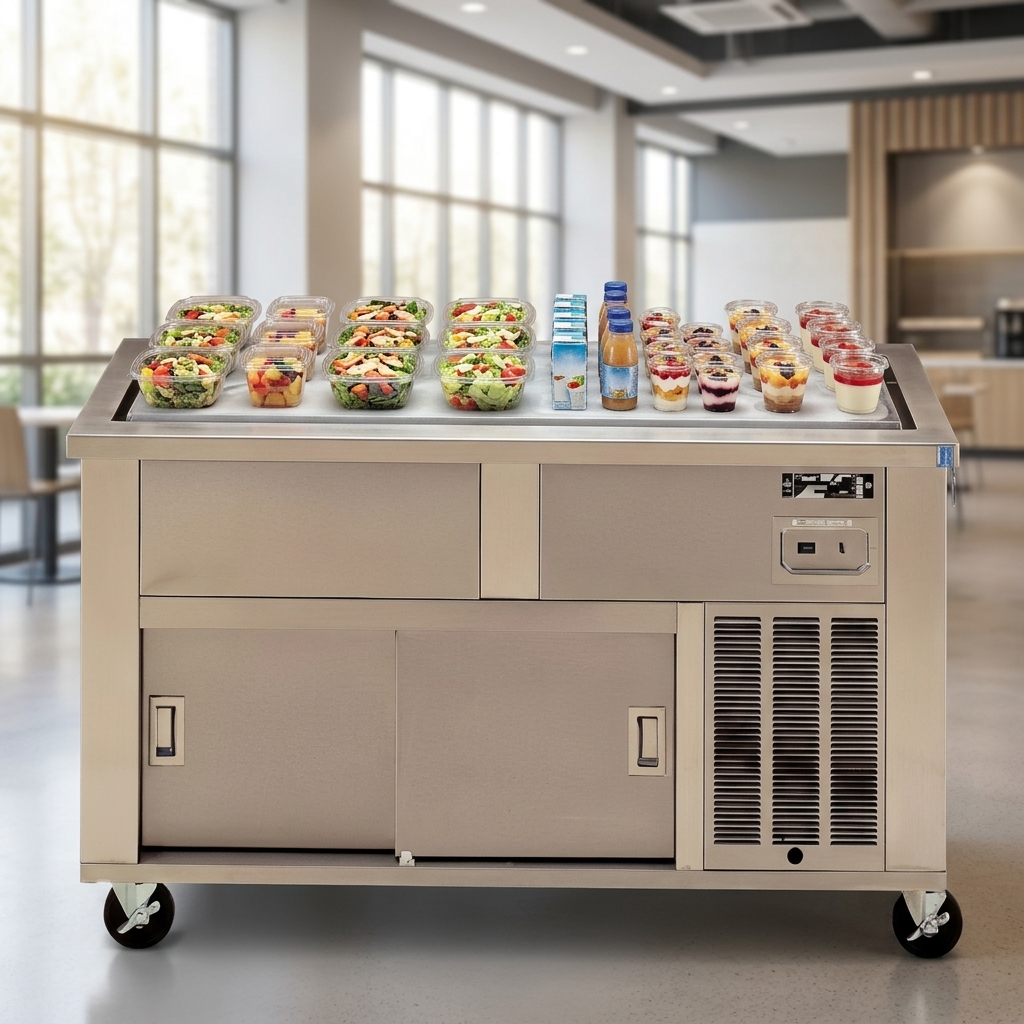

Mechanically Cooled Refrigeration

Fan-cooled condensing unit with an expansion valve and control pressure switch.

Four-Pan Frost Top

Configured as a four-pan frost top serving counter.

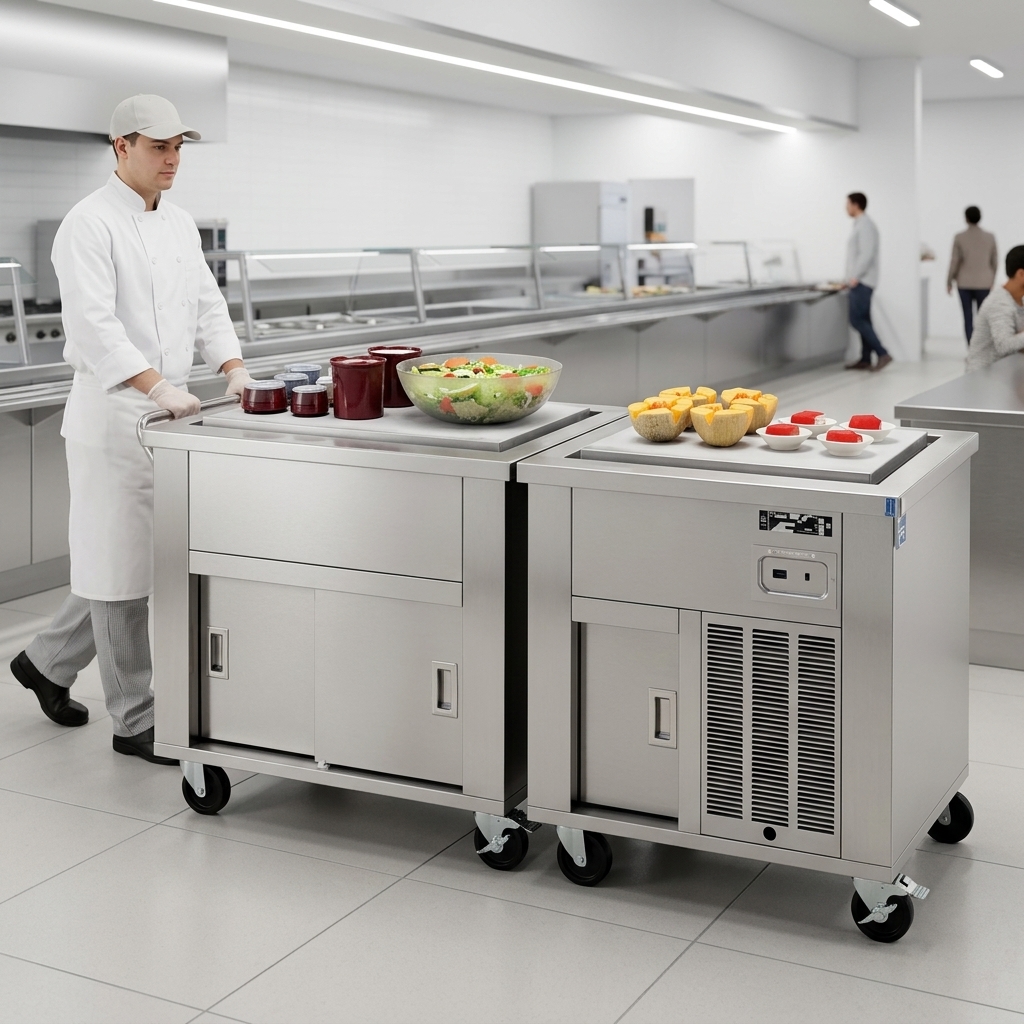

Mobile Modular Design

Includes an interlocking mechanism for modular serving-line configurations.

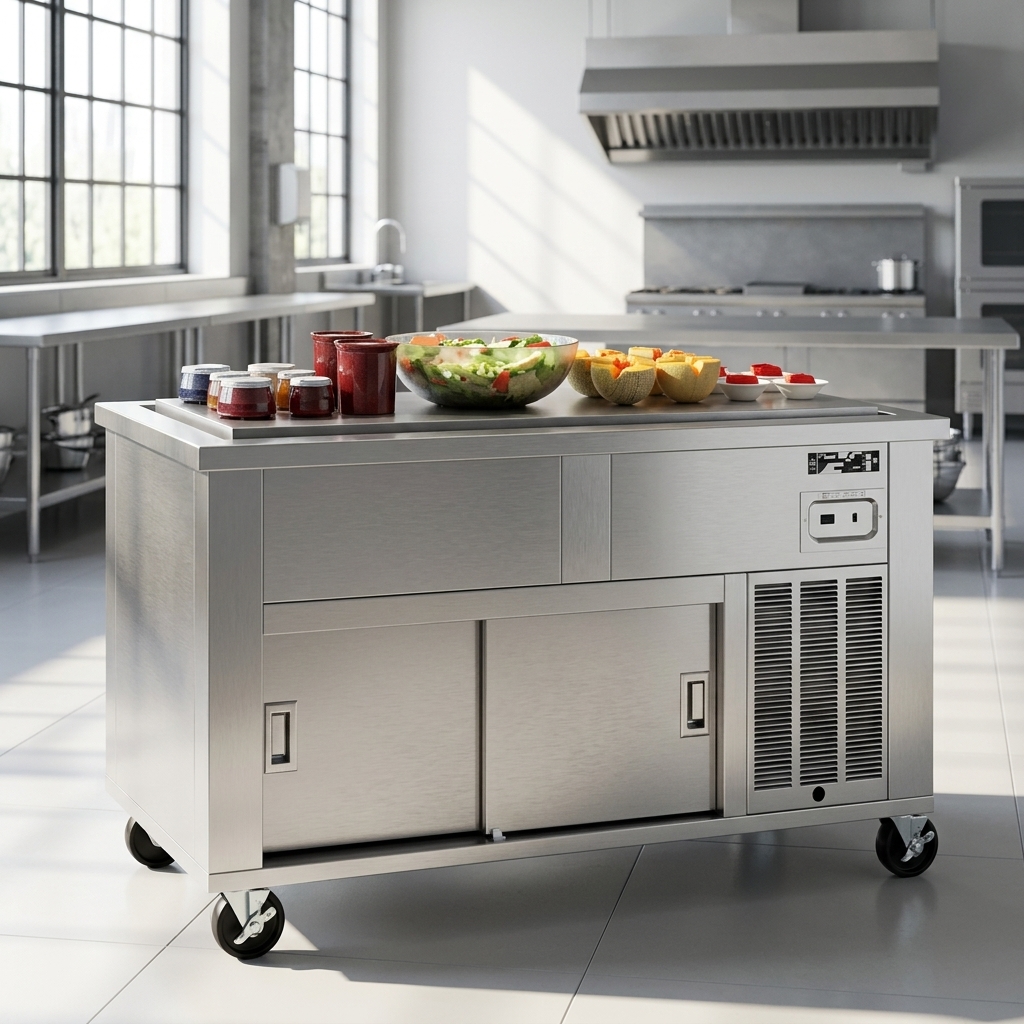

Stainless Steel Construction

Features a 14-gauge stainless steel top with stainless steel front and end panels.

Sliding Door Storage

Includes sliding doors and an undershelf.

Swivel Plate Casters

Includes 5-inch diameter swivel plate casters, with two casters fitted with brakes.

Electrical Connection

Uses 120-volt single-phase power at 6 amps with an 8-foot cord and NEMA 5-15P plug.

Drain Valve

Drain valve exits on the operator's left side and uses a 3/4-inch FPT connection.

Frequently Asked Questions

The DXP4FT is specified as a four-pan frost top unit.
The unit measures 60 inches wide by 28 inches deep by 36 inches high.
It uses 120-volt, single-phase power, is listed at 6 amps, and includes an 8-foot cord with a NEMA 5-15P plug.
Yes. The DXP4FT includes sliding doors and an undershelf.
Yes. It includes 5-inch swivel plate casters, two with brakes, and an interlocking mechanism for modular lineups.
The product includes a one-year parts and labor warranty.
