Key specifications
- Amps
- 6 Amps
- Phase
- 1-Phase
- Dimensions
- 46.0"W × 28.0"D × 36.0"H
- Type
- Serving Counter
- Style
- Frost Top
- Installation Type
- Floor Model
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

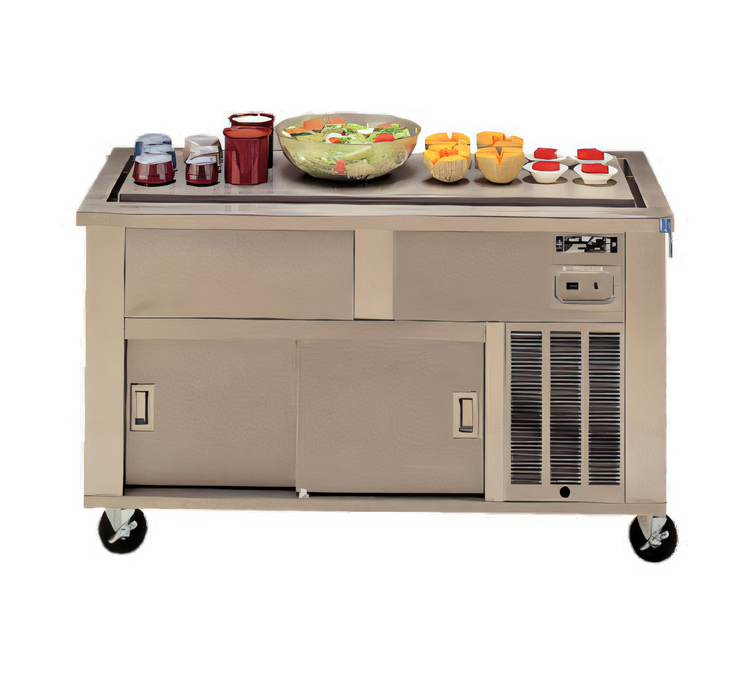

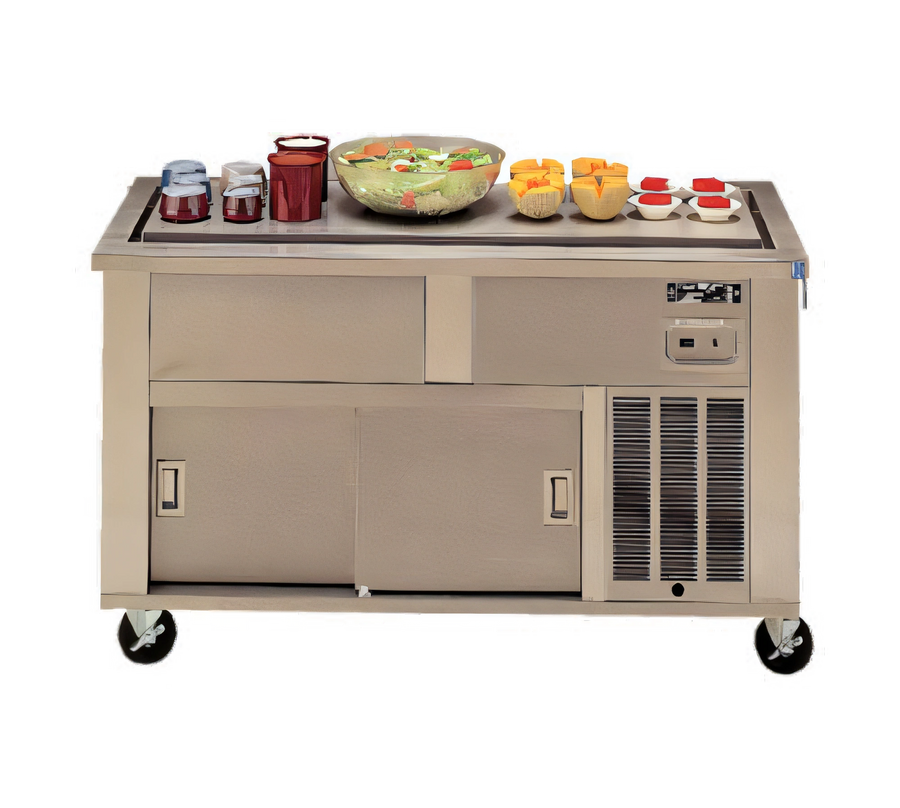

Dinex DineXpress DXP3FT is a mobile frost top serving counter with mechanical cooling, a stainless steel top, and capacity for three pans.
- 46-inch unit with a 14-gauge stainless steel top and stainless steel front and end panels.
- Sliding doors, an undershelf, and a removable louvered panel for compressor access.
- Five-inch swivel plate casters, including two with brakes, support mobile modular use.
- 120-volt, single-phase operation with a 6-amp draw, 8-foot cord, and NEMA 5-15P plug.
Overall Dimensions:
46.0"W x 28.0"D x 36.0"HProduct Weight:

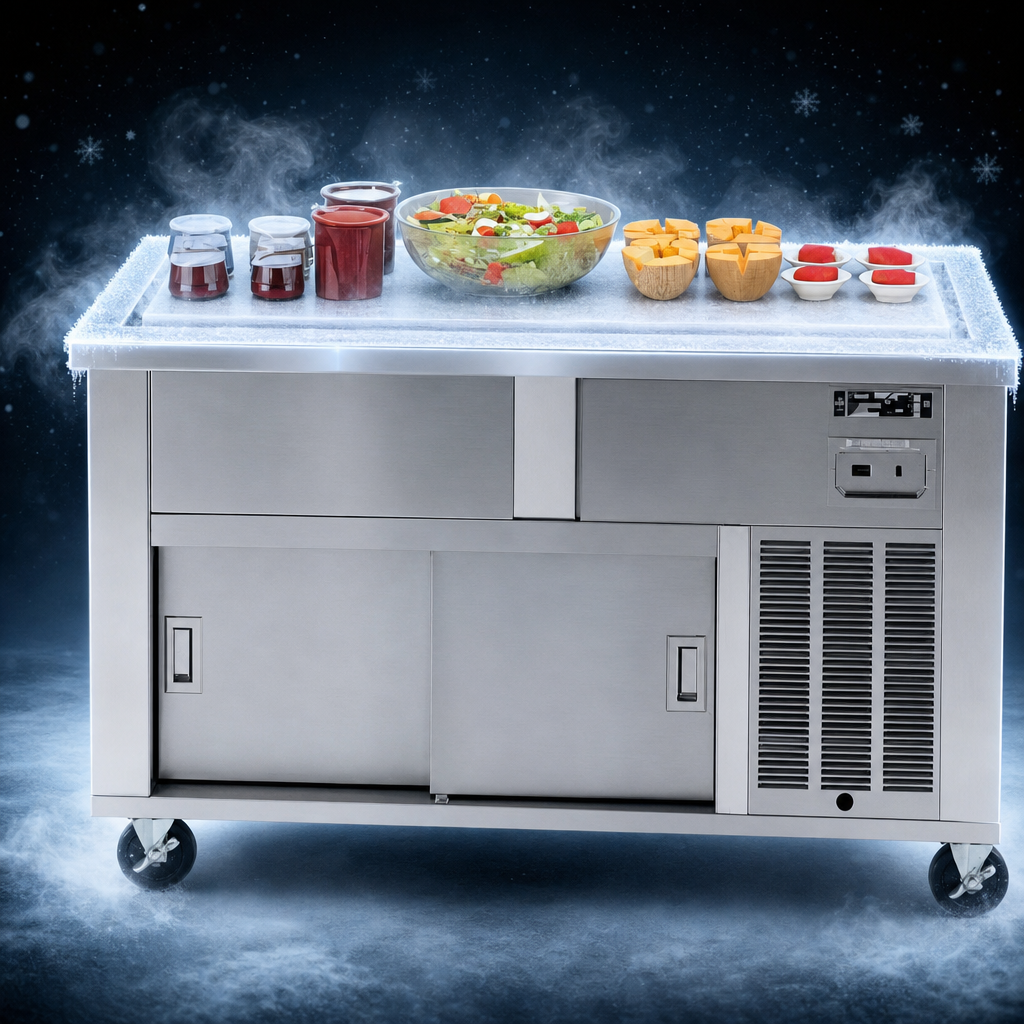

370.0 lbMechanically Cooled Frost Top
The unit uses a mechanically cooled frost top with a fan-cooled condensing unit and insulated copper tubing refrigerant coils attached to the cold plate.

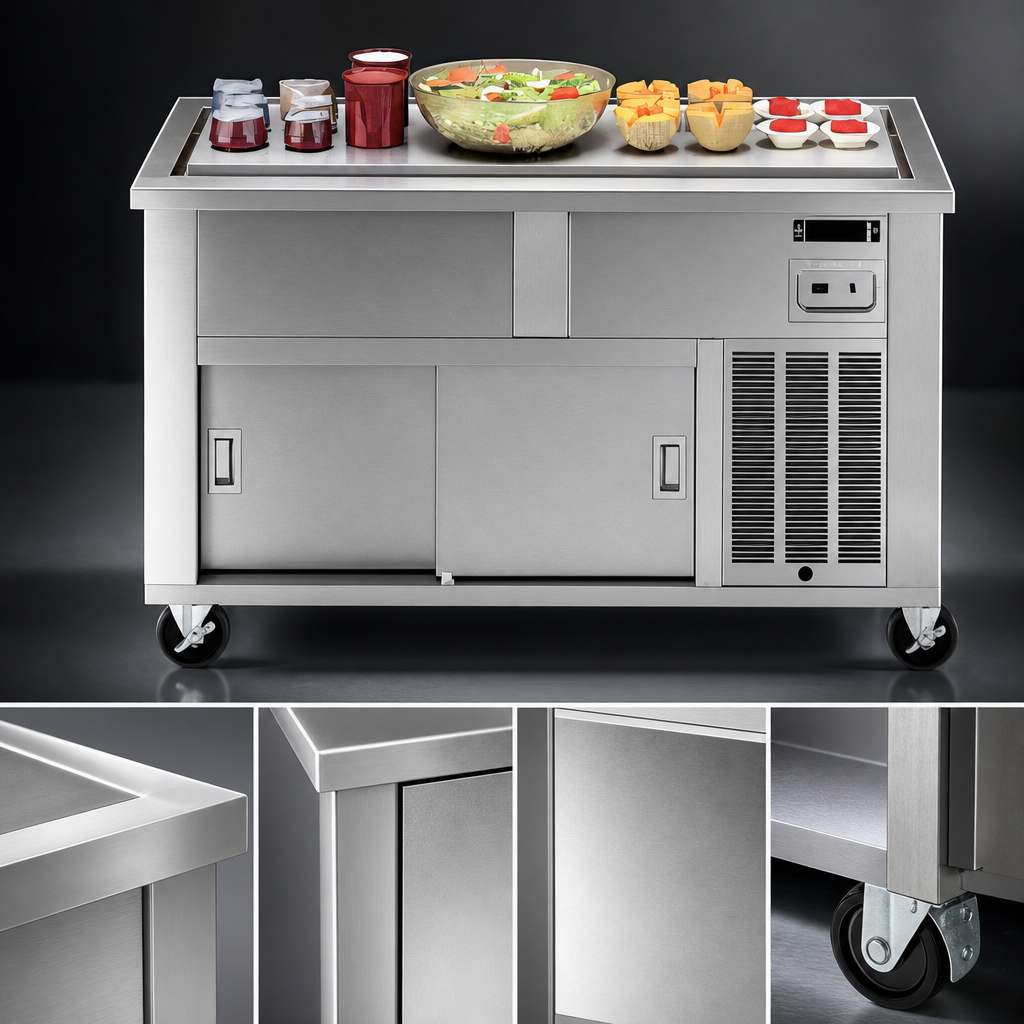

Stainless Steel Top
The 14-gauge stainless steel top has a 1-1/2-inch turndown on all sides and a raised one-piece cold plate.
Mobile Modular Design
Five-inch swivel plate casters, two with brakes, and an interlocking mechanism support mobile modular serving-line configurations.
Sliding Doors and Undershelf
Sliding doors and a stainless steel bottom shelf provide enclosed lower storage.
Ventilation Access
Louvered panels ventilate the condensing unit, and the end louvered panel is removable for compressor access.
Electrical Connection
The unit operates at 120 Volts, 1-Phase, and 6 Amps with an 8-foot electrical cord and NEMA 5-15P plug.
Drain System
A 3/4-inch FPT drain valve exits on the operator's left side as standard.
Controls
An On/Off switch and pilot light are mounted on the operator-side control panel.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
