Delfield N8258-STP Refrigerated Prep Tables
Description
Delfield N8258-ST Drop-In Sheet Pan Frost Top
58" self-contained frost top | holds three 18 × 26" sheet pans (tall left-to-right)Move product straight from the rack to the serving line—no re-panning, no wasted time. The Delfield N8258-ST chills a spacious stainless surface down to frost, showcasing pastries, salads, desserts and grab-&-go items while keeping them safely below 40 °F. Built with GreenGenius™ R290 refrigeration, this heavy-duty drop-in is as efficient as it is effortless.
Why you’ll love it

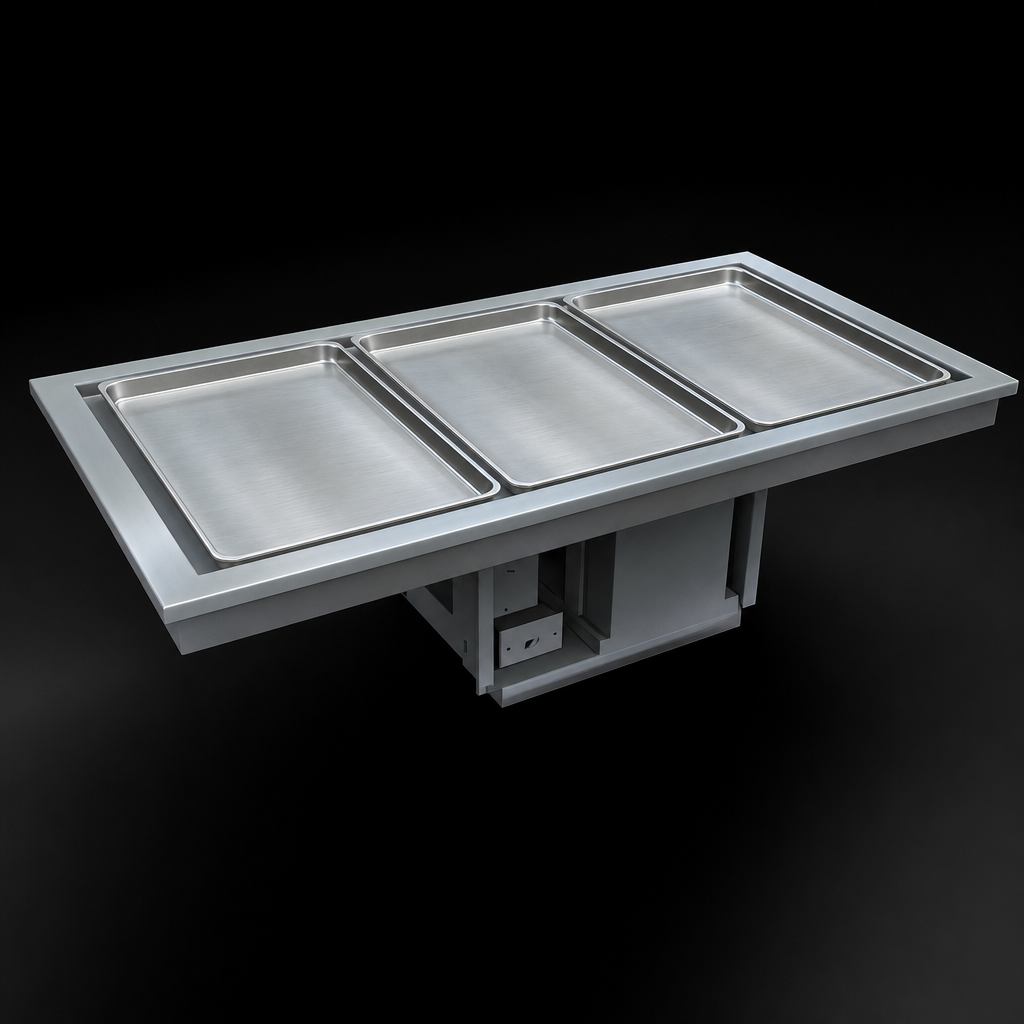

- 3-pan capacity – displays three full-size 18 × 26" sheet pans “tall” side facing guests.
- One-piece 16-ga. stainless top recessed ¾" to build an even frost layer for eye-catching presentation.
- GreenGenius™ R290 system – eco-friendly, low-GWP refrigerant paired with high-density polyurethane insulation.

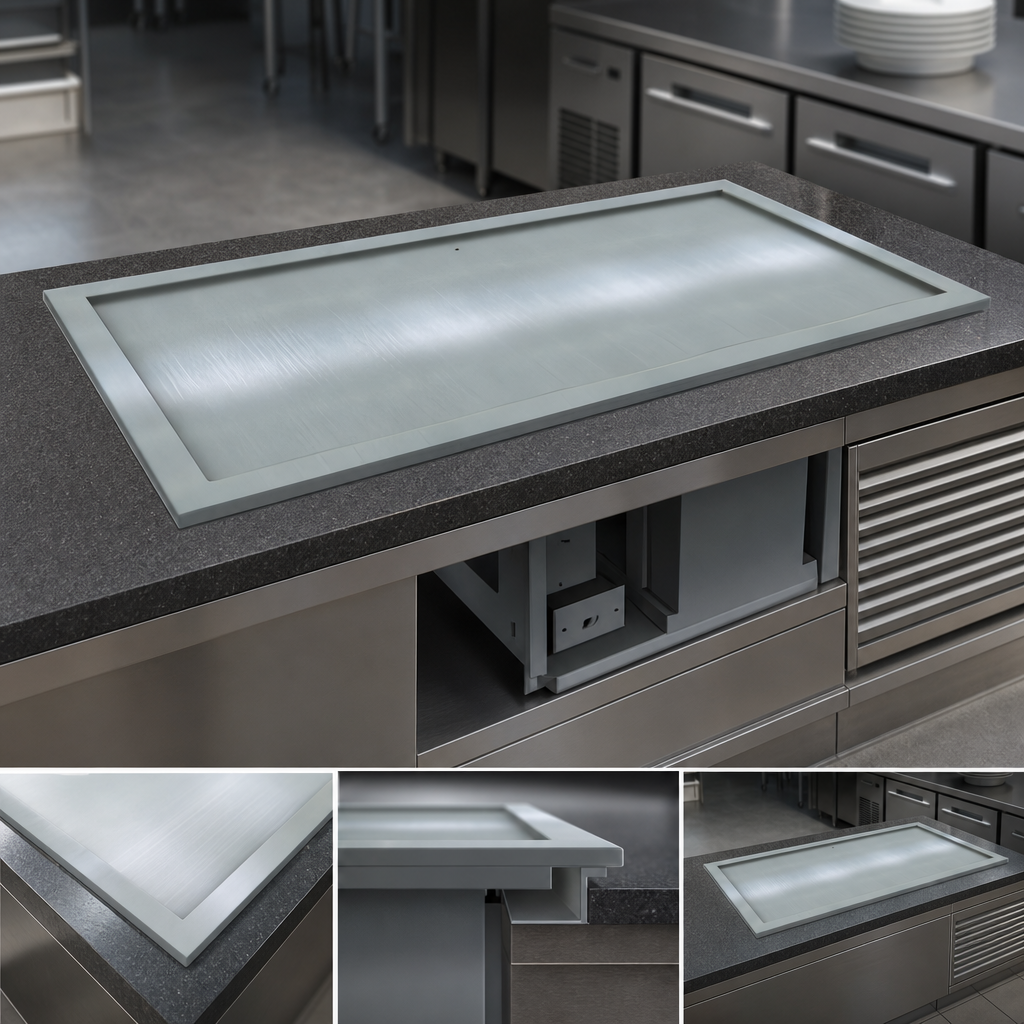

- True drop-in convenience – push-in perimeter gasket seals against the counter; no silicone caulk required.
- Heavy-gauge galvanized housing & rugged steel compressor stand built for demanding front-of-house service.
- Simple controls – lighted ON/OFF toggle switch plus 8 ft power cord with NEMA 5-15P plug.
- Integrated ½" drain keeps the surface dry and easy to wipe down.
- Stainless steel louver supplied for field-installed front air intake.
Technical specifications
| Model | N8258-ST |
|---|---|
| Pan capacity | 3 × full-size 18 × 26" sheet pans |
| Overall size (L × W) | 57.60" × 29.60" (146 cm × 75 cm) |
| Required counter cutout | 56.60" × 28.75" (144 cm × 73 cm) |
| Refrigeration | Self-contained, R290 hydrocarbon |
| Compressor | ¼ HP | 7.5 A |
| Electrical | 115 V / 60 Hz / 1-Ph | 8 ft cord & NEMA 5-15P |
| Drain connection | ½" O.D. tube |
| Construction | 16-ga. stainless top, galvanized steel exterior, polyurethane foam insulation |
| Agency approvals | UL, cUL, NSF |
| Shipping weight | 209 lb (95 kg) |
Provide a secondary opening at the rear of the cabinet for condenser air exhaust. Follow Delfield installation instructions for clearance and ventilation requirements.
Warranty
Comes standard with Delfield’s 90-day labor and 1-year parts warranty for worry-free operation. Extended coverage options are available—ask your representative for details.
