Delfield  |  SKU: N8256-STP

Delfield N8256-STP Refrigerated Prep Tables

$6,078.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Flyer Service manual Warranty sheet
Related Searches
Refrigerated Prep Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

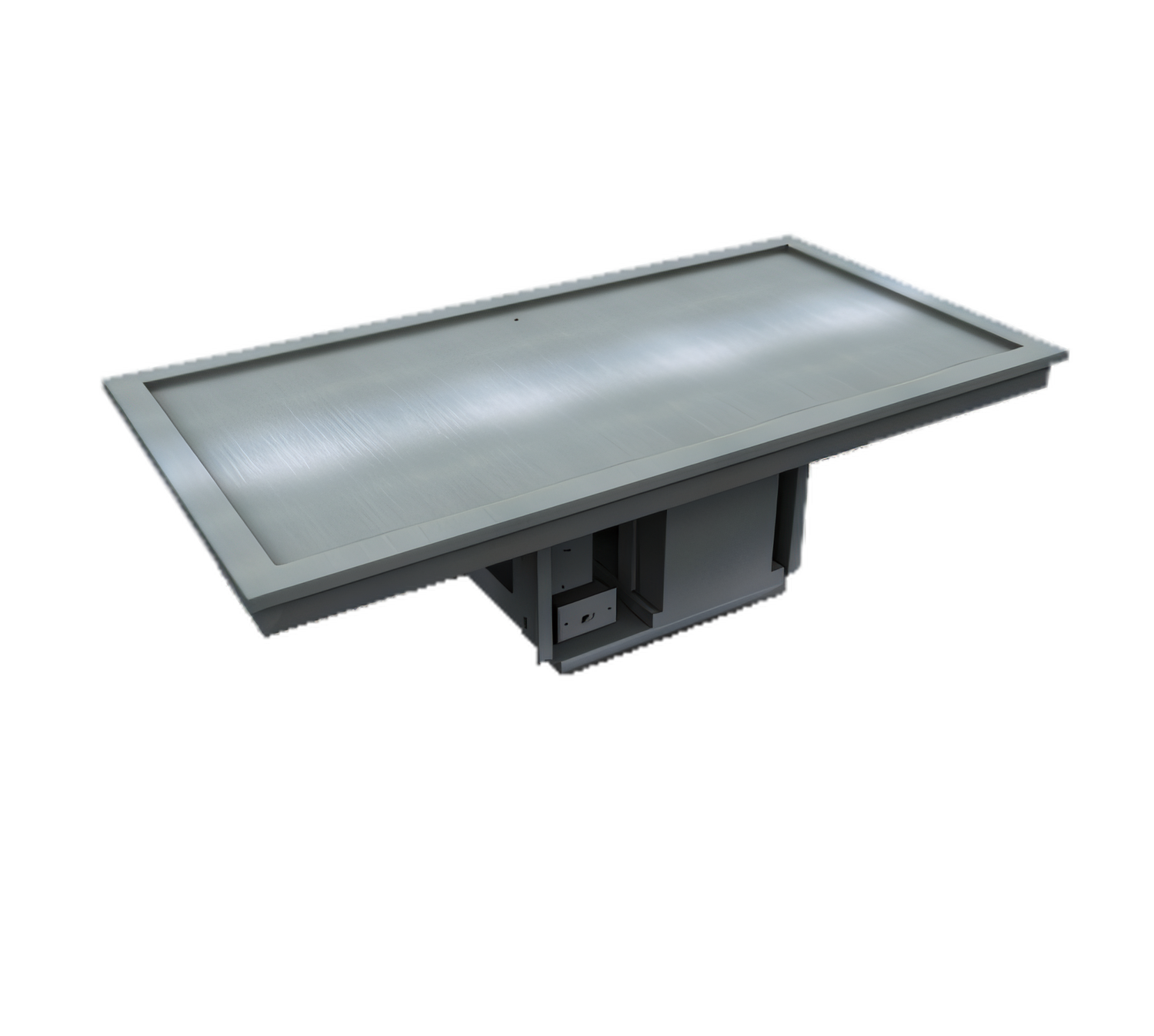

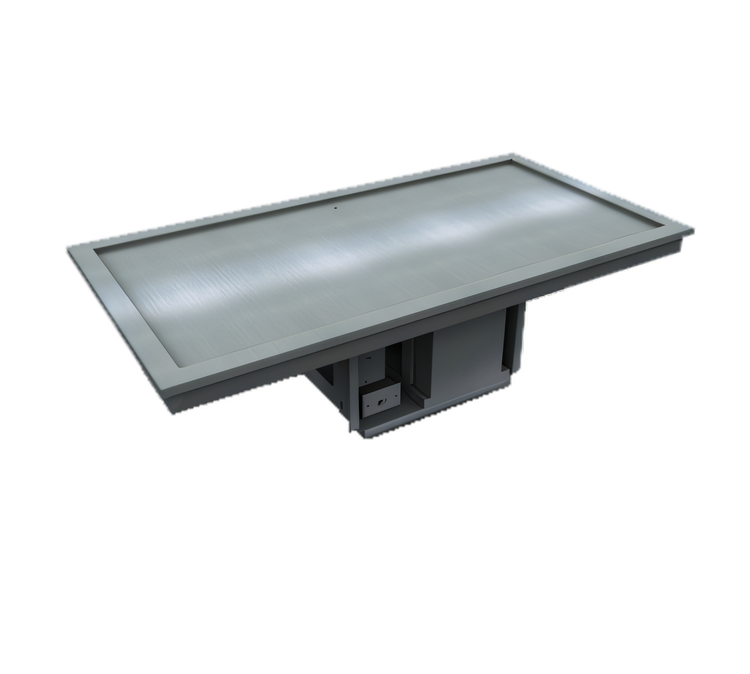

Delfield N8256-ST Drop-In Sheet Pan Frost Top

2 full-size pans • Long left-to-right layout • Self-contained R290 refrigeration

Merchandize pastries, desserts, hors d’oeuvres and other quick-turn items straight from the pan— no transferring, no mess. The Delfield N8256-ST frost top drops neatly into your counter, creating a chilled presentation surface that keeps two full-size (18" × 26") sheet pans at food-safe temperatures while putting product front and center for your guests.

Why you’ll love it

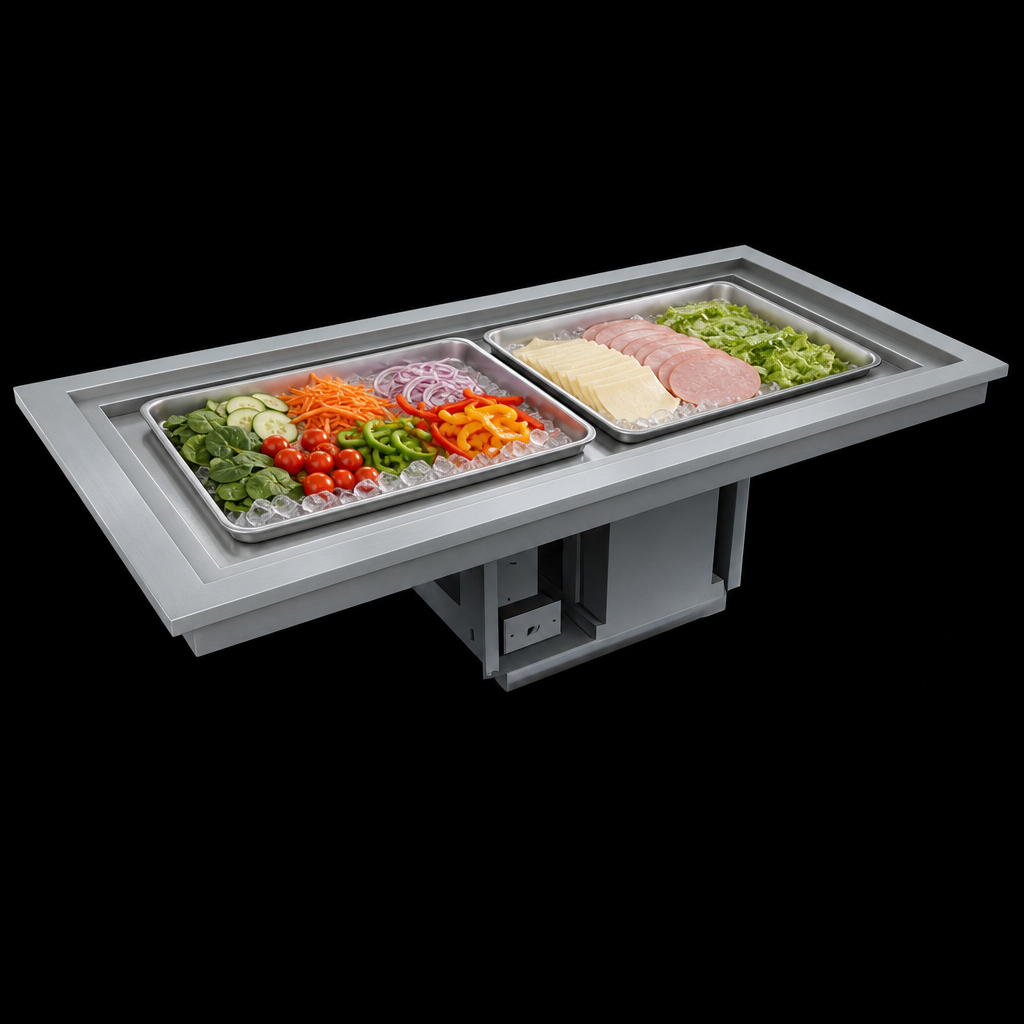

  • Ready-to-serve capacity – holds 2 sheet pans long side-to-side for maximum facing.
  • Eco-friendly GreenGenius™ R290 system cuts energy use and exceeds upcoming refrigerant regulations.
  • Heavy-duty build – one-piece stainless steel top bonded to heavy-gauge galvanized housing.

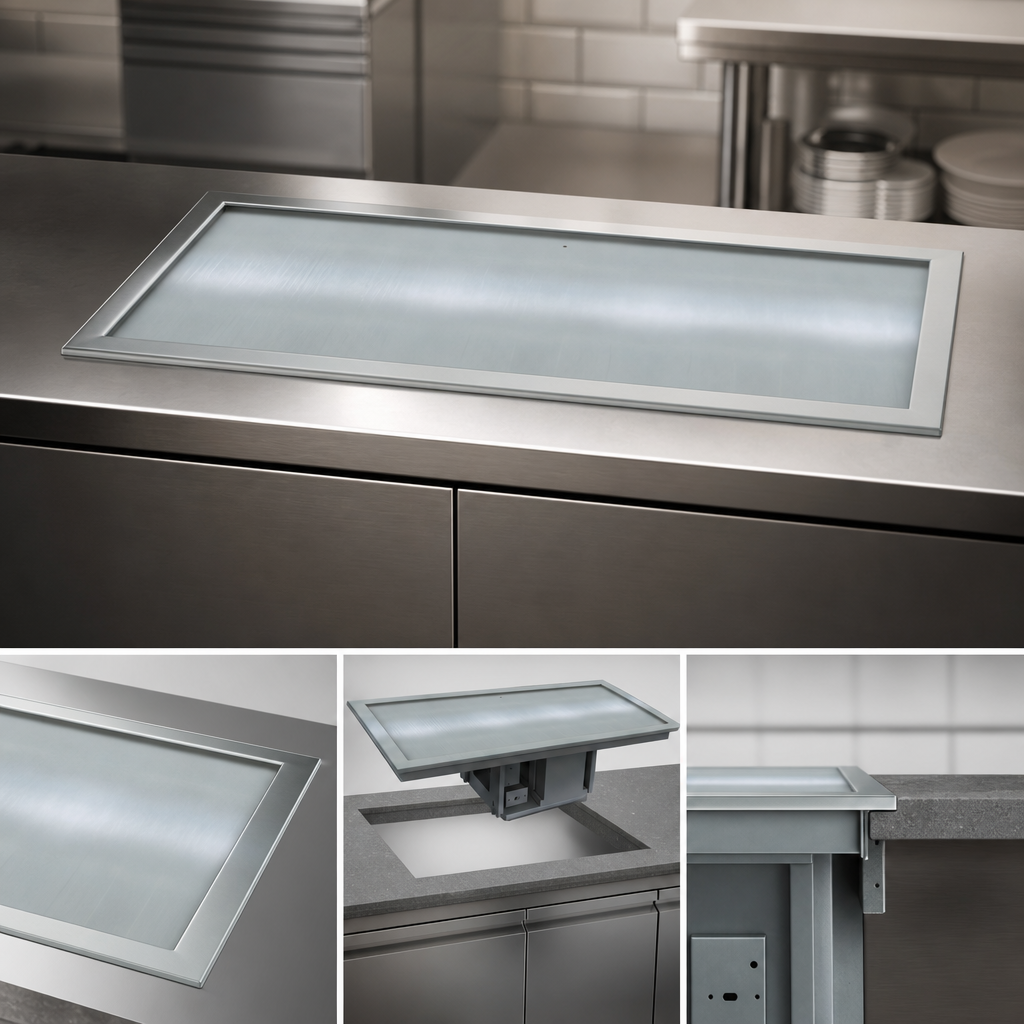

  • Push-in perimeter gasket ships pre-installed for a true “drop-in and done” install.
  • Simple operation – lighted ON/OFF toggle switch, 8 ft. cord and NEMA 5-15P plug.
  • NSF & UL listed for open food storage and electrical safety.
  • ½" drain connection keeps the surface free of melt-off or condensation.

Technical specifications

Model N8256-ST
Pan capacity / layout 2 × 18" × 26" sheet pans (long left-to-right)
Overall top size 55.60" L × 22.00" W (141 cm × 56 cm)
Counter cut-out required 54.60" L × 21.10" W (139 cm × 54 cm)
Refrigeration Self-contained, air-cooled, GreenGenius™ R290 hydrocarbon
Compressor 1/5 HP
Insulation High-density, zero-ODP polyurethane foam
Electrical 115 V / 60 Hz / 1 Ph, 8 ft. cord, NEMA 5-15P plug
Drain ½" stainless steel connection
Certifications cULus, UL, NSF
Standard warranty* 1-year parts  |  90-day labor
Important – Provide a 54.60" × 21.10" counter cut-out and a second rear louver opening for condenser air flow. Failure to allow adequate ventilation will affect performance and warranty coverage.

Included with your unit

  • Pre-installed perimeter gasket
  • Stainless steel front louver for field mounting
  • Installation & operation manual

Need a remote toggle switch, custom sneeze guard or extended warranty? Delfield offers a full menu of factory options—ask your product specialist for details.

Features & Specs

Manufacturer

Delfield

Certifications

NSF, UL

Height

15.69in

Width

55.6in

Depth

22.0in

Shipping Weight

193.0lbs

Width (side - side)

50 - 71 inches

Compressor HP

1/4 HP compressor

Depth (front - back)

22"

Specifications

Drop-In Frost Top, holds 2 sheet pans (long left to right), heavy-gauge galvanized steel exterior housing, on/off toggle switch, perimeter gasket, self-contained refrigeration, R290 refrigerant, 1/5 HP, (54.60" x 21.10" cutout required), cUL, UL, NSF
