Key specifications
- Phase
- 1-Phase
- Dimensions
- 77.75"W × 31.25"D × 35.0"H
- Type
- Refrigerated Frost Top
- Style
- Mobile
- Installation Type
- Floor Model
- Design
- Enclosed With Doors
Atlas Metal INFFB-5 Mobile Refrigerated Frost Top, 15-Pan
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
- 64 in
- 77-3/4 in
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Atlas Metal INFFB-5 combines a refrigerated frost top with a two-door refrigerated base for cold-food display and backup storage.
- 66.5 in W x 19.5 in D refrigerated frost plate.
- 10.0 cu. ft. refrigerated base with a slide assembly for 15 pans measuring 12 in x 20 in.
- Two self-contained refrigeration systems serve the frost top and refrigerated base.
- 16-gauge 304 stainless steel top, stainless steel frame, and laminate panels.
- Four 4 in swivel casters are included, with two equipped with brakes.
Overall Dimensions:
77.75"W x 31.25"D x 35.0"HProduct Weight:
918.0 lbRefrigerated Frost Top

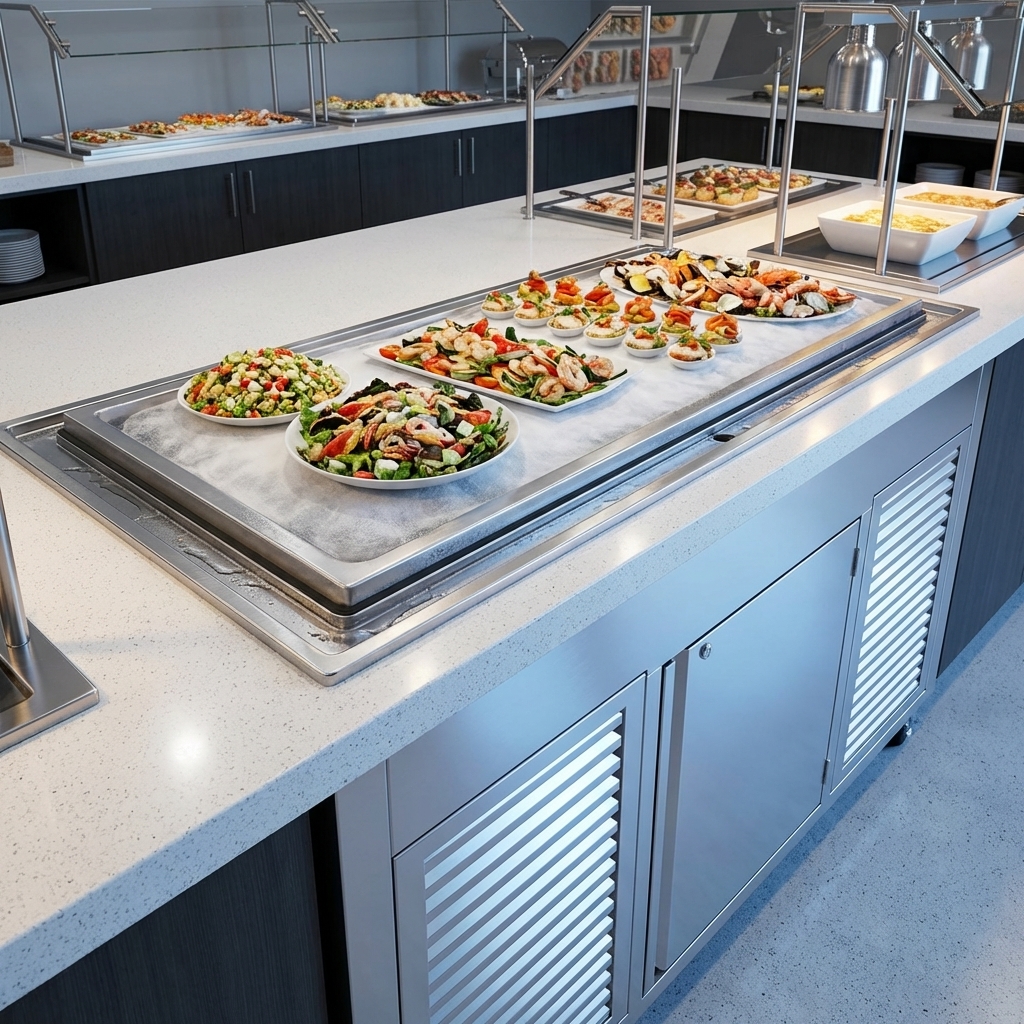

The refrigerated frost plate measures 66.5 in W x 19.5 in D.
Refrigerated Base
The two-door base provides 10.0 cu. ft. of refrigerated capacity and a slide assembly for 15 pans measuring 12 in x 20 in.
Self-Contained Refrigeration

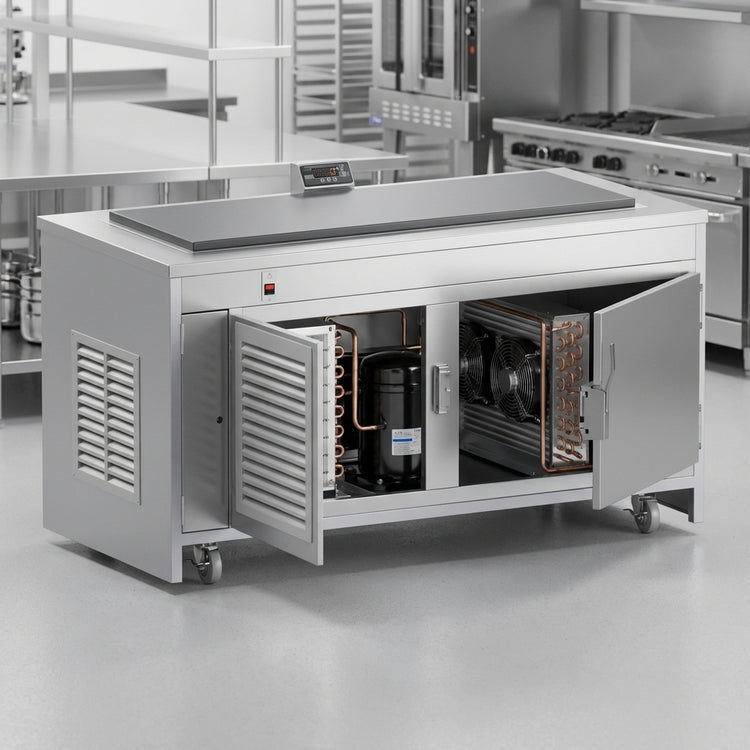

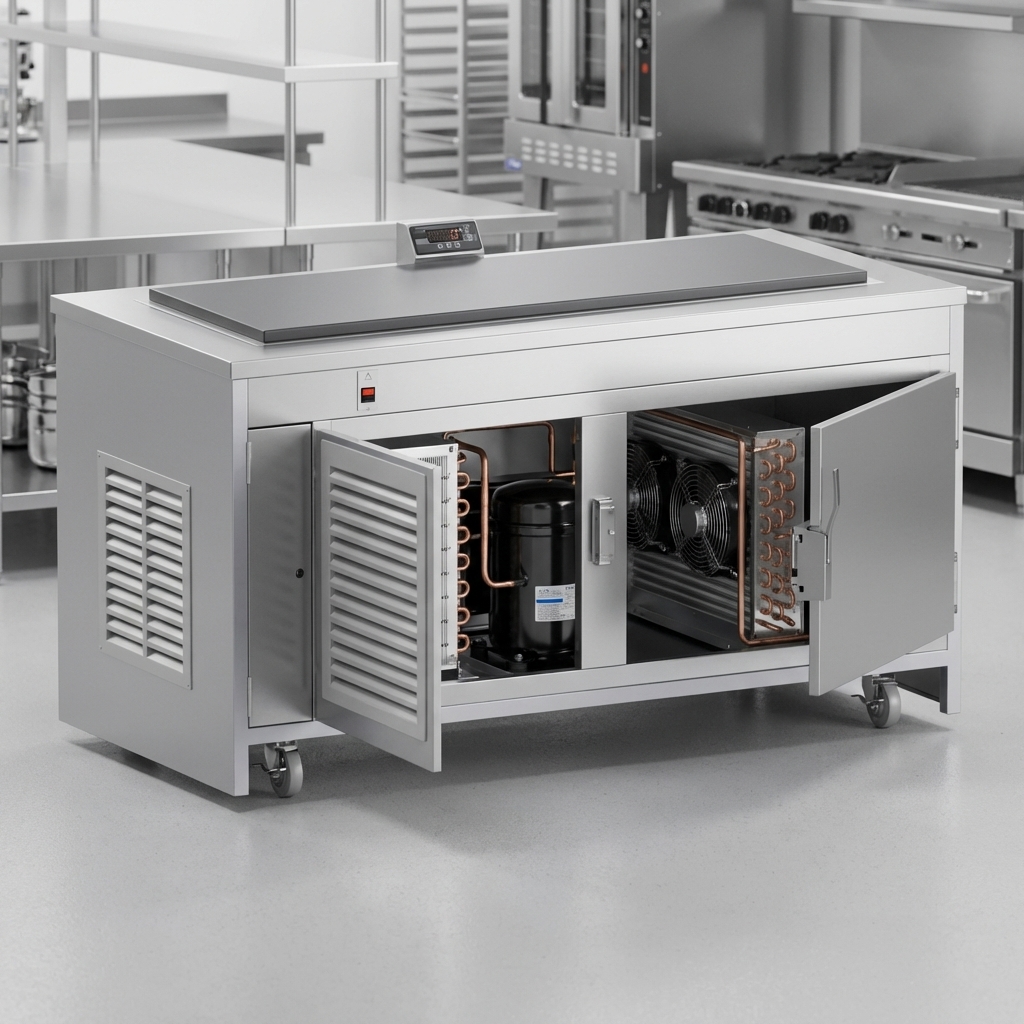

Two self-contained refrigeration systems are provided, one for the frost top and one for the refrigerated base.
Stainless Steel Construction
The top is 16-gauge 304 stainless steel, with a stainless steel frame and laminate panels.
Mobile Design
Four 4 in swivel casters support mobility, and two casters have brakes.
Electrical Service
The unit is wired for 120 Volts, 1-Phase operation and includes a 6 ft cord and plug.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
