Key specifications
- Amps
- 13.4 Amps
- Phase
- 1-Phase
- Dimensions
- 64.0"W × 31.25"D × 35.0"H
- Type
- Refrigerated Food Display
- Style
- Frost Top
- Installation Type
- Floor Model
Atlas Metal INFFB-4 Refrigerated Frost Top Display, 10-Pan
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
- 10 pans
- 15 pans
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

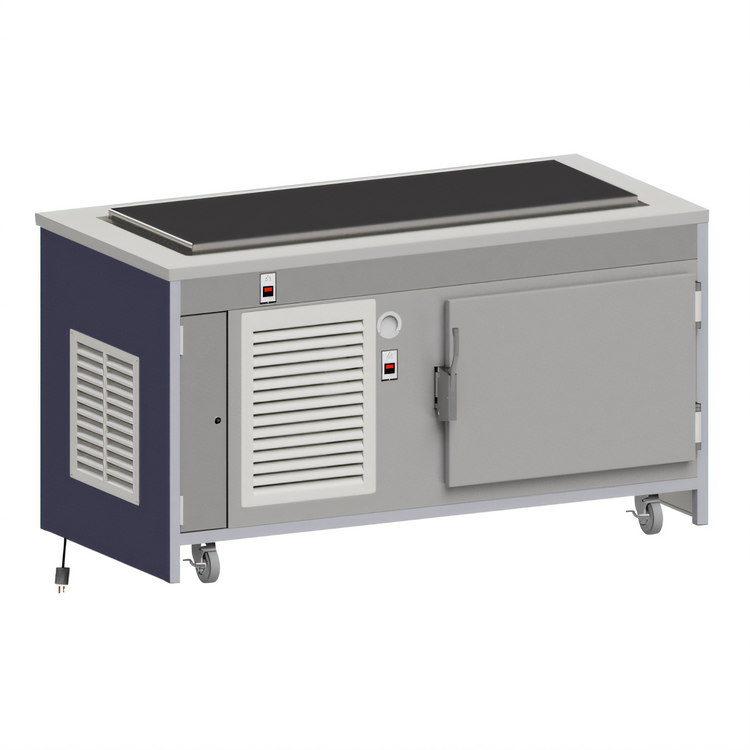

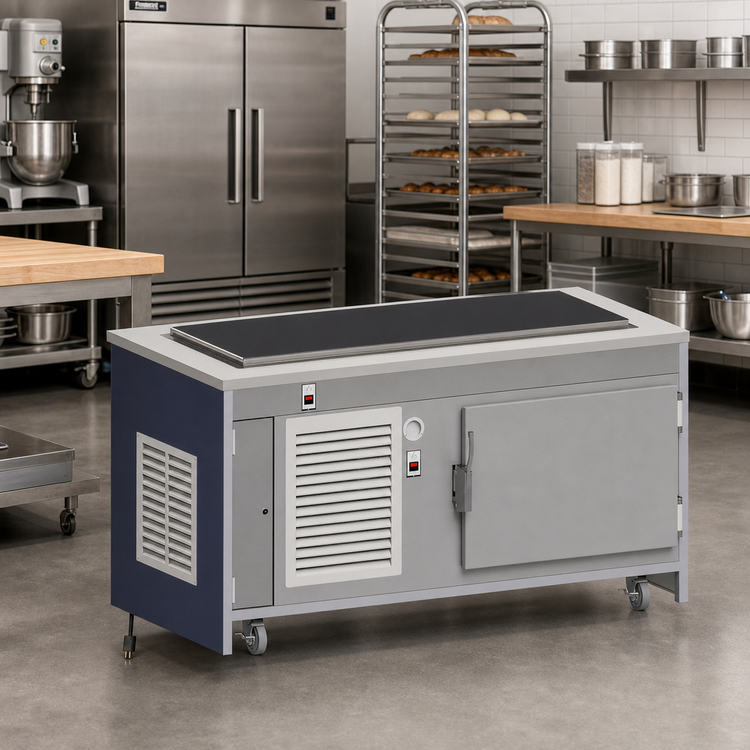

The Atlas Metal INFFB-4 is a mobile refrigerated food display with a refrigerated frost top and refrigerated base.
- Frost top: 52.75 in W x 19.5 in D plate constructed with 16-gauge 304 stainless steel.
- Refrigerated base: One-door cabinet with 8 cu. ft. capacity and a pan slide assembly for ten 12 in x 20 in pans.
- Refrigeration: Two self-contained refrigeration systems, one for the frost top and one for the refrigerated base.
- Construction: Stainless steel frame with laminate panels.
- Mobility: Four 4 in swivel casters, including two with brakes.
Overall Dimensions:
64.0"W x 31.25"D x 35.0"HProduct Weight:

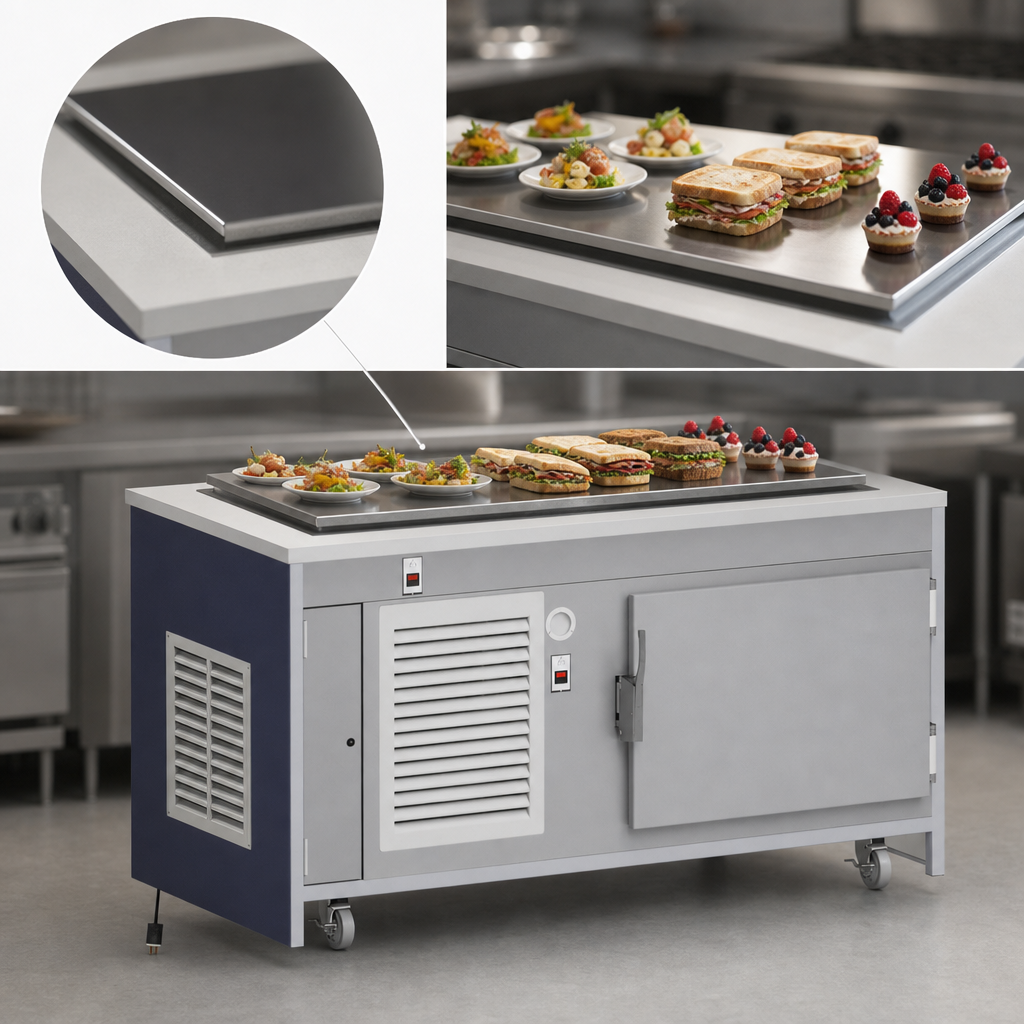

794.0 lbRefrigerated Frost Top
The frost plate measures 52.75 in W x 19.5 in D and is constructed with 16-gauge 304 stainless steel.
Refrigerated Base
The one-door base cabinet has 8 cu. ft. capacity and a pan slide assembly for ten 12 in x 20 in pans.

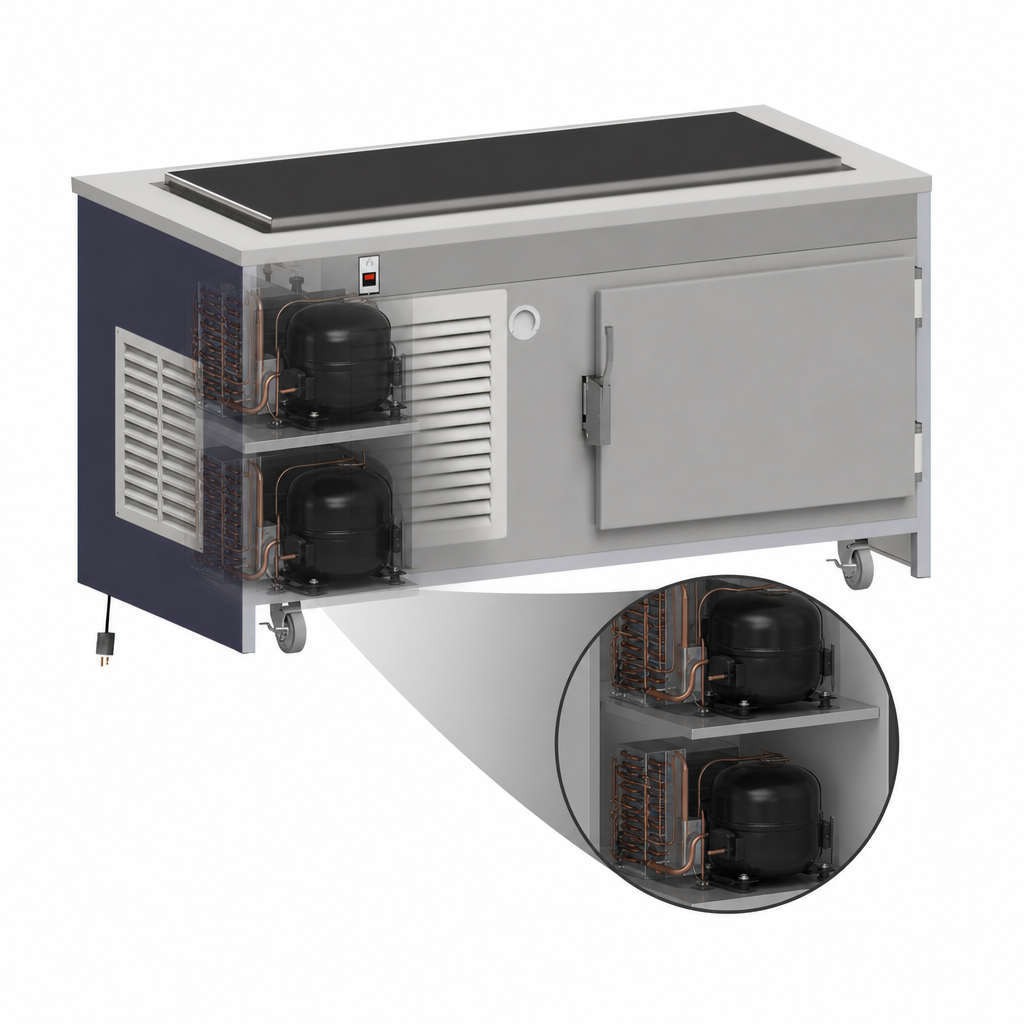

Self-Contained Refrigeration
Two self-contained refrigeration systems are provided, one integral with the frost top and one integral with the refrigerated base.
Stainless Steel and Laminate Construction
The unit has a stainless steel frame with laminate panels and a 16-gauge 304 stainless steel top.
Mobile Casters
Four 4 in swivel casters are provided, with two casters equipped with brakes.
Thermostat Control
The unit is wired with an on/off thermostat switch and pilot light.
Electrical Connection
The unit is wired for 120 V, 13.4 amps, single-phase operation and includes a 6 ft cord and plug.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
Parts
Troubleshooting
Need help deciding?
Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.
