Key specifications

Amps
6.5 Amps
Phase
1-Phase
Dimensions
63.75"W × 30.5"D × 35.0"H
Type
Serving Counter
Style
Mobile
Installation Type
Floor Model
Spec sheet
Atlas Metal SKU: CARF-4

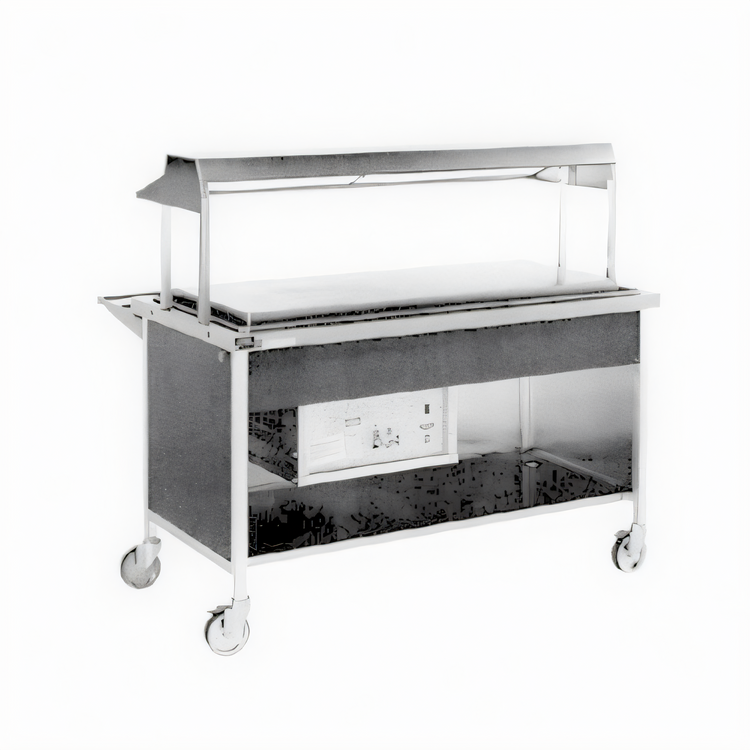

Atlas Metal CARF-4 63-3/4 in Mobile Refrigerated Frost Top

$11,270.16
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Length
Electrical120 V · 1-phase · 6.5 A
Compressor location
Frost top profile
Factory Add-Ons
Accessories

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,042/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Mobile
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Frost Plate Material 304 Stainless Steel
Finish Laminate Panelled
Design Open Cabinet
Frost Plate Size 19-1/2 in x 52-3/4 in
Refrigeration Type Self-Contained
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Horsepower 1/3 HP
Controls On/Off Toggle Switch, Pilot Light
Caster Diameter 5 in
Caster Type Swivel
Caster Brakes 2
Drain Size 1 in IPS

Description

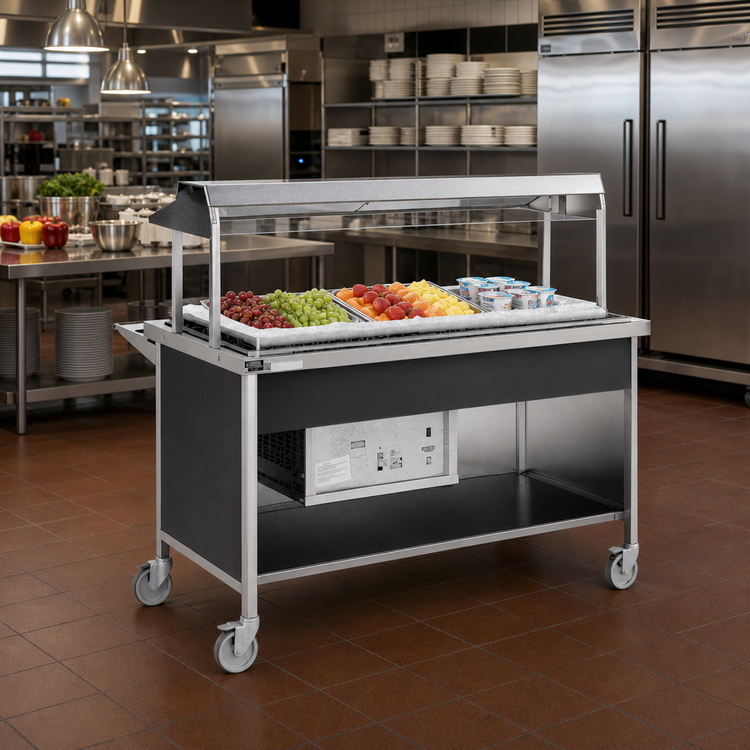

The CARF-4 is a mobile refrigerated frost top serving counter with a 63-3/4 in stainless steel top, laminated front panel, and self-contained refrigeration.

  • Frost plate measures 19-1/2 in x 52-3/4 in.
  • Constructed with a 16-gauge type 304 stainless steel top and hi-tensile aluminum square-tubing frame.
  • Includes 5 in swivel casters, with brakes on two casters.
  • Pre-wired for 120-volt, single-phase operation with a 6 ft cord and NEMA 5-15P plug.

Overall Dimensions:

63.75"W x 30.5"D x 35.0"H

Product Weight:

325.0 lb

Refrigerated Frost Top

Includes a WF series drop-in refrigerated frost top with a 19-1/2 in x 52-3/4 in stainless steel frost plate.

Self-Contained Refrigeration

The refrigeration system includes a fully self-contained condensing unit and hermetically sealed compressor.

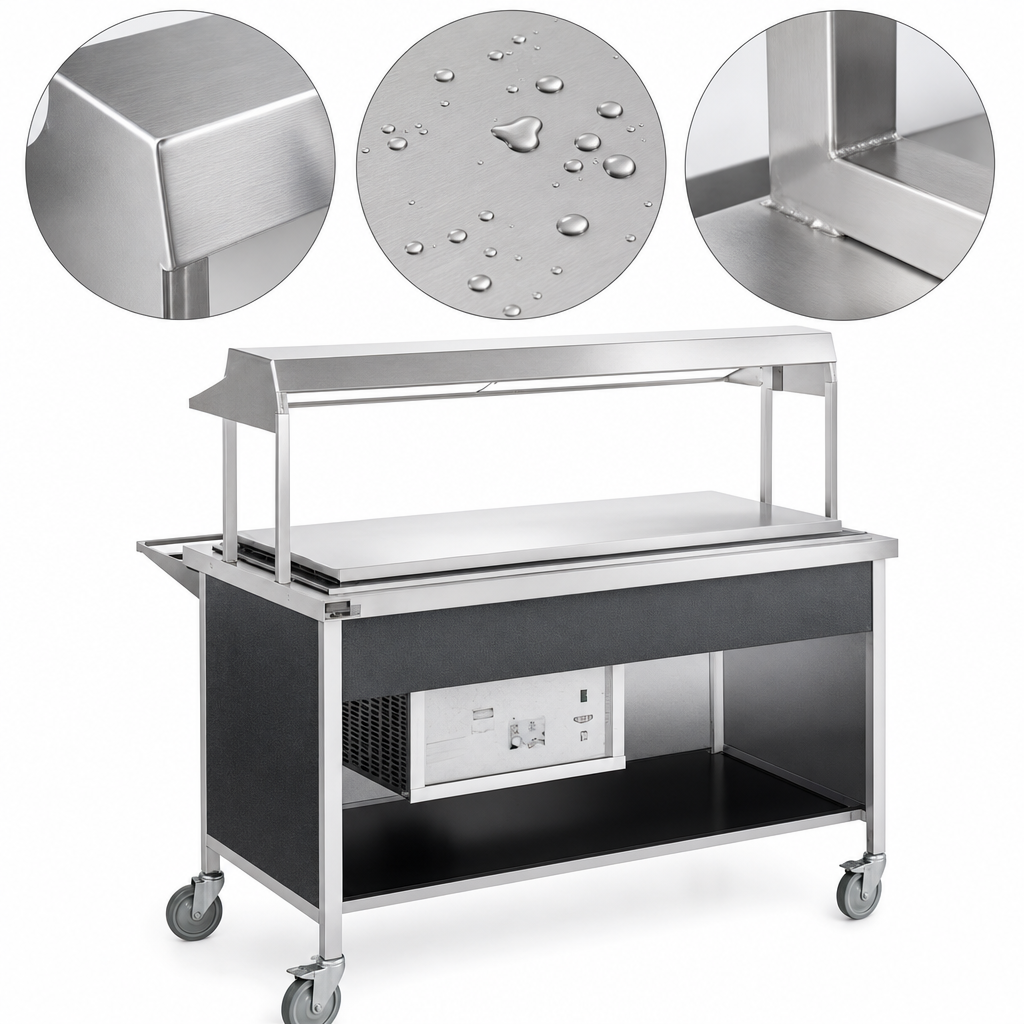

Stainless Steel Top

The top is constructed of 16-gauge type 304 stainless steel and is die-formed, welded, ground, and polished.

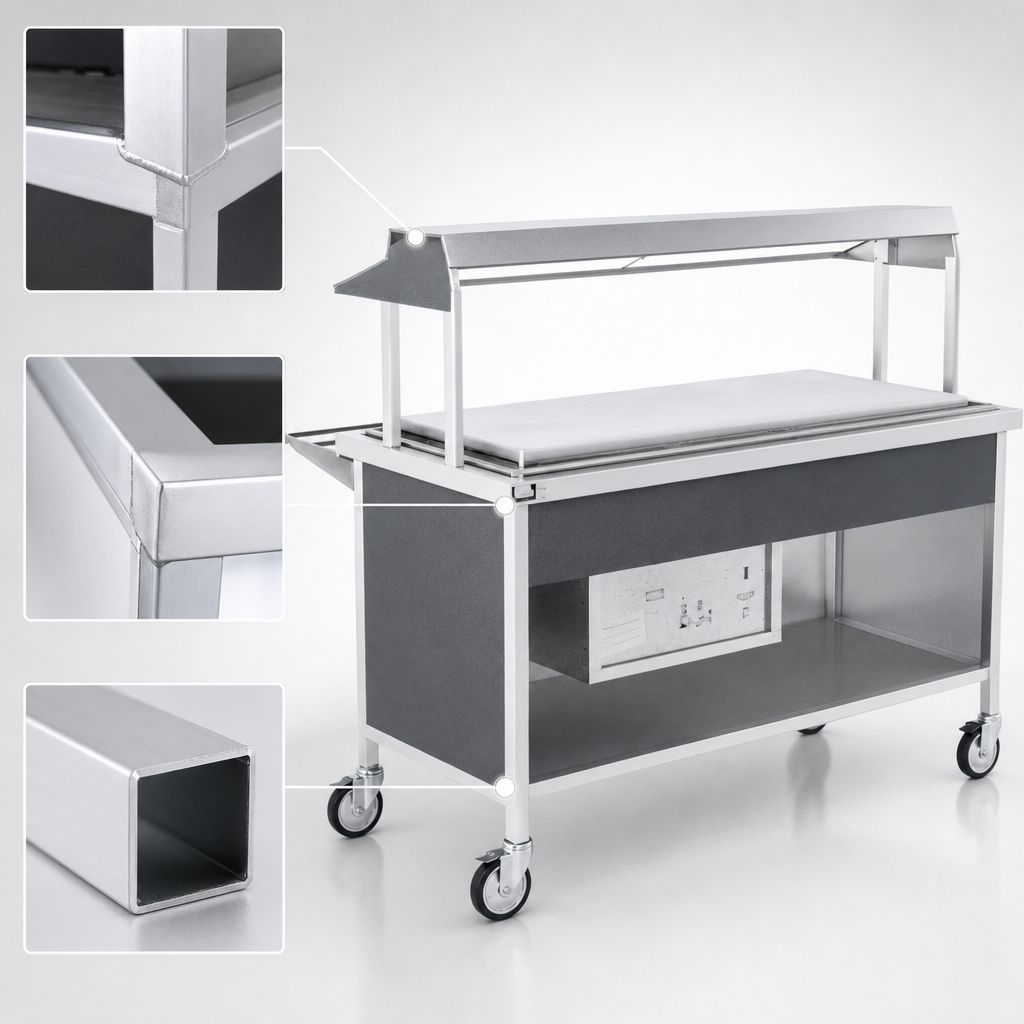

Aluminum Frame

The frame uses hi-tensile aluminum square tubing measuring 1-1/4 in x 1-1/4 in.

Laminated Front Panel

The front panel and 7 in rear apron use plastic laminate on .063 in aluminum.

Mobile Casters

The unit includes 5 in non-marking rubber-tired swivel casters, with toe-activated brakes on two casters.

Electrical Connection

The model is listed at 6.5 amps, 120 volts, single phase, with a 6 ft 3-wire cord and NEMA 5-15P plug.

Condensate Drain

The refrigerated frost top includes a 1 in IPS drain.

Frequently Asked Questions

Yes. The unit includes a fully self-contained refrigeration system with a hermetically sealed compressor.
The frost plate measures 19-1/2 in x 52-3/4 in.
The model is listed at 6.5 amps, 120 volts, and single phase, with a 6 ft cord and NEMA 5-15P plug.
The top and frost plate are type 304 stainless steel, the frame is aluminum square tubing, and the front panel uses plastic laminate on aluminum.
Yes. It includes 5 in swivel casters, with toe-activated brakes on two casters.
The standard warranty is 1 year for parts and labor.
