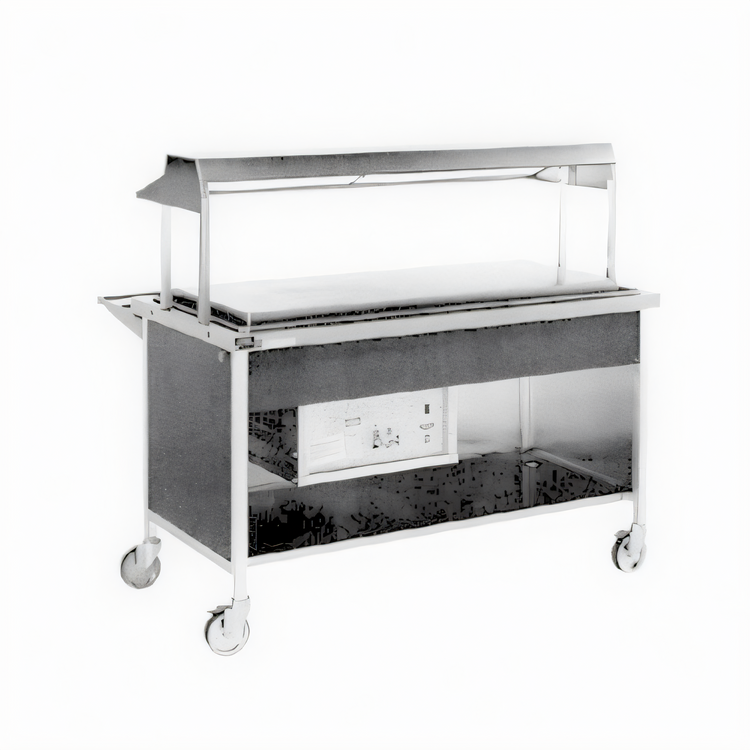

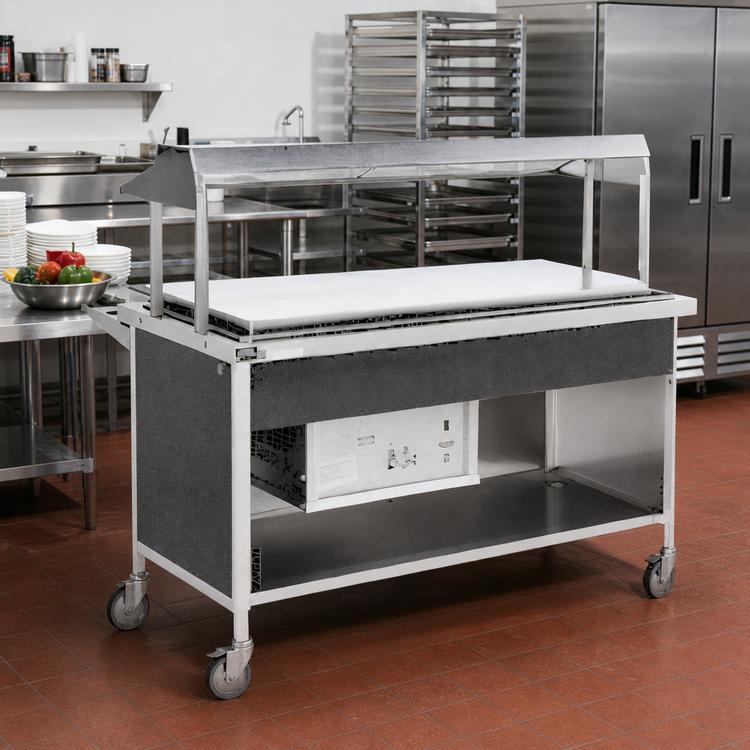

Atlas Metal CARF-3 50" Mobile Frost Top Serving Counter
50" Length, 19.5" x 39" Frost Plate, Self-Contained Refrigeration
Showcase pre-plated cold foods efficiently and attractively with this versatile and mobile self-contained frost top serving counter.
- Generous 19.5" x 39" frost plate keeps pre-plated foods chilled and appealing.
- Fully self-contained refrigeration system ensures easy setup and immediate operation with CFC-free refrigerant.
- Mobile design with 5" swivel casters (two with brakes) allows for flexible placement and easy transport.
- Durable construction featuring a 16 gauge 304 stainless steel top and robust aluminum square tubing frame.
- Fully insulated frost top maximizes energy efficiency and maintains consistent temperatures for optimal food presentation.
- Integrated locking devices allow for secure alignment and retention when joining multiple units for extended serving lines.
Overall Dimensions:
50.0"W x 30.5"D x 35.0"HProduct Weight:

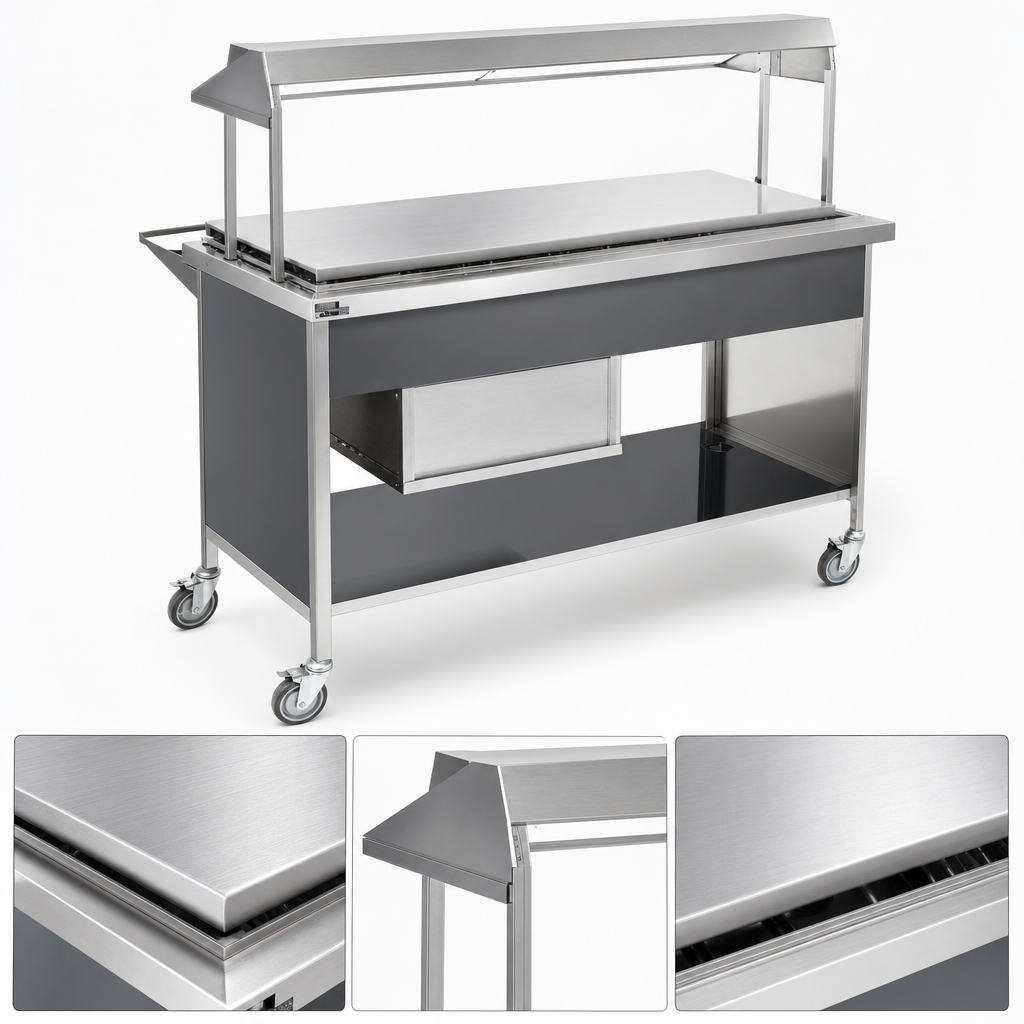

275.0 lb16 Gauge Stainless Steel Top
Constructed from heavy-duty 16 gauge, type 304 stainless steel, the top is die-formed, welded, ground, and polished for exceptional durability, hygiene, and a professional appearance.

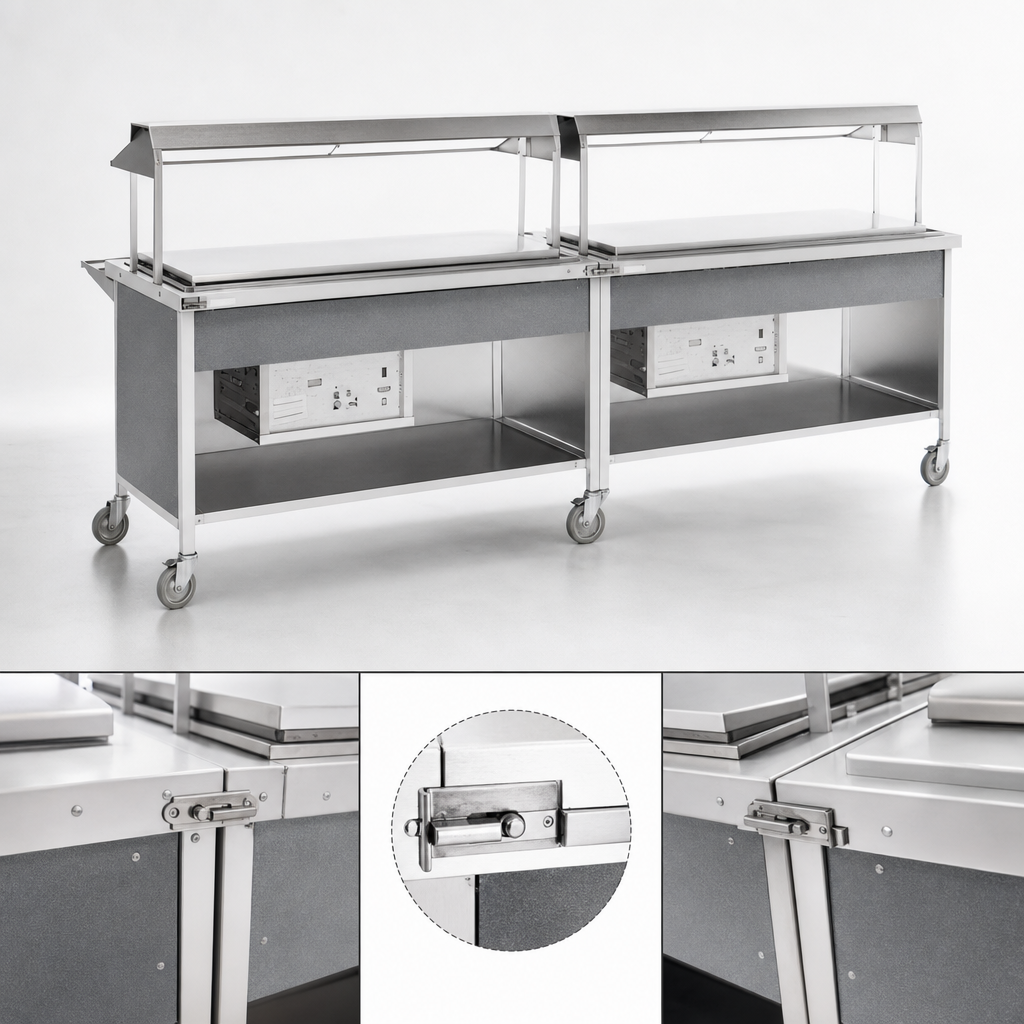

Integrated Locking Device
An integral locking device is provided to align and securely retain cart positioning when two or more CARF series carts are joined, creating a stable and seamless serving line.
High-Tensile Aluminum Frame
The body frame is built with 1-1/4" x 1-1/4" hi-tensile aluminum square tubing, featuring welded construction that is ground and polished to a uniform finish for superior strength and aesthetics.
Customizable Laminated Panels
Includes a front panel and 7" rear apron crafted from plastic laminate on .063 aluminum, allowing the owner to specify the finish to match decor.
Integrated WF Series Frost Top
The cart includes a WF series drop-in refrigerated frost top, constructed from 18 gauge, type 304 stainless steel with a raised perimeter bead and a solid vinyl gasket for effective sealing.
Efficient Frost Plate Design
The frost plate itself is made from 14 gauge stainless steel with copper tubing firmly soldered to the exterior bottom, ensuring rapid and consistent cooling for food preservation.
High-Density Insulation
The frost top unit is fully insulated with 1-1/2" thick high-density fiberglass and polystyrene, enclosed within an 18 gauge galvanized steel outer case, maximizing efficiency and energy savings.
Perimeter Gutter and Drain
A 1/2" full perimeter gutter surrounds the frost top to efficiently collect melted condensate, with a 1" IPS drain provided for easy and sanitary disposal.
Self-Contained Refrigeration System
Equipped with a fully self-contained condensing unit and a hermetically sealed compressor, pre-charged with CFC-free refrigerant and ready to operate by simply plugging it in.
Convenient Electrical Connection
Pre-wired for 120 volt, single phase operation, featuring an on/off toggle switch, a pilot light, and a 6-foot long, 3-wire cord with a NEMA 5-15P plug for easy setup.
Heavy-Duty Swivel Casters
Mounted on 5" diameter non-marking rubber tired swivel casters, fitted with ball bearings in both swivel and axle raceways and grease fittings for smooth mobility. Two casters on the operator's side include toe-activated brakes for secure positioning.
Warranty & Protection
1-Year Parts & Labor Warranty
