Key specifications

Amps
4.2 Amps
Phase
1-Phase
Dimensions
36.25"W × 30.5"D × 35.0"H
Type
Serving Counter
Style
Refrigerated Frost Top
Installation Type
Floor Model
Spec sheet
Atlas Metal SKU: CARF-2

Atlas Metal CARF-2 36-1/4" Mobile Refrigerated Frost Top Counter

$10,508.85
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Electrical120 V · 1-phase · 4.2 A
Refrigeration
Frost top
Factory Add-Ons
Condensate evaporators

Need something else? Contact us.

Included: Atlas Metal warranty 1-Year Parts & Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $972/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Refrigerated Frost Top
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Finish Laminate Panelled
Design Open Cabinet
Frost Top Size 19-1/2 in. x 25-1/4 in.
Refrigeration Type Self-Contained
Top Thickness 16 Gauge
Frost Plate Thickness 14 Gauge
Insulation Thickness 1-1/2 in.
Voltage 120 Volts
Amps 4.2 Amps
Phase 1-Phase
Horsepower 1/5 HP
Plug Type NEMA 5-15P
Cord Length 6 ft.
Controls On/Off Toggle Switch, Pilot Light
Caster Diameter 5 in.
Caster Type Swivel
Brake Count 2
Locking Device Integral
Drain Size 1 in. IPS

Description

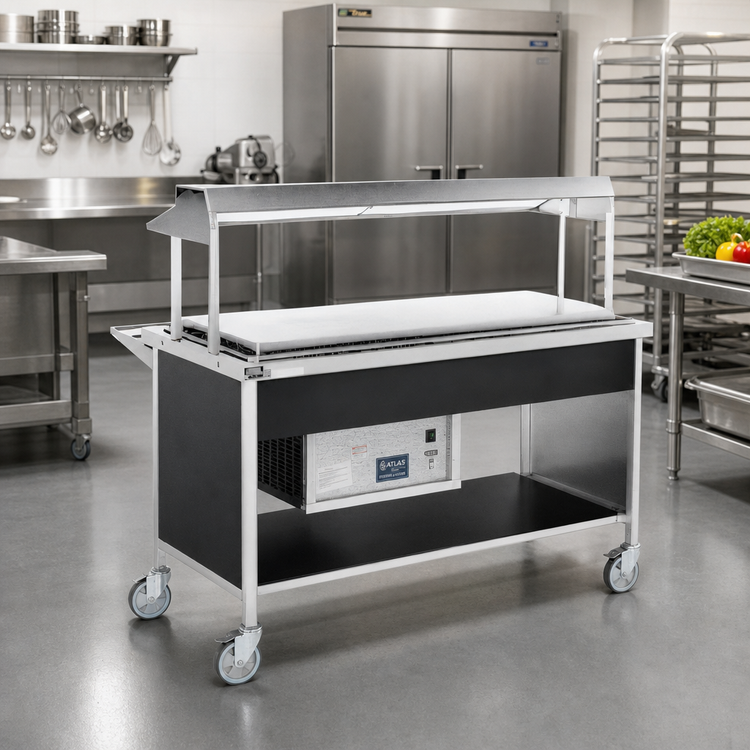

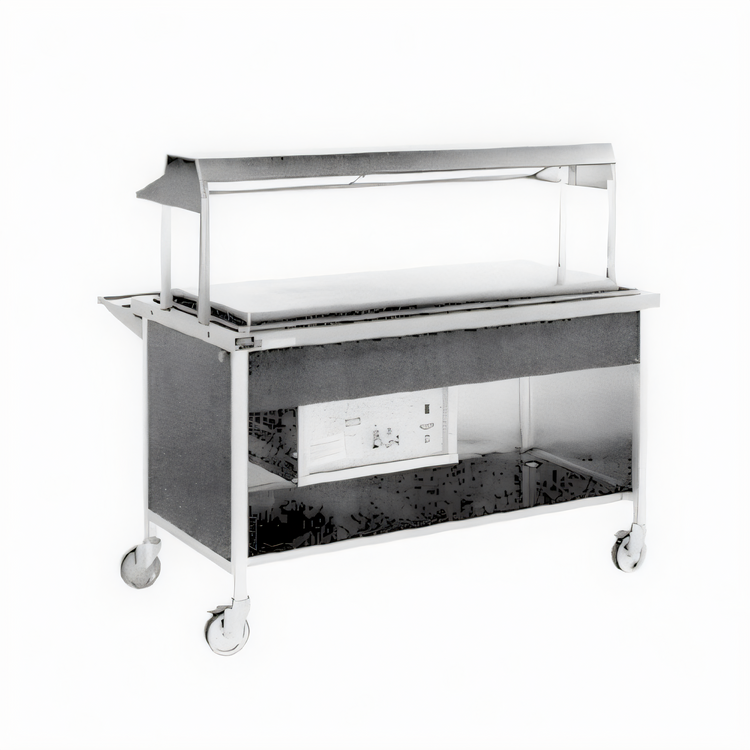

The Atlas Metal CARF-2 is a mobile serving counter with a self-contained refrigerated frost top for pre-plated food display.

  • Frost top: 19-1/2 in. x 25-1/4 in. plate with a raised perimeter bead, insulated construction, perimeter condensate gutter, and drain.
  • Construction: 16 gauge 304 stainless steel top, aluminum square-tubing frame, and laminated front panel.
  • Mobility: 5 in. non-marking rubber-tired swivel casters, with two operator-side casters equipped with toe-activated brakes.
  • Refrigeration: Self-contained condensing unit with hermetically sealed compressor and on/off toggle switch.
  • Electrical: 120 volt, single phase operation with a 6 ft. cord and NEMA 5-15P plug.

Overall Dimensions:

36.25"W x 30.5"D x 35.0"H

Product Weight:

220.0 lb

Self-Contained Refrigeration

A fully self-contained condensing unit with a hermetically sealed compressor and on/off toggle switch is provided.

Refrigerated Frost Top

The frost top includes a 19-1/2 in. x 25-1/4 in. stainless steel plate, raised perimeter bead, insulation, perimeter gutter, and drain.

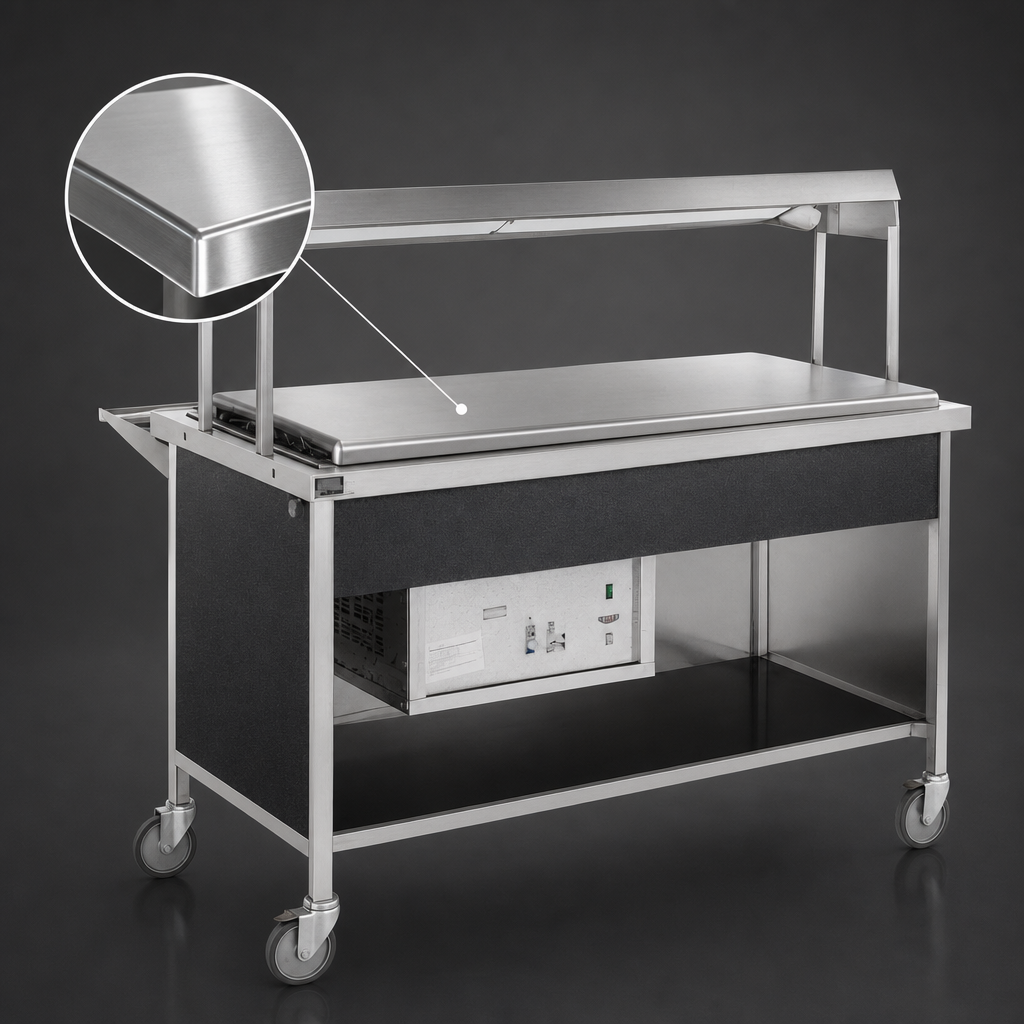

Stainless Steel Top

The counter top is constructed of 16 gauge type 304 stainless steel and is die-formed, welded, ground, and polished.

Aluminum Frame

The body frame uses hi-tensile aluminum square tubing measuring 1-1/4 in. x 1-1/4 in.

Mobile Casters

The unit has 5 in. non-marking rubber-tired swivel casters, with two operator-side casters featuring toe-activated brakes.

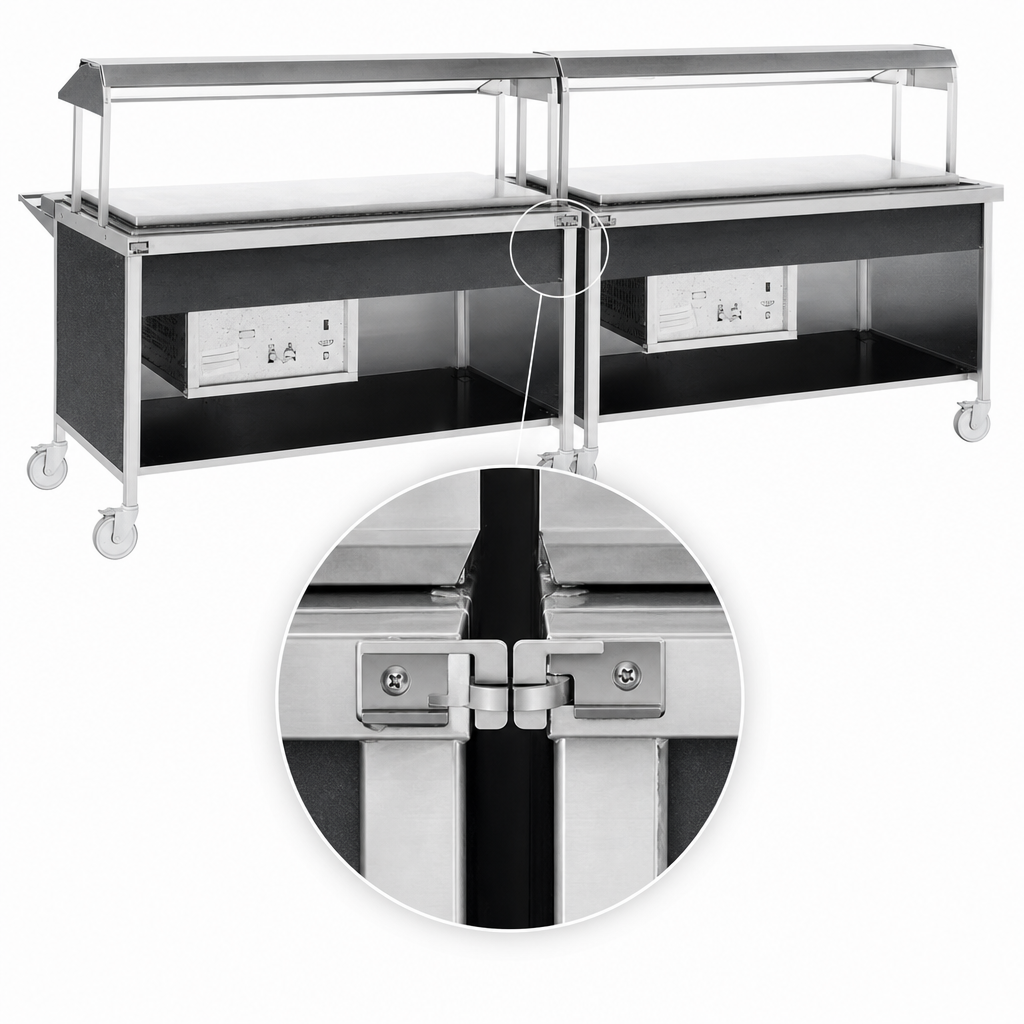

Modular Locking Device

An integral locking device aligns and retains cart positioning when two or more carts are joined.

Condensate Management

A 1/2 in. perimeter gutter collects melted condensate, and a 1 in. IPS drain is provided.

Electrical Connection

The CARF-2 is specified for 120 volt, 4.2 amp, single phase operation with a 6 ft. cord and NEMA 5-15P plug.

Frequently Asked Questions

The counter measures 36.25 in. wide, 30.5 in. deep, and 35 in. high.
The frost plate measures 19-1/2 in. x 25-1/4 in.
Yes. It includes a fully self-contained condensing unit with a hermetically sealed compressor.
The CARF-2 is specified for 120 volt, 4.2 amp, single phase operation and includes a 6 ft. cord with a NEMA 5-15P plug.
Yes. It includes 5 in. non-marking rubber-tired swivel casters, with two operator-side casters equipped with toe-activated brakes.
The product includes a 1-year parts and labor warranty.
