Key specifications

Phase
1-Phase
Dimensions
63.75"W × 30.5"D × 35.0"H
Type
Serving Counter
Style
Refrigerated Frost Top
Installation Type
Floor Model
Material
Aluminum
Spec sheet
Atlas Metal SKU: CAFB-4

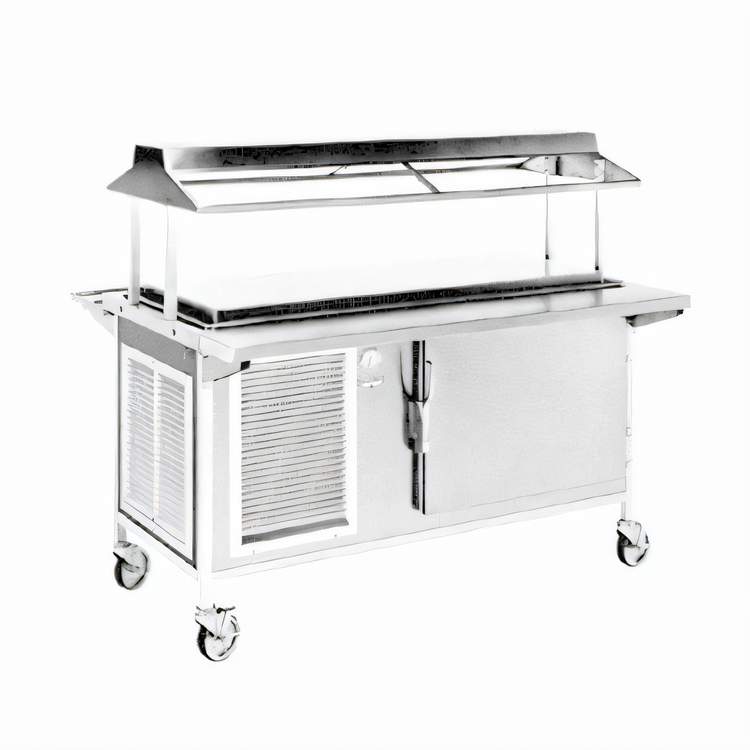

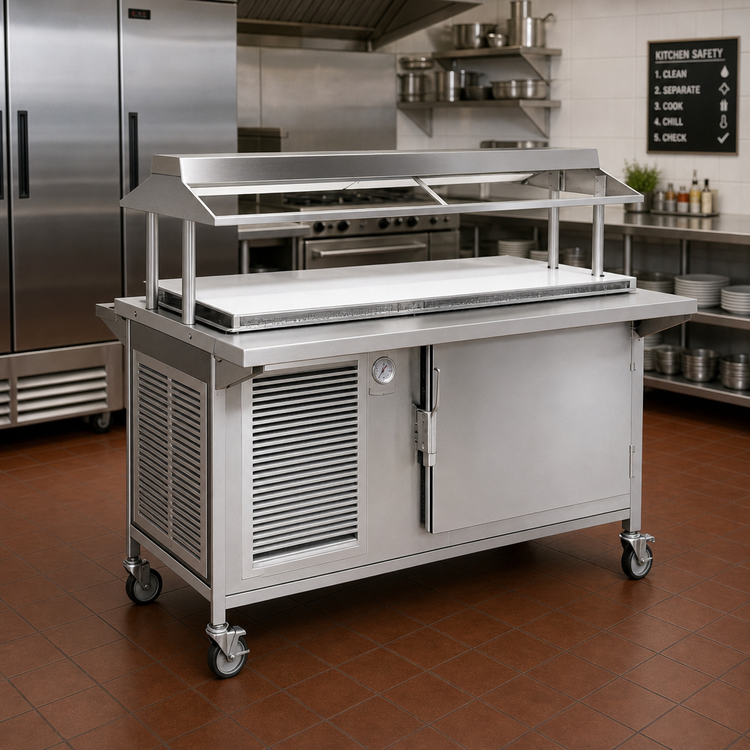

Atlas Metal CAFB-4 Mobile Refrigerated Serving Counter, 10-Pan

$19,865.34
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Electrical120 V · 1-phase · 13.4 A
Pan storage
Frost top profile
Factory Add-Ons
End shelves

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,838/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Refrigerated Frost Top
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Panel Material Plastic Laminate
Finish Laminate Panelled
Capacity 8 Cubic Feet
Pan Size 12 x 20 Inches
Pan Capacity 10 Pans
Frost Top Size 19.5 x 52.75 Inches
Door Count 1 Door
Refrigeration Type Self-Contained
Voltage 120 Volts
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls Thermostat
Compressor Horsepower 1/3 HP and 1/4 HP
Caster Diameter 5 Inches
Caster Type Swivel

Description

The Atlas Metal CAFB-4 combines a refrigerated frost top with a self-contained refrigerated base for refrigerated service and storage.

  • Frost top: 19.5 x 52.75 inches with a stainless steel plate.
  • Refrigerated base: 8 cubic feet with capacity for 10 pans measuring 12 x 20 inches and one door.
  • Construction: 304 stainless steel top, aluminum square tubing frame, and laminate panels.
  • Mobility: 5-inch swivel casters with two brakes.
  • Electrical: 120-volt, single-phase operation with a 6-foot cord and NEMA 5-15P plug.

Overall Dimensions:

63.75"W x 30.5"D x 35.0"H

Product Weight:

610.0 lb

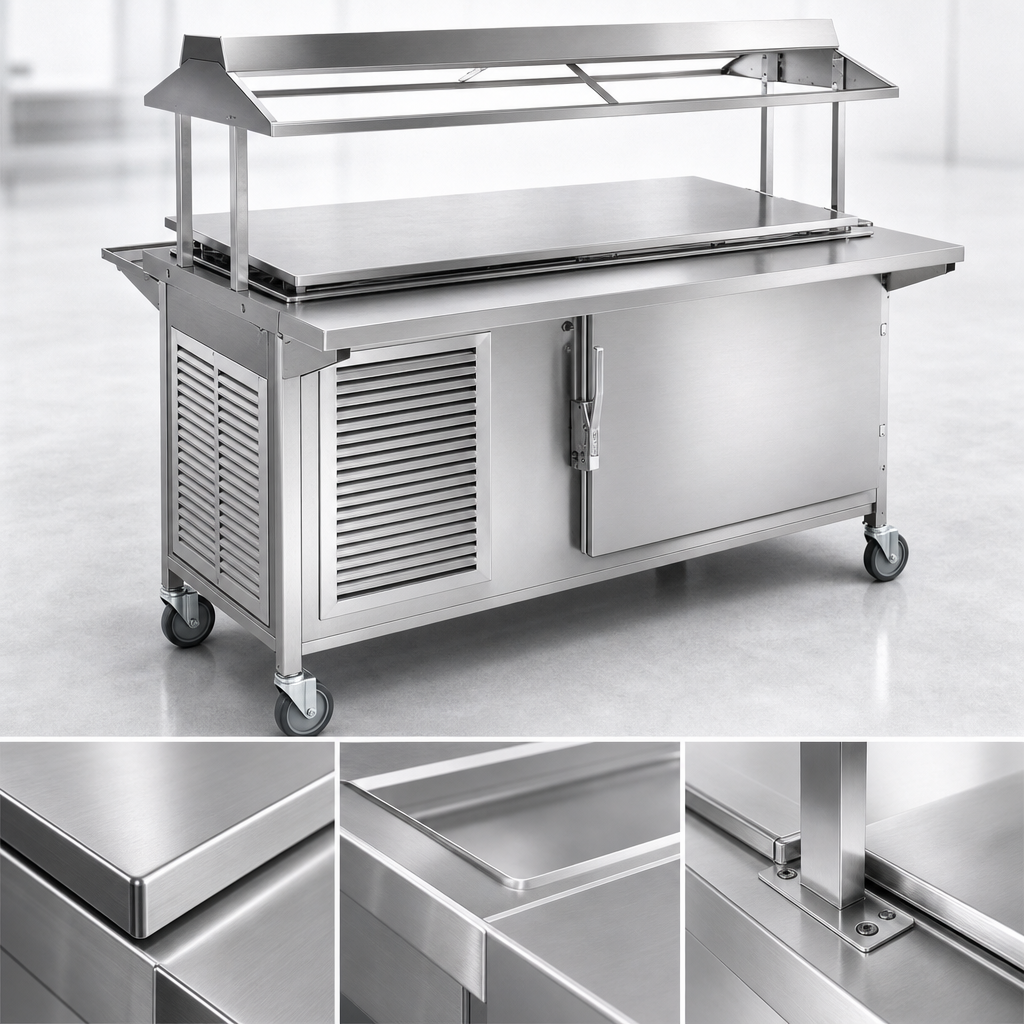

Refrigerated Frost Top

The frost top measures 19.5 x 52.75 inches and uses a 304 stainless steel plate.

Refrigerated Base

The base provides 8 cubic feet of refrigerated capacity for 10 pans measuring 12 x 20 inches and includes one door.

Self-Contained Refrigeration

Self-contained refrigeration systems are provided for the frost top and refrigerated base.

Construction

The counter has a 304 stainless steel top, aluminum square tubing frame, and laminate panels.

Mobile Design

The unit includes 5-inch swivel casters, with two casters equipped with brakes.

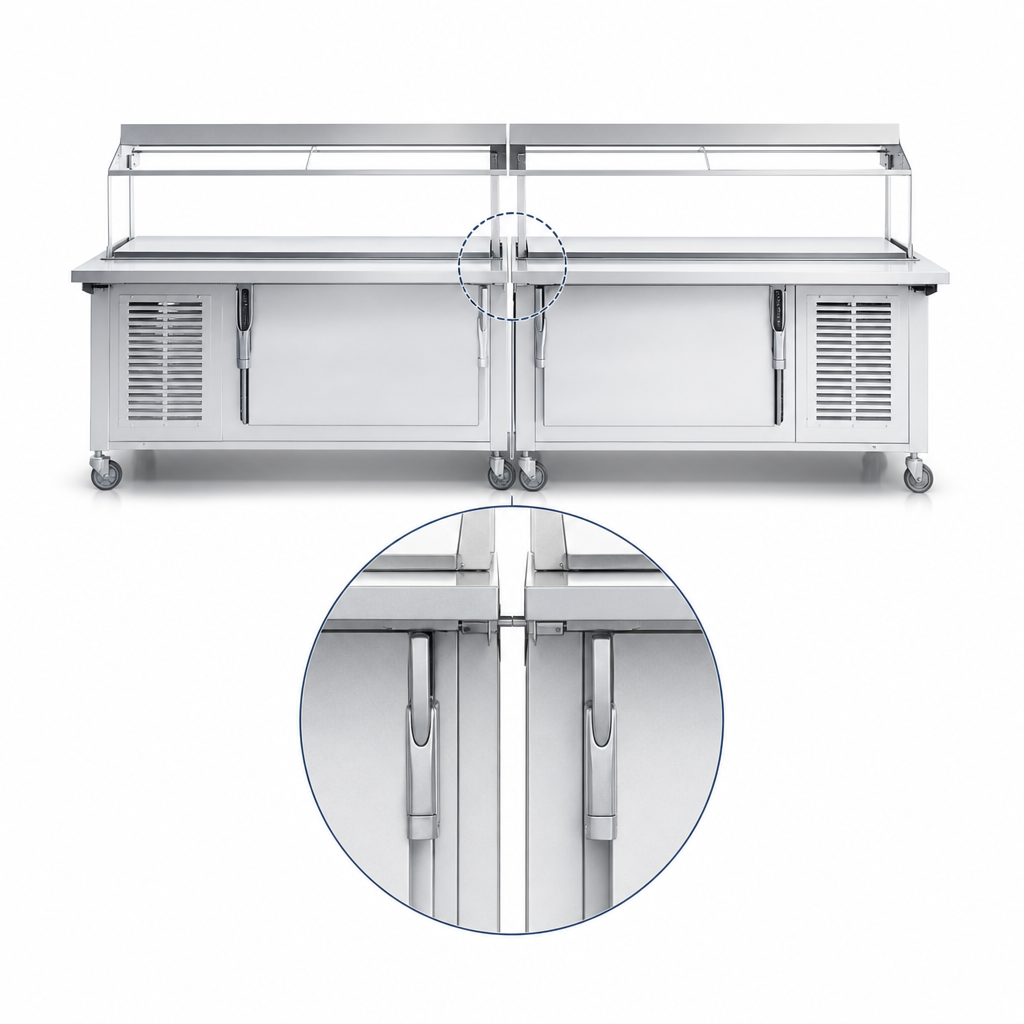

Modular Locking Device

An integral locking device aligns and retains cart positioning when two or more carts are joined.

Electrical Connection

The unit operates at 120 volts, single phase, and includes a 6-foot, 3-wire cord with a NEMA 5-15P plug.

Frequently Asked Questions

The refrigerated base has 8 cubic feet of capacity for 10 pans measuring 12 x 20 inches.
The refrigerated base has one door.
The unit measures 63.75 inches wide, 30.5 inches deep, and 35 inches high.
It uses 120-volt, single-phase operation with a 6-foot, 3-wire cord and NEMA 5-15P plug.
Yes. It has 5-inch swivel casters, with two casters equipped with brakes.
The unit includes a 1-year parts and labor warranty.
