Key specifications

Amps
6.3 Amps
Dimensions
60.0"W × 30.0"D × 36.0"H
Type
Cold Serving Counter
Style
Mobile Modular
Installation Type
Floor Model
Material
Fiberglass
Spec sheet

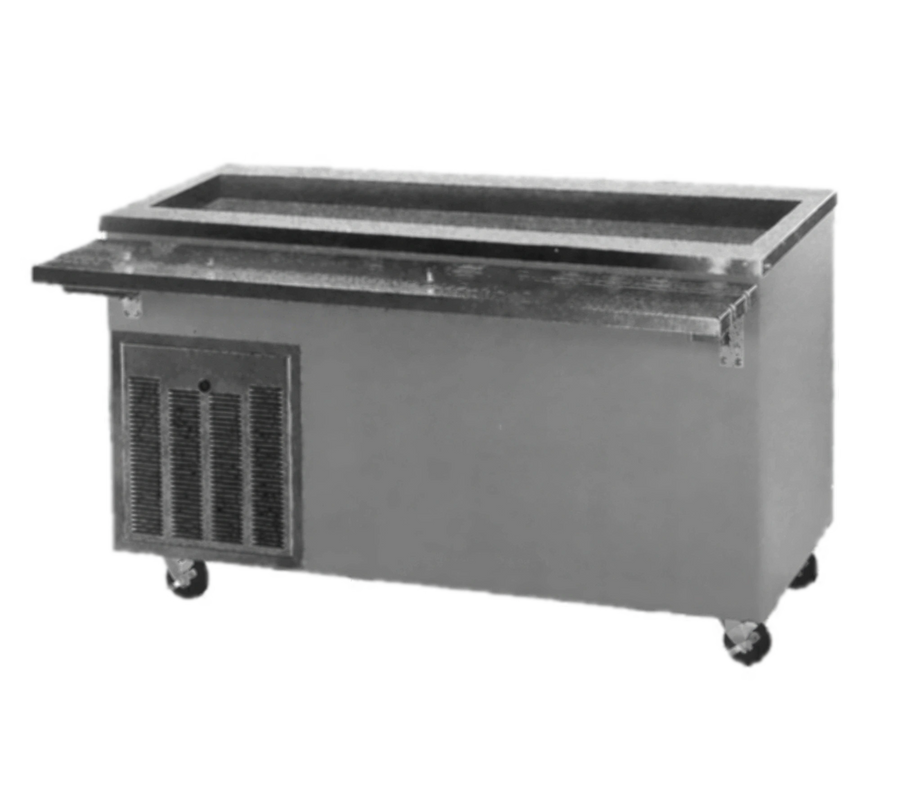

Piper Products/Servolift Eastern Reflections R4-BCM Mobile 4-Pan Cold Counter

$8,140.18
/each
Estimated to ship in 41–44 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Pan capacity
Color
Storage base
Protector guard
Tray slide
Factory Add-Ons

Need something else? Contact us.

Included: Piper Products/Servolift Eastern warranty 12-month limited warranty covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $753/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Serving Counter
Style Mobile Modular
Installation Type Floor Model
Material Fiberglass
Top Material Stainless Steel
Base Design Fully Enclosed
Refrigeration Type Refrigerated
Pan Size 12 x 20 Inches
Pan Capacity 4 Pans
Cold Pan Depth 9-7/16 Inches
Top Gauge 14 Gauge
Pan Gauge 20 Gauge
Compressor Horsepower 1/3 HP
Voltage 120 Volts
Amps 6.3 Amps
Plug Type NEMA 5-15P
Cord Length 7 Feet

Description

The R4-BCM is a mobile refrigerated cold serving counter configured for four 12 x 20-inch pans. It features a 9-7/16-inch-deep cold pan, stainless steel top, and fully enclosed molded fiberglass base with rounded corners.

  • 60 inches wide, 30 inches deep, and 36 inches high
  • 14-gauge stainless steel top with welded square turndowns
  • Fully insulated cold pan with concealed continuous refrigerated coil
  • Four-inch swivel plate casters with brakes
  • Standard 120-volt electrical connection with a seven-foot cord and NEMA 5-15P plug
  • Listed under NSF/ANSI Standard 7

Overall Dimensions:

60.0"W x 30.0"D x 36.0"H

Product Weight:

500.0 lb

Four-Pan Cold Pan

The refrigerated cold pan is configured for four 12 x 20-inch pans and is 9-7/16 inches deep.

Stainless Steel Top

The 14-gauge stainless steel top has fully welded square turndowns on all sides.

Enclosed Fiberglass Base

The base uses a seamless molded fiberglass body with a smooth exterior, rounded corners, and fully enclosed construction.

Refrigerated System

A concealed continuous refrigerated coil is bonded to the sides of the fully insulated well.

Mobile Design

Four-inch swivel plate casters with brakes support mobile use.

Interlocking Mechanism

An interlocking mechanism is provided for connecting with other Reflections units.

Standard Electrical Connection

The standard unit is available with 120-volt power, a seven-foot electrical cord, and a NEMA 5-15P plug.

Frequently Asked Questions

It is configured for four 12 x 20-inch pans.
The R4-BCM is 60 inches wide, 30 inches deep, and 36 inches high.
The cold pan is 9-7/16 inches deep.
The standard unit uses 120 volts, draws 6.3 amps, and includes a NEMA 5-15P plug with a seven-foot cord. Amperage and plug type may vary with options.
Yes. It has four-inch swivel plate casters with brakes.
Piper Products provides a 12-month limited warranty covering parts and labor.
