Key specifications
- Amps
- 6.8 Amps
- Phase
- 1-Phase
- Dimensions
- 78.0"W × 30.0"D × 34.0"H
- Type
- Refrigerated Serving Unit
- Style
- Solid Top
- Installation Type
- Floor Model
Eagle Group Director's Choice DCS5-STURB Refrigerated Serving Unit
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

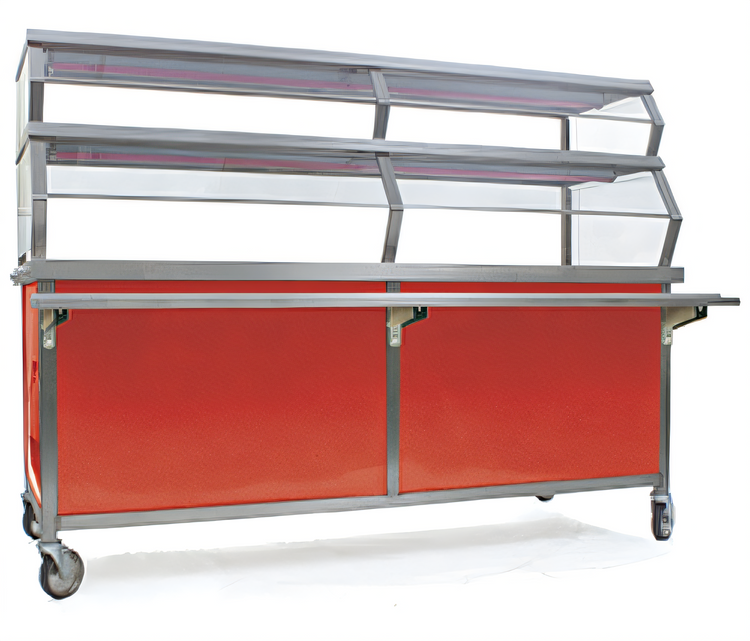

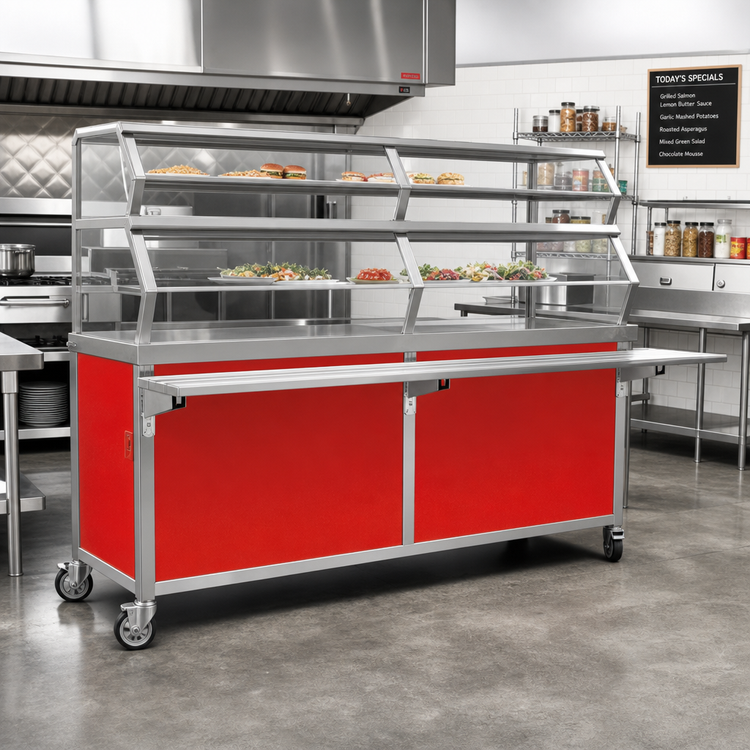

The Director's Choice DCS5-STURB is a mobile 78-inch solid top refrigerated serving unit with two operator-side doors and a holly berry red laminate front.
It features a 16-gauge type 304 stainless steel top, self-contained refrigeration with thermostatic controls, and a factory-set temperature range of 35°F to 45°F.
- Double-wall refrigerated base with a type 304 stainless steel interior liner and insulation on all sides
- Forced-air evaporator and removable slide assembly accommodating 12 in x 20 in food pans
- 5-inch poly tread casters, including two with brakes
- 120-volt, 6.8-amp, single-phase electrical connection with a NEMA 5-15P plug and 6-foot cord
Overall Dimensions:
78.0"W x 30.0"D x 34.0"HProduct Weight:

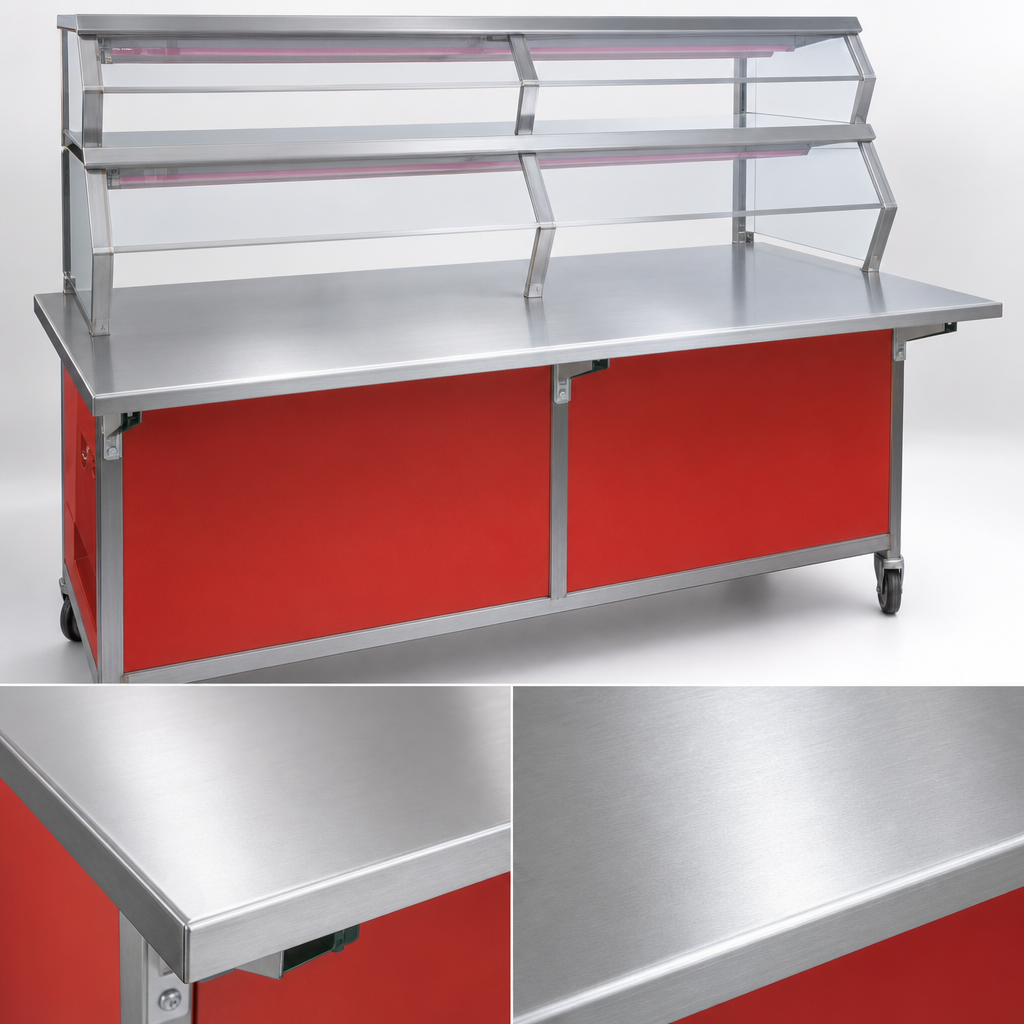

205.0 lbSolid stainless steel top
The solid top is constructed from 16-gauge type 304 stainless steel and reinforced with hat channel.
Self-contained refrigeration
The refrigerated base includes a self-contained condenser unit, sealed compressor, thermostatic controls, and forced-air evaporator.
Factory-set temperature range
The refrigeration system is factory-set between 35°F and 45°F.
Double-door refrigerated base
Two hinged doors are located on the operator side, with a removable slide assembly that accommodates 12 in x 20 in food pans.
Mobile caster base
The unit has 5-inch poly tread casters, with two casters equipped with brakes.
Laminate front
The standard front panel is holly berry red Wilsonart D307-60 laminate mounted on an 18-gauge galvanized subpanel.
Docking device
A quick-release spring-loaded docking device joins adjoining units without tools.
Standard working height
The unit has a 34-inch standard working height identified in the specification as complying with ADA accessibility guidelines.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
