Vollrath  |  SKU: 36660

Vollrath 36660 Steam Tables & Food Wells

$1,912.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

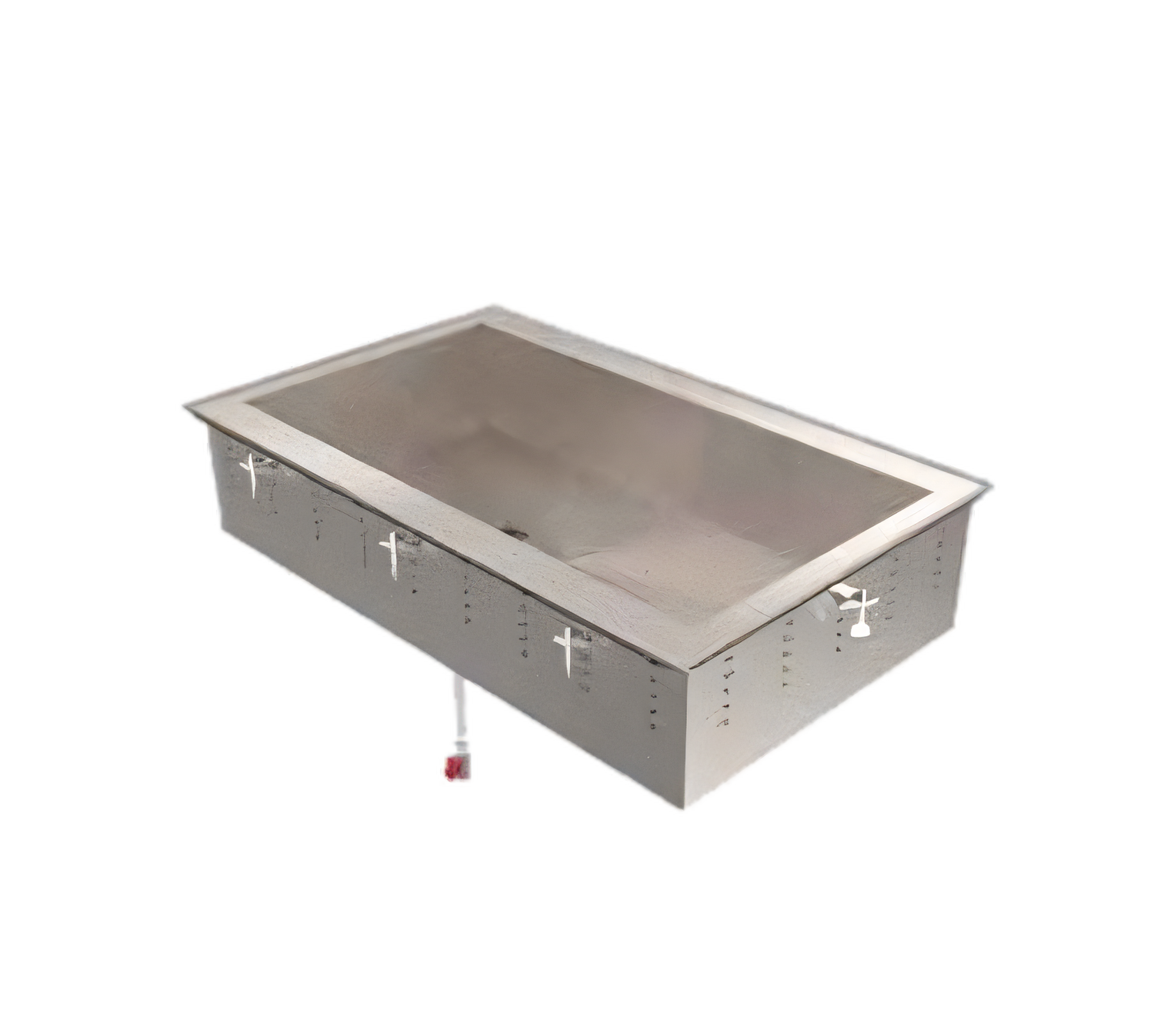

Vollrath Short-Side Non-Refrigerated Cold Pan Drop-In – 4 Pan

Model 36660 • Made in USA • NSF & UL Listed

Create a high-impact cold food display in the tightest counter layouts. This 4-pan short-side drop-in accepts four full-size 12 × 20 steam-table pans on an 8 inch-deep ice bed, keeping pre-chilled products at safe temperatures without the complexity or noise of refrigeration.

Key Features
  • 18-gauge 18/8 Type 304 stainless-steel top with seamless well for superior corrosion resistance.
  • Full-perimeter drip-free flange and molded breaker gasket protect surrounding countertops from spills and condensation.
  • High-density polyurethane foam insulation retains cold and extends ice life.
  • 1" (2.5 cm) integral drain with plug for fast melt-water removal.
  • Narrow 18" footprint maximises aisle space while fitting standard pan sizes.
  • Positioning clips included — drop it in, center it, and you’re done.
  • Backed by a one-year parts & labour warranty (see VollrathFoodservice.com for full policy).
Capacity
  • Holds 4 full-size (12" × 20") hotel/steam-table pans  (pans sold separately).
  • 8" (20.3 cm) deep well provides excellent ice capacity and product visibility.
Dimensions & Cut-Out
Overall length (A) 88 ¼"  / 224.2 cm
Overall width (B) 18"  / 45.7 cm
Overall height (C) 17 15⁄16"  / 45.6 cm (to bottom of drain)
Well interior length (D) 82 ¼"  / 208.9 cm
Well interior width (E) 12"  / 30.5 cm
Recommended cut-out 87 ⅝" × 17 ¼" (222.6 cm × 44.2 cm) with ⅞" (2.2 cm) radius corners
Drain size 1" (2.5 cm) NPT integral
Certifications
  • NSF Listed for food-contact safety
  • UL Classified for the U.S. & Canada
  • Manufactured in the USA with U.S. and global materials
Important: This unit is non-refrigerated; it is intended for use with ice or other chilled holding media. Contact Vollrath for current lead times. Custom and modular drop-ins cannot be cancelled or returned.

Looking for a 2- or 3-pan version? See Vollrath models 36654 and 36657.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

88.56in

Depth

18.0in

Shipping Weight

200.0lbs

Interior Liner

stainless steel

Pan Qty

4-pan

Width (side - side) OA

85 - 90 inches

Exterior Liner

galvanized steel

Depth (front-to-back) OA

13- 18 inches

Layout

straight

Specifications

Short Sided Cold Drop-In, (4) pan, non-refrigerated, 18/8 stainless steel, drip free flange, polyurethane foam insulated, 8" deep well (contact Vollrath for lead time), NSF & UL, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
