Vollrath 36657 Steam Tables & Food Wells
Description

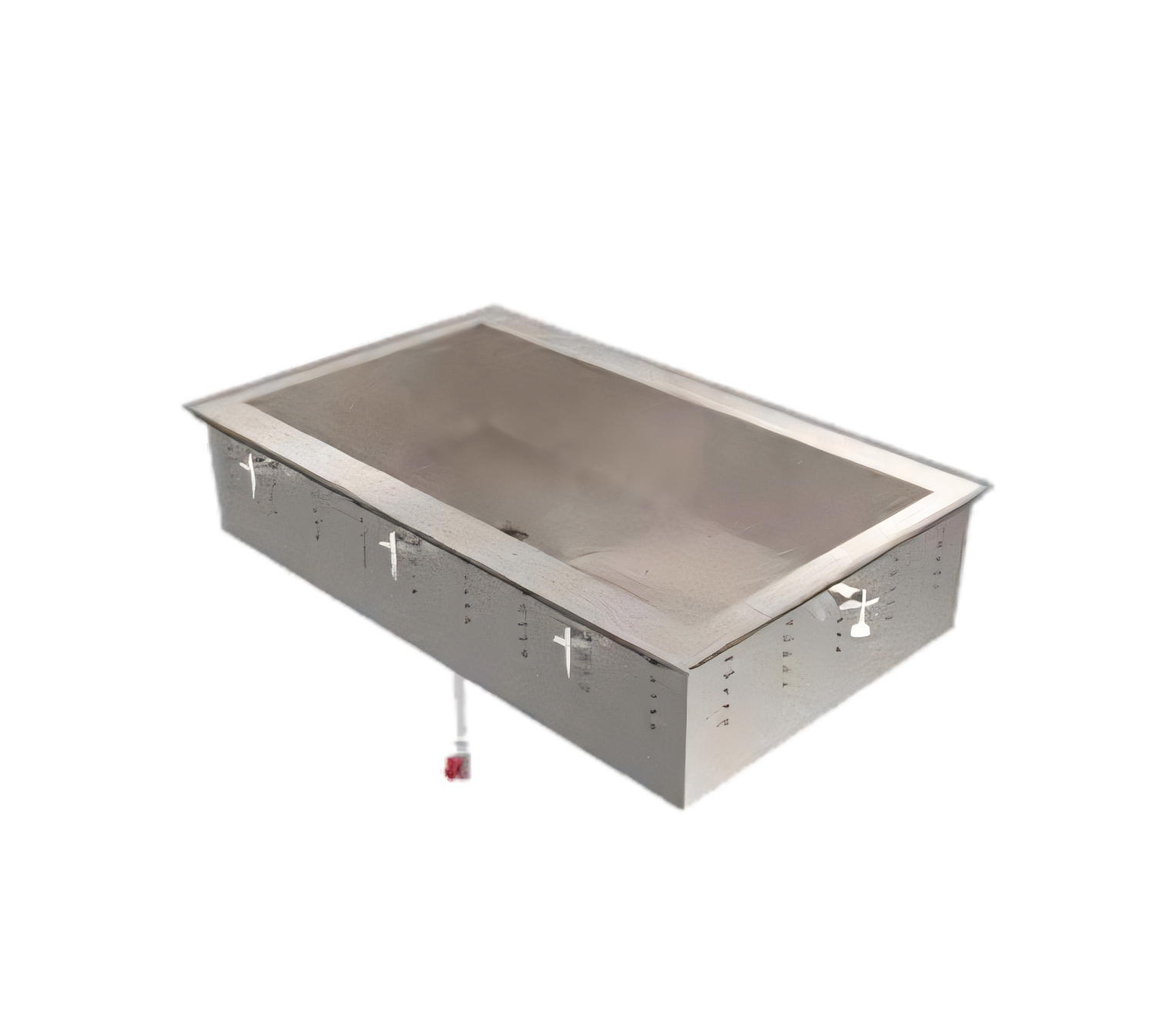

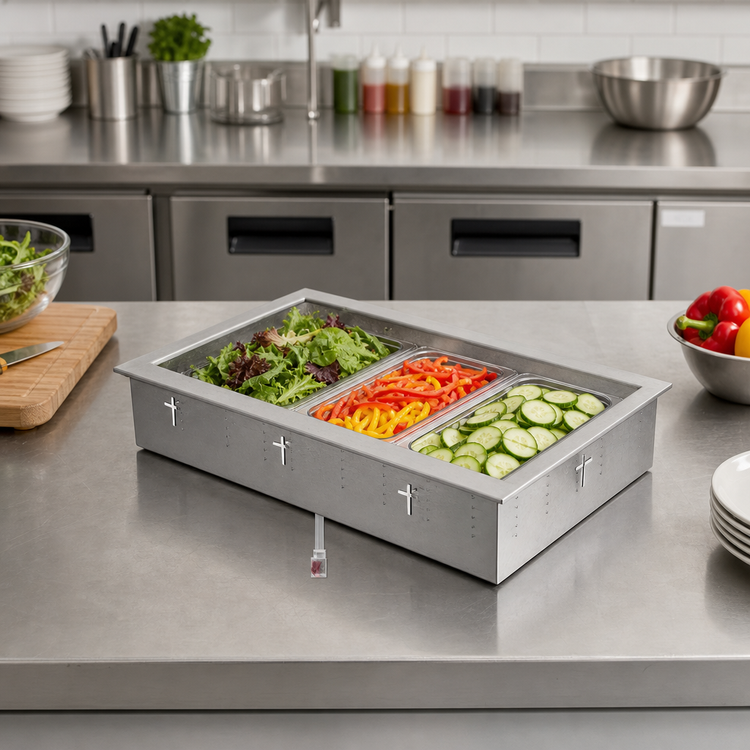

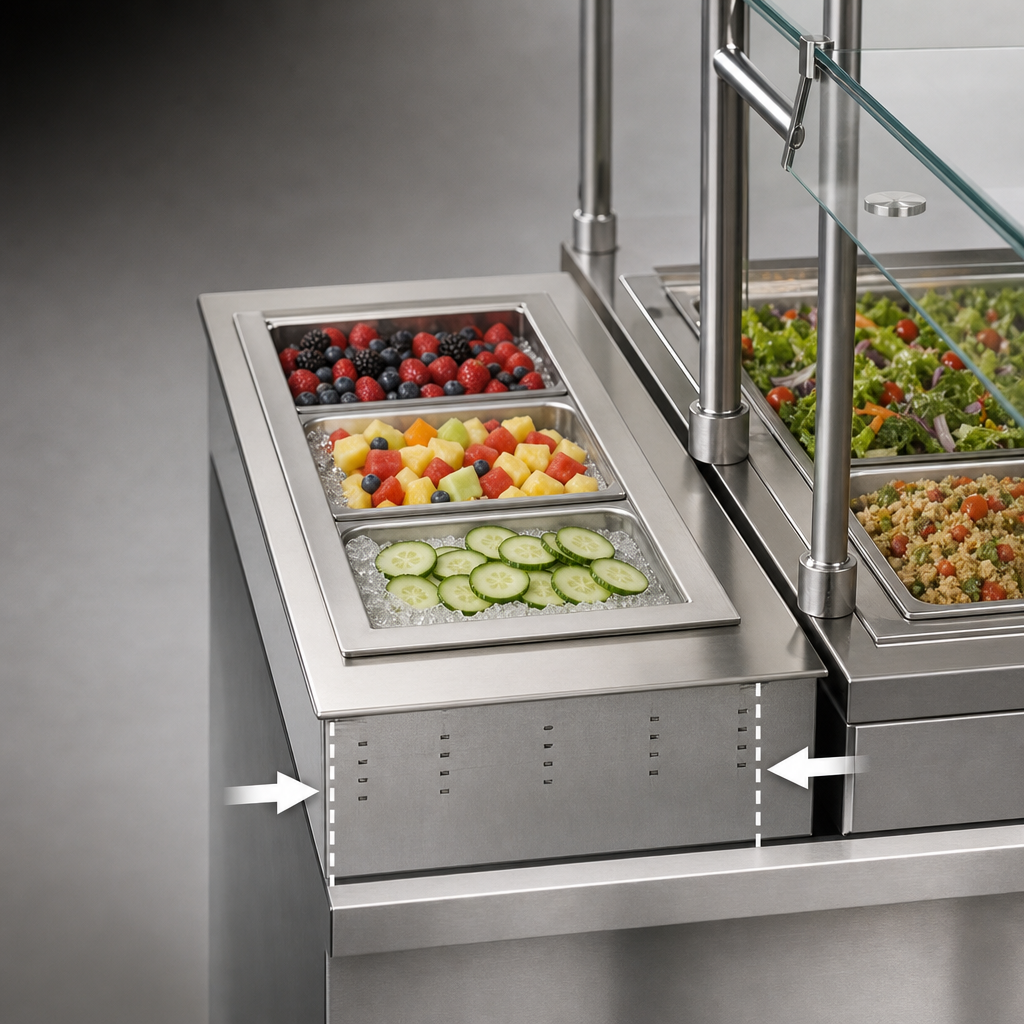

Vollrath 36657 Short Side Non-Refrigerated 3-Pan Cold Drop-In
Space-saving stainless steel solution for chilled food displayKeep salads, toppings and grab-and-go items safely chilled without the cost or complexity of refrigeration. The Vollrath 36657 short side cold pan uses an 8 in (20.3 cm) deep, foam-insulated well and your own ice to provide reliable cold holding for up to three full-size steam table pans—all in a slim 18 in (45.7 cm) wide footprint.
Key Features
- 18-gauge 18/8 Type 304 stainless steel top with seamless well for superior corrosion resistance.
- Full-perimeter, drip-free flange with molded breaker gasket keeps condensation off the counter.
- High-density, foamed-in-place polyurethane insulation holds ice longer for lower operating costs.
- 1 in (2.5 cm) integral drain and plug for fast, mess-free melt-water removal.
- Positioning clips ensure perfect alignment in the countertop cutout.
- NSF Listed and UL Recognized—meets the strictest food-safety and safety standards.
- Proudly made in the USA.
Capacity & Dimensions
| Pan capacity | 3 full-size (12 × 20 in) steam table pans* |
|---|---|
| Overall length (A) | 66 7⁄8 in (169.8 cm) |
| Overall width (B) | 18 in (45.7 cm) |
| Overall height (C) | 17 15⁄16 in (45.6 cm) incl. drain |
| Well length (D) | 61 1⁄2 in (156.2 cm) |
| Well width (E) | 12 in (30.5 cm) |
| Required cutout | 66 3⁄16 × 17 1⁄4 in (168.1 × 44.2 cm) with 7⁄8 in corner radius |
| Well depth | 8 in (20.3 cm) |
| Drain size | 1 in (2.5 cm) OD |
*Steam table pans sold separately.
Ideal For
- Salad bars & buffet lines
- Sandwich, taco or poke prep stations
- Grab-and-go merchandising
- Concession stands and kiosks without mechanical refrigeration
Installation Notes
- Top-mount installation into countertop cutout (see dimensions above).
- Requires ice; unit is non-refrigerated.
- Connect drain to plumbing, or empty manually with included plug.
Upgrade your cold food presentation with the reliability and craftsmanship of Vollrath—order the 36657 short side cold pan today.
