Vollrath 36654 Steam Tables & Food Wells
Description

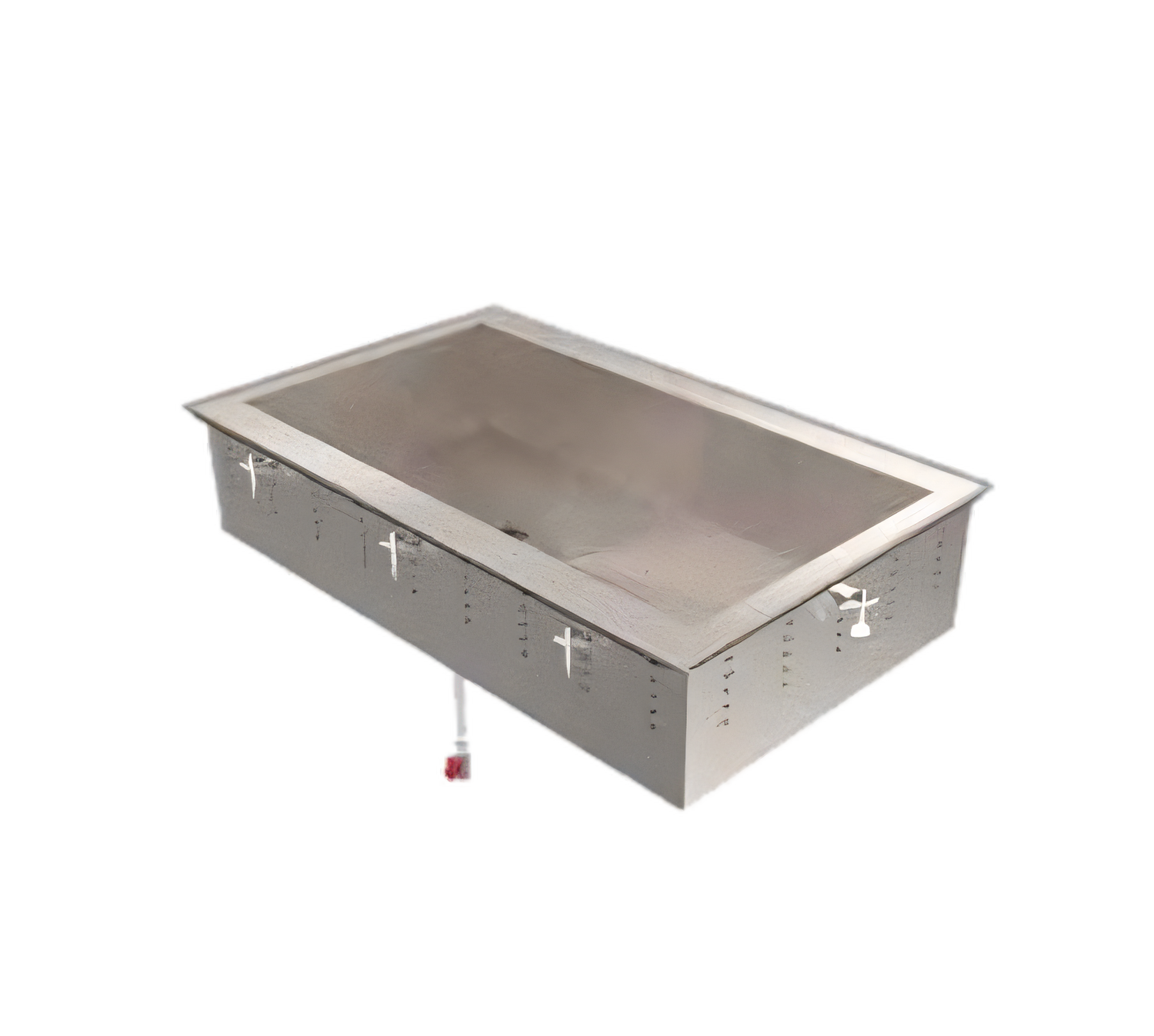

Vollrath Short-Side Non-Refrigerated Cold Pan Drop-In – 2-Pan
Model 36654 | NSF & UL Listed | Made in USABuilt for tight countertops and high-volume service, the Vollrath 36654 drop-in cold pan keeps pre-chilled foods safely cold and beautifully displayed without the cost or complexity of refrigeration. Its space-saving “short-side” design holds two full-size 12" × 20" pans in an 8-inch-deep, ice-packable well—perfect for salad, deli, pastry, or grab-and-go stations.
Key Benefits & Features
- Holds 2 standard full-size steam table pans (or fractional equivalents).
- 18-gauge 18/8 Type 304 stainless steel top and seamless well resist corrosion and clean up fast.
- 3/8" (9.5 mm) drip-free perimeter flange with molded breaker gasket keeps condensation off the counter.
- Foamed-in-place high-density polyurethane insulation extends ice life and maintains safe food temps.
- Integrated 1" (2.5 cm) drain with removable plug for quick, mess-free draining.
- Flat work surface around opening simplifies pan changes and merchandising.
- Included positioning clips center the unit in the cutout for a professional, watertight fit.
- Durable 18-gauge galvanized steel exterior housing stands up to daily commercial use.

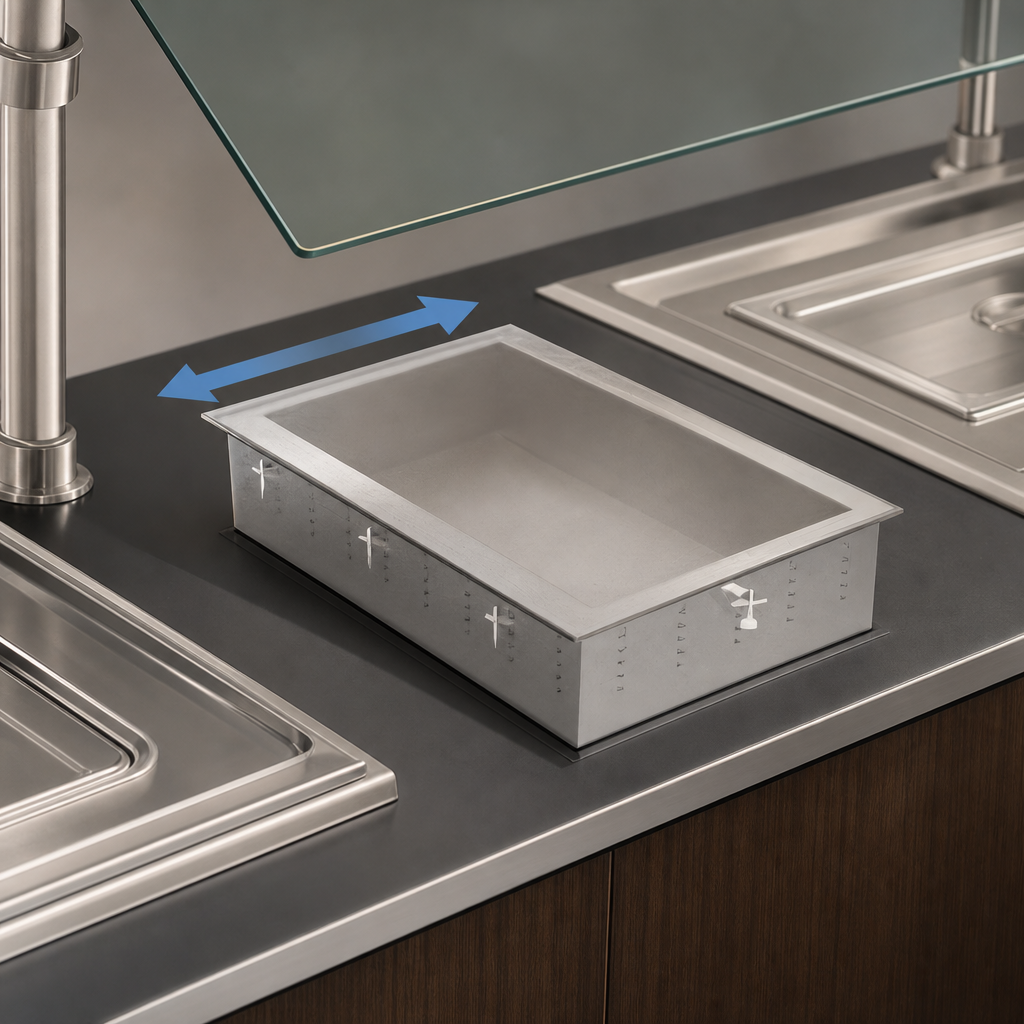

- Top-mount, narrow footprint maximizes line capacity while freeing up under-counter space.
- NSF & UL listed for sanitation and safety; one-year parts & labor warranty backed by Vollrath.
Technical Specifications
| Specification | Model 36654 (2-Pan) |
|---|---|
| Pan Capacity | 2 full-size 12" × 20" pans |
| Overall Length (A) | 45 7/16" (115.4 cm) |
| Overall Width (B) | 18" (45.7 cm) |
| Overall Height (C) | 17 15/16" (45.6 cm) |
| Well Length (D) | 40 3/4" (103.5 cm) |
| Well Width (E) | 12" (30.5 cm) |
| Well Depth | 8" (20.3 cm) |
| Countertop Cutout (L × W) | 44 3/4" × 17 1/4" (113.7 × 44.2 cm) |
| Corner Radius | 7/8" (2.22 cm) |
| Drain Size | 1" (2.5 cm) with plug |
| Construction | 18-gauge 18/8 Type 304 stainless steel well & top; 18-gauge galvanized steel exterior |
| Insulation | Foamed-in-place polyurethane |
This drop-in is built to order—please contact Vollrath for current lead times. Modular drop-ins cannot be canceled or returned once ordered.
For complete warranty details visit vollrathfoodservice.com.
