Key specifications
- Amps
- 6.3 Amps
- Dimensions
- 50.0"W × 30.0"D × 36.0"H
- Type
- Serving Counter
- Style
- Cold Pan
- Installation Type
- Floor Model
- Material
- Fiberglass
Piper Products/Servolift Eastern Reflections R3-BCM Refrigerated 3-Pan Well
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

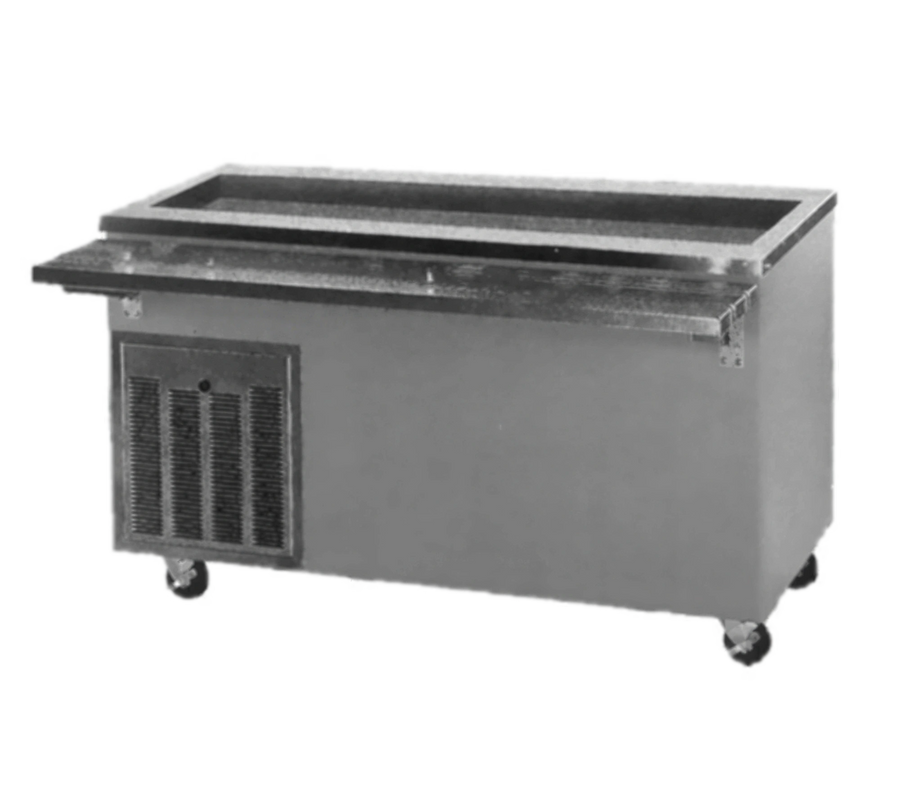

The Reflections R3-BCM is a mobile refrigerated serving counter with a 3-pan, 9-7/16-inch-deep cold pan, stainless steel top, and fully enclosed molded fiberglass base.
The unit measures 50 inches wide by 30 inches deep by 36 inches high. Its refrigerated well is welded and watertight, with a concealed continuous coil bonded to the sides and full insulation.
- 14-gauge stainless steel top with fully welded square turndowns on all sides
- Seamless molded FRP body with smooth exterior and rounded corners
- Four-inch swivel plate casters with brakes
- Fully hermetic condensing unit on slide-out rails behind removable louvered panels
- Three 12 x 20-inch pan capacity
- 120-volt electrical configuration with a 7-foot cord and NEMA 5-15P plug
- Listed for NSF/ANSI Standard 7
Overall Dimensions:
50.0"W x 30.0"D x 36.0"HProduct Weight:
485.0 lbThree-Pan Refrigerated Cold Pan
The extra-deep 9-7/16-inch cold pan has capacity for three 12 x 20-inch pans.
Stainless Steel Top
The 14-gauge stainless steel top has fully welded square turndowns on all sides.
Molded Fiberglass Body
The seamless molded FRP body has a smooth exterior, rounded corners, and a fully enclosed base.
Refrigeration System
The fully hermetic condensing unit is mounted on slide-out rails behind removable louvered panels for cross-flow ventilation.
Insulated Refrigerated Well
The welded watertight well has a concealed continuous refrigerated coil bonded to the sides and is fully insulated.
Mobile Casters
Four-inch swivel plate casters with brakes support mobile operation.
Interlocking Mechanism
An interlocking mechanism is provided for connection with other Reflections units.
Drain Valve
A 3/4-inch FPT drain ball valve is located below the unit.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
