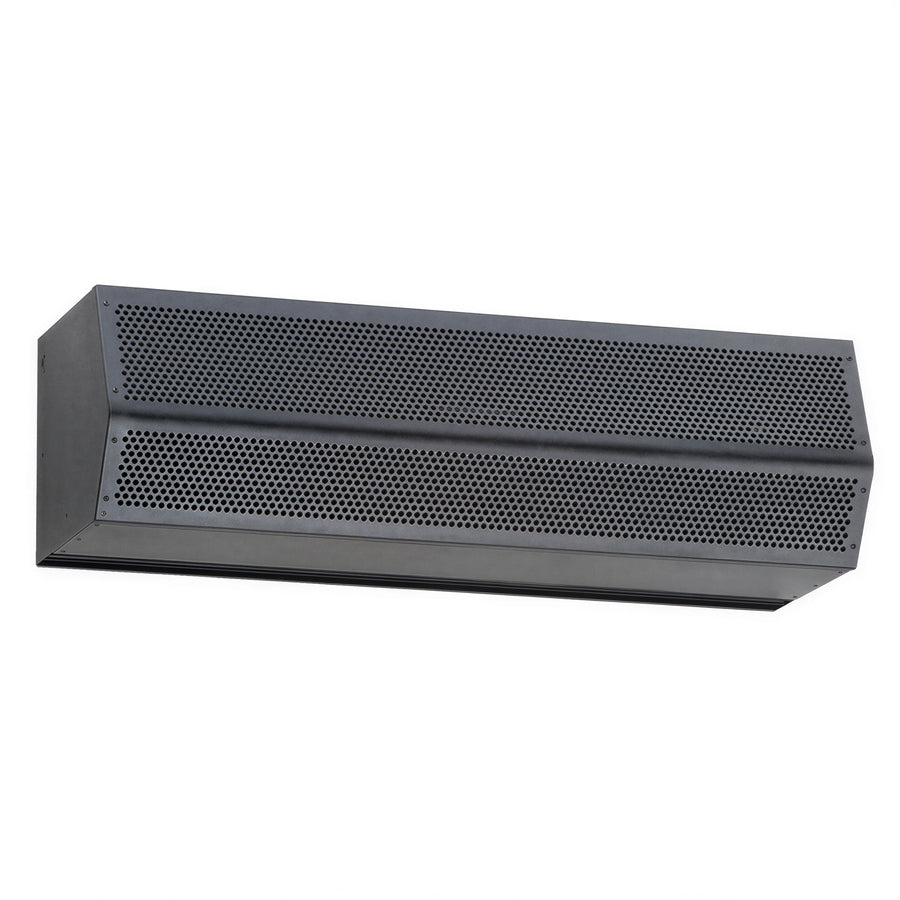

Play manufacturer video for Mars Air Systems STD242-1UG-OB Unheated Air Curtain for 42 in Door, 1/2 HP Motor, Obsidian BlackMars Air Systems STD242-1UG-OB Unheated Air Curtain for 42 in Door, 1/2 HP Motor, Obsidian Black
SKU: STD242-1UG-OB
$1,134.00
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems STD242-1UG-OB is an unheated air curtain designed for a 42 in door opening.
- Galvanized steel cabinet with an Obsidian Black powder coat finish
- One 1/2 hp continuous-duty TEAO motor
- 208-230V, 60 Hz, three-phase electrical configuration
- Adjustable air directional vanes with a 40° front-to-back sweep
Overall Dimensions:
42.0"W x 12.75"D x 12.13"HUnheated operation
Provides air curtain operation without a heating element.
42-inch door coverage
Sized for a 42 in door opening.
Single 1/2 hp motor
Uses one continuous-duty Totally Enclosed Air Over motor.
Adjustable air direction
Directional vanes provide a 40° sweep from front to back.
Obsidian Black finish
The galvanized steel cabinet has an Obsidian Black powder coat finish.
Five-year parts warranty
Includes a 5-year parts warranty.
Series
Standard Series 2
Heating type
Unheated
Door opening width
42 in
Maximum opening height
12 ft
Motor quantity
1
Motor horsepower
1/2 hp
Voltage
208-230 V
Frequency
60 Hz
Phase
3-phase
Power
510 W
Current
1.8/1.6 A
Cabinet material
Galvanized steel
Cabinet finish
Obsidian Black powder coat
Nozzle length
42 in
Airflow volume
1,418 cfm
Maximum core velocity
4,865 fpm
Average outlet velocity
1,945 fpm
Velocity uniformity
87%
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. The STD242-1UG-OB is an unheated air curtain.
It is designed for a 42 in door opening.
The specified configuration is 208-230 V, 60 Hz, three-phase.
It has one 1/2 hp motor.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
The product has a 5-year parts warranty.
